ADATA SU800 256GB drive with Deleted partitions

#1 Post by frustratedgeek »

ADATA SU800 256GB drive with Deleted partitions

Good morning.

I have been trying to research through all previous posts as well as almost 20 hrs of other programs/YT videos and online to repair this drive and I am now at the point where I absolutely need the help.

I will post the log, screen shots and be as patient as possible for a response from the GURU and others. I am confident it is a simple "click this, change this and hit apply" type fix however i am out of my league/scope.

I am trying to repair an ADATA SU800 256GB SSD Drive that is only showing 119GB available. It belongs to a friend and someone cloned an old HD to it which i believe is where the problem started. There are 3 deleted partitions. I will post an image of the TestDisk Deeper search results below.


Thank you in advance for your time. I hope this will help others in the future.

Jason

Code: Select all


Fri May 31 07:29:44 2024
Command line: TestDisk

TestDisk 7.2, Data Recovery Utility, February 2024
Christophe GRENIER <grenier@cgsecurity.org>
https://www.cgsecurity.org
OS: Windows 8 (9200)
Compiler: GCC 11.2, Cygwin32 3001.4
ext2fs lib: 1.45.3, ntfs lib: available, reiserfs lib: none, ewf lib: 20140608, curses lib: ncurses 6.1
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=256060514304
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=128035676160
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=190079698432
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=536870912
Hard disk list
Disk \\.\PhysicalDrive0 - 256 GB / 238 GiB - CHS 31130 255 63, sector size=512 - SAMSUNG MZ7LN256HCHP-000L7, S/N:S20HNXAG803453, FW:EMT03L6Q
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63, sector size=512 - ADATA SU 800, S/N:152D20337A0C

Partition table type (auto): Intel
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - ADATA SU 800
Partition table type: Intel

Analyse Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
Geometry from i386 MBR: head=256 sector=63
check_part_i386 1 type EE: no test
Current partition structure:
 1 P EFI GPT                  0   0  2 267349  89  4 4294967295

Warning: Bad ending head (CHS and LBA don't match)
No partition is bootable

search_part()
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
NTFS at 0/32/33
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB

Results
   * HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB

interface_write()
 1 * HPFS - NTFS              0  32 33 15565 241 36  250064896

search_part()
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
NTFS at 0/32/33
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB
NTFS at 40/105/2
filesystem size           249420431
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS             40 105  2 15566  29 30  249420431 [System]
     NTFS, blocksize=4096, 127 GB / 118 GiB
NTFS at 398/32/18
filesystem size           6393856
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33   398  32 18    6393856
     NTFS found using backup sector, blocksize=4096, 3273 MB / 3122 MiB
NTFS at 15565/241/36
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS found using backup sector, blocksize=4096, 128 GB / 119 GiB

Results
     HPFS - NTFS              0  32 33   398  32 18    6393856
     NTFS found using backup sector, blocksize=4096, 3273 MB / 3122 MiB
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB
     HPFS - NTFS             40 105  2 15566  51 37  249421824 [System]
     NTFS, blocksize=4096, 127 GB / 118 GiB
Invalid partition structure.

Interface Advanced
Geometry from i386 MBR: head=256 sector=63
check_part_i386 1 type EE: no test
 1 P EFI GPT                  0   0  2 267349  89  4 4294967295
Incomplete image created.

Analyse Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
Geometry from i386 MBR: head=256 sector=63
check_part_i386 1 type EE: no test
Current partition structure:
 1 P EFI GPT                  0   0  2 267349  89  4 4294967295

Warning: Bad ending head (CHS and LBA don't match)
No partition is bootable

search_part()
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
NTFS at 0/32/33
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB

Results
   * HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB

interface_write()
 1 * HPFS - NTFS              0  32 33 15565 241 36  250064896

search_part()
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
NTFS at 0/32/33
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB
NTFS at 40/105/2
filesystem size           249420431
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS             40 105  2 15566  29 30  249420431 [System]
     NTFS, blocksize=4096, 127 GB / 118 GiB
NTFS at 398/32/18
filesystem size           6393856
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33   398  32 18    6393856
     NTFS found using backup sector, blocksize=4096, 3273 MB / 3122 MiB
NTFS at 15565/241/36
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS found using backup sector, blocksize=4096, 128 GB / 119 GiB

Results
     HPFS - NTFS              0  32 33   398  32 18    6393856
     NTFS found using backup sector, blocksize=4096, 3273 MB / 3122 MiB
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB
     HPFS - NTFS             40 105  2 15566  51 37  249421824 [System]
     NTFS, blocksize=4096, 127 GB / 118 GiB

interface_write()

No partition found or selected for recovery
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition

TestDisk exited normally.

Top
recuperation
Posts: 3026
Joined: 04 Jan 2019, 09:48
Location: Hannover, Deutschland (Germany, Allemagne)

Re: ADATA SU800 256GB drive with Deleted partitions

#2 Post by recuperation »

Please upload your pictures to this site using the attachment tab on the bottom of the site.
Top
frustratedgeek
Posts: 2
Joined: 31 May 2024, 15:39

Re: ADATA SU800 256GB drive with Deleted partitions

#3 Post by frustratedgeek »

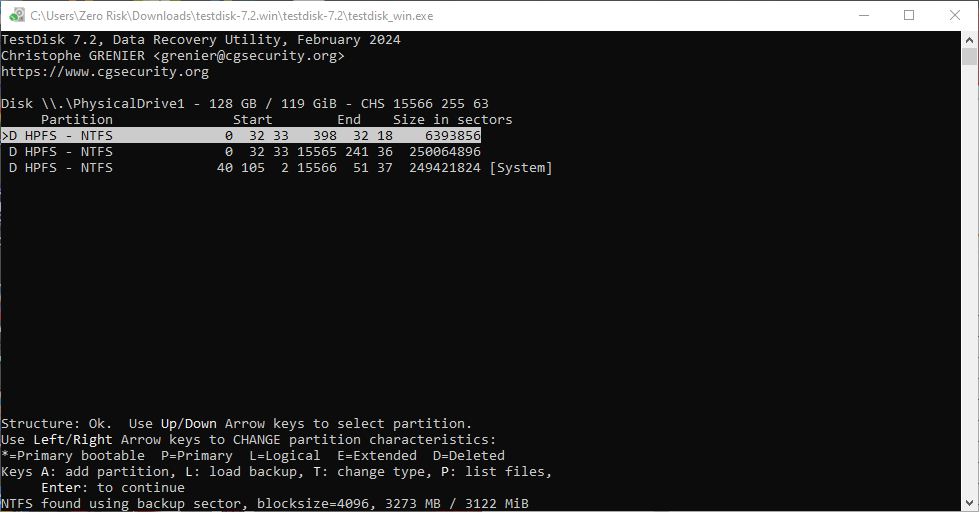

See attached.
Attachments
Top
recuperation
Posts: 3026
Joined: 04 Jan 2019, 09:48
Location: Hannover, Deutschland (Germany, Allemagne)

Re: ADATA SU800 256GB drive with Deleted partitions

#4 Post by recuperation »

frustratedgeek wrote: 31 May 2024, 21:06 See attached.

Code: Select all

Fri May 31 07:29:44 2024
Command line: TestDisk

TestDisk 7.2, Data Recovery Utility, February 2024
Christophe GRENIER <grenier@cgsecurity.org>
https://www.cgsecurity.org
OS: Windows 8 (9200)
Compiler: GCC 11.2, Cygwin32 3001.4
ext2fs lib: 1.45.3, ntfs lib: available, reiserfs lib: none, ewf lib: 20140608, curses lib: ncurses 6.1
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=256060514304
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=128035676160
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=190079698432
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=536870912
Hard disk list
Disk \\.\PhysicalDrive0 - 256 GB / 238 GiB - CHS 31130 255 63, sector size=512 - SAMSUNG MZ7LN256HCHP-000L7, S/N:S20HNXAG803453, FW:EMT03L6Q
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63, sector size=512 - ADATA SU 800, S/N:152D20337A0C

Partition table type (auto): Intel
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - ADATA SU 800
Partition table type: Intel

Analyse Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
Geometry from i386 MBR: head=256 sector=63
check_part_i386 1 type EE: no test
Current partition structure:
 1 P EFI GPT                  0   0  2 267349  89  4 4294967295

Warning: Bad ending head (CHS and LBA don't match)
No partition is bootable

search_part()
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
NTFS at 0/32/33
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB

Results
   * HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB

interface_write()
 1 * HPFS - NTFS              0  32 33 15565 241 36  250064896

search_part()
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
NTFS at 0/32/33
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB
NTFS at 40/105/2
filesystem size           249420431
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS             40 105  2 15566  29 30  249420431 [System]
     NTFS, blocksize=4096, 127 GB / 118 GiB
NTFS at 398/32/18
filesystem size           6393856
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33   398  32 18    6393856
     NTFS found using backup sector, blocksize=4096, 3273 MB / 3122 MiB
NTFS at 15565/241/36
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS found using backup sector, blocksize=4096, 128 GB / 119 GiB

Results
     HPFS - NTFS              0  32 33   398  32 18    6393856
     NTFS found using backup sector, blocksize=4096, 3273 MB / 3122 MiB
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB
     HPFS - NTFS             40 105  2 15566  51 37  249421824 [System]
     NTFS, blocksize=4096, 127 GB / 118 GiB
Invalid partition structure.

Interface Advanced
Geometry from i386 MBR: head=256 sector=63
check_part_i386 1 type EE: no test
 1 P EFI GPT                  0   0  2 267349  89  4 4294967295
Incomplete image created.

Analyse Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
Geometry from i386 MBR: head=256 sector=63
check_part_i386 1 type EE: no test
Current partition structure:
 1 P EFI GPT                  0   0  2 267349  89  4 4294967295

Warning: Bad ending head (CHS and LBA don't match)
No partition is bootable

search_part()
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
NTFS at 0/32/33
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB

Results
   * HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB

interface_write()
 1 * HPFS - NTFS              0  32 33 15565 241 36  250064896

search_part()
Disk \\.\PhysicalDrive1 - 128 GB / 119 GiB - CHS 15566 255 63
NTFS at 0/32/33
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB
NTFS at 40/105/2
filesystem size           249420431
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS             40 105  2 15566  29 30  249420431 [System]
     NTFS, blocksize=4096, 127 GB / 118 GiB
NTFS at 398/32/18
filesystem size           6393856
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33   398  32 18    6393856
     NTFS found using backup sector, blocksize=4096, 3273 MB / 3122 MiB
NTFS at 15565/241/36
filesystem size           250064896
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               2
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS found using backup sector, blocksize=4096, 128 GB / 119 GiB

Results
     HPFS - NTFS              0  32 33   398  32 18    6393856
     NTFS found using backup sector, blocksize=4096, 3273 MB / 3122 MiB
     HPFS - NTFS              0  32 33 15565 241 36  250064896
     NTFS, blocksize=4096, 128 GB / 119 GiB
     HPFS - NTFS             40 105  2 15566  51 37  249421824 [System]
     NTFS, blocksize=4096, 127 GB / 118 GiB

interface_write()

No partition found or selected for recovery
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition

TestDisk exited normally.
Given what the log file states your statement in your initial posting wasn't quite right:
I am trying to repair an ADATA SU800 256GB SSD Drive that is only showing 119GB available.
According to the log file your ADATA SU800 256 GB SSD states that its size is only 119GB instead of its promissed capacity of 256 GB.

This is where the TestDisk package cannot support you and you will have to consult a data recovery lab for recovery.
I guess nobody wants to "repair" your asummably broken SSD because that will be more expensive than its purchasing price.
Top
Locked

Return to “Partition Recovery”
