Can't access Hard Drive - Filesystem Damaged

#1 Post by davidaw » 21 Nov 2012, 20:02

My motherboard died, and I pulled out the hard drive from my laptop
I used to have 3 partitions: OS, Data and HP Recovery. Data is no longer there (this is one I created with Windows Vista). It is where all of my pictures and videos are stored.

I can't boot the harddrive, Windows gives error message. The boot sector appears damaged, and there doesn't seem to be a backup.

Testdisk is the first program to actually tell me what is wrong.



There is a D next to each one of the directories in a deeper search.

I think test disk can help me, but I don't know what to do next: my main goal is to find my pictures and get them off this drive - if they are still there.

See attachments

Regards,
Andy


Log results:

Wed Nov 21 11:09:33 2012
Command line: TestDisk

TestDisk 6.14-WIP, Data Recovery Utility, September 2012
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows 7 (7601) SP1
Compiler: GCC 4.6, Cygwin 1007.9
Compilation date: 2012-09-01T21:55:20
ext2fs lib: 1.42.2, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=320072933376
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=120034123776
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=320072933376
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=120034123776
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=320070836224
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E:)=111082373632
Hard disk list
Disk /dev/sda - 320 GB / 298 GiB - CHS 38913 255 63, sector size=512 - ST320LT0 07-9ZV142, S/N:0W2Q36F0, FW:0004
Disk /dev/sdb - 120 GB / 111 GiB - CHS 14593 255 63, sector size=512 - FUJITSU K410T7B2F5CR, FW:890B

Partition table type (auto): Intel
Disk /dev/sdb - 120 GB / 111 GiB - FUJITSU K410T7B2F5CR
Partition table type: Intel

Analyse Disk /dev/sdb - 120 GB / 111 GiB - CHS 14593 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/1/1
Error: size boot_sector 216957762 > partition 216957761
check_part_i386 failed for partition type 07
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
Current partition structure:
Error: size boot_sector 216957762 > partition 216957761
Invalid NTFS or EXFAT boot
1 P HPFS - NTFS 0 1 1 13504 254 62 216957761
1 P HPFS - NTFS 0 1 1 13504 254 62 216957761
No partition is bootable
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.
Failed to startup volume: Input/Output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.
Failed to startup volume: Input/Output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.
Failed to startup volume: Input/Output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.
Failed to startup volume: Input/Output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.

search_part()
Disk /dev/sdb - 120 GB / 111 GiB - CHS 14593 255 63
NTFS at 0/1/1
filesystem size 216957762
sectors_per_cluster 8
mft_lcn 10
mftmirr_lcn 755455
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
NTFS at 13505/0/1
filesystem size 17478719
sectors_per_cluster 8
mft_lcn 170152
mftmirr_lcn 255229
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 13505 0 1 14592 254 62 17478719
NTFS, blocksize=4096, 8949 MB / 8534 MiB
file_pread(5,2,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,1,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,8,buffer,234441729(14593/82/19)) lseek err Invalid argument
file_pread(5,1,buffer,234441729(14593/82/19)) lseek err Invalid argument
file_pread(5,8,buffer,234441857(14593/84/21)) lseek err Invalid argument
file_pread(5,8,buffer,234441985(14593/86/23)) lseek err Invalid argument
file_pread(5,8,buffer,234442113(14593/88/25)) lseek err Invalid argument
file_pread(5,8,buffer,234442241(14593/90/27)) lseek err Invalid argument
file_pread(5,8,buffer,234442369(14593/92/29)) lseek err Invalid argument
file_pread(5,8,buffer,234442497(14593/94/31)) lseek err Invalid argument
file_pread(5,8,buffer,234442625(14593/96/33)) lseek err Invalid argument
file_pread(5,16,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,3,buffer,234442768(14593/98/50)) lseek err Invalid argument
file_pread(5,3,buffer,234442815(14593/99/34)) lseek err Invalid argument
file_pread(5,8,buffer,234442831(14593/99/50)) lseek err Invalid argument
file_pread(5,11,buffer,234442878(14593/100/34)) lseek err Invalid argument
file_pread(5,2,buffer,234444800(14593/131/3)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=4
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=4

Results
* HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
P HPFS - NTFS 13505 0 1 14592 254 63 17478720
NTFS, blocksize=4096, 8949 MB / 8534 MiB
NTFS Volume is dirty.


dir_partition inode=5
* HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
ntfs_readdir failed

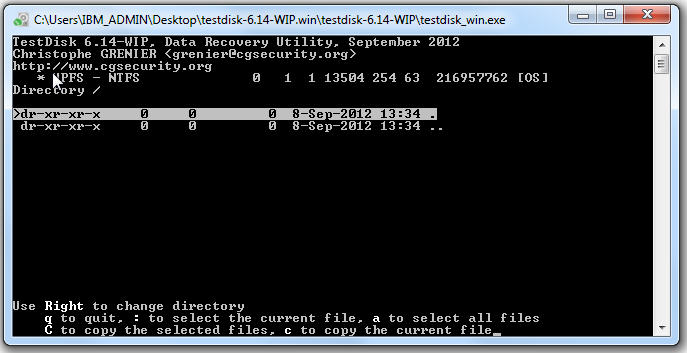

Directory /
5 dr-xr-xr-x 0 0 0 8-Sep-2012 13:34 .
5 dr-xr-xr-x 0 0 0 8-Sep-2012 13:34 ..
NTFS Volume is dirty.


dir_partition inode=5
* HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
ntfs_readdir failed
Directory /
5 dr-xr-xr-x 0 0 0 8-Sep-2012 13:34 .
5 dr-xr-xr-x 0 0 0 8-Sep-2012 13:34 ..
Not an exFAT boot sector.

P HPFS - NTFS 13505 0 1 14592 254 63 17478720
NTFS, blocksize=4096, 8949 MB / 8534 MiB

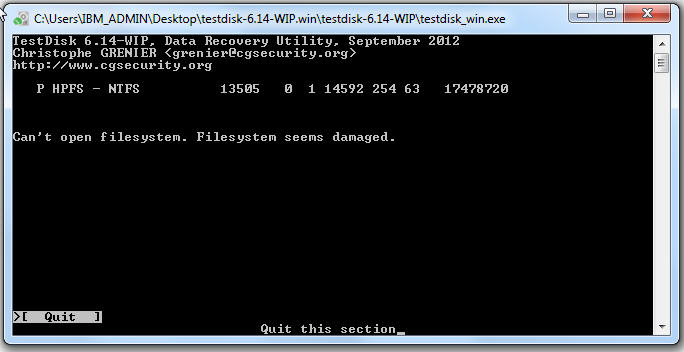

Can't open filesystem. Filesystem seems damaged.
Not an exFAT boot sector.

P HPFS - NTFS 13505 0 1 14592 254 63 17478720
NTFS, blocksize=4096, 8949 MB / 8534 MiB
Can't open filesystem. Filesystem seems damaged.

interface_write()
1 * HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
2 P HPFS - NTFS 13505 0 1 14592 254 63 17478720

search_part()
Disk /dev/sdb - 120 GB / 111 GiB - CHS 14593 255 63
NTFS at 0/1/1
filesystem size 216957762
sectors_per_cluster 8
mft_lcn 10
mftmirr_lcn 755455
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
NTFS at 0/32/33
filesystem size 216954873
sectors_per_cluster 8
mft_lcn 8316016
mftmirr_lcn 14280
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 13504 240 41 216954873 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
NTFS at 8005/158/25
filesystem size 216957762
sectors_per_cluster 8
mft_lcn 10
mftmirr_lcn 755455
clusters_per_mft_record -10
clusters_per_index_record 1
NTFS part_offset=65848475136, part_size=111082374144, sector_size=512
NTFS partition cannot be added (part_offset<part_size).
NTFS at 13504/254/63
filesystem size 216957762
sectors_per_cluster 8
mft_lcn 10
mftmirr_lcn 755455
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS found using backup sector, blocksize=4096, 111 GB / 103 GiB
NTFS at 13505/0/1
filesystem size 17478719
sectors_per_cluster 8
mft_lcn 170152
mftmirr_lcn 255229
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 13505 0 1 14592 254 62 17478719
NTFS, blocksize=4096, 8949 MB / 8534 MiB
NTFS at 13505/18/18
filesystem size 17475577
sectors_per_cluster 8
mft_lcn 63030
mftmirr_lcn 47068
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 13505 18 18 14592 223 24 17475577 [HP_RECOVERY]
NTFS, blocksize=4096, 8947 MB / 8532 MiB
file_pread(5,2,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,1,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,8,buffer,234441728(14593/82/18)) lseek err Invalid argument
file_pread(5,1,buffer,234441728(14593/82/18)) lseek err Invalid argument
file_pread(5,8,buffer,234441729(14593/82/19)) lseek err Invalid argument
file_pread(5,8,buffer,234441856(14593/84/20)) lseek err Invalid argument
file_pread(5,1,buffer,234441864(14593/84/28)) lseek err Invalid argument
file_pread(5,8,buffer,234441984(14593/86/22)) lseek err Invalid argument
file_pread(5,1,buffer,234441992(14593/86/30)) lseek err Invalid argument
file_pread(5,8,buffer,234442112(14593/88/24)) lseek err Invalid argument
file_pread(5,1,buffer,234442120(14593/88/32)) lseek err Invalid argument
file_pread(5,8,buffer,234442240(14593/90/26)) lseek err Invalid argument
file_pread(5,1,buffer,234442248(14593/90/34)) lseek err Invalid argument
file_pread(5,8,buffer,234442368(14593/92/28)) lseek err Invalid argument
file_pread(5,1,buffer,234442376(14593/92/36)) lseek err Invalid argument
file_pread(5,8,buffer,234442496(14593/94/30)) lseek err Invalid argument
file_pread(5,1,buffer,234442504(14593/94/38)) lseek err Invalid argument
file_pread(5,8,buffer,234442624(14593/96/32)) lseek err Invalid argument
file_pread(5,1,buffer,234442632(14593/96/40)) lseek err Invalid argument
file_pread(5,1,buffer,234442751(14593/98/33)) lseek err Invalid argument
file_pread(5,1,buffer,234442752(14593/98/34)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=4
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=4

Results
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
HPFS - NTFS 0 32 33 13504 240 48 216954880 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
HPFS - NTFS 13505 0 1 14592 254 63 17478720
NTFS, blocksize=4096, 8949 MB / 8534 MiB
HPFS - NTFS 13505 18 18 14592 223 31 17475584 [HP_RECOVERY]
NTFS, blocksize=4096, 8947 MB / 8533 MiB

interface_write()

No partition found or selected for recovery
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition

Analyse Disk /dev/sdb - 120 GB / 111 GiB - CHS 14593 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/1/1
Error: size boot_sector 216957762 > partition 216957761
check_part_i386 failed for partition type 07
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
Current partition structure:
Error: size boot_sector 216957762 > partition 216957761
Invalid NTFS or EXFAT boot
1 P HPFS - NTFS 0 1 1 13504 254 62 216957761
1 P HPFS - NTFS 0 1 1 13504 254 62 216957761
No partition is bootable

search_part()
Disk /dev/sdb - 120 GB / 111 GiB - CHS 14593 255 63
NTFS at 0/1/1
filesystem size 216957762
sectors_per_cluster 8
mft_lcn 10
mftmirr_lcn 755455
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
NTFS at 13505/0/1
filesystem size 17478719
sectors_per_cluster 8
mft_lcn 170152
mftmirr_lcn 255229
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 13505 0 1 14592 254 62 17478719
NTFS, blocksize=4096, 8949 MB / 8534 MiB
file_pread(5,2,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,1,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,8,buffer,234441729(14593/82/19)) lseek err Invalid argument
file_pread(5,1,buffer,234441729(14593/82/19)) lseek err Invalid argument
file_pread(5,8,buffer,234441857(14593/84/21)) lseek err Invalid argument
file_pread(5,8,buffer,234441985(14593/86/23)) lseek err Invalid argument
file_pread(5,8,buffer,234442113(14593/88/25)) lseek err Invalid argument
file_pread(5,8,buffer,234442241(14593/90/27)) lseek err Invalid argument
file_pread(5,8,buffer,234442369(14593/92/29)) lseek err Invalid argument
file_pread(5,8,buffer,234442497(14593/94/31)) lseek err Invalid argument
file_pread(5,8,buffer,234442625(14593/96/33)) lseek err Invalid argument
file_pread(5,16,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,3,buffer,234442768(14593/98/50)) lseek err Invalid argument
file_pread(5,3,buffer,234442815(14593/99/34)) lseek err Invalid argument
file_pread(5,8,buffer,234442831(14593/99/50)) lseek err Invalid argument
file_pread(5,11,buffer,234442878(14593/100/34)) lseek err Invalid argument
file_pread(5,2,buffer,234444800(14593/131/3)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=4
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=4

Results
* HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
P HPFS - NTFS 13505 0 1 14592 254 63 17478720
NTFS, blocksize=4096, 8949 MB / 8534 MiB

interface_write()
1 * HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
2 P HPFS - NTFS 13505 0 1 14592 254 63 17478720
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition

Analyse Disk /dev/sdb - 120 GB / 111 GiB - CHS 14593 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/1/1
Error: size boot_sector 216957762 > partition 216957761
check_part_i386 failed for partition type 07
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
Current partition structure:
Error: size boot_sector 216957762 > partition 216957761
Invalid NTFS or EXFAT boot
1 P HPFS - NTFS 0 1 1 13504 254 62 216957761
1 P HPFS - NTFS 0 1 1 13504 254 62 216957761
No partition is bootable
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.
Failed to startup volume: Input/Output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.
Failed to startup volume: Input/Output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/Output error.

search_part()
Disk /dev/sdb - 120 GB / 111 GiB - CHS 14593 255 63
NTFS at 0/1/1
filesystem size 216957762
sectors_per_cluster 8
mft_lcn 10
mftmirr_lcn 755455
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
NTFS at 13505/0/1
filesystem size 17478719
sectors_per_cluster 8
mft_lcn 170152
mftmirr_lcn 255229
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 13505 0 1 14592 254 62 17478719
NTFS, blocksize=4096, 8949 MB / 8534 MiB
file_pread(5,2,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,1,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,8,buffer,234441729(14593/82/19)) lseek err Invalid argument
file_pread(5,1,buffer,234441729(14593/82/19)) lseek err Invalid argument
file_pread(5,8,buffer,234441857(14593/84/21)) lseek err Invalid argument
file_pread(5,8,buffer,234441985(14593/86/23)) lseek err Invalid argument
file_pread(5,8,buffer,234442113(14593/88/25)) lseek err Invalid argument
file_pread(5,8,buffer,234442241(14593/90/27)) lseek err Invalid argument
file_pread(5,8,buffer,234442369(14593/92/29)) lseek err Invalid argument
file_pread(5,8,buffer,234442497(14593/94/31)) lseek err Invalid argument
file_pread(5,8,buffer,234442625(14593/96/33)) lseek err Invalid argument
file_pread(5,16,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,3,buffer,234442768(14593/98/50)) lseek err Invalid argument
file_pread(5,3,buffer,234442815(14593/99/34)) lseek err Invalid argument
file_pread(5,8,buffer,234442831(14593/99/50)) lseek err Invalid argument
file_pread(5,11,buffer,234442878(14593/100/34)) lseek err Invalid argument
file_pread(5,2,buffer,234444800(14593/131/3)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=4
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=4

Results
* HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
P HPFS - NTFS 13505 0 1 14592 254 63 17478720
NTFS, blocksize=4096, 8949 MB / 8534 MiB
Not an exFAT boot sector.

P HPFS - NTFS 13505 0 1 14592 254 63 17478720
NTFS, blocksize=4096, 8949 MB / 8534 MiB
Can't open filesystem. Filesystem seems damaged.

interface_write()
1 * HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
2 P HPFS - NTFS 13505 0 1 14592 254 63 17478720

search_part()
Disk /dev/sdb - 120 GB / 111 GiB - CHS 14593 255 63
NTFS at 0/1/1
filesystem size 216957762
sectors_per_cluster 8
mft_lcn 10
mftmirr_lcn 755455
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
NTFS at 0/32/33
filesystem size 216954873
sectors_per_cluster 8
mft_lcn 8316016
mftmirr_lcn 14280
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 13504 240 41 216954873 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
NTFS at 8005/158/25
filesystem size 216957762
sectors_per_cluster 8
mft_lcn 10
mftmirr_lcn 755455
clusters_per_mft_record -10
clusters_per_index_record 1
NTFS part_offset=65848475136, part_size=111082374144, sector_size=512
NTFS partition cannot be added (part_offset<part_size).
NTFS at 13504/254/63
filesystem size 216957762
sectors_per_cluster 8
mft_lcn 10
mftmirr_lcn 755455
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS found using backup sector, blocksize=4096, 111 GB / 103 GiB
NTFS at 13505/0/1
filesystem size 17478719
sectors_per_cluster 8
mft_lcn 170152
mftmirr_lcn 255229
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 13505 0 1 14592 254 62 17478719
NTFS, blocksize=4096, 8949 MB / 8534 MiB
NTFS at 13505/18/18
filesystem size 17475577
sectors_per_cluster 8
mft_lcn 63030
mftmirr_lcn 47068
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 13505 18 18 14592 223 24 17475577 [HP_RECOVERY]
NTFS, blocksize=4096, 8947 MB / 8532 MiB
file_pread(5,2,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,1,buffer,234442752(14593/98/34)) lseek err Invalid argument
file_pread(5,8,buffer,234441728(14593/82/18)) lseek err Invalid argument
file_pread(5,1,buffer,234441728(14593/82/18)) lseek err Invalid argument
file_pread(5,8,buffer,234441729(14593/82/19)) lseek err Invalid argument
file_pread(5,8,buffer,234441856(14593/84/20)) lseek err Invalid argument
file_pread(5,1,buffer,234441864(14593/84/28)) lseek err Invalid argument
file_pread(5,8,buffer,234441984(14593/86/22)) lseek err Invalid argument
file_pread(5,1,buffer,234441992(14593/86/30)) lseek err Invalid argument
file_pread(5,8,buffer,234442112(14593/88/24)) lseek err Invalid argument
file_pread(5,1,buffer,234442120(14593/88/32)) lseek err Invalid argument
file_pread(5,8,buffer,234442240(14593/90/26)) lseek err Invalid argument
file_pread(5,1,buffer,234442248(14593/90/34)) lseek err Invalid argument
file_pread(5,8,buffer,234442368(14593/92/28)) lseek err Invalid argument
file_pread(5,1,buffer,234442376(14593/92/36)) lseek err Invalid argument
file_pread(5,8,buffer,234442496(14593/94/30)) lseek err Invalid argument
file_pread(5,1,buffer,234442504(14593/94/38)) lseek err Invalid argument
file_pread(5,8,buffer,234442624(14593/96/32)) lseek err Invalid argument
file_pread(5,1,buffer,234442632(14593/96/40)) lseek err Invalid argument
file_pread(5,1,buffer,234442751(14593/98/33)) lseek err Invalid argument
file_pread(5,1,buffer,234442752(14593/98/34)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=4
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=4

Results
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
HPFS - NTFS 0 32 33 13504 240 48 216954880 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
HPFS - NTFS 13505 0 1 14592 254 63 17478720
NTFS, blocksize=4096, 8949 MB / 8534 MiB
HPFS - NTFS 13505 18 18 14592 223 31 17475584 [HP_RECOVERY]
NTFS, blocksize=4096, 8947 MB / 8533 MiB
NTFS Volume is dirty.


dir_partition inode=5
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
ntfs_readdir failed
Directory /
5 dr-xr-xr-x 0 0 0 8-Sep-2012 13:34 .
5 dr-xr-xr-x 0 0 0 8-Sep-2012 13:34 ..
NTFS Volume is dirty.


dir_partition inode=5
HPFS - NTFS 0 1 1 13504 254 63 216957762 [OS]
NTFS, blocksize=4096, 111 GB / 103 GiB
ntfs_readdir failed
Directory /
5 dr-xr-xr-x 0 0 0 8-Sep-2012 13:34 .
5 dr-xr-xr-x 0 0 0 8-Sep-2012 13:34 ..

interface_write()

No partition found or selected for recovery
Attachments
testdisk sc 3.jpg
testdisk sc 3.jpg (38.26 KiB) Viewed 1787 times
testdisk sc 2.jpg
testdisk sc 2.jpg (45.4 KiB) Viewed 1787 times

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 3574
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Can't access Hard Drive - Filesystem Damaged

#2 Post by cgrenier » 24 Dec 2012, 07:44

Run TestDisk, after Analyse and Quick Search, choose Write, confirm, Quit.
Try TestDisk, Advanced, Boot, RepairMFT
If it doesn't work, use PhotoRec on the whole space of this partition.
Good luck

Post Reply

Who is online

Users browsing this forum: No registered users and 0 guests
