Iceking007
Posts: 15
Joined: 30 Nov 2012, 19:09

PLEASE HELP Raid 0 Array lost!

#1 Post by Iceking007 »

My system updated bios and when it restarted I got the failed Raid array when booting one of the array disks was not showing as part of the array.

I am trying to recover four 1TB Raid 0 drives created through intel's on board driver through boot tool; I fallowed the instructions deleting the Raid array and adding a new one with the same specs; the harddrives were not moved or disconnected so the same order should have been kept.

Using Testdisk I can scan successfully although sometimes taking a full day for deep scan but it says unable to recover size is too small. Please help me on what I am doing here; thank you so much.

My last backup was over a month ago so there is very important data That I require and cannot duplicate!!
This is a screen shot after a quick search of the array
This is a screen shot after a quick search of the array
Quick Search.jpg (73.6 KiB) Viewed 2058 times

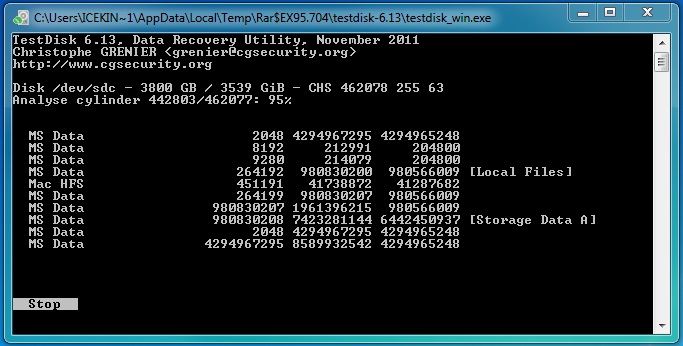

This is nearing the end of a deep search
This is nearing the end of a deep search
Test Disk Scan.jpg (80.84 KiB) Viewed 2058 times

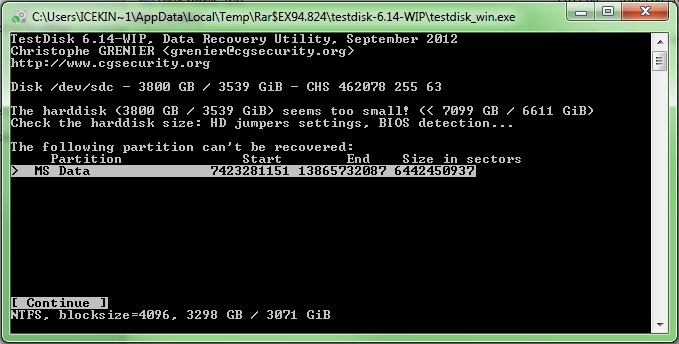

This screen shot is fallowing a deep search
This screen shot is fallowing a deep search
After Deep Scan.jpg (75.46 KiB) Viewed 2058 times
Top
Iceking007
Posts: 15
Joined: 30 Nov 2012, 19:09

Re: PLEASE HELP Raid 0 Array lost!

#2 Post by Iceking007 »

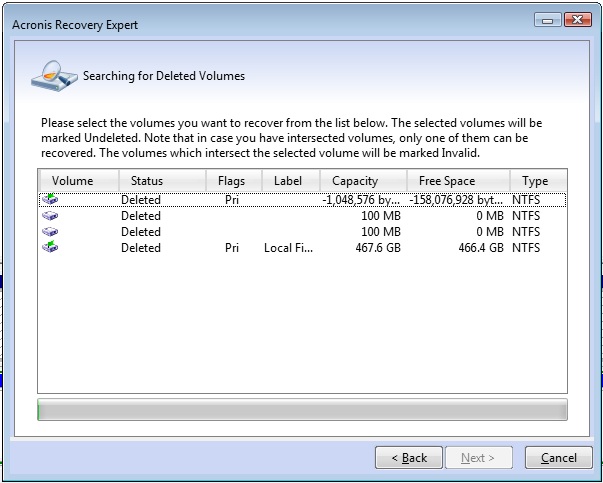

This screen shot is of a scan I did with Acronis Recovery Expert through Disk Director 2011 It only shows my D: drive not my H: drive partition on the same array so I don't think I should use it also I'm not sure which D: drive would be correct since it list it twice and there is no way to browse the files.

Acronis Recovery Expert Scan.jpg
Acronis Recovery Expert Scan.jpg (75.57 KiB) Viewed 2057 times


PLEASE HELP ME I'M DESPERATE!!!
