2TB RAW (Corrupted) exFAT drive

Using TestDisk to repair the filesystem
Post Reply
Message
Author
WastedPenguin
Posts: 1
Joined: 25 Oct 2013, 18:23

2TB RAW (Corrupted) exFAT drive

#1 Post by WastedPenguin » 25 Oct 2013, 19:04

Hi,

I have a problem. My 2TB hard drive has broken again. It is the WD Caviar Green WD20EARX 2TB edition. In the past I had exactly the same problem (he could no longer read under Windows and Mac), and then solved it with TestDisk. The problem then was in the boot sector. I used the super backup from the drive and magically it's worked, but this time it seems not to work. The drive itself is formated as exFAT.

I hope somebody can help me out here, since I don't have another drive to backup stuff.



I use Mavericks (10.9) with Windows 7.

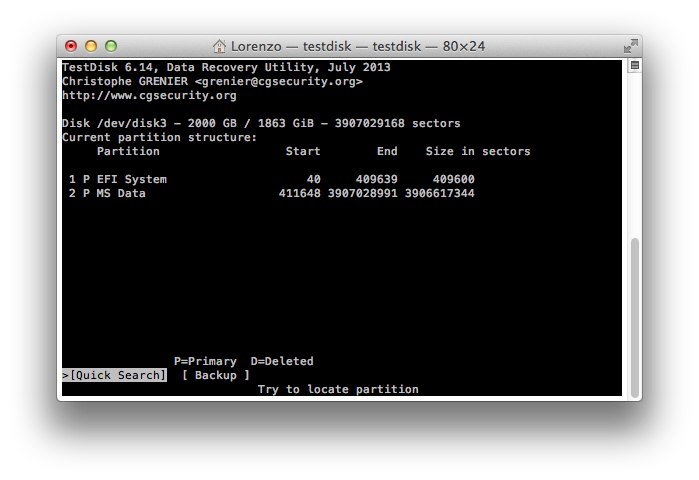

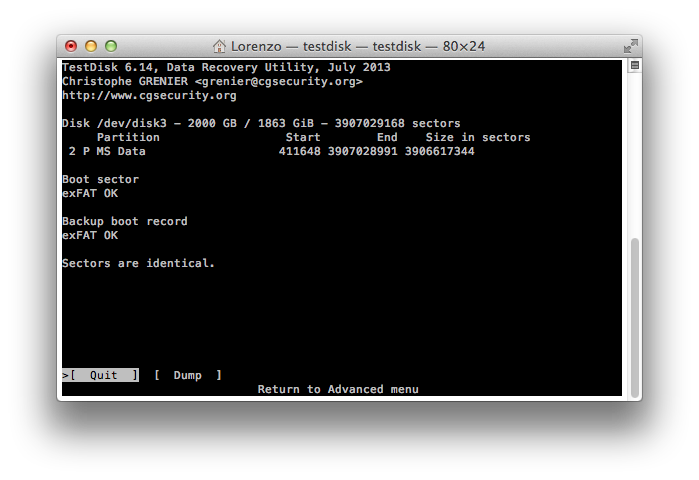

The log-file:

Fri Oct 25 16:38:03 2013
Command line: TestDisk

TestDisk 6.14, Data Recovery Utility, July 2013
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Darwin, kernel 13.0.0 (Darwin Kernel Version 13.0.0: Thu Sep 19 22:22:27 PDT 2013; root:xnu-2422.1
Compiler: GCC 4.0
Compilation date: 2013-07-30T14:08:37
ext2fs lib: 1.41.8, ntfs lib: libntfs-3g, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504
Hard disk list
Disk /dev/disk0 - 256 GB / 238 GiB - 500118192 sectors (RO), sector size=512
Disk /dev/disk1 - 80 GB / 74 GiB - 156301488 sectors (RO), sector size=512
Disk /dev/disk2 - 2000 GB / 1863 GiB - 3907029168 sectors, sector size=512
Disk /dev/disk3 - 80 GB / 74 GiB - 156301488 sectors (RO), sector size=512
Disk /dev/rdisk0 - 256 GB / 238 GiB - 500118192 sectors (RO), sector size=512
Disk /dev/rdisk1 - 80 GB / 74 GiB - 156301488 sectors (RO), sector size=512
Disk /dev/rdisk2 - 2000 GB / 1863 GiB - 3907029168 sectors, sector size=512
Disk /dev/rdisk3 - 80 GB / 74 GiB - 156301488 sectors (RO), sector size=512

Backup partition structure
partition_save

search_part()
Disk /dev/disk2 - 2000 GB / 1863 GiB - 3907029168 sectors
check_FAT: Unusual media descriptor (0xf0!=0xf8)
FAT32 at 40/0/1
FAT1 : 32-3182
FAT2 : 3183-6333
start_rootdir : 6334 root cluster : 2
Data : 6334-409599
sectors : 409600
cluster_size : 1
no_of_cluster : 403266 (2 - 403267)
fat_length 3151 calculated 3151
heads/cylinder 16 (FAT) != 1 (HD)
sect/track 32 (FAT) != 1 (HD)

FAT32 at 40/0/1
EFI System 40 409639 409600 [EFI]
FAT32, blocksize=512, 209 MB / 200 MiB
MS Data 411648 3907028991 3906617344
exFAT, 2000 GB / 1862 GiB

Results
P EFI System 40 409639 409600 [EFI]
FAT32, blocksize=512, 209 MB / 200 MiB
P MS Data 411648 3907028991 3906617344
exFAT, 2000 GB / 1862 GiB


Thanks!

Greetings,

Lorenzo
Mac OS X Mavericks 10.9 & Windows 7 (Dualboot, Hackintosh)
GPU Gigabyte GV N65TOC-2GI
CPU Intel Core i7 3770K / 3.5 GHz
SSD Samsung 830 Series MZ-7PC256B
MOTHERBOARD Gigabyte GA-Q77M-D2H
