can't open file system

Utiliser TestDisk pour réparer le système de fichier
Post Reply
Message
Author
jeanluc44
Posts: 2
Joined: 05 Mar 2015, 18:42

can't open file system

#1 Post by jeanluc44 » 05 Mar 2015, 21:19

Bonjour,
je galère depuis 15 jours à tenter de récupérer le contenu d'un disque interne SATA WD 500Gb...jusqu'à découvrir votre logiciel qui m'a redonner de l'espoir même si je n'ai toujours pas la solution!!!

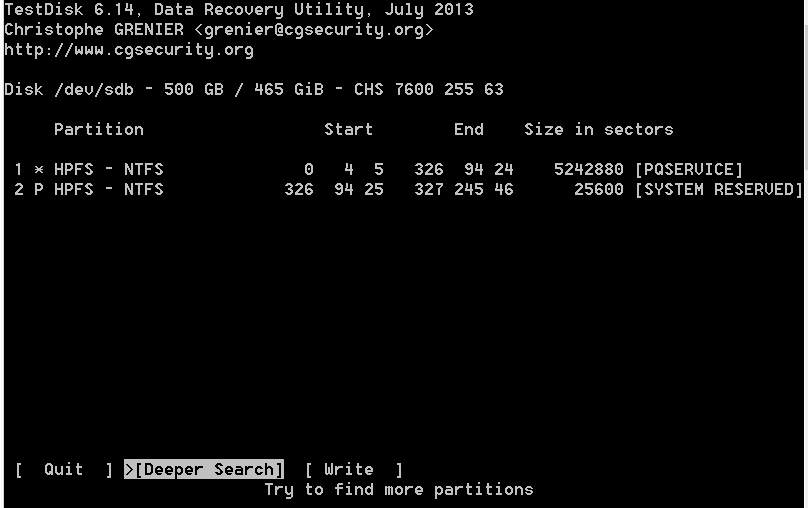

le quick search donne ceci
quick search.png
quick search.png (17.98 KiB) Viewed 1047 times

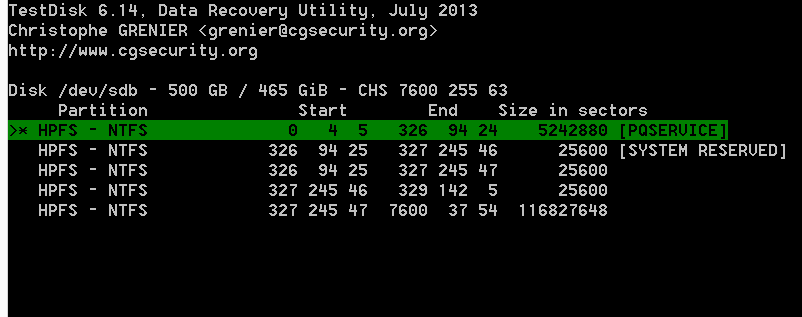

puis de deeper search donne
deeper search.png
deeper search.png (18.74 KiB) Viewed 1047 times

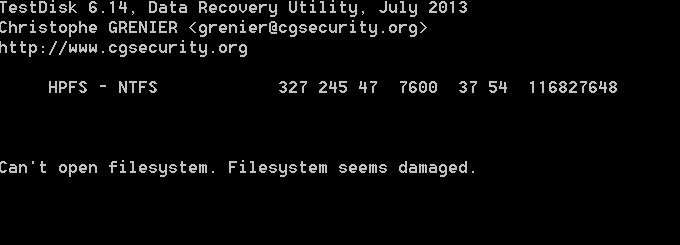

J'ai alors fait un p sur la dernière ligne avec comme résultat
ouverture partition.png
ouverture partition.png (8.19 KiB) Viewed 1047 times
Je ne sais pas quoi faire?
pourriez-vous m'orienter ; merci de m'avoir lu.

Cordialement
Jean-Luc

le log donne ceci:

Thu Mar 5 18:33:46 2015
Command line: TestDisk

TestDisk 6.14, Data Recovery Utility, July 2013
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows WorkStation 6.2.9200
Compiler: GCC 4.7, Cygwin 1007.17
Compilation date: 2013-07-30T14:08:52
ext2fs lib: 1.42.2, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=200041037824
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=277397635072
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E:)=21474836480
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F:)=104857600
Hard disk list
Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512 - ST500LM000-1EJ162, S/N:W76131LB, FW:AS11
Disk /dev/sdb - 500 GB / 465 GiB - CHS 7600 255 63, sector size=4096 - WDC WD50 00BPVT-22HXZT1, S/N:152D20337A0C
Disk \\.\PhysicalDrive1 - 500 GB / 465 GiB - CHS 7600 255 63, sector size=4096 - WDC WD50 00BPVT-22HXZT1, S/N:152D20337A0C
Drive E: - 21 GB / 20 GiB - CHS 326 255 63, sector size=4096 - WDC WD50 00BPVT-22HXZT1, S/N:152D20337A0C
Drive F: - 104 MB / 100 MiB - CHS 1 255 63, sector size=4096 - WDC WD50 00BPVT-22HXZT1, S/N:152D20337A0C

Partition table type (auto): EFI GPT
Disk /dev/sda - 500 GB / 465 GiB - ST500LM000-1EJ162
Partition table type: Intel

Analyse Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63
Geometry from i386 MBR: head=256 sector=63
check_part_i386 1 type EE: no test
Current partition structure:
1 P EFI GPT 0 0 2 267349 89 4 4294967295

Warning: Bad ending head (CHS and LBA don't match)
No partition is bootable

search_part()
Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63
FAT32 at 0/32/33
FAT1 : 6654-7422
FAT2 : 7423-8191
start_rootdir : 8192 root cluster : 2
Data : 8192-204799
sectors : 204800
cluster_size : 2
no_of_cluster : 98304 (2 - 98305)
fat_length 769 calculated 769

FAT32 at 0/32/33
FAT32 0 32 33 12 223 19 204800 [SYSTEM]
FAT32, blocksize=1024, 104 MB / 100 MiB
NTFS at 12/223/20
filesystem size 1843200
sectors_per_cluster 8
mft_lcn 76800
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 12 223 20 127 155 28 1843200 [Recovery]
NTFS, blocksize=4096, 943 MB / 900 MiB
NTFS at 143/236/30
filesystem size 390705152
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 143 236 30 24464 50 34 390705152 [OS]
NTFS, blocksize=4096, 200 GB / 186 GiB
NTFS at 24464/50/35
filesystem size 541792256
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 24464 50 35 58189 52 39 541792256 [Data]
NTFS, blocksize=4096, 277 GB / 258 GiB
NTFS at 58189/52/40
filesystem size 41963520
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 58189 52 40 60801 80 15 41963520 [Restore]
NTFS, blocksize=4096, 21 GB / 20 GiB
file_pread(4,3,buffer,976773183(60801/81/16)) lseek err Invalid argument
file_pread(4,1,buffer,976773183(60801/81/16)) lseek err Invalid argument
file_pread(4,8,buffer,976773199(60801/81/32)) lseek err Invalid argument
file_pread(4,11,buffer,976773246(60801/82/16)) lseek err Invalid argument
file_pread(4,2,buffer,976775168(60801/112/48)) lseek err Invalid argument
file_pread(4,16,buffer,976773168(60801/81/1)) ReadFile Fonction incorrecte.

file_pread(4,3,buffer,976773184(60801/81/17)) lseek err Invalid argument
file_pread(4,3,buffer,976773231(60801/82/1)) lseek err Invalid argument
file_pread(4,11,buffer,976773294(60801/83/1)) lseek err Invalid argument
file_pread(4,2,buffer,976775216(60801/113/33)) lseek err Invalid argument

Results
FAT32 0 32 33 12 223 19 204800 [SYSTEM]
FAT32, blocksize=1024, 104 MB / 100 MiB
HPFS - NTFS 12 223 20 127 155 28 1843200 [Recovery]
NTFS, blocksize=4096, 943 MB / 900 MiB
HPFS - NTFS 143 236 30 24464 50 34 390705152 [OS]
NTFS, blocksize=4096, 200 GB / 186 GiB
HPFS - NTFS 24464 50 35 58189 52 39 541792256 [Data]
NTFS, blocksize=4096, 277 GB / 258 GiB
HPFS - NTFS 58189 52 40 60801 80 15 41963520 [Restore]
NTFS, blocksize=4096, 21 GB / 20 GiB

interface_write()

No partition found or selected for recovery
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition
Partition table type (auto): Intel
Disk /dev/sdb - 500 GB / 465 GiB - WDC WD50 00BPVT-22HXZT1
Partition table type: Intel
Partition table type (auto): Intel
Disk /dev/sdb - 500 GB / 465 GiB - WDC WD50 00BPVT-22HXZT1
Partition table type: Intel

Analyse Disk /dev/sdb - 500 GB / 465 GiB - CHS 7600 255 63
Geometry from i386 MBR: head=246 sector=46
NTFS at 0/4/5
NTFS at 326/94/25
Warning: number of bytes per sector mismatches 512 (NTFS) != 4096 (HD)
Info: size boot_sector 204800, partition 25600
Current partition structure:
1 * HPFS - NTFS 0 4 5 326 94 24 5242880 [PQSERVICE]
Warning: number of bytes per sector mismatches 512 (NTFS) != 4096 (HD)
2 P HPFS - NTFS 326 94 25 327 245 46 25600 [SYSTEM RESERVED]

search_part()
Disk /dev/sdb - 500 GB / 465 GiB - CHS 7600 255 63
NTFS at 0/4/5
filesystem size 5242880
sectors_per_cluster 1
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 4 5 326 94 24 5242880 [PQSERVICE]
NTFS, blocksize=4096, 21 GB / 20 GiB
NTFS at 326/94/25
Warning: number of bytes per sector mismatches 512 (NTFS) != 4096 (HD)
filesystem size 204800
sectors_per_cluster 8
mft_lcn 8533
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 326 94 25 327 245 46 25600 [SYSTEM RESERVED]
NTFS, blocksize=4096, 104 MB / 100 MiB
file_pread(5,2,buffer,5268736(327/245/47)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,1,buffer,5268736(327/245/47)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,1,buffer,5268737(327/245/48)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,1,buffer,5268738(327/245/49)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,1,buffer,122096895(7600/45/61)) lseek err Invalid argument
file_pread(5,1,buffer,122096896(7600/45/62)) lseek err Invalid argument
file_pread(5,2,buffer,122096896(7600/45/62)) lseek err Invalid argument
file_pread(5,2,buffer,122096897(7600/45/63)) lseek err Invalid argument
file_pread(5,2,buffer,122096903(7600/46/6)) lseek err Invalid argument
file_pread(5,2,buffer,122096905(7600/46/8)) lseek err Invalid argument
file_pread(5,2,buffer,122096911(7600/46/14)) lseek err Invalid argument
file_pread(5,2,buffer,122097151(7600/50/2)) lseek err Invalid argument
Search for partition aborted

Results
* HPFS - NTFS 0 4 5 326 94 24 5242880 [PQSERVICE]
NTFS, blocksize=4096, 21 GB / 20 GiB
P HPFS - NTFS 326 94 25 327 245 46 25600 [SYSTEM RESERVED]
NTFS, blocksize=4096, 104 MB / 100 MiB

interface_write()
1 * HPFS - NTFS 0 4 5 326 94 24 5242880 [PQSERVICE]
2 P HPFS - NTFS 326 94 25 327 245 46 25600 [SYSTEM RESERVED]
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.

search_part()
Disk /dev/sdb - 500 GB / 465 GiB - CHS 7600 255 63
NTFS at 0/4/5
filesystem size 5242880
sectors_per_cluster 1
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 4 5 326 94 24 5242880 [PQSERVICE]
NTFS, blocksize=4096, 21 GB / 20 GiB
NTFS at 326/94/25
Warning: number of bytes per sector mismatches 512 (NTFS) != 4096 (HD)
filesystem size 204800
sectors_per_cluster 8
mft_lcn 8533
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 326 94 25 327 245 46 25600 [SYSTEM RESERVED]
NTFS, blocksize=4096, 104 MB / 100 MiB
file_pread(5,2,buffer,5268736(327/245/47)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,1,buffer,5268736(327/245/47)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,3,buffer,5268735(327/245/46)) ReadFile Erreur de données (contrôle de redondance cyclique).

NTFS at 327/245/46
Warning: number of bytes per sector mismatches 512 (NTFS) != 4096 (HD)
filesystem size 204800
sectors_per_cluster 8
mft_lcn 8533
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 326 94 25 327 245 47 25600
NTFS found using backup sector, blocksize=4096, 104 MB / 100 MiB
file_pread(5,3,buffer,5268736(327/245/47)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,2,buffer,5268736(327/245/47)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,2,buffer,5268737(327/245/48)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,2,buffer,5268738(327/245/49)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,3,buffer,6018831(374/167/1)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,2,buffer,6018831(374/167/1)) ReadFile Erreur de données (contrôle de redondance cyclique).

NTFS at 7600/37/53
Warning: number of bytes per sector mismatches 512 (NTFS) != 4096 (HD)
filesystem size 934621184
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 327 245 47 7600 37 54 116827648
NTFS found using backup sector, blocksize=4096, 478 GB / 445 GiB
file_pread(5,1,buffer,122096650(7600/42/5)) lseek err Invalid argument
file_pread(5,2,buffer,122096703(7600/42/58)) lseek err Invalid argument
file_pread(5,1,buffer,122096713(7600/43/5)) lseek err Invalid argument
file_pread(5,2,buffer,122096647(7600/42/2)) lseek err Invalid argument
file_pread(5,2,buffer,122096649(7600/42/4)) lseek err Invalid argument
file_pread(5,3,buffer,122096655(7600/42/10)) lseek err Invalid argument
file_pread(5,1,buffer,122096896(7600/45/62)) lseek err Invalid argument
file_pread(5,1,buffer,122096657(7600/42/12)) lseek err Invalid argument
file_pread(5,2,buffer,122096672(7600/42/27)) lseek err Invalid argument
file_pread(5,2,buffer,122096688(7600/42/43)) lseek err Invalid argument
file_pread(5,2,buffer,122096704(7600/42/59)) lseek err Invalid argument
file_pread(5,2,buffer,122096720(7600/43/12)) lseek err Invalid argument
file_pread(5,2,buffer,122096736(7600/43/28)) lseek err Invalid argument
file_pread(5,2,buffer,122096752(7600/43/44)) lseek err Invalid argument
file_pread(5,2,buffer,122096768(7600/43/60)) lseek err Invalid argument
file_pread(5,2,buffer,122096784(7600/44/13)) lseek err Invalid argument
file_pread(5,2,buffer,122096800(7600/44/29)) lseek err Invalid argument
file_pread(5,2,buffer,122096816(7600/44/45)) lseek err Invalid argument
file_pread(5,2,buffer,122096832(7600/44/61)) lseek err Invalid argument
file_pread(5,2,buffer,122096848(7600/45/14)) lseek err Invalid argument
file_pread(5,2,buffer,122096864(7600/45/30)) lseek err Invalid argument
file_pread(5,2,buffer,122096880(7600/45/46)) lseek err Invalid argument
file_pread(5,1,buffer,122096895(7600/45/61)) lseek err Invalid argument
file_pread(5,1,buffer,122096896(7600/45/62)) lseek err Invalid argument
file_pread(5,2,buffer,122096896(7600/45/62)) lseek err Invalid argument
file_pread(5,2,buffer,122096897(7600/45/63)) lseek err Invalid argument
file_pread(5,2,buffer,122096903(7600/46/6)) lseek err Invalid argument
file_pread(5,2,buffer,122096905(7600/46/8)) lseek err Invalid argument
file_pread(5,2,buffer,122096911(7600/46/14)) lseek err Invalid argument
file_pread(5,2,buffer,122097151(7600/50/2)) lseek err Invalid argument
file_pread(5,3,buffer,5268734(327/245/45)) ReadFile Erreur de données (contrôle de redondance cyclique).

file_pread(5,3,buffer,5268735(327/245/46)) ReadFile Erreur de données (contrôle de redondance cyclique).

NTFS at 327/245/46
Warning: number of bytes per sector mismatches 512 (NTFS) != 4096 (HD)
filesystem size 204800
sectors_per_cluster 8
mft_lcn 8533
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1

Results
* HPFS - NTFS 0 4 5 326 94 24 5242880 [PQSERVICE]
NTFS, blocksize=4096, 21 GB / 20 GiB
HPFS - NTFS 326 94 25 327 245 46 25600 [SYSTEM RESERVED]
NTFS, blocksize=4096, 104 MB / 100 MiB
HPFS - NTFS 326 94 25 327 245 47 25600
NTFS found using backup sector, blocksize=4096, 104 MB / 100 MiB
HPFS - NTFS 327 245 46 329 142 5 25600
NTFS, blocksize=4096, 104 MB / 100 MiB
HPFS - NTFS 327 245 47 7600 37 54 116827648
NTFS found using backup sector, blocksize=4096, 478 GB / 445 GiB
Not an exFAT boot sector.

HPFS - NTFS 327 245 47 7600 37 54 116827648
NTFS found using backup sector, blocksize=4096, 478 GB / 445 GiB
Can't open filesystem. Filesystem seems damaged.

interface_write()
1 * HPFS - NTFS 0 4 5 326 94 24 5242880 [PQSERVICE]
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition

TestDisk exited normally.

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 3413
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: can't open file system

#2 Post by cgrenier » 05 Mar 2015, 23:57

A moins que vous soyez certain que la table des partitions étaient de type PC/Intel , pouvez-vous refaire le test avec EFI GPT ?

jeanluc44
Posts: 2
Joined: 05 Mar 2015, 18:42

Re: can't open file system

#3 Post by jeanluc44 » 06 Mar 2015, 14:33

Bonjour,

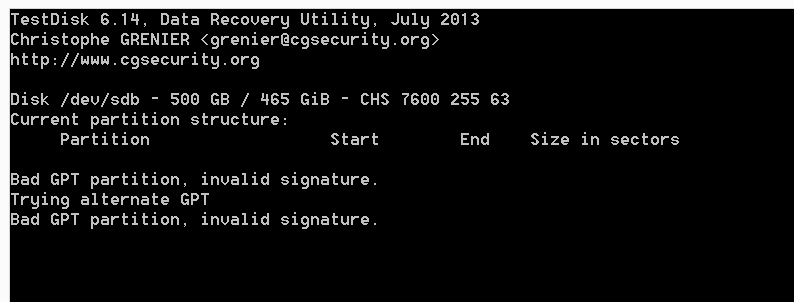

Je viens de lancer avec EFI GPT

j'ai le message suivant..dois-je magré tout lancé un Quick Search?

Merci d'avance pour votre retour
Cordialement
EFI GPT.png
EFI GPT.png (15.09 KiB) Viewed 1037 times

Post Reply

Who is online

Users browsing this forum: No registered users and 0 guests
