External HDD RAW instead of NTFS

Using TestDisk to repair the filesystem
Post Reply
Message
Author
askingquestions
Posts: 2
Joined: 13 Jan 2016, 11:14

External HDD RAW instead of NTFS

#1 Post by askingquestions » 13 Jan 2016, 11:56

Hi, since I took the HDD out of my PC and wanted to start using it as an external USB HDD I found that the file system is suddenly RAW instead of NTFS. The PC hadn't been used for about a year, but the last time the PC was booted the HDD worked properly.
I am fiddling with Testdisk since.
The HDD was listed, but it was not possible to list the files.
Originally the filesystem was NTFS, but now it somehow changed to RAW.
My questions are:

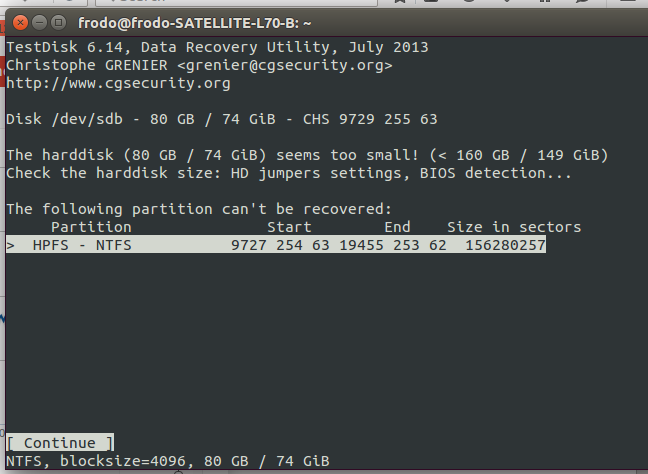

I got the message (screenshot) 'The harddisk seem s too small: Check the harddisk size: HD jumpers settings, BIOS detection...
How can I proceed now?
I created an Image of the HDD which is on my laptop. Could I recover the date from that image.dd file and if so how?
Cheers
Attachments
Screenshot from 2016-01-13 09-04-06.png
Screenshot from 2016-01-13 09-04-06.png (50.9 KiB) Viewed 753 times

Sponsored links

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: External HDD RAW instead of NTFS

#2 Post by Fiona » 13 Jan 2016, 22:50

You've got only a message that a partition was found which ends far beyond your disk limit and has no significance.
Probably found by any remnants?
When you press enter you'll get to the result.
When no partition was found, you can try to run Deeper Search too.
Can you copy and paste the content of your testdisk.log into your next post?
You'll find it within your testdisk folder.

Fiona

askingquestions
Posts: 2
Joined: 13 Jan 2016, 11:14

Re: External HDD RAW instead of NTFS

#3 Post by askingquestions » 14 Jan 2016, 10:00

Alright I did deeper search as well. But still
'No partition found or selected for recovery'

Below is the logfile:


Thu Jan 14 08:40:16 2016
Command line: TestDisk

TestDisk 7.0, Data Recovery Utility, April 2015
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows 8 (9200)
Compiler: GCC 4.8, Cygwin 1007.34
Compilation date: 2015-04-18T13:01:55
ext2fs lib: 1.42.8, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504, curses lib: ncurses 5.9
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=1000204886016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=80026361856
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=1000204886016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=80026361856
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=653910658048
filewin32_getfilesize(\\.\D:) GetFileSize err Unzulässige Funktion.

filewin32_setfilepointer(\\.\D:) SetFilePointer err Unzulässige Funktion.

Warning: can't get size for \\.\D:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E:)=80023880192
Hard disk list
Disk /dev/sda - 1000 GB / 931 GiB - CHS 121601 255 63, sector size=512
Disk /dev/sdb - 80 GB / 74 GiB - CHS 9729 255 63, sector size=512
Drive C: - 653 GB / 609 GiB - CHS 79500 255 63, sector size=512
Drive E: - 80 GB / 74 GiB - CHS 9729 255 63, sector size=512

Partition table type (auto): None
Drive E: - 80 GB / 74 GiB
Partition table type: Intel

Analyse Drive E: - 80 GB / 74 GiB - CHS 9729 255 63
Geometry from i386 MBR: head=116 sector=52
BAD_RS LBA=1768778098 4634016
check_part_i386 1 type 6B: no test
BAD_RS LBA=1830843506 5735848
check_part_i386 2 type 75: no test
BAD_RS LBA=1718906437 4810655
check_part_i386 3 type 41: no test
Current partition structure:
1 * Sys=6B 110101 87 53 110576 97 8 7631461

Bad relative sector.
2 * PC/IX 113964 188 3 200776 205 32 1394635881

Bad relative sector.
3 * PPC PReP Boot 106996 249 11 106997 34 63 2573

Bad relative sector.
Only one partition must be bootable

search_part()
Drive E: - 80 GB / 74 GiB - CHS 9729 255 63

Results

interface_write()

No partition found or selected for recovery

search_part()
Drive E: - 80 GB / 74 GiB - CHS 9729 255 63

Results

interface_write()

No partition found or selected for recovery
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition

TestDisk exited normally.
