None Partition type detected by TestDisk

#1 Post by Effndhey » 01 Mar 2016, 16:32

Yesterday my 2TB Transcend external hard drive turn to RAW format after i tried to copy movies from my office.
After using TestDisk. The result shows my type of partition is NONE PARTITION TYPE. From there i can view my files inside the hard drive. Since i cannot WRITE all the file coz its NONE PARTITION TYPE, what i need to do to recover all my files? I used that EXT HDD for storing media and etc only. It is not for system purposes.
Someone please guide me? Im starting to feel disapointed now.
All your kind cooperation are highly appreciated.
Help me..

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 3754
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: None Partition type detected by TestDisk

#2 Post by cgrenier » 02 Mar 2016, 20:26

Run "cmd" (right run as administrator) and "chkdsk /f d:" (replace d: by the correct drive letter)
If it doesn't work, please post the testdisk.log file content.

Effndhey
Posts: 4
Joined: 01 Mar 2016, 16:20

Re: None Partition type detected by TestDisk

#3 Post by Effndhey » 03 Mar 2016, 07:27

this is the latest report.
Attachments
This is the latest report since testdisk identified my hd as INTEL.

Effndhey
Posts: 4
Joined: 01 Mar 2016, 16:20

Re: None Partition type detected by TestDisk

#4 Post by Effndhey » 05 Mar 2016, 15:56

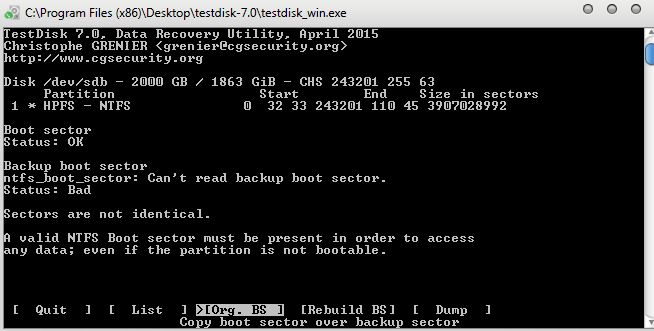

My bootsector is OK
Backup bootsector is BAD.
Sectors are not identical.

I tried to rebuildBS. Still the same. Try to Write. And still the same. Tried chkdsk under admin rights, it just stuck for a lifetime with black screen of the command prompt with '-' blinking.
I can see my files under List. But not all the files were shown.
Is there any other method i can use?

User avatar
cgrenier
Site Admin
Posts: 3754
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: None Partition type detected by TestDisk

#5 Post by cgrenier » 06 Mar 2016, 09:30

Your partition is probably larger than the disk, it's why TestDisk failed to read the backup boot sector and it can also explain why chdsk doesn't work.

You can try to reduce the partition size.
It's recommended to copy the files you can access using TestDisk first.
Run TestDisk, Analyse, Quick Search, using the arrow keys, set the partition found by TestDisk as D(eleted)
use 'a' to manually add the partition HPFS-NTFS 0 32 33 243200 255 63
Set this partition as *(bootable).
On next screen, choose Write, confirm.
Go in Advanced, Boot, RebuildBS, List. If you can see your files, choose Write and confirm.
Quit and reboot your computer
Try again "cmd" as administrator and "chkdsk /f d:"

Effndhey
Posts: 4
Joined: 01 Mar 2016, 16:20

Re: None Partition type detected by TestDisk

#6 Post by Effndhey » 07 Mar 2016, 03:29

Thanks for the reply Admin. Appreciate that.

So I followed all the steps that you suggested me to do. And finally i got the result (see first attachment below)
Testdisk New.JPG
Testdisk New.JPG (44.56 KiB) Viewed 988 times
.
and then i reboot my computer. waiting for it to start.. and run chkdsk under admin rights. and still. no signs of hope yet. it still stuck at the blinking '-' (see second attachment)
with this i attached my testdisk log file.




Mon Mar 7 08:05:43 2016
Command line: TestDisk

TestDisk 7.1-WIP, Data Recovery Utility, February 2016
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows 7 (7601) SP1
Compiler: GCC 4.9, Cygwin32 2002.0
Compilation date: 2016-03-01T21:27:27
ext2fs lib: 1.42.8, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504, curses lib: ncurses 5.9
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=750156374016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=2000398934016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=750156374016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=2000398934016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=339353470464
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=161396412416
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E:)=202193801216
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F:)=2048
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G:)=31140877824
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\H:)=2000398843904
Hard disk list
Disk /dev/sda - 750 GB / 698 GiB - CHS 91201 255 63, sector size=512 - WDC WD75 00BPVT-24HXZ, S/N:W -DXW1H6A814458, FW:02.0
Disk /dev/sdb - 2000 GB / 1863 GiB - CHS 243201 255 63, sector size=512 - StoreJet Transcend, S/N:PWT5346E1BXW-DW
Drive F: - 2048 B - CHS 1 64 32, sector size=2048 - Slimtype DVD A DS8A5SH, S/N:010809213254, FW:XL63

Partition table type (auto): Intel
Disk /dev/sdb - 2000 GB / 1863 GiB - StoreJet Transcend
Partition table type: Intel

Analyse Disk /dev/sdb - 2000 GB / 1863 GiB - CHS 243201 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/32/33
Current partition structure:
1 P HPFS - NTFS 0 32 33 243201 110 45 3907028992
No partition is bootable

search_part()
Disk /dev/sdb - 2000 GB / 1863 GiB - CHS 243201 255 63
NTFS at 0/32/33
filesystem size 3907028992
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 243201 110 45 3907028992
NTFS, blocksize=4096, 2000 GB / 1863 GiB
file_pread(5,8,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(5,1,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(5,1,buffer,3907031041(243201/110/47)) lseek err Invalid argument
file_pread(5,14,buffer,3907031042(243201/110/48)) lseek err Invalid argument
file_pread(5,3,buffer,3907031056(243201/110/62)) lseek err Invalid argument
file_pread(5,3,buffer,3907031103(243201/111/46)) lseek err Invalid argument
file_pread(5,8,buffer,3907031119(243201/111/62)) lseek err Invalid argument
file_pread(5,11,buffer,3907031166(243201/112/46)) lseek err Invalid argument
file_pread(5,2,buffer,3907033088(243201/143/15)) lseek err Invalid argument

Results
* HPFS - NTFS 0 32 33 243201 110 45 3907028992
NTFS, blocksize=4096, 2000 GB / 1863 GiB

interface_write()

No partition found or selected for recovery

search_part()
Disk /dev/sdb - 2000 GB / 1863 GiB - CHS 243201 255 63
NTFS at 0/32/33
filesystem size 3907028992
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 243201 110 45 3907028992
NTFS, blocksize=4096, 2000 GB / 1863 GiB
file_pread(5,2,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(5,1,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(5,8,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(5,8,buffer,3907031048(243201/110/54)) lseek err Invalid argument
file_pread(5,3,buffer,3907031056(243201/110/62)) lseek err Invalid argument
file_pread(5,3,buffer,3907031103(243201/111/46)) lseek err Invalid argument
file_pread(5,8,buffer,3907031119(243201/111/62)) lseek err Invalid argument
file_pread(5,11,buffer,3907031166(243201/112/46)) lseek err Invalid argument
file_pread(5,2,buffer,3907033088(243201/143/15)) lseek err Invalid argument
Search for partition aborted

Results
* HPFS - NTFS 0 32 33 243201 110 45 3907028992
NTFS, blocksize=4096, 2000 GB / 1863 GiB

interface_write()
1 * HPFS - NTFS 0 32 33 243201 110 45 3907028992
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition
Partition table type (auto): Intel
Disk /dev/sdb - 2000 GB / 1863 GiB - StoreJet Transcend
Partition table type: Intel

Analyse Disk /dev/sdb - 2000 GB / 1863 GiB - CHS 243201 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/32/33
Current partition structure:
1 P HPFS - NTFS 0 32 33 243201 110 45 3907028992
No partition is bootable

search_part()
Disk /dev/sdb - 2000 GB / 1863 GiB - CHS 243201 255 63
NTFS at 0/32/33
filesystem size 3907028992
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 243201 110 45 3907028992
NTFS, blocksize=4096, 2000 GB / 1863 GiB
file_pread(5,8,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(5,1,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(5,1,buffer,3907031041(243201/110/47)) lseek err Invalid argument
file_pread(5,14,buffer,3907031042(243201/110/48)) lseek err Invalid argument
file_pread(5,3,buffer,3907031056(243201/110/62)) lseek err Invalid argument
file_pread(5,3,buffer,3907031103(243201/111/46)) lseek err Invalid argument
file_pread(5,8,buffer,3907031119(243201/111/62)) lseek err Invalid argument
file_pread(5,11,buffer,3907031166(243201/112/46)) lseek err Invalid argument
file_pread(5,2,buffer,3907033088(243201/143/15)) lseek err Invalid argument

Results
* HPFS - NTFS 0 32 33 243201 110 45 3907028992
NTFS, blocksize=4096, 2000 GB / 1863 GiB
Change partition type:
HPFS - NTFS 0 32 33 243200 254 63 3907022017

interface_write()
1 * HPFS - NTFS 0 32 33 243200 254 63 3907022017
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition

Analyse Disk /dev/sdb - 2000 GB / 1863 GiB - CHS 243201 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/32/33
Current partition structure:
1 P HPFS - NTFS 0 32 33 243201 110 45 3907028992
No partition is bootable

search_part()
Disk /dev/sdb - 2000 GB / 1863 GiB - CHS 243201 255 63
NTFS at 0/32/33
filesystem size 3907028992
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 243201 110 45 3907028992
NTFS, blocksize=4096, 2000 GB / 1863 GiB
file_pread(5,8,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(5,1,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(5,1,buffer,3907031041(243201/110/47)) lseek err Invalid argument
file_pread(5,14,buffer,3907031042(243201/110/48)) lseek err Invalid argument
file_pread(5,3,buffer,3907031056(243201/110/62)) lseek err Invalid argument
file_pread(5,3,buffer,3907031103(243201/111/46)) lseek err Invalid argument
file_pread(5,8,buffer,3907031119(243201/111/62)) lseek err Invalid argument
file_pread(5,11,buffer,3907031166(243201/112/46)) lseek err Invalid argument
file_pread(5,2,buffer,3907033088(243201/143/15)) lseek err Invalid argument

Results
* HPFS - NTFS 0 32 33 243201 110 45 3907028992
NTFS, blocksize=4096, 2000 GB / 1863 GiB
Change partition type:
HPFS - NTFS 0 32 33 243200 254 63 3907022017

interface_write()
1 * HPFS - NTFS 0 32 33 243200 254 63 3907022017
write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition
You will have to reboot for the change to take effect.

Interface Advanced
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/32/33
Error: size boot_sector 3907028992 > partition 3907022017
check_part_i386 failed for partition type 07
1 * HPFS - NTFS 0 32 33 243200 254 63 3907022017

ntfs_boot_sector
1 * HPFS - NTFS 0 32 33 243200 254 63 3907022017
NTFS at 0/32/33
Error: size boot_sector 3907028992 > partition 3907022017
filesystem size 3907028992 1
sectors_per_cluster 8 0
mft_lcn 786432 0
mftmirr_lcn 2 0
clusters_per_mft_record -10 0
clusters_per_index_record 1 0
Boot sector
Error: size boot_sector 3907028992 > partition 3907022017
Status: Bad

Backup boot sector
Status: Bad

Sectors are not identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
pread: Input/output error
Failed to calculate number of free clusters: Input/output error.
Error reading $Mft record(s): Input/output error.
rebuild_NTFS_BS
mft at 16
ntfs_find_mft: mft_lcn 786432
ntfs_find_mft: mftmirr_lcn 2
ntfs_find_mft: sectors_per_cluster 8
ntfs_find_mft: mft_lcn 786432
ntfs_find_mft: mftmirr_lcn 2
ntfs_find_mft: mft_record_size 1024
ntfs_find_mft: index_block_size 4096
New / Current boot sector
filesystem size 3907022017 3907028992
sectors_per_cluster 8 8
mft_lcn 786432 786432
mftmirr_lcn 2 2
clusters_per_mft_record -10 -10
clusters_per_index_record 1 1
Extrapolated boot sector and current boot sector are different.
filesystem size 3907022017 3907028992
sectors_per_cluster 8 8
mft_lcn 786432 786432
mftmirr_lcn 2 2
clusters_per_mft_record -10 -10
clusters_per_index_record 1 1
file_pread(5,16,buffer,6174280(384/84/29)) ReadFile Data error (cyclic redundancy check).

file_pread(5,16,buffer,6174288(384/84/37)) ReadFile Data error (cyclic redundancy check).

file_pread(5,1,buffer,6174288(384/84/37)) ReadFile Data error (cyclic redundancy check).

NTFS filesystem needs to be repaired.

Directory /
5 dr-xr-xr-x 0 0 0 29-Feb-2016 08:05 .
5 dr-xr-xr-x 0 0 0 29-Feb-2016 08:05 ..
68 dr-xr-xr-x 0 0 0 29-Oct-2015 22:20 $RECYCLE.BIN
16365 dr-xr-xr-x 0 0 0 7-Feb-2016 23:01 Hitachi Red
367 dr-xr-xr-x 0 0 0 28-Feb-2016 00:16 MV
368 dr-xr-xr-x 0 0 0 7-Feb-2016 22:58 Muse
627 dr-xr-xr-x 0 0 0 28-Feb-2016 00:16 New folder
640 dr-xr-xr-x 0 0 0 29-Feb-2016 08:09 Pirates Of The Carribean
172042 dr-xr-xr-x 0 0 0 28-Feb-2016 00:13 RECYCLER
16324 dr-xr-xr-x 0 0 0 4-Jan-2016 08:03 System Volume Information
67 dr-xr-xr-x 0 0 0 7-Feb-2016 23:03 Transcend
103434 dr-xr-xr-x 0 0 0 7-Feb-2016 23:14 VAIO Drive RED
601 -r--r--r-- 0 0 93953810 13-Feb-2016 11:41 -Over You- - Blake Shelton Live.mp4
601 -r--r--r-- 0 0 26 13-Feb-2016 11:41 -Over You- - Blake Shelton Live.mp4:Zone.Identifier
594 -r--r--r-- 0 0 39358492 13-Feb-2016 11:26 Cassadee Pope Over You The Voice Full HD.mp4
594 -r--r--r-- 0 0 26 13-Feb-2016 11:26 Cassadee Pope Over You The Voice Full HD.mp4:Zone.Identifier
380 -r--r--r-- 0 0 85637008 13-Feb-2016 12:15 Kelly Moncado - Please Forgive Me (Bryan Adams cover).mp4
380 -r--r--r-- 0 0 26 13-Feb-2016 12:15 Kelly Moncado - Please Forgive Me (Bryan Adams cover).mp4:Zone.Identifier
595 -r--r--r-- 0 0 79914794 13-Feb-2016 11:36 Miranda Lambert - Over You.mp4
595 -r--r--r-- 0 0 26 13-Feb-2016 11:36 Miranda Lambert - Over You.mp4:Zone.Identifier
593 -r--r--r-- 0 0 8379621 13-Feb-2016 10:57 Nidji - Hapus Aku.mp3
593 -r--r--r-- 0 0 26 13-Feb-2016 10:57 Nidji - Hapus Aku.mp3:Zone.Identifier
file_pread(5,16,buffer,6293938(391/198/50)) ReadFile Data error (cyclic redundancy check).

file_pread(5,1,buffer,6293938(391/198/50)) ReadFile Data error (cyclic redundancy check).

ntfs_readdir failed for cluster 367: Input/output error
Directory /MV
367 dr-xr-xr-x 0 0 0 28-Feb-2016 00:16 .
5 dr-xr-xr-x 0 0 0 29-Feb-2016 08:05 ..
18295 dr-xr-xr-x 0 0 0 25-Dec-2015 08:33 47 Ronin
19771 -r--r--r-- 0 0 440122433 19-Jan-2015 15:56 About Time.FLV
103386 -r--r--r-- 0 0 1362259358 15-Oct-2012 01:46 Abraham Lincoln Vampire Hunter.mkv
Directory /
5 dr-xr-xr-x 0 0 0 29-Feb-2016 08:05 .
5 dr-xr-xr-x 0 0 0 29-Feb-2016 08:05 ..
68 dr-xr-xr-x 0 0 0 29-Oct-2015 22:20 $RECYCLE.BIN
16365 dr-xr-xr-x 0 0 0 7-Feb-2016 23:01 Hitachi Red
367 dr-xr-xr-x 0 0 0 28-Feb-2016 00:16 MV
368 dr-xr-xr-x 0 0 0 7-Feb-2016 22:58 Muse
627 dr-xr-xr-x 0 0 0 28-Feb-2016 00:16 New folder
640 dr-xr-xr-x 0 0 0 29-Feb-2016 08:09 Pirates Of The Carribean
172042 dr-xr-xr-x 0 0 0 28-Feb-2016 00:13 RECYCLER
16324 dr-xr-xr-x 0 0 0 4-Jan-2016 08:03 System Volume Information
67 dr-xr-xr-x 0 0 0 7-Feb-2016 23:03 Transcend
103434 dr-xr-xr-x 0 0 0 7-Feb-2016 23:14 VAIO Drive RED
601 -r--r--r-- 0 0 93953810 13-Feb-2016 11:41 -Over You- - Blake Shelton Live.mp4
601 -r--r--r-- 0 0 26 13-Feb-2016 11:41 -Over You- - Blake Shelton Live.mp4:Zone.Identifier
594 -r--r--r-- 0 0 39358492 13-Feb-2016 11:26 Cassadee Pope Over You The Voice Full HD.mp4
594 -r--r--r-- 0 0 26 13-Feb-2016 11:26 Cassadee Pope Over You The Voice Full HD.mp4:Zone.Identifier
380 -r--r--r-- 0 0 85637008 13-Feb-2016 12:15 Kelly Moncado - Please Forgive Me (Bryan Adams cover).mp4
380 -r--r--r-- 0 0 26 13-Feb-2016 12:15 Kelly Moncado - Please Forgive Me (Bryan Adams cover).mp4:Zone.Identifier
595 -r--r--r-- 0 0 79914794 13-Feb-2016 11:36 Miranda Lambert - Over You.mp4
595 -r--r--r-- 0 0 26 13-Feb-2016 11:36 Miranda Lambert - Over You.mp4:Zone.Identifier
593 -r--r--r-- 0 0 8379621 13-Feb-2016 10:57 Nidji - Hapus Aku.mp3
593 -r--r--r-- 0 0 26 13-Feb-2016 10:57 Nidji - Hapus Aku.mp3:Zone.Identifier
filesystem size 3907022017 3907028992
sectors_per_cluster 8 8
mft_lcn 786432 786432
mftmirr_lcn 2 2
clusters_per_mft_record -10 -10
clusters_per_index_record 1 1
Write new boot!

ntfs_boot_sector
1 * HPFS - NTFS 0 32 33 243200 254 63 3907022017
NTFS at 0/32/33
NTFS at 0/32/33
filesystem size 3907022017
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.

TestDisk exited normally.

Post Reply

Who is online

Users browsing this forum: No registered users and 1 guest
