Help! Accidentally clicked on erase in time machine when connecting an external HD to mac

How to use TestDisk to recover lost partition
Post Reply
Message
Author
kingkahuna
Posts: 4
Joined: 07 Aug 2016, 18:38

Help! Accidentally clicked on erase in time machine when connecting an external HD to mac

#1 Post by kingkahuna » 07 Aug 2016, 18:43

Hello Folks,

I recently moved from windows to mac and require help in recovering some data from my 2 TB external hard disk, which I accidentally deleted. The external drive had a lifetime of data that I had stored using my windows machine. I do not remember the file format (FAT32, NTFS, etc.)

I connected the external drive to my mac for the first time. Timemachine poped up an offer to back up the data. It mentioned something about having to format the drive before I could use it. I meant to click 'Cancel', but the devil was out and I accidentally clicked on the "Erase" (I think that's was the button said) button. I immediately realized my mistake and yanked the cable out in a fraction of a second, but the damage was done.

It's pretty similar to what this person did in http://forums.macrumors.com/threads/tim ... rd-drive.3 84989/. I have always used my external hard disk drive on my windows laptop and recently shifted to a mac.

Now, I am in the process to recover. The data is definitely there since I attempted to recover using PhotoRec and got back some files. The problem was that it cannot recover the data in the original file structure and was renaming the files. So I killed the job.

I am now using TestDisk and am running it in Windows 10 through parallels. What I have understood so far, is that I need to restore the lost partition. It is very slow and I see the following messages on the screen.

++++++++++++++++++++++++++++++++++++++++++++++++++++++
Disk \\.\PhysicalDrive1 - 2000 GB / 1863 GiB - CHS 243201 255 63
Analyse cylinder 20353/243200: 08%

check_FAT: Unusual media descriptor (0xf0!=0xf8)
Warning: number of heads/cylinder mismatches 16 (FAT) != 255 (HD)
Warning: number of sectors per track mismatches 32 (FAT) != 63 (HD)
EFI System 40 409639 409600 [EFI]
++++++++++++++++++++++++++++++++++++++++++++++++++++++


Here are the options that I have
1. Continue running it in Windows 10 (Parallels) and check for the outcome.
2. Kill the job and re-run in mac (Hoping it will be faster).
3. Kill the job and do a deep search in mac (Hoping it will be faster)
4. Get some miraculous solution from this community

Any pointers will be much appreciated.

Cheers,

King Kahuna

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 3817
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Help! Accidentally clicked on erase in time machine when connecting an external HD to mac

#2 Post by cgrenier » 08 Aug 2016, 06:42

You will probably need the use Deeper Search to get your NTFS partition. Once it's listed, set the partition as P(rimary). On next screen, choose Write, confirm, Quit and restart your computer.
Use TestDisk 7.1-WIP, it's faster than previous version.

kingkahuna
Posts: 4
Joined: 07 Aug 2016, 18:38

Re: Help! Accidentally clicked on erase in time machine when connecting an external HD to mac

#3 Post by kingkahuna » 08 Aug 2016, 16:27

Thank you for responding. I had already done a few things that I have listed below, before your response.

[*] I killed the windows 10 run.
[*] I selected Intel/PC and did a deep search.
[*] I started a run using 7.0 in the mac and let it run overnight.
[*] I killed the job this morning since it had not even progressed beyond 0%
[*] What I see on the screen now is a long list (maybe a 100) of partitions with varying start, end and size in sectors. Some of them are listed as FAT32, FAT 16 <32M, FAT 16 >32M, FAT 16 LBA, HPFS - NTFS. As I scroll through the list, I noticed that the size shown at the bottom of the screen continuously changes.

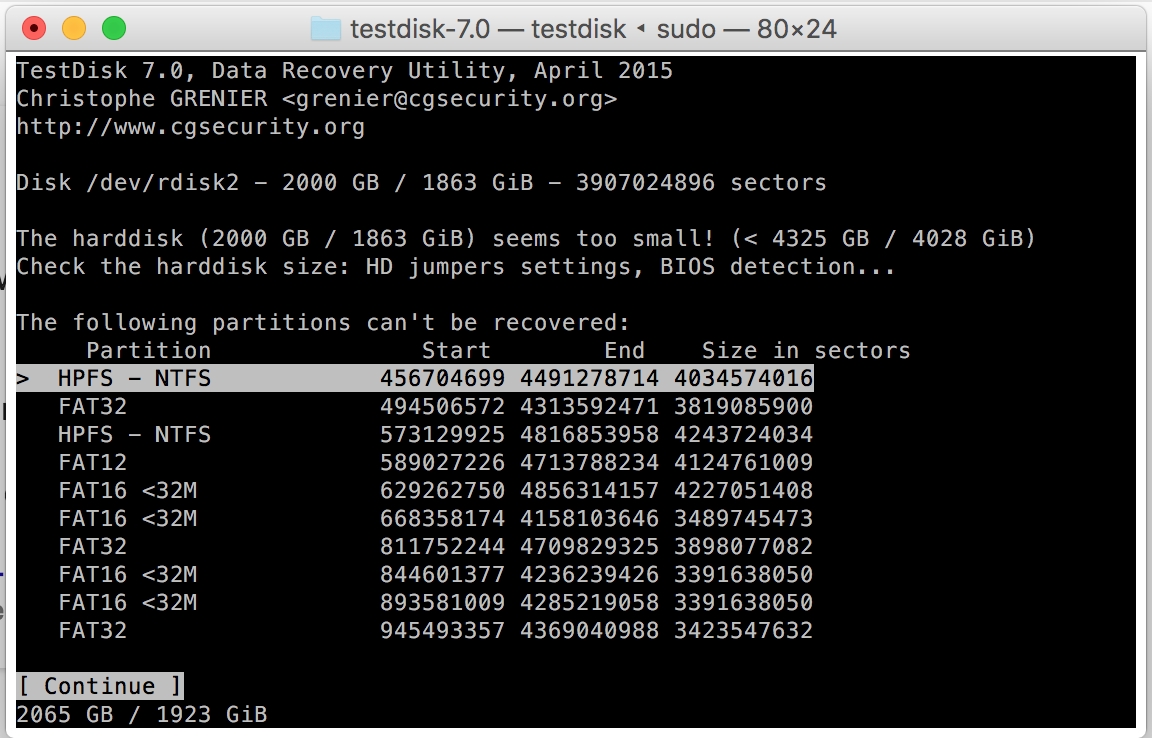

Couple of screenshots attached
HPFS - NTFS 2065 GB / 1923 GiB
Screen Shot 2016-08-08 at 8.14.52 AM.png
Screen Shot 2016-08-08 at 8.14.52 AM.png (165.69 KiB) Viewed 504 times
FAT 32 1955 GB / 1821 GiB
Screen Shot 2016-08-08 at 8.18.48 AM.png
Screen Shot 2016-08-08 at 8.18.48 AM.png (171.38 KiB) Viewed 504 times
For next steps:
[*] Should I restart the run using 7.1 WIP as you have suggested below?

OR

[*] Do you think the current run has given me the data that is required for the next steps? If yes, what should I do next? Which partition should I be selecting and continue?

Thank you for all your help.

User avatar
cgrenier
Site Admin
Posts: 3817
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Help! Accidentally clicked on erase in time machine when connecting an external HD to mac

#4 Post by cgrenier » 08 Aug 2016, 17:55

Select Continue to see the results

kingkahuna
Posts: 4
Joined: 07 Aug 2016, 18:38

Re: Help! Accidentally clicked on erase in time machine when connecting an external HD to mac

#5 Post by kingkahuna » 09 Aug 2016, 16:03

Selecting continue, I see a list of partitions of varying sizes. Which one should I select now to make it primary? Below is the information from the log. I tried to attach it, but the file format did not go through.

I did try to make one of them primary and wrote it. But it could not read the partition and marked it as corrupt.

Disk /dev/disk2 - 2000 GB / 1863 GiB - 3907024896 sectors
Check the harddisk size: HD jumper settings, BIOS detection...
The harddisk (2000 GB / 1863 GiB) seems too small! (< 4781 GB / 4453 GiB)
The following partitions can't be recovered:
HPFS - NTFS 456704699 4491278714 4034574016
FAT32 494506572 4313592471 3819085900
HPFS - NTFS 573129925 4816853958 4243724034
FAT12 589027226 4713788234 4124761009
FAT12 620540913 4318204219 3697663307
FAT16 <32M 629262750 4856314157 4227051408
FAT16 <32M 668358174 4158103646 3489745473
FAT16 >32M 769968005 4851754891 4081786887
HPFS - NTFS 808196757 4649914694 3841717938
FAT32 811752244 4709829325 3898077082
FAT16 <32M 844601377 4236239426 3391638050
FAT12 878679717 4533492906 3654813190
FAT16 <32M 893581009 4285219058 3391638050
FAT32 945493357 4369040988 3423547632
FAT16 <32M 990792761 4614662421 3623869661
FAT12 1032158997 5143068921 4110909925
FAT12 1037520485 4298921635 3261401151
HPFS - NTFS 1041097794 4261829746 3220731953
HPFS - NTFS 1058084871 4952184836 3894099966
FAT32 LBA 1071343908 4181338006 3109994099
FAT12 1075983668 5366790228 4290806561
FAT16 <32M 1080547733 4586476888 3505929156
FAT12 1097517660 5388324220 4290806561
HPFS - NTFS 1113951330 4334683282 3220731953
FAT16 LBA 1181626249 4082881255 2901255007
FAT32 LBA 1188227748 4113176330 2924948583
HPFS - NTFS 1188750917 4417498350 3228747434
FAT32 1212449468 4523185458 3310735991
HPFS - NTFS 1274800469 5415404340 4140603872
FAT16 LBA 1281172469 4127289051 2846116583
FAT12 1294626268 4251717403 2957091136
FAT16 <32M 1309964153 3992687956 2682723804
FAT32 1314247281 5522728697 4208481417
FAT16 LBA 1314392021 5295514814 3981122794
FAT16 LBA 1318833004 5299133870 3980300867
FAT16 <32M 1322549836 4444598035 3122048200
FAT16 >32M 1322664203 4527210986 3204546784
FAT32 1330988894 4491789836 3160800943
FAT32 1332593658 4588429392 3255835735
FAT16 <32M 1358452897 4041176700 2682723804
FAT16 <32M 1394970374 4533424323 3138453950
FAT16 <32M 1429574317 5043813457 3614239141
FAT32 1444541146 4294827270 2850286125
HPFS - NTFS 1448457604 4602322600 3153864997
FAT32 1460760965 5513297641 4052536677
FAT16 <32M 1470065082 4552292955 3082227874
FAT32 1480881604 5280440735 3799559132
FAT16 <32M 1482413945 4736160823 3253746879
FAT32 LBA 1528999413 5359597027 3830597615
FAT16 >32M 1532611221 4671976120 3139364900
FAT32 LBA 1535126089 4302056826 2766930738
FAT12 1539653532 5538356154 3998702623
FAT32 1562538098 4412824222 2850286125
FAT32 LBA 1569385880 5100284834 3530898955
FAT32 1579959554 4430245678 2850286125
FAT32 LBA 1582621487 5469212967 3886591481
FAT16 LBA 1597240300 4906107420 3308867121
FAT12 1616254547 4083626625 2467372079
FAT32 1651217478 4091924019 2440706542
HPFS - NTFS 1658178675 4909830855 3251652181
FAT16 LBA 1664918902 4596196597 2931277696
FAT12 1670110027 4541343569 2871233543
FAT32 1671462297 4263203560 2591741264
HPFS - NTFS 1710176090 5708116234 3997940145
FAT32 LBA 1732765168 4724411746 2991646579
FAT32 1760804449 4139036308 2378231860
FAT16 >32M 1771570923 4854758672 3083187750
FAT12 1784666685 6008217261 4223550577
HPFS - NTFS 1820055220 5955538851 4135483632
FAT32 1823679066 4284578375 2460899310
FAT32 1830801742 5419744067 3588942326
FAT16 LBA 1835672552 4176906562 2341234011
FAT16 >32M 1847996337 4208413052 2360416716
FAT16 <32M 1860712214 4411526244 2550814031
FAT16 <32M 1876036560 5078360456 3202323897
FAT16 <32M 1908338206 5308863858 3400525653
FAT12 1927218911 5683872118 3756653208
FAT12 1962527540 4739484467 2776956928
FAT16 <32M 1965528310 5366053962 3400525653
HPFS - NTFS 1965786415 4733648528 2767862114
FAT32 LBA 1968044678 5359913945 3391869268
FAT12 1985861526 4896949647 2911088122
FAT16 <32M 1988132237 4252915932 2264783696
FAT32 LBA 1991381088 5522280042 3530898955
FAT12 1999693006 4181636034 2181943029
FAT16 LBA 2006001219 4447126235 2441125017
FAT16 LBA 2007074106 4505263324 2498189219
FAT32 LBA 2015548101 4225008424 2209460324
FAT12 2023957570 4028424673 2004467104
FAT16 >32M 2047244765 5747558763 3700313999
FAT16 <32M 2070859296 4922992354 2852133059
FAT16 <32M 2070888472 4923021530 2852133059
HPFS - NTFS 2071578314 5983086130 3911507817
FAT32 2077963904 4179663857 2101699954
FAT32 2105656967 4896870047 2791213081
FAT12 2111503052 4309977598 2198474547
FAT32 2117345276 5799412139 3682066864
FAT32 2127554410 3967435687 1839881278
FAT32 LBA 2168612648 6397678491 4229065844
FAT16 LBA 2175156614 4850183186 2675026573
HPFS - NTFS 2203818426 6451092416 4247273991
FAT32 2226899575 5442607432 3215707858
FAT16 >32M 2238224765 5532585677 3294360913
FAT16 LBA 2260673208 5069506382 2808833175
HPFS - NTFS 2263661568 4706880282 2443218715
FAT16 <32M 2268756240 4070852218 1802095979
FAT16 LBA 2284033324 4822808917 2538775594
HPFS - NTFS 2285270585 4775377932 2490107348
FAT32 2285498281 5235632447 2950134167
FAT16 <32M 2326581361 5003702659 2677121299
FAT16 <32M 2334563227 4263925506 1929362280
FAT32 2344349273 6621256132 4276906860
FAT32 2345619476 6622526335 4276906860
FAT32 2345767982 6622674841 4276906860
HPFS - NTFS 2348227353 5546172310 3197944958
HPFS - NTFS 2369998439 6066626217 3696627779
HPFS - NTFS 2374000825 5571945782 3197944958
FAT16 >32M 2380006967 5982049058 3602042092
FAT16 <32M 2396602275 6170105120 3773502846
FAT32 LBA 2397424480 6260526970 3863102491
FAT16 >32M 2399440008 4096358124 1696918117
FAT16 >32M 2412918405 4142418212 1729499808
FAT16 <32M 2423943800 5626267696 3202323897
FAT16 >32M 2432579903 5716101482 3283521580
FAT16 <32M 2437477843 5387515733 2950037891
FAT16 LBA 2448074733 4214250113 1766175381
FAT16 <32M 2453276200 4509595672 2056319473
FAT16 LBA 2457758933 5965567114 3507808182
FAT32 LBA 2467262013 4660990556 2193728544
FAT32 2468254140 6599347994 4131093855
FAT32 2491878057 3954505689 1462627633
FAT12 2499430204 6029175453 3529745250
FAT16 >32M 2516610193 6763341534 4246731342
HPFS - NTFS 2522855934 6801730788 4278874855
FAT16 <32M 2529582917 4049182098 1519599182
FAT32 2547334725 5160023615 2612688891
FAT32 2589236085 5201924975 2612688891
HPFS - NTFS 2591007837 6264715108 3673707272
FAT32 2594626568 4366645979 1772019412
HPFS - NTFS 2605527293 6279234564 3673707272
FAT16 LBA 2608463992 4305514522 1697050531
FAT16 <32M 2611323363 6384826208 3773502846
FAT32 LBA 2621311420 4718488775 2097177356
FAT32 LBA 2621311424 4617825483 1996514060
FAT32 LBA 2621311428 4752043215 2130731788
FAT32 LBA 2621311432 4617825491 1996514060
FAT32 2622015278 6549749776 3927734499
FAT32 LBA 2622736527 4719913882 2097177356
FAT32 LBA 2622736531 4619250590 1996514060
FAT32 LBA 2622736535 4753468322 2130731788
FAT32 LBA 2622736539 4619250598 1996514060
HPFS - NTFS 2624283010 5201901015 2577618006
HPFS - NTFS 2628895829 5198602274 2569706446
FAT16 <32M 2635503441 4947930167 2312426727
FAT32 LBA 2643793315 3943572779 1299779465
HPFS - NTFS 2685227131 6260937932 3575710802
FAT16 <32M 2687884550 4334096250 1646211701
HPFS - NTFS 2689149469 5240671471 2551522003
FAT16 >32M 2742724285 6505883440 3763159156
HPFS - NTFS 2746217246 4816620567 2070403322
HPFS - NTFS 2747286398 4817689719 2070403322
FAT16 <32M 2748753152 5600886210 2852133059
FAT16 <32M 2748782328 5600915386 2852133059
HPFS - NTFS 2757788794 4189431168 1431642375
HPFS - NTFS 2760734271 5528596384 2767862114
FAT12 2764596237 6298681760 3534085524
FAT12 2777512597 6311598120 3534085524
HPFS - NTFS 2785249599 5830996564 3045746966
HPFS - NTFS 2790763448 4929351069 2138587622
FAT32 2805441579 5932307564 3126865986
FAT12 2805537103 5623099257 2817562155
FAT16 <32M 2823807953 5652157935 2828349983
FAT12 2830437107 4289989362 1459552256
HPFS - NTFS 2836186985 6860116993 4023930009
FAT32 LBA 2854475262 6899295832 4044820571
FAT16 <32M 2865961001 5694310983 2828349983
FAT16 <32M 2876530296 6440988860 3564458565
FAT16 >32M 2900115435 4639877242 1739761808
FAT12 2901347724 6431092973 3529745250
HPFS - NTFS 2905344074 7152618064 4247273991
FAT16 >32M 2909015879 4289268338 1380252460
FAT32 2909026913 4303947026 1394920114
FAT32 2932443552 5034143505 2101699954
FAT32 LBA 2940742234 5382758146 2442015913
FAT32 2946733399 5085689132 2138955734
HPFS - NTFS 2975247847 5765814124 2790566278
HPFS - NTFS 2981056903 4462117016 1481060114
FAT32 2999023470 6676712420 3677688951
FAT16 <32M 3022791609 7081883457 4059091849
FAT32 3023513332 7300420191 4276906860
FAT32 3023661838 7300568697 4276906860
FAT16 >32M 3028241694 6223058471 3194816778
HPFS - NTFS 3038247007 4519307120 1481060114
FAT32 3045874921 7322781780 4276906860
FAT32 3062391846 4186576177 1124184332
HPFS - NTFS 3066502622 6349811073 3283308452
HPFS - NTFS 3067287928 6517221537 3449933610
FAT16 <32M 3088001396 4458297477 1370296082
FAT16 <32M 3099127575 5384094515 2284966941
FAT16 >32M 3103315698 6289752231 3186436534
FAT32 3106045397 6696610123 3590564727
FAT32 LBA 3109313514 4632778409 1523464896
FAT32 3109521245 4981079747 1871558503
FAT16 LBA 3114999660 7046276207 3931276548
FAT16 LBA 3137255073 6949508633 3812253561
FAT16 <32M 3174278624 5016952183 1842673560
HPFS - NTFS 3179877974 5033001363 1853123390
FAT16 LBA 3181157000 6554532770 3373375771
HPFS - NTFS 3184366508 5764651849 2580285342
FAT16 >32M 3194387864 4891305980 1696918117
FAT12 3199645257 5532003396 2332358140
FAT16 <32M 3202198594 7128258283 3926059690
HPFS - NTFS 3204481512 6404266322 3199784811
FAT32 3206377074 6802374645 3595997572
FAT16 >32M 3212997770 6739491462 3526493693
FAT16 LBA 3246055133 5049520161 1803465029
FAT32 3257195679 6357590445 3100394767
FAT16 LBA 3263641169 7075894729 3812253561
FAT16 LBA 3271437812 5115320641 1843882830
HPFS - NTFS 3273306380 6210319888 2937013509
FAT32 3280589698 4116444376 835854679
FAT32 3281952847 6218001416 2936048570
FAT32 LBA 3300630383 5397807738 2097177356
FAT32 LBA 3300630387 5297144446 1996514060
FAT32 LBA 3300630391 5431362178 2130731788
FAT32 LBA 3300630395 5297144454 1996514060
FAT16 LBA 3314749440 4546102011 1231352572
FAT32 LBA 3322837068 5420014423 2097177356
FAT32 LBA 3322837072 5319351131 1996514060
FAT32 LBA 3322837076 5453568863 2130731788
FAT32 LBA 3322837080 5319351139 1996514060
HPFS - NTFS 3327416861 6428768365 3101351505
FAT16 LBA 3339969682 4222339785 882370104
FAT16 <32M 3342997550 5935939178 2592941629
FAT32 3371538298 4207392976 835854679
HPFS - NTFS 3376967745 6491593212 3114625468
FAT16 >32M 3385052332 3930315691 545263360
FAT32 3388139344 6218186804 2830047461
FAT16 LBA 3393272905 5664365110 2271092206
HPFS - NTFS 3417713522 4028856402 611142881
FAT16 LBA 3418146998 6359924358 2941777361
FAT16 >32M 3431232118 4428025449 996793332
HPFS - NTFS 3439959456 6644343407 3204383952
FAT16 <32M 3449888128 6602264206 3152376079
HPFS - NTFS 3459314442 4890956816 1431642375
FAT32 3461915218 4077566947 615651730
FAT32 LBA 3464509675 6103976001 2639466327
FAT32 LBA 3479847563 6293690491 2813842929
HPFS - NTFS 3488103993 5331545837 1843441845
FAT32 3493345038 6677924893 3184579856
FAT16 <32M 3495551136 6807815180 3312264045
FAT16 LBA 3497955597 5301420625 1803465029
FAT32 3504424094 6689003949 3184579856
FAT12 3507524062 5914346578 2406822517
FAT12 3522854690 3925707890 402853201
FAT32 3527442418 4143094147 615651730
HPFS - NTFS 3533641460 4256652563 723011104
FAT32 3536593738 7132591309 3595997572
FAT16 LBA 3540406250 6929898854 3389492605
FAT12 3546034009 6474167187 2928133179
FAT12 3550225995 5195226571 1645000577
FAT12 3564136201 6460722552 2896586352
FAT16 <32M 3584835423 6452104754 2867269332
HPFS - NTFS 3591241031 4804050347 1212809317
FAT16 LBA 3595555635 4624960008 1029404374
FAT32 LBA 3625878569 4373508837 747630269
HPFS - NTFS 3625983694 7780211388 4154227695
FAT16 >32M 3627132508 6303495074 2676362567
FAT32 LBA 3631215377 5496000194 1864784818
FAT16 LBA 3643058082 5024873830 1381815749
FAT32 3646688616 4382524507 735835892
FAT16 >32M 3653810443 4983316830 1329506388
HPFS - NTFS 3654933697 4131627429 476693733
FAT32 3665089261 6779852569 3114763309
FAT16 <32M 3665169025 4367951980 702782956
FAT12 3677096052 4583894328 906798277
FAT32 3683466972 6005793716 2322326745
FAT16 <32M 3687343379 6625483500 2938140122
FAT16 >32M 3693982695 4992305577 1298322883
FAT12 3702011480 6926321523 3224310044
FAT12 3702040888 4680622442 978581555
FAT32 3714112285 6828875593 3114763309
FAT16 >32M 3715516687 5013839569 1298322883
FAT16 >32M 3719216335 7523355684 3804139350
FAT16 LBA 3720011202 4979960805 1259949604
FAT16 LBA 3730531032 4961883603 1231352572
FAT32 LBA 3736010908 4999782020 1263771113
FAT16 <32M 3738652586 6639494692 2900842107
FAT32 3745557666 7341555237 3595997572
FAT16 <32M 3746774550 6732555975 2985781426
FAT12 3748452249 6722034753 2973582505
FAT32 LBA 3763444105 5628228922 1864784818
FAT32 LBA 3776806741 7391848134 3615041394
FAT16 LBA 3789509553 3995353496 205843944
HPFS - NTFS 3794940331 5248832102 1453891772
FAT32 LBA 3809846737 5674631554 1864784818
HPFS - NTFS 3813927634 3911318344 97390711
FAT16 <32M 3817671800 4095586905 277915106
HPFS - NTFS 3829659140 5387559243 1557900104
FAT32 3848211720 6887977263 3039765544
FAT32 LBA 3852128859 6491595185 2639466327
FAT16 LBA 3853761183 4231515193 377754011
FAT16 <32M 3855685304 5314507357 1458822054
FAT32 3860710377 3986845738 126135362
FAT16 <32M 3864386440 5323208493 1458822054
HPFS - NTFS 3867457964 4274679013 407221050
FAT16 >32M 3869048219 7266142744 3397094526
FAT16 LBA 3878516516 7809793063 3931276548
FAT16 LBA 3884862409 5518068180 1633205772
FAT32 LBA 3887198961 6408496487 2521297527
FAT16 >32M 3887452706 3945591672 58138967
FAT16 >32M 3897211810 6408646965 2511435156
FAT16 <32M 3910889522 4140273923 229384402
FAT16 LBA 3918795025 5226424967 1307629943
FAT16 >32M 3936796929 4002491086 65694158
FAT16 LBA 3944291691 7499536286 3555244596
FAT16 <32M 3945970553 4752589629 806619077
FAT16 LBA 3946363330 4054015180 107651851
HPFS - NTFS 3949174260 5284408610 1335234351
HPFS - NTFS 3952105654 6608541567 2656435914
FAT16 >32M 3967472267 4970877609 1003405343
FAT16 LBA 3969465116 7900741663 3931276548
FAT32 3977553477 8232876174 4255322698
FAT32 3978340485 5057004841 1078664357
FAT32 LBA 3978421980 7464030443 3485608464
FAT12 3993025486 5779362548 1786337063
HPFS - NTFS 4003775565 7484410676 3480635112
FAT16 LBA 4005639023 4457107105 451468083
FAT32 LBA 4017785685 5210264572 1192478888
FAT32 LBA 4020755670 5143083977 1122328308
HPFS - NTFS 4025043841 6476275738 2451231898
FAT12 4054405253 5997448623 1943043371
HPFS - NTFS 4056518031 4686214227 629696197
HPFS - NTFS 4062184653 5612590877 1550406225
FAT32 4067271775 7003320344 2936048570
FAT12 4069229949 4638731175 569501227
FAT32 4072151979 7674403754 3602251776
FAT16 LBA 4085273403 7610227994 3524954592
FAT12 4086780457 4561359672 474579216
FAT16 >32M 4089985243 7448962970 3358977728
FAT12 4093903112 8274149639 4180246528
FAT32 LBA 4096604576 5209571959 1112967384
FAT16 >32M 4099394037 4755155384 655761348
FAT12 4103039304 8247146473 4144107170
FAT32 LBA 4106137632 5888794278 1782656647
HPFS - NTFS 4106708024 4778229466 671521443
FAT16 LBA 4109633644 7660767242 3551133599
FAT16 >32M 4118002162 5219384434 1101382273
FAT12 4118898282 4409323112 290424831
FAT16 <32M 4122178969 8363712250 4241533282
FAT32 4123747626 5930044190 1806296565
HPFS - NTFS 4143076749 7763022507 3619945759
FAT12 4144917032 8325163559 4180246528
FAT12 4163167903 4711965348 548797446
FAT16 LBA 4175480743 4447422208 271941466
HPFS - NTFS 4180242454 5690104280 1509861827
FAT16 >32M 4184907051 5066117743 881210693
FAT12 4191751818 4482176648 290424831
FAT32 4213373115 5909336658 1695963544
FAT32 LBA 4217796707 5257756513 1039959807
FAT16 LBA 4219486403 6511601251 2292114849
FAT16 >32M 4239761862 4545933627 306171766
FAT16 >32M 4261295854 4567467619 306171766
HPFS - NTFS 4261352556 4317374309 56021754
FAT32 LBA 4262270968 5375238351 1112967384
FAT16 <32M 4267069527 6465711100 2198641574
FAT12 4288823389 6487315289 2198491901
FAT16 LBA 4300139422 8447692712 4147553291
FAT32 LBA 4305693447 6467481531 2161788085
FAT12 4346603354 7284886382 2938283029
FAT16 LBA 4350594842 5732410590 1381815749
FAT32 LBA 4354401894 7150649179 2796247286
FAT32 LBA 4360763629 5163143099 802379471
FAT32 LBA 4368410950 7164658235 2796247286
FAT16 >32M 4373295319 5197649185 824353867
FAT32 LBA 4381281330 7948684044 3567402715
FAT32 LBA 4392692612 6540393681 2147701070
FAT32 LBA 4402815322 7970218036 3567402715
FAT16 LBA 4423255887 6838063424 2414807538
FAT16 <32M 4424834920 8247247626 3822412707
FAT32 LBA 4427629668 8079764386 3652134719
HPFS - NTFS 4443607148 4499628901 56021754
HPFS - NTFS 4444411607 7962077414 3517665808
HPFS - NTFS 4445720679 5658529995 1212809317
HPFS - NTFS 4446008810 5229378408 783369599
FAT12 4472393900 5041852325 569458426
FAT12 4501470760 8681717287 4180246528
HPFS - NTFS 4515865462 8208983931 3693118470
FAT32 4533129577 7226860852 2693731276
FAT16 >32M 4534129302 6777059362 2242930061
FAT32 4534298334 6926224378 2391926045
FAT32 4549086398 5368000493 818914096
FAT12 4561407680 8741654207 4180246528
FAT32 LBA 4561962745 5471781257 909818513
FAT16 <32M 4565178277 4656095992 90917716
FAT12 4575893835 6297704490 1721810656
FAT32 4608238030 6467463673 1859225644
FAT32 4620473523 6316437066 1695963544
FAT32 4628139511 7422537079 2794397569
FAT12 4628609116 7262808293 2634199178
FAT16 >32M 4641066513 6459126936 1818060424
HPFS - NTFS 4672150581 4985750015 313599435
FAT32 LBA 4681476265 6520392521 1838916257
FAT32 LBA 4696569150 6569855506 1873286357
FAT32 LBA 4722687629 8739934703 4017247075
FAT32 LBA 4729484955 5558972431 829487477
HPFS - NTFS 4738187213 5051786647 313599435
FAT32 LBA 4748688981 7232081532 2483392552
FAT16 LBA 4762795433 6598260887 1835465455
FAT12 4775224475 7289452176 2514227702
FAT16 <32M 4782614745 7791623654 3009008910
FAT12 4789233531 7303461232 2514227702
FAT16 <32M 4799159322 5028543723 229384402
FAT32 LBA 4810945968 7379793592 2568847625
FAT16 >32M 4812718409 5133065604 320347196
FAT16 LBA 4817170404 8368304002 3551133599
HPFS - NTFS 4818740368 7928482204 3109741837
FAT32 4840119021 8006574409 3166455389
HPFS - NTFS 4842858647 7813617956 2970759310
FAT12 4849655536 6654682239 1805026704
FAT16 LBA 4855761522 9132545642 4276784121
FAT32 LBA 4858884512 5971851895 1112967384
HPFS - NTFS 4860858559 7831617868 2970759310
FAT32 4861653013 8028108401 3166455389
FAT16 <32M 4872012858 5101397259 229384402
FAT16 LBA 4892054750 9039608040 4147553291
HPFS - NTFS 4897019567 7867778876 2970759310
FAT16 >32M 4903699161 6438191842 1534492682
FAT12 4907216511 8747178585 3839962075
FAT12 4957518952 9101626121 4144107170
FAT32 4962401698 8142606199 3180204502
FAT32 LBA 4963434740 7552635588 2589200849
FAT16 LBA 5010051702 9157604992 4147553291
HPFS - NTFS 5024651533 7433385978 2408734446
FAT16 LBA 5027473158 9175026448 4147553291
FAT16 <32M 5040854685 5131772400 90917716
HPFS - NTFS 5046185525 7454919970 2408734446
HPFS - NTFS 5050945586 8172951731 3122006146
HPFS - NTFS 5087696772 5290952659 203255888
FAT16 >32M 5087972918 7723151127 2635178210
FAT16 >32M 5102259691 5627863051 525603361
HPFS - NTFS 5237937580 6367208513 1129270934
FAT16 >32M 5267574443 8510676518 3243102076
FAT16 >32M 5270187387 5973994184 703806798
HPFS - NTFS 5287802172 9215167768 3927365597
FAT16 LBA 5287880048 9339633629 4051753582
FAT32 5306083957 5770356283 464272327
FAT32 5325152410 6121462213 796309804
get_geometry_from_list_part_aux head=1 nbr=412
get_geometry_from_list_part_aux head=8 nbr=61
get_geometry_from_list_part_aux head=16 nbr=29
get_geometry_from_list_part_aux head=32 nbr=13
get_geometry_from_list_part_aux head=64 nbr=6
get_geometry_from_list_part_aux head=128 nbr=3
get_geometry_from_list_part_aux head=240 nbr=2
get_geometry_from_list_part_aux head=255 nbr=2

Results
FAT32 LBA 40 409639 409600 [EFI System Partition] [EFI]
FAT32, blocksize=512, 209 MB / 200 MiB
FAT32 LBA 46 409645 409600 [EFI System Partition] [EFI]
FAT32, blocksize=512, 209 MB / 200 MiB
FAT32 LBA 82178907 1831880799 1749701893
FAT32 107830578 1627284917 1519454340
FAT12 130213682 130213682 1
HPFS - NTFS 152827994 3373559946 3220731953
FAT16 <32M 197983833 2054074553 1856090721
FAT12 242572629 3503973779 3261401151
FAT32 LBA 279890083 1381174211 1101284129
FAT32 306757310 3862814179 3556056870
FAT16 <32M 307558040 882046720 574488681
FAT16 <32M 307561884 882050564 574488681
FAT16 <32M 307565728 882054408 574488681
FAT16 <32M 307569572 882058252 574488681
FAT12 339977862 1662903314 1322925453
FAT16 <32M 348254289 3543694688 3195440400
FAT16 >32M 360347306 1419353356 1059006051
HPFS - NTFS 396521849 2402025666 2005503818
HPFS - NTFS 396993690 1236398451 839404762
FAT12 418407037 418407037 1
HPFS - NTFS 431184683 2772679837 2341495155
HPFS - NTFS 434642415 2174838596 1740196182
FAT32 444583664 3614669799 3170086136
FAT32 493177859 3744055099 3250877241
FAT12 531002391 583796690 52794300
FAT32 LBA 539747152 3113304735 2573557584
FAT32 589751715 3840628955 3250877241
FAT16 LBA 594887030 1886129412 1291242383
FAT16 <32M 603929931 2920164392 2316234462
HPFS - NTFS 622358244 2219271683 1596913440
FAT32 LBA 629846255 1915374211 1285527957
HPFS - NTFS 633083139 3021563626 2388480488
FAT16 LBA 669695291 1244719883 575024593
FAT16 <32M 715358646 3741423200 3026064555
FAT32 LBA 730490108 1523995909 793505802
FAT32 LBA 732369759 2197882028 1465512270
FAT32 752941812 2343412650 1590470839
FAT16 <32M 758413454 3784478008 3026064555
FAT12 781679257 2224456474 1442777218
FAT12 790478942 2939090249 2148611308
FAT16 <32M 806896457 1605107884 798211428
FAT12 808107538 808107538 1
FAT16 LBA 810776947 1385801539 575024593
FAT12 818749774 934714884 115965111
FAT16 >32M 834875075 1121662045 286786971
HPFS - NTFS 837082869 2996523568 2159440700
FAT16 >32M 840245060 3182999812 2342754753
FAT32 852625818 3702911942 2850286125
FAT12 856194369 2554434143 1698239775
FAT32 867553510 2528372812 1660819303
FAT32 LBA 888712871 2354225140 1465512270
FAT16 <32M 902960754 2659661438 1756700685
FAT32 931657206 1504992099 573334894
FAT16 <32M 945368663 2911933522 1966564860
HPFS - NTFS 975711610 1047393576 71681967
HPFS - NTFS 977045170 1048727136 71681967
FAT12 980782248 980802986 20739 [NO NAME]
FAT12, blocksize=4096, 10 MB / 10 MiB
FAT16 LBA 980782252 981005935 223684 [NO NAME]
FAT16, blocksize=4096, 114 MB / 109 MiB
HPFS - NTFS 981486394 1441835569 460349176
FAT16 <32M 985451896 1559940576 574488681
FAT16 <32M 985455740 1559944420 574488681
FAT16 <32M 985459584 1559948264 574488681
FAT16 <32M 985463428 1559952108 574488681
FAT12 987240500 2441244082 1454003583
FAT16 LBA 990307576 1937468978 947161403
FAT32 993048794 3906905920 2913857127
FAT12 1005240412 2459243994 1454003583
FAT32 LBA 1005424390 1485074105 479649716
FAT12 1041401420 2495405002 1454003583
FAT32 1043428710 2968103758 1924675049
FAT32 LBA 1050145289 2384836051 1334690763
FAT16 LBA 1050508992 3652007483 2601498492
HPFS - NTFS 1095584715 1618629538 523044824
FAT16 >32M 1103378176 2760459109 1657080934
HPFS - NTFS 1119409418 1958814179 839404762
FAT12 1123056125 2779113300 1656057176
FAT12 1125050144 3551062545 2426012402
HPFS - NTFS 1127711637 3637424859 2509713223
FAT16 <32M 1144786639 2579247058 1434460420
FAT12 1154827117 1789643202 634816086
FAT16 LBA 1204125717 2243917765 1039792049
HPFS - NTFS 1216503611 3557998765 2341495155
FAT16 >32M 1255960270 2265352928 1009392659
FAT16 <32M 1260994088 1692907964 431913877
FAT16 <32M 1280634159 2719944242 1439310084
FAT32 LBA 1280735592 1919405887 638670296
FAT16 <32M 1282528080 1714441956 431913877
FAT16 <32M 1283264175 2724671410 1441407236
FAT12 1287771921 3009451103 1721679183
FAT32 LBA 1288091643 1834644900 546553258
FAT12 1303273820 3447943548 2144669729
FAT12 1304895134 3889944746 2585049613
FAT16 >32M 1312657637 2352704482 1040046846
HPFS - NTFS 1320923507 3586213204 2265289698
FAT32 1321123031 2658166575 1337043545
FAT32 1323028823 2708418205 1385389383
FAT12 1335692753 2034154746 698461994
FAT16 LBA 1343011728 2381666082 1038654355
FAT32 1344857140 2935327978 1590470839
FAT32 1398378428 3419009082 2020630655
FAT12 1406117538 3429960429 2023842892
FAT16 LBA 1420555561 3042254624 1621699064
HPFS - NTFS 1437193337 2761123237 1323929901
FAT32 1462854092 3053324930 1590470839
FAT12 1465957794 2925510049 1459552256
FAT16 <32M 1472658202 2898727933 1426069732
FAT32 1480275548 3070746386 1590470839
FAT32 1481572104 1490040119 8468016
FAT16 <32M 1508569521 2951353012 1442783492
FAT12 1530156533 3186213708 1656057176
FAT16 LBA 1530605502 1553470996 22865495
FAT32 1533402666 3477923567 1944520902
HPFS - NTFS 1553884387 2288516491 734632105
FAT16 LBA 1592451102 1615316596 22865495
FAT32 LBA 1592787381 2974616975 1381829595
FAT32 LBA 1603292632 1725312296 122019665
FAT16 LBA 1610477447 1863986030 253508584
FAT32 LBA 1612474462 2374700272 762225811
FAT16 <32M 1621768343 3379994961 1758226619
FAT16 >32M 1639460763 3101569915 1462109153
FAT32 LBA 1646074898 2312528803 666453906
FAT12 1646713205 2326215947 679502743
FAT12 1649887707 1666607805 16720099
FAT12 1680833292 1791069185 110235894
FAT32 LBA 1688479539 2235032796 546553258
FAT16 LBA 1709834407 2423885365 714050959
FAT16 LBA 1715739538 1778385032 62645495
FAT32 1717527455 3258559068 1541031614
FAT32 1738444359 3279475972 1541031614
FAT16 LBA 1758082592 2770859057 1012776466
FAT32 LBA 1760226907 3408490378 1648263472
FAT32 1761968626 3706489527 1944520902
HPFS - NTFS 1786817545 2343637485 556819941
FAT12 1789174775 2262388331 473213557
FAT32 LBA 1798925959 3801044204 2002118246
FAT32 LBA 1800788122 2851283433 1050495312
FAT32 1827495826 3772016727 1944520902
FAT12 1856676167 3889489874 2032813708
FAT16 >32M 1861915199 2060994074 199078876
FAT32 LBA 1879598118 3031756170 1152158053
FAT16 >32M 1923356439 2706790957 783434519
FAT32 LBA 1941460904 2190185189 248724286
FAT16 >32M 1951591855 2141648722 190056868
FAT16 LBA 1962286515 3350511629 1388225115
FAT32 LBA 1962994896 2211719181 248724286
FAT12 1970404174 2420860416 450456243
FAT16 >32M 1983528809 3138746253 1155217445
FAT32 2004209718 2635725971 631516254
FAT12 2009306765 2644122850 634816086
FAT16 LBA 2058869804 2796132260 737262457
FAT16 <32M 2128554057 2756382898 627828842
FAT16 <32M 2147113697 2312220411 165106715
FAT16 <32M 2158693565 2158700000 6436
FAT16 <32M 2186463377 3629246868 1442783492
FAT32 2193419713 3277078784 1083659072
FAT12 2247032176 2740496716 493464541
FAT16 LBA 2252739588 2699984154 447244567
HPFS - NTFS 2261505304 3204787138 943281835
HPFS - NTFS 2280097567 2703801054 423703488
FAT16 >32M 2282131493 3829620860 1547489368
FAT16 >32M 2300131405 3847620772 1547489368
FAT12 2307627091 3246603904 938976814
FAT16 <32M 2329076561 2494183275 165106715
FAT16 >32M 2336292413 3883781780 1547489368
FAT32 LBA 2348695362 3399190673 1050495312
FAT12 2351413355 2368133453 16720099
FAT16 >32M 2357469086 2795868207 438399122
FAT32 LBA 2371463427 3617318456 1245855030
FAT16 <32M 2386207496 2594602492 208394997
FAT16 >32M 2449678560 3097658773 647980214
FAT16 LBA 2466193593 2577211844 111018252
HPFS - NTFS 2485952142 3509063476 1023111335
FAT32 2517072842 3352927520 835854679
FAT16 <32M 2534203948 2989804639 455600692
HPFS - NTFS 2594417189 3512207138 917789950
FAT12

kingkahuna
Posts: 4
Joined: 07 Aug 2016, 18:38

Re: Help! Accidentally clicked on erase in time machine when connecting an external HD to mac

#6 Post by kingkahuna » 10 Aug 2016, 17:59

Any other suggestion on what I should be doing next? Trying hard to win this one.

Post Reply

Who is online

Users browsing this forum: No registered users and 3 guests
