CHS Numbers for Seagate ST3400620AS

#1 Post by steve1916 » 01 Jan 2013, 08:02

The Seagate specification provides: 16,383:16:63, but this is a 400 GB drive and 16,383 shows up in TestDisk 6.13 as about 125 GB. To get 400 GB to show up in TestDisk 6.13, the number of cylinders needs to be about 48,640. I found this by trial and error, but this can't possibly be the correct way to use TestDisk? Can someone please point me to the correct method of determining the proper CHS values? I've been searching and reading the website for 2 days and just haven't been able to find this information. I also notice an inconsistency of units between a number of sources, so there is a lot of confusion about read/write heads and heads per cylinder, sectors and sectors per track, etc. This issue is also complicated by the differences between physical items and the virtual items needed to support the unusual development of file systems and larger and larger drives over the years. The attached file shows the System Reserved, C: partition, and a D:partition. I found files in all 3, the others are empty.

Thanks,
steve1916

Edited 1-7-13:
Please read thru to the last post (on page 2 of 2) as Fiona provides key information that made my efforts
successful. Thank you very much Fiona! I'm still not sure how to figure the correct cylinders
or if there is a database of this information, or if just a large guess that includes the drive
size is all that is needed. Additional information and help with this would be a valuable help
for anyone that has little or no experience with using TestDisk.

Following Fiona's suggestions, I was able to recover the two important partitions. The third
partition did not contain any important information. I moved the drive from my working Windows 7
computer and replaced it in the original system. The system would not boot up, but I ran Startup
Repair from the Windows 7 DVD. This did not work the first time. I also ran Bootrec.exe
(http://support.microsoft.com/kb/927392) and then ran Startup Repair again and the system finally booted into Windows 7.

I ran Microsoft Security Essentials, Malwarebytes, and Kaspersky Rescue Disk 10 (from a bootable
Linux CD), but found no evidence of virus attack. Maybe it was due to power loss at the wrong
time? This is a friend's system, but they weren't sure what happened.

Fiona's post contains several very helpful bits of information, but if you are using the english
language version, please ignore comments about partition status on the right side. In the
english version they appear on the left side of the screen.

I also compared TestDisk partition status to a known good system and found that System Reserved status was Primary (P) and the windows folder partition was Primary Bootable (*). By chance, while searching for more information, I found a Microsoft Tech forum that indicated the System Reserved partion is not required for Windows 7 unless you are using BitLocker. This may have been part of the startup issue, but probably makes no difference if the system boots.

Thanks again Fiona! Without your help all data in the windows partition would have been lost.
steve1916
Attachments
Last edited by steve1916 on 08 Jan 2013, 07:06, edited 3 times in total.

Sponsored links

steve1916
Posts: 11
Joined: 30 Dec 2012, 21:25

Re: CHS Numbers for Seagate ST3400620AS

#2 Post by steve1916 » 03 Jan 2013, 04:08

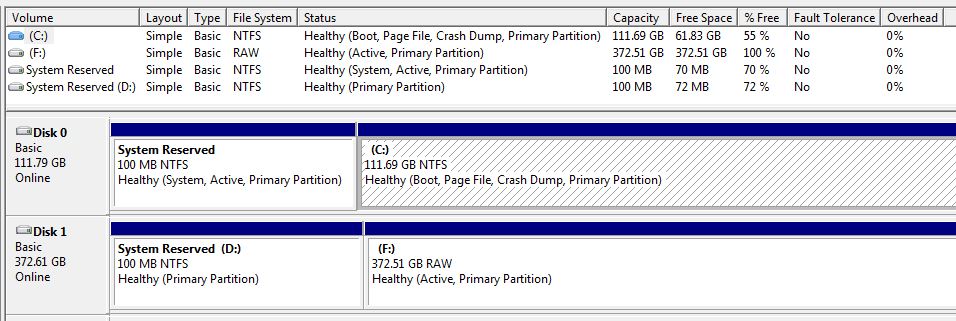

ST3400620AS (Windows 7 32-bit) drive is attached to Windows 7 64-bit computer as Disk 1. See attachmentfor Windows 7 Disk Management status for Disk 1.
Attachments
Disk Mananagement (Win 7 x64).JPG
Disk Mananagement (Win 7 x64).JPG (86.15 KiB) Viewed 2265 times

steve1916
Posts: 11
Joined: 30 Dec 2012, 21:25

Re: CHS Numbers for Seagate ST3400620AS

#3 Post by steve1916 » 03 Jan 2013, 04:20

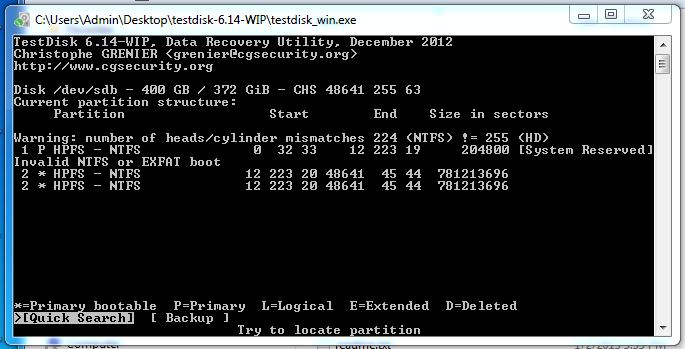

Next I tried TestDisk 6.14-WIP, but I still have the heads/cylinder mismatches issue. See TestDisk_11.jpg attachment.
Attachments

steve1916
Posts: 11
Joined: 30 Dec 2012, 21:25

Re: CHS Numbers for Seagate ST3400620AS

#4 Post by steve1916 » 03 Jan 2013, 06:03

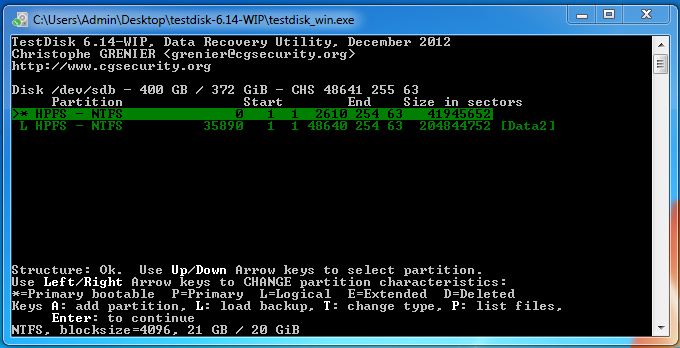

Anaysis shows two partitions. One Primary Bootable and on Logical. What happened to System Reserved?
Only the Logical partition has files (using "list files") and is [Data 2] (the second partition on the drive).
The c: boot partition and System Reserved partition are not found. See attached file.
Attachments

steve1916
Posts: 11
Joined: 30 Dec 2012, 21:25

Re: CHS Numbers for Seagate ST3400620AS

#5 Post by steve1916 » 03 Jan 2013, 06:06

The Deeper Search window shows partitions 1,2,and 5. Deeper Search will be run next.
Attachments

steve1916
Posts: 11
Joined: 30 Dec 2012, 21:25

Re: CHS Numbers for Seagate ST3400620AS

#6 Post by steve1916 » 03 Jan 2013, 07:41

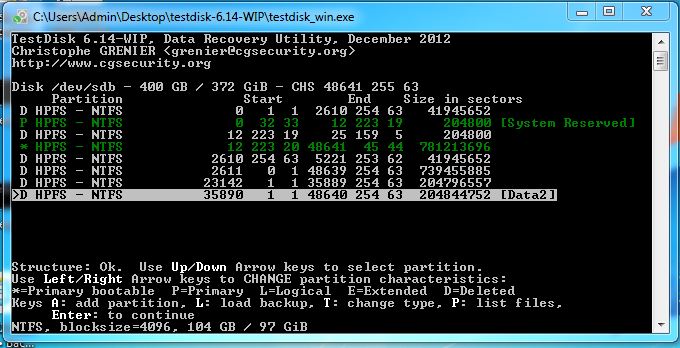

Results of the Deeper Search. Two partitions highlited green, but the last partition, [Data2], only has an OK structure of D=Deleted.

Am I back to the initial issue, wrong CHS values?
Attachments

steve1916
Posts: 11
Joined: 30 Dec 2012, 21:25

Re: CHS Numbers for Seagate ST3400620AS

#7 Post by steve1916 » 03 Jan 2013, 07:52

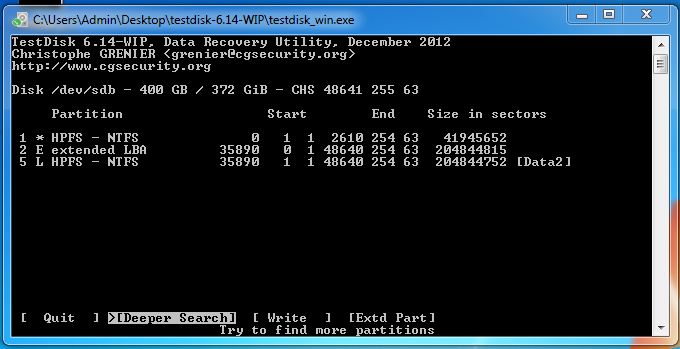

Attempting to write partition data results in the attached screen.

What happens if I attempt to [Rebuild BS]? Can this make recovery more difficult?
Attachments

steve1916
Posts: 11
Joined: 30 Dec 2012, 21:25

Re: CHS Numbers for Seagate ST3400620AS

#8 Post by steve1916 » 03 Jan 2013, 08:04

If it will help, here is the TestDisk.log (attached)

steve1916
Posts: 11
Joined: 30 Dec 2012, 21:25

Re: CHS Numbers for Seagate ST3400620AS

#9 Post by steve1916 » 03 Jan 2013, 08:06

testdisk.log



Wed Jan 2 19:14:21 2013
Command line: TestDisk

TestDisk 6.14-WIP, Data Recovery Utility, December 2012
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows 7 (7601) SP1
Compiler: GCC 4.6, Cygwin 1007.17
Compilation date: 2012-12-29T10:02:51
ext2fs lib: 1.42.2, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=120034123776
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=400088457216
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=120034123776
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=400088457216
filewin32_getfilesize(\\.\PhysicalDrive2) GetFileSize err Incorrect function.

filewin32_setfilepointer(\\.\PhysicalDrive2) SetFilePointer err Incorrect function.

Warning: can't get size for \\.\PhysicalDrive2
filewin32_getfilesize(\\.\PhysicalDrive3) GetFileSize err Incorrect function.

filewin32_setfilepointer(\\.\PhysicalDrive3) SetFilePointer err Incorrect function.

Warning: can't get size for \\.\PhysicalDrive3
filewin32_getfilesize(\\.\PhysicalDrive4) GetFileSize err Incorrect function.

filewin32_setfilepointer(\\.\PhysicalDrive4) SetFilePointer err Incorrect function.

Warning: can't get size for \\.\PhysicalDrive4
filewin32_getfilesize(\\.\PhysicalDrive5) GetFileSize err Incorrect function.

filewin32_setfilepointer(\\.\PhysicalDrive5) SetFilePointer err Incorrect function.

Warning: can't get size for \\.\PhysicalDrive5
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=119926685696
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=104857600
filewin32_getfilesize(\\.\E:) GetFileSize err Incorrect function.

filewin32_setfilepointer(\\.\E:) SetFilePointer err Incorrect function.

Warning: can't get size for \\.\E:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F:)=399981412352
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G:)=0
Warning: can't get size for \\.\G:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\H:)=0
Warning: can't get size for \\.\H:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\I:)=0
Warning: can't get size for \\.\I:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\J:)=0
Warning: can't get size for \\.\J:
Hard disk list
Disk /dev/sda - 120 GB / 111 GiB - CHS 2254246 13 8, sector size=512 - Patriot Pyro SE, S/N:5450313139343041303032353635203320202020, FW:332ABBF0
Disk /dev/sdb - 400 GB / 372 GiB - CHS 48641 255 63, sector size=512 - ST3400620AS, S/N:20202020202020202020202051393147414c4148, FW:3.AAK

Partition table type (auto): Intel
Disk /dev/sdb - 400 GB / 372 GiB - ST3400620AS
Partition table type: Intel

Analyse Disk /dev/sdb - 400 GB / 372 GiB - CHS 48641 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/32/33
heads/cylinder 224 (NTFS) != 255 (HD)
check_part_i386 failed for partition type 07
Current partition structure:
Warning: number of heads/cylinder mismatches 224 (NTFS) != 255 (HD)
1 P HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
Invalid NTFS or EXFAT boot
2 * HPFS - NTFS 12 223 20 48641 45 44 781213696
2 * HPFS - NTFS 12 223 20 48641 45 44 781213696
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.

search_part()
Disk /dev/sdb - 400 GB / 372 GiB - CHS 48641 255 63
NTFS at 0/1/1
filesystem size 41945652
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2621603
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 2610 254 63 41945652
NTFS, blocksize=4096, 21 GB / 20 GiB
NTFS at 35890/1/1
filesystem size 204844752
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 12802796
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 35890 1 1 48640 254 63 204844752 [Data2]
NTFS, blocksize=4096, 104 GB / 97 GiB
file_pread(5,2,buffer,781424640(48641/110/46)) lseek err Invalid argument
file_pread(5,1,buffer,781424640(48641/110/46)) lseek err Invalid argument
file_pread(5,8,buffer,781422833(48641/82/3)) lseek err Invalid argument
file_pread(5,1,buffer,781422833(48641/82/3)) lseek err Invalid argument
file_pread(5,8,buffer,781422961(48641/84/5)) lseek err Invalid argument
file_pread(5,8,buffer,781423089(48641/86/7)) lseek err Invalid argument
file_pread(5,8,buffer,781423217(48641/88/9)) lseek err Invalid argument
file_pread(5,8,buffer,781423345(48641/90/11)) lseek err Invalid argument
file_pread(5,8,buffer,781423473(48641/92/13)) lseek err Invalid argument
file_pread(5,8,buffer,781423601(48641/94/15)) lseek err Invalid argument
file_pread(5,8,buffer,781423729(48641/96/17)) lseek err Invalid argument
file_pread(5,8,buffer,781423857(48641/98/19)) lseek err Invalid argument
file_pread(5,8,buffer,781423985(48641/100/21)) lseek err Invalid argument
file_pread(5,8,buffer,781424113(48641/102/23)) lseek err Invalid argument
file_pread(5,8,buffer,781424241(48641/104/25)) lseek err Invalid argument
file_pread(5,8,buffer,781424369(48641/106/27)) lseek err Invalid argument
file_pread(5,8,buffer,781424497(48641/108/29)) lseek err Invalid argument
file_pread(5,8,buffer,781424625(48641/110/31)) lseek err Invalid argument
file_pread(5,16,buffer,781424640(48641/110/46)) lseek err Invalid argument
file_pread(5,3,buffer,781424656(48641/110/62)) lseek err Invalid argument
file_pread(5,3,buffer,781424703(48641/111/46)) lseek err Invalid argument
file_pread(5,8,buffer,781424719(48641/111/62)) lseek err Invalid argument
file_pread(5,11,buffer,781424766(48641/112/46)) lseek err Invalid argument
file_pread(5,2,buffer,781426688(48641/143/15)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=4
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=4

Results
* HPFS - NTFS 0 1 1 2610 254 63 41945652
NTFS, blocksize=4096, 21 GB / 20 GiB
L HPFS - NTFS 35890 1 1 48640 254 63 204844752 [Data2]
NTFS, blocksize=4096, 104 GB / 97 GiB
Not an exFAT boot sector.

* HPFS - NTFS 0 1 1 2610 254 63 41945652
NTFS, blocksize=4096, 21 GB / 20 GiB
Can't open filesystem. Filesystem seems damaged.


dir_partition inode=5
L HPFS - NTFS 35890 1 1 48640 254 63 204844752 [Data2]
NTFS, blocksize=4096, 104 GB / 97 GiB
Directory /
5 dr-xr-xr-x 0 0 0 9-Sep-2008 12:44 .
5 dr-xr-xr-x 0 0 0 9-Sep-2008 12:44 ..
121 dr-xr-xr-x 0 0 0 11-Dec-2007 22:21 $RECYCLE.BIN
71 dr-xr-xr-x 0 0 0 11-Dec-2007 18:10 RECYCLER
27 dr-xr-xr-x 0 0 0 29-Jul-2008 17:20 System Volume Information
125 dr-xr-xr-x 0 0 0 12-Oct-2007 15:11 USMT.TMP
add_ext_part_i386: max
add_ext_part_i386: min

interface_write()
1 * HPFS - NTFS 0 1 1 2610 254 63 41945652
2 E extended LBA 35890 0 1 48640 254 63 204844815
5 L HPFS - NTFS 35890 1 1 48640 254 63 204844752 [Data2]
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.

search_part()
Disk /dev/sdb - 400 GB / 372 GiB - CHS 48641 255 63
NTFS at 0/1/1
filesystem size 41945652
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2621603
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 2610 254 63 41945652
NTFS, blocksize=4096, 21 GB / 20 GiB
NTFS at 0/32/33
heads/cylinder 224 (NTFS) != 255 (HD)
filesystem size 204800
sectors_per_cluster 8
mft_lcn 8533
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
NTFS, blocksize=4096, 104 MB / 100 MiB
NTFS at 12/223/19
heads/cylinder 224 (NTFS) != 255 (HD)
filesystem size 204800
sectors_per_cluster 8
mft_lcn 8533
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
NTFS found using backup sector, blocksize=4096, 104 MB / 100 MiB
NTFS at 2610/254/63
filesystem size 41945652
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2621603
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 2610 254 63 41945652
NTFS found using backup sector, blocksize=4096, 21 GB / 20 GiB
NTFS at 35889/254/63
filesystem size 204796557
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 12799784
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 23142 1 1 35889 254 63 204796557
NTFS found using backup sector, blocksize=4096, 104 GB / 97 GiB
NTFS at 35890/1/1
filesystem size 204844752
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 12802796
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 35890 1 1 48640 254 63 204844752 [Data2]
NTFS, blocksize=4096, 104 GB / 97 GiB
NTFS at 48639/254/63
filesystem size 739455885
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 46215992
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 2611 0 1 48639 254 63 739455885
NTFS found using backup sector, blocksize=4096, 378 GB / 352 GiB
NTFS at 48640/254/63
filesystem size 204844752
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 12802796
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 35890 1 1 48640 254 63 204844752 [Data2]
NTFS found using backup sector, blocksize=4096, 104 GB / 97 GiB
NTFS at 48641/45/44
heads/cylinder 224 (NTFS) != 255 (HD)
filesystem size 781213696
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 12 223 20 48641 45 44 781213696
NTFS found using backup sector, blocksize=4096, 399 GB / 372 GiB
file_pread(5,2,buffer,781424640(48641/110/46)) lseek err Invalid argument
file_pread(5,1,buffer,781424640(48641/110/46)) lseek err Invalid argument
file_pread(5,8,buffer,781422833(48641/82/3)) lseek err Invalid argument
file_pread(5,1,buffer,781422833(48641/82/3)) lseek err Invalid argument
file_pread(5,8,buffer,781422848(48641/82/18)) lseek err Invalid argument
file_pread(5,8,buffer,781422961(48641/84/5)) lseek err Invalid argument
file_pread(5,8,buffer,781422976(48641/84/20)) lseek err Invalid argument
file_pread(5,8,buffer,781423089(48641/86/7)) lseek err Invalid argument
file_pread(5,8,buffer,781423104(48641/86/22)) lseek err Invalid argument
file_pread(5,8,buffer,781423217(48641/88/9)) lseek err Invalid argument
file_pread(5,8,buffer,781423232(48641/88/24)) lseek err Invalid argument
file_pread(5,8,buffer,781423345(48641/90/11)) lseek err Invalid argument
file_pread(5,8,buffer,781423360(48641/90/26)) lseek err Invalid argument
file_pread(5,8,buffer,781423473(48641/92/13)) lseek err Invalid argument
file_pread(5,8,buffer,781423488(48641/92/28)) lseek err Invalid argument
file_pread(5,8,buffer,781423601(48641/94/15)) lseek err Invalid argument
file_pread(5,8,buffer,781423616(48641/94/30)) lseek err Invalid argument
file_pread(5,8,buffer,781423729(48641/96/17)) lseek err Invalid argument
file_pread(5,8,buffer,781423744(48641/96/32)) lseek err Invalid argument
file_pread(5,8,buffer,781423857(48641/98/19)) lseek err Invalid argument
file_pread(5,8,buffer,781423872(48641/98/34)) lseek err Invalid argument
file_pread(5,8,buffer,781423985(48641/100/21)) lseek err Invalid argument
file_pread(5,8,buffer,781424000(48641/100/36)) lseek err Invalid argument
file_pread(5,8,buffer,781424113(48641/102/23)) lseek err Invalid argument
file_pread(5,8,buffer,781424128(48641/102/38)) lseek err Invalid argument
file_pread(5,8,buffer,781424241(48641/104/25)) lseek err Invalid argument
file_pread(5,8,buffer,781424256(48641/104/40)) lseek err Invalid argument
file_pread(5,8,buffer,781424369(48641/106/27)) lseek err Invalid argument
file_pread(5,8,buffer,781424384(48641/106/42)) lseek err Invalid argument
file_pread(5,8,buffer,781424497(48641/108/29)) lseek err Invalid argument
file_pread(5,8,buffer,781424512(48641/108/44)) lseek err Invalid argument
file_pread(5,8,buffer,781424625(48641/110/31)) lseek err Invalid argument
file_pread(5,1,buffer,781424639(48641/110/45)) lseek err Invalid argument
file_pread(5,1,buffer,781424640(48641/110/46)) lseek err Invalid argument
NTFS at 12/223/19
heads/cylinder 224 (NTFS) != 255 (HD)
filesystem size 204800
sectors_per_cluster 8
mft_lcn 8533
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
NTFS at 2610/254/63
filesystem size 41945652
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2621603
clusters_per_mft_record -10
clusters_per_index_record 1
get_geometry_from_list_part_aux head=255 nbr=8
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=8

Results
HPFS - NTFS 0 1 1 2610 254 63 41945652
NTFS, blocksize=4096, 21 GB / 20 GiB
HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
NTFS, blocksize=4096, 104 MB / 100 MiB
HPFS - NTFS 12 223 19 25 159 5 204800
NTFS, blocksize=4096, 104 MB / 100 MiB
HPFS - NTFS 12 223 20 48641 45 44 781213696
NTFS found using backup sector, blocksize=4096, 399 GB / 372 GiB
HPFS - NTFS 2610 254 63 5221 253 62 41945652
NTFS, blocksize=4096, 21 GB / 20 GiB
HPFS - NTFS 2611 0 1 48639 254 63 739455885
NTFS found using backup sector, blocksize=4096, 378 GB / 352 GiB
HPFS - NTFS 23142 1 1 35889 254 63 204796557
NTFS found using backup sector, blocksize=4096, 104 GB / 97 GiB
HPFS - NTFS 35890 1 1 48640 254 63 204844752 [Data2]
NTFS, blocksize=4096, 104 GB / 97 GiB
Not an exFAT boot sector.

HPFS - NTFS 0 1 1 2610 254 63 41945652
NTFS, blocksize=4096, 21 GB / 20 GiB
Can't open filesystem. Filesystem seems damaged.


dir_partition inode=5
HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
NTFS, blocksize=4096, 104 MB / 100 MiB
Directory /
5 dr-xr-xr-x 0 0 0 29-Dec-2012 17:30 .
5 dr-xr-xr-x 0 0 0 29-Dec-2012 17:30 ..
99 dr-xr-xr-x 0 0 0 29-Dec-2012 23:49 $RECYCLE.BIN
35 dr-xr-xr-x 0 0 0 16-Apr-2011 10:16 Boot
85 -r--r--r-- 0 0 383786 20-Nov-2010 04:40 bootmgr
96 -r--r--r-- 0 0 8192 15-Apr-2011 17:08 BOOTSECT.BAK
97 dr-xr-xr-x 0 0 0 15-Apr-2011 16:10 System Volume Information
Not an exFAT boot sector.

HPFS - NTFS 12 223 19 25 159 5 204800
NTFS, blocksize=4096, 104 MB / 100 MiB
Can't open filesystem. Filesystem seems damaged.
NTFS filesystem need to be repaired.


dir_partition inode=5
HPFS - NTFS 12 223 20 48641 45 44 781213696
NTFS found using backup sector, blocksize=4096, 399 GB / 372 GiB
Directory /
5 dr-xr-xr-x 0 0 0 24-Nov-2012 12:44 .
5 dr-xr-xr-x 0 0 0 24-Nov-2012 12:44 ..
57 dr-xr-xr-x 0 0 0 30-Mar-2012 13:52 $Recycle.Bin
65578 dr-xr-xr-x 0 0 0 17-Apr-2011 15:48 239e6c0edfb7dc8d99381590
65595 dr-xr-xr-x 0 0 0 17-Apr-2011 15:48 a59e9596e86700ed85a30af92082
60 dr-xr-xr-x 0 0 0 24-Nov-2012 12:37 Program Files
278 dr-xr-xr-x 0 0 0 24-Nov-2012 12:19 ProgramData
16651 dr-xr-xr-x 0 0 0 15-Apr-2011 16:43 Recovery
75032 dr-xr-xr-x 0 0 0 17-Apr-2011 15:55 Softstuf
525 dr-xr-xr-x 0 0 0 24-Nov-2012 12:59 Windows
65577 -r--r--r-- 0 0 158 8-Jul-2007 17:13 YServer.txt
65538 -r--r--r-- 0 0 232 19-Oct-2010 12:02 sqmdata04.sqm
65539 -r--r--r-- 0 0 172 19-Oct-2010 13:24 sqmdata05.sqm
65540 -r--r--r-- 0 0 232 19-Oct-2010 13:50 sqmdata06.sqm
65541 -r--r--r-- 0 0 172 19-Oct-2010 14:04 sqmdata07.sqm
65542 -r--r--r-- 0 0 232 19-Oct-2010 15:42 sqmdata08.sqm
65543 -r--r--r-- 0 0 232 19-Oct-2010 14:02 sqmdata09.sqm
65545 -r--r--r-- 0 0 232 19-Oct-2010 15:18 sqmdata10.sqm
65546 -r--r--r-- 0 0 232 19-Oct-2010 15:30 sqmdata11.sqm
65547 -r--r--r-- 0 0 172 13-Oct-2010 04:36 sqmdata12.sqm
65548 -r--r--r-- 0 0 232 13-Oct-2010 12:54 sqmdata13.sqm
65549 -r--r--r-- 0 0 232 13-Oct-2010 21:55 sqmdata14.sqm
65550 -r--r--r-- 0 0 232 14-Oct-2010 10:32 sqmdata15.sqm
65551 -r--r--r-- 0 0 232 15-Oct-2010 09:48 sqmdata16.sqm
65552 -r--r--r-- 0 0 232 16-Oct-2010 08:43 sqmdata17.sqm
65553 -r--r--r-- 0 0 172 16-Oct-2010 13:15 sqmdata18.sqm
65554 -r--r--r-- 0 0 172 16-Oct-2010 18:37 sqmdata19.sqm
65556 -r--r--r-- 0 0 244 19-Oct-2010 15:30 sqmnoopt00.sqm
65557 -r--r--r-- 0 0 244 19-Oct-2010 15:42 sqmnoopt01.sqm
65558 -r--r--r-- 0 0 172 13-Oct-2010 04:36 sqmnoopt02.sqm
65559 -r--r--r-- 0 0 244 13-Oct-2010 12:54 sqmnoopt03.sqm
65560 -r--r--r-- 0 0 244 13-Oct-2010 21:55 sqmnoopt04.sqm
65561 -r--r--r-- 0 0 244 14-Oct-2010 10:32 sqmnoopt05.sqm
65562 -r--r--r-- 0 0 244 15-Oct-2010 09:48 sqmnoopt06.sqm
65563 -r--r--r-- 0 0 244 16-Oct-2010 08:43 sqmnoopt07.sqm
65564 -r--r--r-- 0 0 172 16-Oct-2010 13:15 sqmnoopt08.sqm
65565 -r--r--r-- 0 0 244 16-Oct-2010 17:58 sqmnoopt09.sqm
65566 -r--r--r-- 0 0 172 16-Oct-2010 18:37 sqmnoopt10.sqm
65567 -r--r--r-- 0 0 244 17-Oct-2010 02:26 sqmnoopt11.sqm
65568 -r--r--r-- 0 0 172 17-Oct-2010 10:49 sqmnoopt12.sqm
65569 -r--r--r-- 0 0 244 18-Oct-2010 22:24 sqmnoopt13.sqm
65570 -r--r--r-- 0 0 244 19-Oct-2010 12:02 sqmnoopt14.sqm
65571 -r--r--r-- 0 0 172 19-Oct-2010 13:24 sqmnoopt15.sqm
65572 -r--r--r-- 0 0 244 19-Oct-2010 13:50 sqmnoopt16.sqm
65573 -r--r--r-- 0 0 172 19-Oct-2010 14:04 sqmnoopt17.sqm
65574 -r--r--r-- 0 0 244 19-Oct-2010 14:02 sqmnoopt18.sqm
65575 -r--r--r-- 0 0 244 19-Oct-2010 15:18 sqmnoopt19.sqm
41260 dr-xr-xr-x 0 0 0 26-Nov-2012 21:46 System Volume Information
65576 -r--r--r-- 0 0 87 15-Apr-2003 05:53 SystemInfo.ini
75034 dr-xr-xr-x 0 0 0 17-Apr-2011 15:55 TIDES
9358 -r--r--r-- 0 0 24 10-Jun-2009 14:42 autoexec.bat
58 dr-xr-xr-x 0 0 0 13-Jul-2009 19:37 PerfLogs
65537 -r--r--r-- 0 0 232 18-Oct-2010 22:24 sqmdata03.sqm
372 dr-xr-xr-x 0 0 0 17-Apr-2011 15:38 Users
65533 -r--r--r-- 0 0 232 16-Oct-2010 17:58 sqmdata00.sqm
65534 -r--r--r-- 0 0 232 17-Oct-2010 02:26 sqmdata01.sqm
65535 -r--r--r-- 0 0 172 17-Oct-2010 10:49 sqmdata02.sqm
9361 -r--r--r-- 0 0 10 10-Jun-2009 14:42 config.sys
65597 dr-xr-xr-x 0 0 0 17-Apr-2011 15:48 DELL
65529 -r--r--r-- 0 0 4633 15-Apr-2003 05:31 DELL.SDR
9364 dr-xr-xr-x 0 0 0 13-Jul-2009 21:53 Documents and Settings
66314 dr-xr-xr-x 0 0 0 17-Apr-2011 15:49 downloads
66316 dr-xr-xr-x 0 0 0 17-Apr-2011 15:49 DRIVERS
65530 -r--r--r-- 0 0 51 11-Aug-2006 03:04 DVDPATH.TXT
41259 -r--r--r-- 0 0 2608132096 25-Nov-2012 20:56 hiberfil.sys
66575 dr-xr-xr-x 0 0 0 17-Apr-2011 15:55 I386
52450 dr-xr-xr-x 0 0 0 15-Apr-2011 19:40 Intel
65531 -r--r--r-- 0 0 503 15-Apr-2003 06:01 IPH.PH
75031 dr-xr-xr-x 0 0 0 15-Apr-2003 06:01 My Music
41271 -r--r--r-- 0 0 3477512192 24-Nov-2012 12:50 pagefile.sys
65532 -r--r--r-- 0 0 13030 17-Apr-2011 19:46 PDOXUSRS.NET
NTFS filesystem need to be repaired.


dir_partition inode=5
* HPFS - NTFS 12 223 20 48641 45 44 781213696
NTFS found using backup sector, blocksize=4096, 399 GB / 372 GiB
Directory /
5 dr-xr-xr-x 0 0 0 24-Nov-2012 12:44 .
5 dr-xr-xr-x 0 0 0 24-Nov-2012 12:44 ..
57 dr-xr-xr-x 0 0 0 30-Mar-2012 13:52 $Recycle.Bin
65578 dr-xr-xr-x 0 0 0 17-Apr-2011 15:48 239e6c0edfb7dc8d99381590
65595 dr-xr-xr-x 0 0 0 17-Apr-2011 15:48 a59e9596e86700ed85a30af92082
60 dr-xr-xr-x 0 0 0 24-Nov-2012 12:37 Program Files
278 dr-xr-xr-x 0 0 0 24-Nov-2012 12:19 ProgramData
16651 dr-xr-xr-x 0 0 0 15-Apr-2011 16:43 Recovery
75032 dr-xr-xr-x 0 0 0 17-Apr-2011 15:55 Softstuf
525 dr-xr-xr-x 0 0 0 24-Nov-2012 12:59 Windows
65577 -r--r--r-- 0 0 158 8-Jul-2007 17:13 YServer.txt
65538 -r--r--r-- 0 0 232 19-Oct-2010 12:02 sqmdata04.sqm
65539 -r--r--r-- 0 0 172 19-Oct-2010 13:24 sqmdata05.sqm
65540 -r--r--r-- 0 0 232 19-Oct-2010 13:50 sqmdata06.sqm
65541 -r--r--r-- 0 0 172 19-Oct-2010 14:04 sqmdata07.sqm
65542 -r--r--r-- 0 0 232 19-Oct-2010 15:42 sqmdata08.sqm
65543 -r--r--r-- 0 0 232 19-Oct-2010 14:02 sqmdata09.sqm
65545 -r--r--r-- 0 0 232 19-Oct-2010 15:18 sqmdata10.sqm
65546 -r--r--r-- 0 0 232 19-Oct-2010 15:30 sqmdata11.sqm
65547 -r--r--r-- 0 0 172 13-Oct-2010 04:36 sqmdata12.sqm
65548 -r--r--r-- 0 0 232 13-Oct-2010 12:54 sqmdata13.sqm
65549 -r--r--r-- 0 0 232 13-Oct-2010 21:55 sqmdata14.sqm
65550 -r--r--r-- 0 0 232 14-Oct-2010 10:32 sqmdata15.sqm
65551 -r--r--r-- 0 0 232 15-Oct-2010 09:48 sqmdata16.sqm
65552 -r--r--r-- 0 0 232 16-Oct-2010 08:43 sqmdata17.sqm
65553 -r--r--r-- 0 0 172 16-Oct-2010 13:15 sqmdata18.sqm
65554 -r--r--r-- 0 0 172 16-Oct-2010 18:37 sqmdata19.sqm
65556 -r--r--r-- 0 0 244 19-Oct-2010 15:30 sqmnoopt00.sqm
65557 -r--r--r-- 0 0 244 19-Oct-2010 15:42 sqmnoopt01.sqm
65558 -r--r--r-- 0 0 172 13-Oct-2010 04:36 sqmnoopt02.sqm
65559 -r--r--r-- 0 0 244 13-Oct-2010 12:54 sqmnoopt03.sqm
65560 -r--r--r-- 0 0 244 13-Oct-2010 21:55 sqmnoopt04.sqm
65561 -r--r--r-- 0 0 244 14-Oct-2010 10:32 sqmnoopt05.sqm
65562 -r--r--r-- 0 0 244 15-Oct-2010 09:48 sqmnoopt06.sqm
65563 -r--r--r-- 0 0 244 16-Oct-2010 08:43 sqmnoopt07.sqm
65564 -r--r--r-- 0 0 172 16-Oct-2010 13:15 sqmnoopt08.sqm
65565 -r--r--r-- 0 0 244 16-Oct-2010 17:58 sqmnoopt09.sqm
65566 -r--r--r-- 0 0 172 16-Oct-2010 18:37 sqmnoopt10.sqm
65567 -r--r--r-- 0 0 244 17-Oct-2010 02:26 sqmnoopt11.sqm
65568 -r--r--r-- 0 0 172 17-Oct-2010 10:49 sqmnoopt12.sqm
65569 -r--r--r-- 0 0 244 18-Oct-2010 22:24 sqmnoopt13.sqm
65570 -r--r--r-- 0 0 244 19-Oct-2010 12:02 sqmnoopt14.sqm
65571 -r--r--r-- 0 0 172 19-Oct-2010 13:24 sqmnoopt15.sqm
65572 -r--r--r-- 0 0 244 19-Oct-2010 13:50 sqmnoopt16.sqm
65573 -r--r--r-- 0 0 172 19-Oct-2010 14:04 sqmnoopt17.sqm
65574 -r--r--r-- 0 0 244 19-Oct-2010 14:02 sqmnoopt18.sqm
65575 -r--r--r-- 0 0 244 19-Oct-2010 15:18 sqmnoopt19.sqm
41260 dr-xr-xr-x 0 0 0 26-Nov-2012 21:46 System Volume Information
65576 -r--r--r-- 0 0 87 15-Apr-2003 05:53 SystemInfo.ini
75034 dr-xr-xr-x 0 0 0 17-Apr-2011 15:55 TIDES
9358 -r--r--r-- 0 0 24 10-Jun-2009 14:42 autoexec.bat
58 dr-xr-xr-x 0 0 0 13-Jul-2009 19:37 PerfLogs
65537 -r--r--r-- 0 0 232 18-Oct-2010 22:24 sqmdata03.sqm
372 dr-xr-xr-x 0 0 0 17-Apr-2011 15:38 Users
65533 -r--r--r-- 0 0 232 16-Oct-2010 17:58 sqmdata00.sqm
65534 -r--r--r-- 0 0 232 17-Oct-2010 02:26 sqmdata01.sqm
65535 -r--r--r-- 0 0 172 17-Oct-2010 10:49 sqmdata02.sqm
9361 -r--r--r-- 0 0 10 10-Jun-2009 14:42 config.sys
65597 dr-xr-xr-x 0 0 0 17-Apr-2011 15:48 DELL
65529 -r--r--r-- 0 0 4633 15-Apr-2003 05:31 DELL.SDR
9364 dr-xr-xr-x 0 0 0 13-Jul-2009 21:53 Documents and Settings
66314 dr-xr-xr-x 0 0 0 17-Apr-2011 15:49 downloads
66316 dr-xr-xr-x 0 0 0 17-Apr-2011 15:49 DRIVERS
65530 -r--r--r-- 0 0 51 11-Aug-2006 03:04 DVDPATH.TXT
41259 -r--r--r-- 0 0 2608132096 25-Nov-2012 20:56 hiberfil.sys
66575 dr-xr-xr-x 0 0 0 17-Apr-2011 15:55 I386
52450 dr-xr-xr-x 0 0 0 15-Apr-2011 19:40 Intel
65531 -r--r--r-- 0 0 503 15-Apr-2003 06:01 IPH.PH
75031 dr-xr-xr-x 0 0 0 15-Apr-2003 06:01 My Music
41271 -r--r--r-- 0 0 3477512192 24-Nov-2012 12:50 pagefile.sys
65532 -r--r--r-- 0 0 13030 17-Apr-2011 19:46 PDOXUSRS.NET
Not an exFAT boot sector.

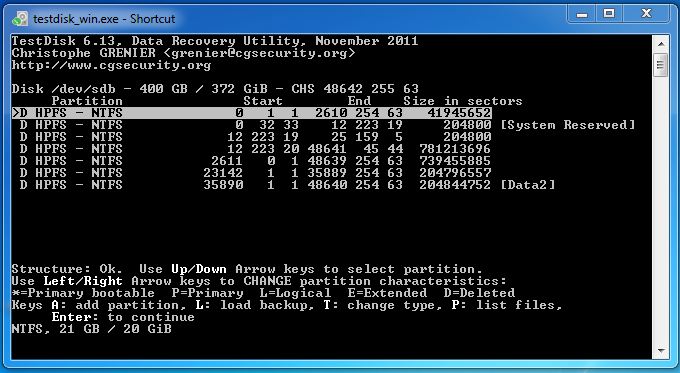

HPFS - NTFS 2610 254 63 5221 253 62 41945652
NTFS, blocksize=4096, 21 GB / 20 GiB
Can't open filesystem. Filesystem seems damaged.
Not an exFAT boot sector.

HPFS - NTFS 2611 0 1 48639 254 63 739455885
NTFS found using backup sector, blocksize=4096, 378 GB / 352 GiB
Can't open filesystem. Filesystem seems damaged.
Not an exFAT boot sector.

HPFS - NTFS 23142 1 1 35889 254 63 204796557
NTFS found using backup sector, blocksize=4096, 104 GB / 97 GiB
Can't open filesystem. Filesystem seems damaged.


dir_partition inode=5
HPFS - NTFS 35890 1 1 48640 254 63 204844752 [Data2]
NTFS, blocksize=4096, 104 GB / 97 GiB
Directory /
5 dr-xr-xr-x 0 0 0 9-Sep-2008 12:44 .
5 dr-xr-xr-x 0 0 0 9-Sep-2008 12:44 ..
121 dr-xr-xr-x 0 0 0 11-Dec-2007 22:21 $RECYCLE.BIN
71 dr-xr-xr-x 0 0 0 11-Dec-2007 18:10 RECYCLER
27 dr-xr-xr-x 0 0 0 29-Jul-2008 17:20 System Volume Information
125 dr-xr-xr-x 0 0 0 12-Oct-2007 15:11 USMT.TMP

interface_write()
1 P HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
2 * HPFS - NTFS 12 223 20 48641 45 44 781213696
write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition

ntfs_boot_sector
2 * HPFS - NTFS 12 223 20 48641 45 44 781213696
NTFS found using backup sector, blocksize=4096, 399 GB / 372 GiB
NTFS at 12/223/20
heads/cylinder 224 (NTFS) != 255 (HD)
filesystem size 3127466829460638567 781213696
sectors_per_cluster 232 8
mft_lcn 3666568906 786432
mftmirr_lcn 219592207 2
clusters_per_mft_record 102 -10
clusters_per_index_record 11 1

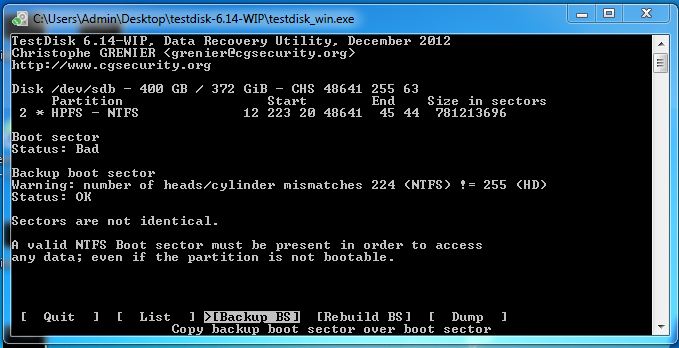

Boot sector
Status: Bad

Backup boot sector
Warning: number of heads/cylinder mismatches 224 (NTFS) != 255 (HD)
Status: OK

Sectors are not identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.

dragonfly41
Posts: 65
Joined: 14 Sep 2012, 20:51

Re: CHS Numbers for Seagate ST3400620AS

#10 Post by dragonfly41 » 03 Jan 2013, 11:31

Perhaps this DOS tool ntsfinfo might provide helpful information for each drive

http://technet.microsoft.com/en-us/sysi ... s/bb897424

just run DOS command .. ntsfinfo x (where x = partition letter)

[Later edit]

I run these commands on two ntfs partitions c and d to dump ntsfinfo into a log file

ntsfinfo c > ntsfinfo.log
ntsfinfo d >> ntsfinfo.log (to add to the log file)

Post Reply

Who is online

Users browsing this forum: No registered users and 6 guests
