3 terabyte (3tb) filesystem RAW, boot sectors both "bad"

Using TestDisk to repair the filesystem
Post Reply
Message
Author
SkinsFan346
Posts: 2
Joined: 16 Mar 2013, 19:24

3 terabyte (3tb) filesystem RAW, boot sectors both "bad"

#1 Post by SkinsFan346 » 16 Mar 2013, 20:37

While attempting to format another drive, my 3 terabyte toshiba canvio external hard drive was "apparently" formatted (never got a format completion pop-up window), so it is possible a full format did not occur.

Either way, both boot sectors (original & backup) are corrupted from the looks of it.

The drive now lists the filesystem in windows (Win 7 pro, 64-bit) as "RAW".

I proceeded to run the testdisk software in hopes of correcting the problem.

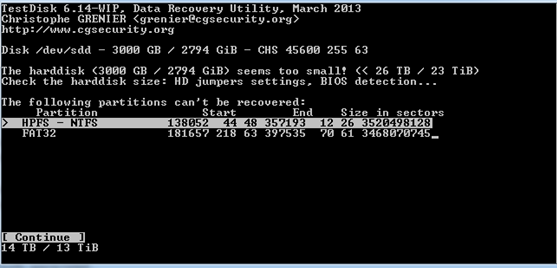

I also ran a "Deeper Scan", and the following image is the end result of the search:
testdisk deepscan screen.png
testdisk deepscan screen shot
testdisk deepscan screen.png (42.84 KiB) Viewed 1455 times
My original log should be shown below (I am now currently trying to now "RebuildBS" via MFT search).
testdisk MFT search screen shot.png
testdisk MFT search screen shot
testdisk MFT search screen shot.png (12.56 KiB) Viewed 1455 times
Admittedly, I am a bit ignorant on the inner-workings of hard disk recovery, so I appreciate any help that the community can possibly provide.

Thank you for your time, and have a great day.

Brett
