Is there any hope for this drive please - Was 2 partitions

#1 Post by ozstar » 04 May 2013, 00:51

Hello,

Is there any hope for me and this drive please?

It is the Disk /dev/sde - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512 - WDC WD50 00AAKB-00H8A0, S/N:W -D, FW:0000

It had two partitions and was a backup disk not boot disk.

Thank you

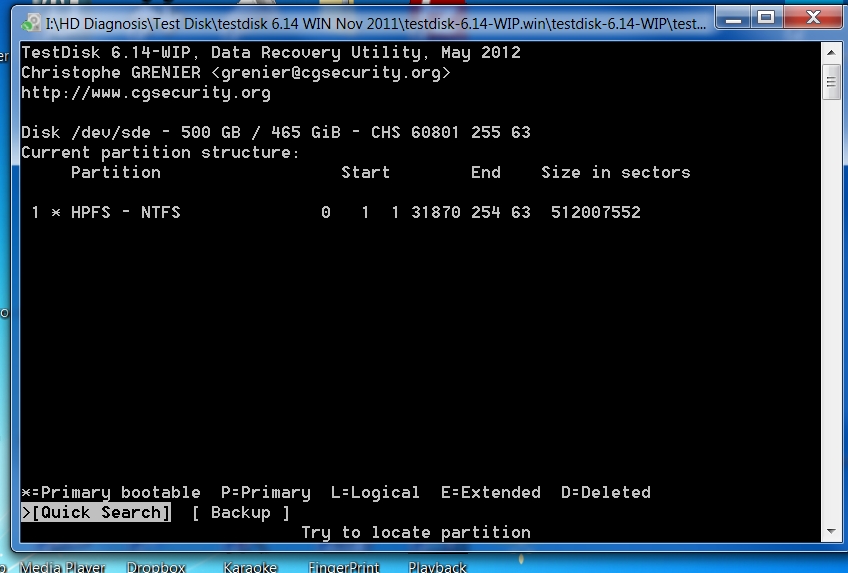

2013 Hard Drive USB Test Disk-1.jpg
2013 Hard Drive USB Test Disk-1.jpg (134.01 KiB) Viewed 798 times

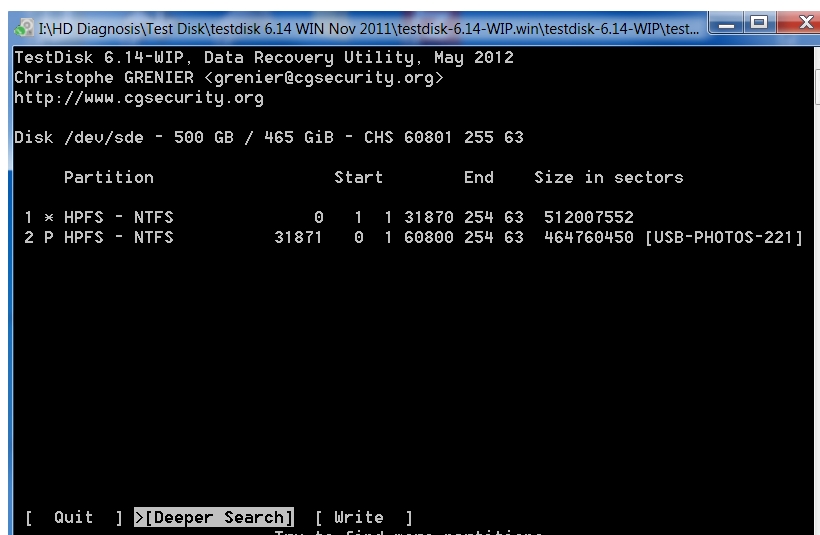

2013 Hard Drive USB Test Disk-2.jpg
2013 Hard Drive USB Test Disk-2.jpg (215.58 KiB) Viewed 798 times

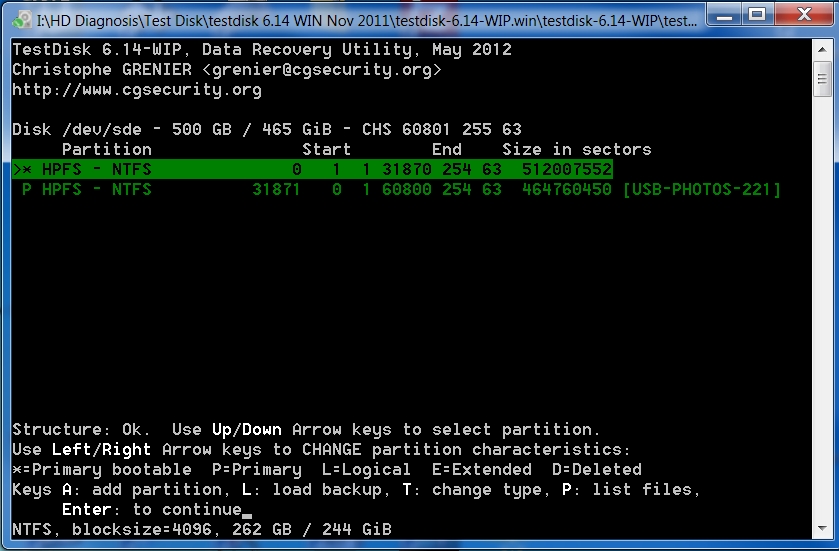

2013 Hard Drive USB Test Disk-3.jpg
2013 Hard Drive USB Test Disk-3.jpg (173.1 KiB) Viewed 798 times
at May 4 09:17:47 2013
Command line: TestDisk

Failed to open inode $MFTMirr: Input/Output error.
Failed to load $MFTMirr: Input/Output error.
Failed to startup volume: Input/Output error.
Failed to open inode $MFTMirr: Input/Output error.
Failed to load $MFTMirr: Input/Output error.
Failed to open inode $MFTMirr: Input/Output error.
Failed to load $MFTMirr: Input/Output error.
Failed to startup volume: Input/Output error.
Failed to open inode $MFTMirr: Input/Output error.
Failed to load $MFTMirr: Input/Output error.
TestDisk 6.14-WIP, Data Recovery Utility, May 2012
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows 7 (7601) SP1
Compiler: GCC 4.6, Cygwin 1007.9
Compilation date: 2012-05-21T08:46:51
ext2fs lib: 1.42.2, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdc)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdd)=2000398931968
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sde)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdf)=2000398933504
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive2)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive3)=2000398931968
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive4)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive5)=2000398933504
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=500000882688
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=2032697344
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E:)=104857600
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F:)=252536946688
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G:)=2000397883392
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\H:)=80570482688
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\I:)=209715200000
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\J:)=125829120000
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\K:)=83883982848
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\L:)=247462887424
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\M:)=262147866624
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\N:)=2000397883392
Hard disk list
Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512 - ST500DM002-1BD142, S/N:202020202020202020202020325a43415657564c, FW:KC44
Disk /dev/sdb - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512 - ST500DM002-1BC142, S/N:202020202020202020202020325a454132305446, FW:JC4B
Disk /dev/sdc - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512 - ST500DM002-1BC142, S/N:202020202020202020202020325a454144324141, FW:JC4B
Disk /dev/sdd - 2000 GB / 1863 GiB - CHS 243201 255 63, sector size=512 - Seagate External, S/N:2GHD3919, FW:SG16
Disk /dev/sde - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512 - WDC WD50 00AAKB-00H8A0, S/N:W -D, FW:0000
Disk /dev/sdf - 2000 GB / 1863 GiB - CHS 243201 255 63, sector size=512 - Seagate Expansion Desk, S/N:NA4LFZBV, FW:070B
Drive D: - 2032 MB / 1938 MiB - CHS 484 64 32, sector size=2048 - TSSTcorp CDDVDW SH-222BB, FW:SB00

Partition table type (auto): Intel
Disk /dev/sde - 500 GB / 465 GiB - WDC WD50 00AAKB-00H8A0
Partition table type: Intel

Interface Advanced
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/1/1
file_pread(8,4092,buffer,6291523(391/160/29)) ReadFile Data error (cyclic redundancy check).

NTFS: Can't read MFT
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
Not an exFAT boot sector.

1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
Can't open filesystem. Filesystem seems damaged.

ntfs_boot_sector
1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size 512007552
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 32000471
clusters_per_mft_record -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
rebuild_NTFS_BS
mft at 256003768, seq=1, main=0 res=1
ntfs_find_mft: mft_lcn 786432
ntfs_find_mft: mftmirr_lcn 32000471
ntfs_find_mft: sectors_per_cluster 8
ntfs_find_mft: mft_lcn 786432
ntfs_find_mft: mftmirr_lcn 32000471
ntfs_find_mft: mft_record_size 1024
NTFS Can't read "root directory" in MFT

ntfs_boot_sector
1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size 512007552
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 32000471
clusters_per_mft_record -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
repair_MFT
NTFS at 0/1/1
NTFS: Can't read MFT
Can't read NTFS MFT.
Can't read NTFS MFT.

ntfs_boot_sector
1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size 512007552
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 32000471
clusters_per_mft_record -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
Failed to open inode $MFTMirr: Input/Output error.
Failed to load $MFTMirr: Input/Output error.
Failed to startup volume: Input/Output error.
Failed to open inode $MFTMirr: Input/Output error.
Failed to load $MFTMirr: Input/Output error.
Failed to open inode $MFTMirr: Input/Output error.
Failed to load $MFTMirr: Input/Output error.
Failed to startup volume: Input/Output error.
Failed to open inode $MFTMirr: Input/Output error.
Failed to load $MFTMirr: Input/Output error.
Not an exFAT boot sector.

1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
Can't open filesystem. Filesystem seems damaged.

ntfs_boot_sector
1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size 512007552
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 32000471
clusters_per_mft_record -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.

ntfs_boot_sector
1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size 512007552
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 32000471
clusters_per_mft_record -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.

ntfs_boot_sector
1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size 512007552
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 32000471
clusters_per_mft_record -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.

Analyse Disk /dev/sde - 500 GB / 465 GiB - CHS 60801 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/1/1
NTFS: Can't read MFT
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
Current partition structure:
1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
Ask the user for vista mode
search_vista_part: 1

search_part()
Disk /dev/sde - 500 GB / 465 GiB - CHS 60801 255 63
NTFS at 0/1/1
filesystem size 512007552
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 32000471
clusters_per_mft_record -10
clusters_per_index_record 1
NTFS: Can't read MFT
HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
NTFS at 31871/0/1
filesystem size 464760450
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 29047528
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 31871 0 1 60800 254 63 464760450 [USB-PHOTOS-221]
NTFS, blocksize=4096, 237 GB / 221 GiB
file_pread(8,3,buffer,976773183(60801/81/16)) lseek err Invalid argument
file_pread(8,1,buffer,976773183(60801/81/16)) lseek err Invalid argument
file_pread(8,8,buffer,976773199(60801/81/32)) lseek err Invalid argument
file_pread(8,11,buffer,976773246(60801/82/16)) lseek err Invalid argument
file_pread(8,2,buffer,976775168(60801/112/48)) lseek err Invalid argument
file_pread(8,7,buffer,976773184(60801/81/17)) lseek err Invalid argument
file_pread(8,8,buffer,976773311(60801/83/18)) lseek err Invalid argument
file_pread(8,8,buffer,976773439(60801/85/20)) lseek err Invalid argument
file_pread(8,8,buffer,976773567(60801/87/22)) lseek err Invalid argument
file_pread(8,8,buffer,976773695(60801/89/24)) lseek err Invalid argument
file_pread(8,8,buffer,976773823(60801/91/26)) lseek err Invalid argument
file_pread(8,8,buffer,976773951(60801/93/28)) lseek err Invalid argument
file_pread(8,8,buffer,976774079(60801/95/30)) lseek err Invalid argument
file_pread(8,8,buffer,976774207(60801/97/32)) lseek err Invalid argument
file_pread(8,8,buffer,976774335(60801/99/34)) lseek err Invalid argument
file_pread(8,8,buffer,976774463(60801/101/36)) lseek err Invalid argument
file_pread(8,8,buffer,976774591(60801/103/38)) lseek err Invalid argument
file_pread(8,8,buffer,976774719(60801/105/40)) lseek err Invalid argument
file_pread(8,8,buffer,976774847(60801/107/42)) lseek err Invalid argument
file_pread(8,8,buffer,976774975(60801/109/44)) lseek err Invalid argument
file_pread(8,8,buffer,976775103(60801/111/46)) lseek err Invalid argument
file_pread(8,8,buffer,976775168(60801/112/48)) lseek err Invalid argument
file_pread(8,8,buffer,976775176(60801/112/56)) lseek err Invalid argument
file_pread(8,3,buffer,976775184(60801/113/1)) lseek err Invalid argument
file_pread(8,3,buffer,976775231(60801/113/48)) lseek err Invalid argument
file_pread(8,8,buffer,976775247(60801/114/1)) lseek err Invalid argument
file_pread(8,11,buffer,976775294(60801/114/48)) lseek err Invalid argument
file_pread(8,2,buffer,976777216(60801/145/17)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=4
get_geometry_from_list_part_aux head=8 nbr=2
get_geometry_from_list_part_aux head=16 nbr=2
get_geometry_from_list_part_aux head=32 nbr=2
get_geometry_from_list_part_aux head=64 nbr=2
get_geometry_from_list_part_aux head=128 nbr=2
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=4

Results
* HPFS - NTFS 0 1 1 31870 254 63 512007552
NTFS, blocksize=4096, 262 GB / 244 GiB
P HPFS - NTFS 31871 0 1 60800 254 63 464760450 [USB-PHOTOS-221]
NTFS, blocksize=4096, 237 GB / 221 GiB

interface_write()
1 * HPFS - NTFS 0 1 1 31870 254 63 512007552
2 P HPFS - NTFS 31871 0 1 60800 254 63 464760450 [USB-PHOTOS-221]

Sponsored links

Post Reply

Who is online

Users browsing this forum: No registered users and 2 guests
