Partition not visible, missing 0xAA55

#1 Post by hellward »

Partition is not visible. Partition Magic shows only unallocated space.

HPFS - NTFS 60800 254 63 99044 253 58 614389793

TestDisk message:
Problem:
Partition sector doesn't have the endmark 0xAA55
Full log:

Fri Aug 23 15:03:18 2013
Command line: TestDisk

TestDisk 6.14, Data Recovery Utility, July 2013
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows XP SP3
Compiler: GCC 4.7, Cygwin 1007.17
Compilation date: 2013-07-30T14:08:52
ext2fs lib: 1.42.2, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=60011642880
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=60011642880
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=26847281664
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E:)=148079715840
filewin32_getfilesize(\\.\F:) GetFileSize err Niepoprawna funkcja.

filewin32_setfilepointer(\\.\F:) SetFilePointer err Niepoprawna funkcja.

Warning: can't get size for \\.\F:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\I:)=30005789184
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\J:)=29997563904
Hard disk list
Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512 - WDC WD5000BEVT-80A0RT0, FW:01.01A01
Disk /dev/sdb - 60 GB / 55 GiB - CHS 7296 255 63, sector size=512 - FUJITSU MHT2060BH

Partition table type (auto): Intel
Disk /dev/sda - 500 GB / 465 GiB - WDC WD5000BEVT-80A0RT0
Partition table type: Intel

Interface Advanced
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/1/1
NTFS at 3264/0/1
get_geometry_from_list_part_aux head=255 nbr=8
get_geometry_from_list_part_aux head=8 nbr=3
get_geometry_from_list_part_aux head=16 nbr=3
get_geometry_from_list_part_aux head=32 nbr=3
get_geometry_from_list_part_aux head=64 nbr=3
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=3
get_geometry_from_list_part_aux head=255 nbr=8
1 * HPFS - NTFS 0 1 1 3263 254 63 52436097
NTFS, blocksize=4096, 26 GB / 25 GiB
2 P HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
NTFS, blocksize=4096, 148 GB / 137 GiB
3 E extended LBA 21267 0 1 60800 254 63 635113710
X extended 22557 0 1 60800 254 63 614389860
New options :
Dump : No
Align partition: Yes
Expert mode : No

Analyse Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/1/1
NTFS at 3264/0/1
get_geometry_from_list_part_aux head=255 nbr=8
get_geometry_from_list_part_aux head=8 nbr=3
get_geometry_from_list_part_aux head=16 nbr=3
get_geometry_from_list_part_aux head=32 nbr=3
get_geometry_from_list_part_aux head=64 nbr=3
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=3
get_geometry_from_list_part_aux head=255 nbr=8
Current partition structure:
1 * HPFS - NTFS 0 1 1 3263 254 63 52436097
2 P HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
3 E extended LBA 21267 0 1 60800 254 63 635113710
X extended 22557 0 1 60800 254 63 614389860

test_logical:
Partition sector doesn't have the endmark 0xAA55

search_part()
Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63
NTFS at 0/1/1
filesystem size 52436097
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 3277256
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 3263 254 63 52436097
NTFS, blocksize=4096, 26 GB / 25 GiB
NTFS at 3264/0/1
filesystem size 289218195
sectors_per_cluster 8
mft_lcn 4
mftmirr_lcn 524288
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
NTFS, blocksize=4096, 148 GB / 137 GiB
Linux Swap 21267 1 1 21528 21 55 4194280
SWAP2 version 1, pagesize=4096, 2147 MB / 2047 MiB
NTFS at 21529/1/1
filesystem size 16514757
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 1032172
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 21529 1 1 22556 254 63 16514757 [SWAP]
NTFS, blocksize=4096, 8455 MB / 8063 MiB
NTFS at 60800/254/63
filesystem size 614389793
sectors_per_cluster 8
mft_lcn 4
mftmirr_lcn 524288
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 22557 1 5 60800 254 63 614389793
NTFS found using backup sector, blocksize=4096, 314 GB / 292 GiB
NTFS at 60800/254/63
filesystem size 614389793
sectors_per_cluster 8
mft_lcn 4
mftmirr_lcn 524288
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 60800 254 63 99044 253 58 614389793
NTFS, blocksize=4096, 314 GB / 292 GiB
This partition ends after the disk limits. (start=976768064, size=614389793, end=1591157856, disk end=976773168)
file_pread(4,3,buffer,976773183(60801/81/16)) lseek err Invalid argument
file_pread(4,1,buffer,976773183(60801/81/16)) lseek err Invalid argument
file_pread(4,8,buffer,976773199(60801/81/32)) lseek err Invalid argument
file_pread(4,11,buffer,976773246(60801/82/16)) lseek err Invalid argument
file_pread(4,2,buffer,976775168(60801/112/48)) lseek err Invalid argument
file_pread(4,8,buffer,976773280(60801/82/50)) lseek err Invalid argument
file_pread(4,1,buffer,976773280(60801/82/50)) lseek err Invalid argument
file_pread(4,8,buffer,976773408(60801/84/52)) lseek err Invalid argument
file_pread(4,8,buffer,976773536(60801/86/54)) lseek err Invalid argument
file_pread(4,8,buffer,976773664(60801/88/56)) lseek err Invalid argument
file_pread(4,8,buffer,976773792(60801/90/58)) lseek err Invalid argument
file_pread(4,8,buffer,976773920(60801/92/60)) lseek err Invalid argument
file_pread(4,8,buffer,976774048(60801/94/62)) lseek err Invalid argument
file_pread(4,8,buffer,976774176(60801/97/1)) lseek err Invalid argument
file_pread(4,8,buffer,976774304(60801/99/3)) lseek err Invalid argument
file_pread(4,8,buffer,976774432(60801/101/5)) lseek err Invalid argument
file_pread(4,8,buffer,976774560(60801/103/7)) lseek err Invalid argument
file_pread(4,8,buffer,976774688(60801/105/9)) lseek err Invalid argument
file_pread(4,8,buffer,976774816(60801/107/11)) lseek err Invalid argument
file_pread(4,8,buffer,976774944(60801/109/13)) lseek err Invalid argument
file_pread(4,8,buffer,976775072(60801/111/15)) lseek err Invalid argument
file_pread(4,1,buffer,976775167(60801/112/47)) lseek err Invalid argument
file_pread(4,1,buffer,976775168(60801/112/48)) lseek err Invalid argument
file_pread(4,14,buffer,976775169(60801/112/49)) lseek err Invalid argument
file_pread(4,3,buffer,976775183(60801/112/63)) lseek err Invalid argument
file_pread(4,3,buffer,976775230(60801/113/47)) lseek err Invalid argument
file_pread(4,8,buffer,976775246(60801/113/63)) lseek err Invalid argument
file_pread(4,11,buffer,976775293(60801/114/47)) lseek err Invalid argument
file_pread(4,2,buffer,976777215(60801/145/16)) lseek err Invalid argument

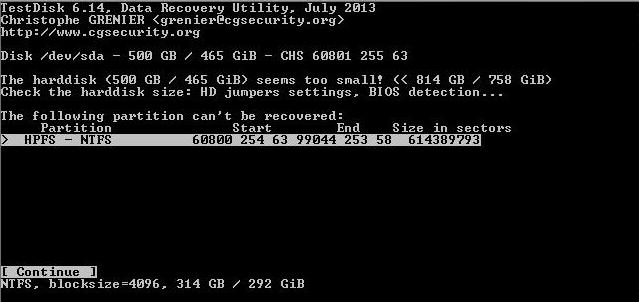

Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63
Check the harddisk size: HD jumpers settings, BIOS detection...
The harddisk (500 GB / 465 GiB) seems too small! (< 814 GB / 758 GiB)
The following partition can't be recovered:
HPFS - NTFS 60800 254 63 99044 253 58 614389793
NTFS, blocksize=4096, 314 GB / 292 GiB
get_geometry_from_list_part_aux head=255 nbr=7
get_geometry_from_list_part_aux head=8 nbr=4
get_geometry_from_list_part_aux head=16 nbr=3
get_geometry_from_list_part_aux head=32 nbr=3
get_geometry_from_list_part_aux head=64 nbr=3
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=3
get_geometry_from_list_part_aux head=255 nbr=7

Results
* HPFS - NTFS 0 1 1 3263 254 63 52436097
NTFS, blocksize=4096, 26 GB / 25 GiB
P HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
NTFS, blocksize=4096, 148 GB / 137 GiB
L Linux Swap 21267 1 1 21528 254 63 4208967
SWAP2 version 1, pagesize=4096, 2154 MB / 2055 MiB
L HPFS - NTFS 21529 1 1 22556 254 63 16514757 [SWAP]
NTFS, blocksize=4096, 8455 MB / 8063 MiB
L HPFS - NTFS 22557 1 5 60800 254 63 614389793
NTFS found using backup sector, blocksize=4096, 314 GB / 292 GiB
add_ext_part_i386: max
add_ext_part_i386: min

interface_write()
1 * HPFS - NTFS 0 1 1 3263 254 63 52436097
2 P HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
3 E extended LBA 21267 0 1 60800 254 63 635113710
5 L Linux Swap 21267 1 1 21528 254 63 4208967
6 L HPFS - NTFS 21529 1 1 22556 254 63 16514757 [SWAP]
7 L HPFS - NTFS 22557 1 5 60800 254 63 614389793
Failed to open $MFT/$BITMAP: No such file or directory.
ntfs_mft_load(): Failed.
Failed to load $MFT: No such file or directory.
Failed to startup volume: No such file or directory.
Failed to open $MFT/$BITMAP: No such file or directory.
ntfs_mft_load(): Failed.
Failed to load $MFT: No such file or directory.
Failed to open $MFT/$BITMAP: No such file or directory.
ntfs_mft_load(): Failed.
Failed to load $MFT: No such file or directory.
Failed to startup volume: No such file or directory.
Failed to open $MFT/$BITMAP: No such file or directory.
ntfs_mft_load(): Failed.
Failed to load $MFT: No such file or directory.
Failed to open $MFT/$BITMAP: No such file or directory.
ntfs_mft_load(): Failed.
Failed to load $MFT: No such file or directory.
Failed to startup volume: No such file or directory.
Failed to open $MFT/$BITMAP: No such file or directory.
ntfs_mft_load(): Failed.
Failed to load $MFT: No such file or directory.
Failed to open $MFT/$BITMAP: No such file or directory.
ntfs_mft_load(): Failed.
Failed to load $MFT: No such file or directory.
Failed to startup volume: No such file or directory.
Failed to open $MFT/$BITMAP: No such file or directory.
ntfs_mft_load(): Failed.
Failed to load $MFT: No such file or directory.

search_part()
Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63
NTFS at 0/1/1
filesystem size 52436097
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 3277256
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 3263 254 63 52436097
NTFS, blocksize=4096, 26 GB / 25 GiB
NTFS at 3263/254/63
filesystem size 52436097
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 3277256
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 1 1 3263 254 63 52436097
NTFS found using backup sector, blocksize=4096, 26 GB / 25 GiB
NTFS at 3264/0/1
filesystem size 289218195
sectors_per_cluster 8
mft_lcn 4
mftmirr_lcn 524288
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
NTFS, blocksize=4096, 148 GB / 137 GiB

recover_EXT2: s_block_group_nr=0/74, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8144
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2441406
recover_EXT2: part_size 19531248
Linux 7460 64 29 8676 4 16 19531248
ext4 blocksize=4096 Large file Sparse superblock Recover, 9999 MB / 9536 MiB

recover_EXT2: s_block_group_nr=0/74, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8144
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2441406
recover_EXT2: part_size 19531248
Linux 7460 161 62 8676 101 49 19531248
ext4 blocksize=4096 Large file Sparse superblock Recover, 9999 MB / 9536 MiB

recover_EXT2: s_block_group_nr=0/74, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8144
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2441406
recover_EXT2: part_size 19531248
Linux 7462 74 37 8678 14 24 19531248
ext4 blocksize=4096 Large file Sparse superblock Recover, 9999 MB / 9536 MiB

recover_EXT2: s_block_group_nr=0/74, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8144
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2441406
recover_EXT2: part_size 19531248
Linux 7463 112 10 8679 51 60 19531248
ext4 blocksize=4096 Large file Sparse superblock Recover, 9999 MB / 9536 MiB

recover_EXT2: s_block_group_nr=0/74, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8144
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2441406
recover_EXT2: part_size 19531248
Linux 7466 127 22 8682 67 9 19531248
ext4 blocksize=4096 Large file Sparse superblock Recover, 9999 MB / 9536 MiB

recover_EXT2: s_block_group_nr=0/74, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8144
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2441406
recover_EXT2: part_size 19531248
Linux 7470 82 37 8686 22 24 19531248
ext4 blocksize=4096 Large file Sparse superblock Recover, 9999 MB / 9536 MiB

recover_EXT2: s_block_group_nr=0/74, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8144
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2441406
recover_EXT2: part_size 19531248
Linux 7471 120 10 8687 59 60 19531248
ext4 blocksize=4096 Large file Sparse superblock Recover, 9999 MB / 9536 MiB

recover_EXT2: s_block_group_nr=0/74, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8144
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2441406
recover_EXT2: part_size 19531248
Linux 7472 0 1 8687 194 51 19531248
ext4 blocksize=4096 Large file Sparse superblock Recover, 9999 MB / 9536 MiB

recover_EXT2: s_block_group_nr=0/74, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8144
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2441406
recover_EXT2: part_size 19531248
Linux 7472 190 15 8688 130 2 19531248
ext4 blocksize=4096 Large file Sparse superblock Recover, 9999 MB / 9536 MiB

recover_EXT2: s_block_group_nr=0/74, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8144
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2441406
recover_EXT2: part_size 19531248
Linux 7473 32 48 8688 227 35 19531248
ext4 blocksize=4096 Large file Sparse superblock Recover, 9999 MB / 9536 MiB
Linux Swap 21267 1 1 21528 21 55 4194280
SWAP2 version 1, pagesize=4096, 2147 MB / 2047 MiB
NTFS at 21529/1/1
filesystem size 16514757
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 1032172
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 21529 1 1 22556 254 63 16514757 [SWAP]
NTFS, blocksize=4096, 8455 MB / 8063 MiB
NTFS at 60800/254/63
filesystem size 614389793
sectors_per_cluster 8
mft_lcn 4
mftmirr_lcn 524288
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 22557 1 5 60800 254 63 614389793
NTFS found using backup sector, blocksize=4096, 314 GB / 292 GiB
NTFS at 60800/254/63
filesystem size 614389793
sectors_per_cluster 8
mft_lcn 4
mftmirr_lcn 524288
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 60800 254 63 99044 253 58 614389793
NTFS, blocksize=4096, 314 GB / 292 GiB
This partition ends after the disk limits. (start=976768064, size=614389793, end=1591157856, disk end=976773168)
file_pread(4,3,buffer,976773183(60801/81/16)) lseek err Invalid argument
file_pread(4,1,buffer,976773183(60801/81/16)) lseek err Invalid argument
file_pread(4,8,buffer,976773199(60801/81/32)) lseek err Invalid argument
file_pread(4,11,buffer,976773246(60801/82/16)) lseek err Invalid argument
file_pread(4,2,buffer,976775168(60801/112/48)) lseek err Invalid argument
file_pread(4,8,buffer,976773280(60801/82/50)) lseek err Invalid argument
file_pread(4,1,buffer,976773280(60801/82/50)) lseek err Invalid argument
file_pread(4,8,buffer,976773408(60801/84/52)) lseek err Invalid argument
file_pread(4,8,buffer,976773536(60801/86/54)) lseek err Invalid argument
file_pread(4,8,buffer,976773664(60801/88/56)) lseek err Invalid argument
file_pread(4,8,buffer,976773792(60801/90/58)) lseek err Invalid argument
file_pread(4,8,buffer,976773920(60801/92/60)) lseek err Invalid argument
file_pread(4,8,buffer,976774048(60801/94/62)) lseek err Invalid argument
file_pread(4,8,buffer,976774176(60801/97/1)) lseek err Invalid argument
file_pread(4,8,buffer,976774304(60801/99/3)) lseek err Invalid argument
file_pread(4,8,buffer,976774432(60801/101/5)) lseek err Invalid argument
file_pread(4,8,buffer,976774560(60801/103/7)) lseek err Invalid argument
file_pread(4,8,buffer,976774688(60801/105/9)) lseek err Invalid argument
file_pread(4,8,buffer,976774816(60801/107/11)) lseek err Invalid argument
file_pread(4,8,buffer,976774944(60801/109/13)) lseek err Invalid argument
file_pread(4,8,buffer,976775072(60801/111/15)) lseek err Invalid argument
file_pread(4,1,buffer,976775167(60801/112/47)) lseek err Invalid argument
file_pread(4,1,buffer,976775168(60801/112/48)) lseek err Invalid argument
file_pread(4,14,buffer,976775169(60801/112/49)) lseek err Invalid argument
file_pread(4,3,buffer,976775183(60801/112/63)) lseek err Invalid argument
file_pread(4,3,buffer,976775230(60801/113/47)) lseek err Invalid argument
file_pread(4,8,buffer,976775246(60801/113/63)) lseek err Invalid argument
file_pread(4,11,buffer,976775293(60801/114/47)) lseek err Invalid argument
file_pread(4,2,buffer,976777215(60801/145/16)) lseek err Invalid argument
Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63
Check the harddisk size: HD jumpers settings, BIOS detection...
The harddisk (500 GB / 465 GiB) seems too small! (< 814 GB / 758 GiB)
The following partition can't be recovered:
HPFS - NTFS 60800 254 63 99044 253 58 614389793
NTFS, blocksize=4096, 314 GB / 292 GiB
get_geometry_from_list_part_aux head=255 nbr=8
get_geometry_from_list_part_aux head=8 nbr=5
get_geometry_from_list_part_aux head=16 nbr=4
get_geometry_from_list_part_aux head=32 nbr=3
get_geometry_from_list_part_aux head=64 nbr=3
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=4
get_geometry_from_list_part_aux head=255 nbr=8

Results
* HPFS - NTFS 0 1 1 3263 254 63 52436097
NTFS, blocksize=4096, 26 GB / 25 GiB
HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
NTFS, blocksize=4096, 148 GB / 137 GiB
Linux 7460 64 29 8676 12 40 19531776
ext4 blocksize=4096 Large file Sparse superblock Recover, 10000 MB / 9537 MiB
Linux 7460 161 62 8676 110 10 19531776
ext4 blocksize=4096 Large file Sparse superblock Recover, 10000 MB / 9537 MiB
Linux 7462 74 37 8678 22 48 19531776
ext4 blocksize=4096 Large file Sparse superblock Recover, 10000 MB / 9537 MiB
Linux 7463 112 10 8679 60 21 19531776
ext4 blocksize=4096 Large file Sparse superblock Recover, 10000 MB / 9537 MiB
Linux 7466 127 22 8682 75 33 19531776
ext4 blocksize=4096 Large file Sparse superblock Recover, 10000 MB / 9537 MiB
Linux 7470 82 37 8686 30 48 19531776
ext4 blocksize=4096 Large file Sparse superblock Recover, 10000 MB / 9537 MiB
Linux 7471 120 10 8687 68 21 19531776
ext4 blocksize=4096 Large file Sparse superblock Recover, 10000 MB / 9537 MiB
Linux 7472 0 1 8687 254 63 19535040
ext4 blocksize=4096 Large file Sparse superblock Recover, 10001 MB / 9538 MiB
Linux 7472 190 15 8688 138 26 19531776
ext4 blocksize=4096 Large file Sparse superblock Recover, 10000 MB / 9537 MiB
Linux 7473 32 48 8688 235 59 19531776
ext4 blocksize=4096 Large file Sparse superblock Recover, 10000 MB / 9537 MiB
P Linux Swap 21267 1 1 21528 254 63 4208967
SWAP2 version 1, pagesize=4096, 2154 MB / 2055 MiB
P HPFS - NTFS 21529 1 1 22556 254 63 16514757 [SWAP]
NTFS, blocksize=4096, 8455 MB / 8063 MiB
L HPFS - NTFS 22557 1 5 60800 254 63 614389793
NTFS found using backup sector, blocksize=4096, 314 GB / 292 GiB


dir_partition inode=5
P HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
NTFS, blocksize=4096, 148 GB / 137 GiB
Directory /
5 dr-xr-xr-x 0 0 0 23-Aug-2013 01:38 .
5 dr-xr-xr-x 0 0 0 23-Aug-2013 01:38 ..
27710 dr-xr-xr-x 0 0 0 20-Aug-2013 20:41 Counter-Strike 1.6
1968 dr-xr-xr-x 0 0 0 26-Jun-2011 00:53 DV
34650 dr-xr-xr-x 0 0 0 23-Aug-2013 13:19 Downloads
128 dr-xr-xr-x 0 0 0 23-Aug-2013 01:38 Nowy folder
30 dr-xr-xr-x 0 0 0 11-Jun-2013 20:58 RECYCLER
27 dr-xr-xr-x 0 0 0 6-Aug-2010 22:14 System Volume Information
93 dr-xr-xr-x 0 0 0 21-Aug-2013 15:08 filmy
127 dr-xr-xr-x 0 0 0 23-Aug-2013 01:42 foty
1547 dr-xr-xr-x 0 0 0 19-Feb-2013 14:59 music
64 dr-xr-xr-x 0 0 0 7-Nov-2012 18:42 ubuntu


dir_partition inode=5
* HPFS - NTFS 0 1 1 3263 254 63 52436097
NTFS, blocksize=4096, 26 GB / 25 GiB
Directory /
5 dr-xr-xr-x 0 0 0 22-Aug-2013 16:36 .
5 dr-xr-xr-x 0 0 0 22-Aug-2013 16:36 ..
3421 dr-xr-xr-x 0 0 0 22-Nov-2012 22:55 Documents and Settings
24474 dr-xr-xr-x 0 0 0 20-Mar-2012 02:05 MSOCache
44168 dr-xr-xr-x 0 0 0 22-Aug-2013 16:36 Pobieranie
3887 dr-xr-xr-x 0 0 0 22-Aug-2013 20:27 Program Files
11247 dr-xr-xr-x 0 0 0 11-Jun-2013 20:58 RECYCLER
3419 dr-xr-xr-x 0 0 0 10-Mar-2012 16:17 System Volume Information
28 dr-xr-xr-x 0 0 0 22-Aug-2013 16:28 WINDOWS
81945 dr-xr-xr-x 0 0 0 2-Jul-2013 13:46 eclipse
55010 dr-xr-xr-x 0 0 0 12-Aug-2013 15:45 php5
29007 dr-xr-xr-x 0 0 0 27-Oct-2012 13:30 temp
23406 dr-xr-xr-x 0 0 0 31-Jul-2013 11:59 wamp
7294 -r--r--r-- 0 0 0 10-Mar-2012 16:02 AUTOEXEC.BAT
1997 -r--r--r-- 0 0 4952 22-Jul-2001 02:13 Bootfont.bin
7293 -r--r--r-- 0 0 0 10-Mar-2012 16:02 CONFIG.SYS
7295 -r--r--r-- 0 0 0 10-Mar-2012 16:02 IO.SYS
7296 -r--r--r-- 0 0 0 10-Mar-2012 16:02 MSDOS.SYS
3384 -r--r--r-- 0 0 47564 3-Aug-2004 22:38 NTDETECT.COM
24370 -r--r--r-- 0 0 827 7-Apr-2013 13:14 VirtualDJ Local Database v6.xml
3413 -r--r--r-- 0 0 238 23-Aug-2013 14:52 boot.ini
3380 -r--r--r-- 0 0 251152 11-Mar-2012 02:36 ntldr
54410 -r--r--r-- 0 0 2145386496 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
54410 -r--r--r-- 0 0 0 23-Aug-2013 15:00 pagefile.sys
114845 -r--r--r-- 0 0 132151 7-Nov-2012 18:42 wubildr
114941 -r--r--r-- 0 0 8192 7-Nov-2012 18:42 wubildr.mbr
Not an exFAT boot sector.

L HPFS - NTFS 22557 1 5 60800 254 63 614389793
NTFS found using backup sector, blocksize=4096, 314 GB / 292 GiB
Can't open filesystem. Filesystem seems damaged.
Change partition type:
L HPFS - NTFS 22557 1 5 60800 254 63 614389793
NTFS found using backup sector, blocksize=4096, 314 GB / 292 GiB
Not an exFAT boot sector.

L HPFS - NTFS 22557 1 5 60800 254 63 614389793
NTFS found using backup sector, blocksize=4096, 314 GB / 292 GiB
Can't open filesystem. Filesystem seems damaged.
add_ext_part_i386: max
add_ext_part_i386: min

interface_write()
1 * HPFS - NTFS 0 1 1 3263 254 63 52436097
2 E extended LBA 22557 0 1 60800 254 63 614389860
5 L HPFS - NTFS 22557 1 5 60800 254 63 614389793
add_ext_part_i386: max

interface_write()
1 * HPFS - NTFS 0 1 1 3263 254 63 52436097
2 E extended LBA 3264 0 1 60800 254 63 924331905
5 L HPFS - NTFS 22557 1 5 60800 254 63 614389793
add_ext_part_i386: min

interface_write()
1 * HPFS - NTFS 0 1 1 3263 254 63 52436097
2 E extended LBA 22557 0 1 60800 254 63 614389860
5 L HPFS - NTFS 22557 1 5 60800 254 63 614389793
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
write_all_log_i386: CHS: 22557/0/1,lba=362378205
New options :
Dump : No
Align partition: Yes
Expert mode : Yes
A new copy of MBR code has been written.
You have to reboot for the change to take effect.

Interface Advanced
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/1/1
NTFS at 3264/0/1
get_geometry_from_list_part_aux head=255 nbr=8
get_geometry_from_list_part_aux head=8 nbr=3
get_geometry_from_list_part_aux head=16 nbr=3
get_geometry_from_list_part_aux head=32 nbr=3
get_geometry_from_list_part_aux head=64 nbr=3
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=3
get_geometry_from_list_part_aux head=255 nbr=8
1 * HPFS - NTFS 0 1 1 3263 254 63 52436097
NTFS, blocksize=4096, 26 GB / 25 GiB
2 P HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
NTFS, blocksize=4096, 148 GB / 137 GiB
3 E extended LBA 21267 0 1 60800 254 63 635113710
X extended 22557 0 1 60800 254 63 614389860


dir_partition inode=5
2 P HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
NTFS, blocksize=4096, 148 GB / 137 GiB
Directory /
5 dr-xr-xr-x 0 0 0 23-Aug-2013 01:38 .
5 dr-xr-xr-x 0 0 0 23-Aug-2013 01:38 ..
27710 dr-xr-xr-x 0 0 0 20-Aug-2013 20:41 Counter-Strike 1.6
1968 dr-xr-xr-x 0 0 0 26-Jun-2011 00:53 DV
34650 dr-xr-xr-x 0 0 0 23-Aug-2013 13:19 Downloads
128 dr-xr-xr-x 0 0 0 23-Aug-2013 01:38 Nowy folder
30 dr-xr-xr-x 0 0 0 11-Jun-2013 20:58 RECYCLER
27 dr-xr-xr-x 0 0 0 6-Aug-2010 22:14 System Volume Information
93 dr-xr-xr-x 0 0 0 21-Aug-2013 15:08 filmy
127 dr-xr-xr-x 0 0 0 23-Aug-2013 01:42 foty
1547 dr-xr-xr-x 0 0 0 19-Feb-2013 14:59 music
64 dr-xr-xr-x 0 0 0 7-Nov-2012 18:42 ubuntu

TestDisk exited normally.
Help much appreciated.
User avatar
cgrenier
Site Admin
Posts: 5437
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Partition not visible, missing 0xAA55

#2 Post by cgrenier »

If TestDisk has found all your partitions, choose to write the new partition table (Analyse, Quick Search, Write, confirm, Quit)
1 * HPFS - NTFS 0 1 1 3263 254 63 52436097
2 P HPFS - NTFS 3264 0 1 21266 254 63 289218195 [stuff]
3 E extended LBA 21267 0 1 60800 254 63 635113710
5 L Linux Swap 21267 1 1 21528 254 63 4208967
6 L HPFS - NTFS 21529 1 1 22556 254 63 16514757 [SWAP]
7 L HPFS - NTFS 22557 1 5 60800 254 63 614389793
Locked
