Flash drive went RAW, "No Partition Found" when scanned

[vxxed]

Hey all,
I have a flash drive on my hands that mysteriously swapped itself to a RAW format. I tried following the typical steps for recovering the data, but when I analyze the drive (quick and deep searches), testdisk comes up with "No Partition Found or Selected for Recovery." Any ideas?

My log:

Code: Select all

Wed Nov 27 10:05:01 2013
Command line: TestDisk

TestDisk 6.14, Data Recovery Utility, July 2013
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows WorkStation 6.2.9200
Compiler: GCC 4.7, MinGW 3.11
Compilation date: Jul 30 2013 14:09:04
ext2fs lib: none, ntfs lib: 10:0:0, reiserfs lib: none, ewf lib: 20120504
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive2)=2056257536
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=500105740288
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=483852812288
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E:)=14680064000
filewin32_getfilesize(\\.\F:) GetFileSize err Incorrect function.


filewin32_setfilepointer(\\.\F:) SetFilePointer err Incorrect function.


Warning: can't get size for \\.\F:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G:)=2056241152
Hard disk list
Disk \\.\PhysicalDrive0 - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512
Disk \\.\PhysicalDrive1 - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512
Disk \\.\PhysicalDrive2 - 2056 MB / 1961 MiB - CHS 249 255 63, sector size=512
Drive C: - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512
Drive D: - 483 GB / 450 GiB - CHS 58825 255 63, sector size=512
Drive E: - 14 GB / 13 GiB - CHS 1784 255 63, sector size=512
Drive G: - 2056 MB / 1960 MiB - CHS 249 255 63, sector size=512

Partition table type default to Intel
Drive G: - 2056 MB / 1960 MiB
Partition table type: Intel

Analyse Drive G: - 2056 MB / 1960 MiB - CHS 249 255 63
Current partition structure:

Partition sector doesn't have the endmark 0xAA55

search_part()
Drive G: - 2056 MB / 1960 MiB - CHS 249 255 63

Results

interface_write()

No partition found or selected for recovery

search_part()
Drive G: - 2056 MB / 1960 MiB - CHS 249 255 63

Results

interface_write()

No partition found or selected for recovery
simulate write!

write_mbr_i386: starting...
Store new MBR code
write_all_log_i386: starting...
No extended partition

TestDisk exited normally.

[Fiona]

You should use Disk not Drive and always the 32bit version of TestDisk.
Repeat your diagnose!

If it doesn't find anything;
Try partition table type None!
Then use the menu Advanced instead of Analyse.
If your partition appears as Unknown, use Type to set your previous file system (FAT32/NTFS? howsoever?).
Use the menu Boot and Rebuild BS to have a try to rebuild your boot sector.
If it was successful, you should see the menu List.
Have a try to list your data.
If you've seen your data, you can use the menu write to write your extrapolated boot sector.
If your data are listed, you can copy/backup your data also.
At the bootom of the screen, you'll find all the copy commands.

Fiona

[vxxed]

You should use Disk not Drive and always the 32bit version of TestDisk.
Repeat your diagnose!

If it doesn't find anything;
Try partition table type None!
Then use the menu Advanced instead of Analyse.
If your partition appears as Unknown, use Type to set your previous file system (FAT32/NTFS? howsoever?).
Use the menu Boot and Rebuild BS to have a try to rebuild your boot sector.
If it was successful, you should see the menu List.

Unfortunately, having followed the directions and trying both FAT32 and NTFS (I don't think this flash drive would be anything else, unless there's a Mac specific format), I wasn't able to to proceed. On the last line of your directions, I failed instead of succeeded. The log is below:

Code: Select all

Mon Dec  2 12:38:31 2013
Command line: TestDisk

TestDisk 6.14, Data Recovery Utility, July 2013
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows WorkStation 6.2.9200
Compiler: GCC 4.7, Cygwin 1007.17
Compilation date: 2013-07-30T14:08:52
ext2fs lib: 1.42.2, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdc)=2056257536
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive2)=2056257536
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=500105740288
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=483852812288
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E:)=14680064000
filewin32_getfilesize(\\.\F:) GetFileSize err Incorrect function.

filewin32_setfilepointer(\\.\F:) SetFilePointer err Incorrect function.

Warning: can't get size for \\.\F:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G:)=2056241152
Hard disk list
Disk /dev/sda - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512 - ST500DM002-1BD142, S/N:Z2AYCHDA, FW:KC65
Disk /dev/sdb - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512 - WDC WD5000AAKS-75V0A0, S/N:WD-WCAWFA479553, FW:05.01D05
Disk /dev/sdc - 2056 MB / 1961 MiB - CHS 249 255 63, sector size=512 - USB Flash Disk, S/N:CCBB1106111700310458882800, FW:5.00

Partition table type (auto): Intel
Disk /dev/sdc - 2056 MB / 1961 MiB - USB Flash Disk
Partition table type: None

Interface Advanced
   P Unknown                  0   0  1   249 253  4    4016128
Change partition type:
   P FAT32                    0   0  1   249 253  4    4016128

fat32_boot_sector
   P FAT32                    0   0  1   249 253  4    4016128
Boot sector
Bad

Backup boot sector
Bad

First sectors (Boot code and partition information) are not identical.

A valid FAT Boot sector must be present in order to access
any data; even if the partition is not bootable.

   P FAT32                    0   0  1   249 253  4    4016128
rebuild_FAT_BS p_fat12 0, p_fat16 1, p_fat32 1
fat_find_type(max_offset=31440, p_fat12=0, p_fat16=1, p_fat32=1, debug=1, dump_ind=0)
FAT16 at 32(0/0/33), nbr=1
FAT16 at 33(0/0/34), nbr=1
FAT16 at 34(0/0/35), nbr=1
FAT16 at 35(0/0/36), nbr=1
FAT16 at 36(0/0/37), nbr=1
FAT16 at 37(0/0/38), nbr=1
FAT16 at 38(0/0/39), nbr=1
FAT16 at 39(0/0/40), nbr=1
FAT16 at 40(0/0/41), nbr=1
FAT16 at 41(0/0/42), nbr=1
FAT16 at 42(0/0/43), nbr=1
FAT16 at 43(0/0/44), nbr=1
FAT16 at 44(0/0/45), nbr=1
FAT16 at 45(0/0/46), nbr=1
FAT16 at 46(0/0/47), nbr=1
FAT16 at 47(0/0/48), nbr=1
FAT16 at 48(0/0/49), nbr=1
FAT16 at 49(0/0/50), nbr=1
FAT16 at 50(0/0/51), nbr=1
FAT16 at 51(0/0/52), nbr=1
FAT16 at 52(0/0/53), nbr=1
FAT16 at 53(0/0/54), nbr=1
FAT16 at 54(0/0/55), nbr=1
FAT16 at 55(0/0/56), nbr=1
FAT16 at 56(0/0/57), nbr=1
FAT16 at 57(0/0/58), nbr=1
FAT16 at 58(0/0/59), nbr=1
FAT16 at 59(0/0/60), nbr=1
FAT16 at 60(0/0/61), nbr=1
FAT16 at 61(0/0/62), nbr=1
FAT16 at 62(0/0/63), nbr=1
FAT16 at 63(0/1/1), nbr=1
FAT16 at 64(0/1/2), nbr=1
FAT16 at 65(0/1/3), nbr=1
FAT16 at 66(0/1/4), nbr=1
FAT16 at 67(0/1/5), nbr=1
FAT16 at 68(0/1/6), nbr=1
FAT16 at 69(0/1/7), nbr=1
FAT16 at 70(0/1/8), nbr=1
FAT16 at 71(0/1/9), nbr=1
FAT16 at 72(0/1/10), nbr=1
FAT16 at 73(0/1/11), nbr=1
FAT16 at 74(0/1/12), nbr=1
FAT16 at 75(0/1/13), nbr=1
FAT16 at 76(0/1/14), nbr=1
FAT16 at 77(0/1/15), nbr=1
FAT16 at 78(0/1/16), nbr=1
FAT16 at 79(0/1/17), nbr=1
FAT16 at 80(0/1/18), nbr=1
FAT16 at 81(0/1/19), nbr=1
FAT16 at 82(0/1/20), nbr=1
FAT16 at 83(0/1/21), nbr=1
FAT16 at 84(0/1/22), nbr=1
FAT16 at 85(0/1/23), nbr=1
FAT16 at 86(0/1/24), nbr=1
FAT16 at 87(0/1/25), nbr=1
FAT16 at 88(0/1/26), nbr=1
FAT16 at 89(0/1/27), nbr=1
FAT16 at 90(0/1/28), nbr=1
FAT16 at 91(0/1/29), nbr=1
FAT16 at 92(0/1/30), nbr=1
FAT16 at 93(0/1/31), nbr=1
FAT16 at 94(0/1/32), nbr=1
FAT16 at 95(0/1/33), nbr=1
FAT16 at 96(0/1/34), nbr=1
FAT16 at 97(0/1/35), nbr=1
FAT16 at 98(0/1/36), nbr=1
FAT16 at 99(0/1/37), nbr=1
FAT16 at 100(0/1/38), nbr=1
FAT16 at 101(0/1/39), nbr=1
FAT16 at 102(0/1/40), nbr=1
FAT16 at 103(0/1/41), nbr=1
FAT16 at 104(0/1/42), nbr=1
FAT16 at 105(0/1/43), nbr=1
FAT16 at 106(0/1/44), nbr=1
FAT16 at 107(0/1/45), nbr=1
FAT16 at 108(0/1/46), nbr=1
FAT16 at 109(0/1/47), nbr=1
FAT16 at 110(0/1/48), nbr=1
FAT16 at 111(0/1/49), nbr=1
FAT16 at 112(0/1/50), nbr=1
FAT16 at 113(0/1/51), nbr=1
FAT16 at 114(0/1/52), nbr=1
FAT16 at 115(0/1/53), nbr=1
FAT16 at 116(0/1/54), nbr=1
FAT16 at 117(0/1/55), nbr=1
FAT16 at 118(0/1/56), nbr=1
FAT16 at 119(0/1/57), nbr=1
FAT16 at 120(0/1/58), nbr=1
FAT16 at 121(0/1/59), nbr=1
FAT16 at 122(0/1/60), nbr=1
FAT16 at 123(0/1/61), nbr=1
FAT16 at 124(0/1/62), nbr=1
FAT16 at 125(0/1/63), nbr=1
FAT16 at 126(0/2/1), nbr=1
FAT16 at 127(0/2/2), nbr=1
FAT16 at 128(0/2/3), nbr=1
FAT16 at 129(0/2/4), nbr=1
FAT16 at 130(0/2/5), nbr=1
FAT16 at 131(0/2/6), nbr=1
FAT16 at 132(0/2/7), nbr=1
FAT16 at 133(0/2/8), nbr=1
FAT16 at 134(0/2/9), nbr=1
FAT16 at 135(0/2/10), nbr=1
FAT16 at 136(0/2/11), nbr=1
FAT16 at 137(0/2/12), nbr=1
FAT16 at 138(0/2/13), nbr=1
FAT16 at 139(0/2/14), nbr=1
FAT16 at 140(0/2/15), nbr=1
FAT16 at 141(0/2/16), nbr=1
FAT16 at 142(0/2/17), nbr=1
FAT16 at 143(0/2/18), nbr=1
FAT16 at 144(0/2/19), nbr=1
FAT16 at 145(0/2/20), nbr=1
FAT16 at 146(0/2/21), nbr=1
FAT16 at 147(0/2/22), nbr=1
FAT16 at 148(0/2/23), nbr=1
FAT16 at 149(0/2/24), nbr=1
FAT16 at 150(0/2/25), nbr=1
FAT16 at 151(0/2/26), nbr=1
FAT16 at 152(0/2/27), nbr=1
FAT16 at 153(0/2/28), nbr=1
FAT16 at 154(0/2/29), nbr=1
FAT16 at 155(0/2/30), nbr=1
FAT16 at 156(0/2/31), nbr=1
FAT16 at 157(0/2/32), nbr=1
FAT16 at 158(0/2/33), nbr=1
FAT16 at 159(0/2/34), nbr=1
FAT16 at 160(0/2/35), nbr=1
FAT16 at 161(0/2/36), nbr=1
FAT16 at 162(0/2/37), nbr=1
FAT16 at 163(0/2/38), nbr=1
FAT16 at 164(0/2/39), nbr=1
FAT16 at 165(0/2/40), nbr=1
FAT16 at 166(0/2/41), nbr=1
FAT16 at 167(0/2/42), nbr=1
FAT16 at 168(0/2/43), nbr=1
FAT16 at 169(0/2/44), nbr=1
FAT16 at 170(0/2/45), nbr=1
FAT16 at 171(0/2/46), nbr=1
FAT16 at 172(0/2/47), nbr=1
FAT16 at 173(0/2/48), nbr=1
FAT16 at 174(0/2/49), nbr=1
FAT16 at 175(0/2/50), nbr=1
FAT16 at 176(0/2/51), nbr=1
FAT16 at 177(0/2/52), nbr=1
FAT16 at 178(0/2/53), nbr=1
FAT16 at 179(0/2/54), nbr=1
FAT16 at 180(0/2/55), nbr=1
FAT16 at 181(0/2/56), nbr=1
FAT16 at 182(0/2/57), nbr=1
FAT16 at 183(0/2/58), nbr=1
FAT16 at 184(0/2/59), nbr=1
FAT16 at 185(0/2/60), nbr=1
FAT16 at 186(0/2/61), nbr=1
FAT16 at 187(0/2/62), nbr=1
FAT16 at 188(0/2/63), nbr=1
FAT16 at 189(0/3/1), nbr=1
FAT16 at 190(0/3/2), nbr=1
FAT16 at 191(0/3/3), nbr=1
FAT16 at 192(0/3/4), nbr=1
FAT16 at 193(0/3/5), nbr=1
FAT16 at 194(0/3/6), nbr=1
FAT16 at 195(0/3/7), nbr=1
FAT16 at 196(0/3/8), nbr=1
FAT16 at 197(0/3/9), nbr=1
FAT16 at 198(0/3/10), nbr=1
FAT16 at 199(0/3/11), nbr=1
FAT16 at 200(0/3/12), nbr=1
FAT16 at 201(0/3/13), nbr=1
FAT16 at 202(0/3/14), nbr=1
FAT16 at 203(0/3/15), nbr=1
FAT16 at 204(0/3/16), nbr=1
FAT16 at 205(0/3/17), nbr=1
FAT16 at 206(0/3/18), nbr=1
FAT16 at 207(0/3/19), nbr=1
FAT16 at 208(0/3/20), nbr=1
FAT16 at 209(0/3/21), nbr=1
FAT16 at 210(0/3/22), nbr=1
FAT16 at 211(0/3/23), nbr=1
FAT16 at 212(0/3/24), nbr=1
FAT16 at 213(0/3/25), nbr=1
FAT16 at 214(0/3/26), nbr=1
FAT16 at 215(0/3/27), nbr=1
FAT16 at 216(0/3/28), nbr=1
FAT16 at 217(0/3/29), nbr=1
FAT16 at 218(0/3/30), nbr=1
FAT16 at 219(0/3/31), nbr=1
FAT16 at 220(0/3/32), nbr=1
FAT16 at 221(0/3/33), nbr=1
FAT16 at 222(0/3/34), nbr=1
FAT16 at 223(0/3/35), nbr=1
FAT16 at 224(0/3/36), nbr=1
FAT16 at 225(0/3/37), nbr=1
FAT16 at 226(0/3/38), nbr=1
FAT16 at 227(0/3/39), nbr=1
FAT16 at 228(0/3/40), nbr=1
FAT16 at 229(0/3/41), nbr=1
FAT16 at 230(0/3/42), nbr=1
FAT16 at 231(0/3/43), nbr=1
FAT16 at 232(0/3/44), nbr=1
FAT16 at 233(0/3/45), nbr=1
FAT16 at 234(0/3/46), nbr=1
FAT16 at 235(0/3/47), nbr=1
FAT16 at 236(0/3/48), nbr=1
FAT16 at 237(0/3/49), nbr=1
FAT16 at 238(0/3/50), nbr=1
FAT16 at 239(0/3/51), nbr=1
FAT16 at 240(0/3/52), nbr=1
FAT16 at 241(0/3/53), nbr=1
FAT16 at 242(0/3/54), nbr=1
FAT16 at 243(0/3/55), nbr=1
FAT16 at 244(0/3/56), nbr=1
FAT16 at 245(0/3/57), nbr=1
FAT16 at 246(0/3/58), nbr=1
FAT16 at 247(0/3/59), nbr=1
FAT16 at 248(0/3/60), nbr=1
FAT16 at 249(0/3/61), nbr=1
FAT16 at 250(0/3/62), nbr=1
FAT16 at 251(0/3/63), nbr=1
FAT16 at 252(0/4/1), nbr=1
FAT16 at 253(0/4/2), nbr=1
FAT16 at 254(0/4/3), nbr=1
FAT16 at 255(0/4/4), nbr=1
FAT16 at 256(0/4/5), nbr=1
FAT16 at 257(0/4/6), nbr=1
FAT16 at 258(0/4/7), nbr=1
FAT16 at 259(0/4/8), nbr=1
FAT16 at 260(0/4/9), nbr=1
FAT16 at 261(0/4/10), nbr=1
FAT16 at 262(0/4/11), nbr=1
FAT16 at 263(0/4/12), nbr=1
FAT16 at 264(0/4/13), nbr=1
FAT16 at 265(0/4/14), nbr=1
FAT16 at 266(0/4/15), nbr=1
FAT16 at 267(0/4/16), nbr=1
FAT16 at 268(0/4/17), nbr=1
FAT16 at 269(0/4/18), nbr=1
FAT16 at 270(0/4/19), nbr=1
FAT16 at 271(0/4/20), nbr=1
FAT16 at 272(0/4/21), nbr=1
FAT16 at 273(0/4/22), nbr=1
FAT16 at 274(0/4/23), nbr=1
FAT16 at 275(0/4/24), nbr=1
FAT16 at 276(0/4/25), nbr=1
FAT16 at 277(0/4/26), nbr=1
FAT16 at 278(0/4/27), nbr=1
FAT16 at 279(0/4/28), nbr=1
FAT16 at 280(0/4/29), nbr=1
FAT16 at 281(0/4/30), nbr=1
FAT16 at 282(0/4/31), nbr=1
FAT16 at 283(0/4/32), nbr=1
FAT16 at 284(0/4/33), nbr=1
FAT16 at 285(0/4/34), nbr=1
FAT16 at 286(0/4/35), nbr=1
FAT16 at 287(0/4/36), nbr=1
FAT16 at 288(0/4/37), nbr=1
FAT16 at 289(0/4/38), nbr=1
FAT16 at 290(0/4/39), nbr=1
FAT16 at 291(0/4/40), nbr=1
FAT16 at 292(0/4/41), nbr=1
FAT16 at 293(0/4/42), nbr=1
FAT16 at 294(0/4/43), nbr=1
FAT16 at 295(0/4/44), nbr=1
FAT16 at 296(0/4/45), nbr=1
FAT16 at 297(0/4/46), nbr=1
FAT16 at 298(0/4/47), nbr=1
FAT16 at 299(0/4/48), nbr=1
FAT16 at 300(0/4/49), nbr=1
FAT16 at 301(0/4/50), nbr=1
FAT16 at 302(0/4/51), nbr=1
FAT16 at 303(0/4/52), nbr=1
FAT16 at 304(0/4/53), nbr=1
FAT16 at 305(0/4/54), nbr=1
FAT16 at 306(0/4/55), nbr=1
FAT16 at 307(0/4/56), nbr=1
FAT16 at 308(0/4/57), nbr=1
FAT16 at 309(0/4/58), nbr=1
FAT16 at 310(0/4/59), nbr=1
FAT16 at 311(0/4/60), nbr=1
FAT16 at 312(0/4/61), nbr=1
FAT16 at 313(0/4/62), nbr=1
FAT16 at 314(0/4/63), nbr=1
FAT16 at 315(0/5/1), nbr=1
FAT16 at 316(0/5/2), nbr=1
FAT16 at 317(0/5/3), nbr=1
FAT16 at 318(0/5/4), nbr=1
FAT16 at 319(0/5/5), nbr=1
FAT16 at 320(0/5/6), nbr=1
FAT16 at 321(0/5/7), nbr=1
FAT16 at 322(0/5/8), nbr=1
FAT16 at 323(0/5/9), nbr=1
FAT16 at 324(0/5/10), nbr=1
FAT16 at 325(0/5/11), nbr=1
FAT16 at 326(0/5/12), nbr=1
FAT16 at 327(0/5/13), nbr=1
FAT16 at 328(0/5/14), nbr=1
FAT16 at 329(0/5/15), nbr=1
FAT16 at 330(0/5/16), nbr=1
FAT16 at 331(0/5/17), nbr=1
FAT16 at 332(0/5/18), nbr=1
FAT16 at 333(0/5/19), nbr=1
FAT16 at 334(0/5/20), nbr=1
FAT16 at 335(0/5/21), nbr=1
FAT16 at 336(0/5/22), nbr=1
FAT16 at 337(0/5/23), nbr=1
FAT16 at 338(0/5/24), nbr=1
FAT16 at 339(0/5/25), nbr=1
FAT16 at 340(0/5/26), nbr=1
FAT16 at 341(0/5/27), nbr=1
FAT16 at 342(0/5/28), nbr=1
FAT16 at 343(0/5/29), nbr=1
FAT16 at 344(0/5/30), nbr=1
FAT16 at 345(0/5/31), nbr=1
FAT16 at 346(0/5/32), nbr=1
FAT16 at 347(0/5/33), nbr=1
FAT16 at 348(0/5/34), nbr=1
FAT16 at 349(0/5/35), nbr=1
FAT16 at 350(0/5/36), nbr=1
FAT16 at 351(0/5/37), nbr=1
FAT16 at 352(0/5/38), nbr=1
FAT16 at 353(0/5/39), nbr=1
FAT16 at 354(0/5/40), nbr=1
FAT16 at 355(0/5/41), nbr=1
FAT16 at 356(0/5/42), nbr=1
FAT16 at 357(0/5/43), nbr=1
FAT16 at 358(0/5/44), nbr=1
FAT16 at 359(0/5/45), nbr=1
FAT16 at 360(0/5/46), nbr=1
FAT16 at 361(0/5/47), nbr=1
FAT16 at 362(0/5/48), nbr=1
FAT16 at 363(0/5/49), nbr=1
FAT16 at 364(0/5/50), nbr=1
FAT16 at 365(0/5/51), nbr=1
FAT16 at 366(0/5/52), nbr=1
FAT16 at 367(0/5/53), nbr=1
FAT16 at 368(0/5/54), nbr=1
FAT16 at 369(0/5/55), nbr=1
FAT16 at 370(0/5/56), nbr=1
FAT16 at 371(0/5/57), nbr=1
FAT16 at 372(0/5/58), nbr=1
FAT16 at 373(0/5/59), nbr=1
FAT16 at 374(0/5/60), nbr=1
FAT16 at 375(0/5/61), nbr=1
FAT16 at 376(0/5/62), nbr=1
FAT16 at 377(0/5/63), nbr=1
FAT16 at 378(0/6/1), nbr=1
FAT16 at 379(0/6/2), nbr=1
FAT16 at 380(0/6/3), nbr=1
FAT16 at 381(0/6/4), nbr=1
FAT16 at 382(0/6/5), nbr=1
FAT16 at 383(0/6/6), nbr=1
FAT16 at 384(0/6/7), nbr=1
FAT16 at 385(0/6/8), nbr=1
FAT16 at 386(0/6/9), nbr=1
FAT16 at 387(0/6/10), nbr=1
FAT16 at 388(0/6/11), nbr=1
FAT16 at 389(0/6/12), nbr=1
FAT16 at 390(0/6/13), nbr=1
FAT16 at 391(0/6/14), nbr=1
FAT16 at 392(0/6/15), nbr=1
FAT16 at 393(0/6/16), nbr=1
FAT16 at 394(0/6/17), nbr=1
FAT16 at 395(0/6/18), nbr=1
FAT16 at 396(0/6/19), nbr=1
FAT16 at 397(0/6/20), nbr=1
FAT16 at 398(0/6/21), nbr=1
FAT16 at 399(0/6/22), nbr=1
FAT16 at 400(0/6/23), nbr=1
FAT16 at 401(0/6/24), nbr=1
FAT16 at 402(0/6/25), nbr=1
FAT16 at 403(0/6/26), nbr=1
FAT16 at 404(0/6/27), nbr=1
FAT16 at 405(0/6/28), nbr=1
FAT16 at 406(0/6/29), nbr=1
FAT16 at 407(0/6/30), nbr=1
FAT16 at 408(0/6/31), nbr=1
FAT16 at 409(0/6/32), nbr=1
FAT16 at 410(0/6/33), nbr=1
FAT16 at 411(0/6/34), nbr=1
FAT16 at 412(0/6/35), nbr=1
FAT16 at 413(0/6/36), nbr=1
FAT16 at 414(0/6/37), nbr=1
FAT16 at 415(0/6/38), nbr=1
FAT16 at 416(0/6/39), nbr=1
FAT16 at 417(0/6/40), nbr=1
FAT16 at 418(0/6/41), nbr=1
FAT16 at 419(0/6/42), nbr=1
FAT16 at 420(0/6/43), nbr=1
FAT16 at 421(0/6/44), nbr=1
FAT16 at 422(0/6/45), nbr=1
FAT16 at 423(0/6/46), nbr=1
FAT16 at 424(0/6/47), nbr=1
FAT16 at 425(0/6/48), nbr=1
FAT16 at 426(0/6/49), nbr=1
FAT16 at 427(0/6/50), nbr=1
FAT16 at 428(0/6/51), nbr=1
FAT16 at 429(0/6/52), nbr=1
FAT16 at 430(0/6/53), nbr=1
FAT16 at 431(0/6/54), nbr=1
FAT16 at 432(0/6/55), nbr=1
FAT16 at 433(0/6/56), nbr=1
FAT16 at 434(0/6/57), nbr=1
FAT16 at 435(0/6/58), nbr=1
FAT16 at 436(0/6/59), nbr=1
FAT16 at 437(0/6/60), nbr=1
FAT16 at 438(0/6/61), nbr=1
FAT16 at 439(0/6/62), nbr=1
FAT16 at 440(0/6/63), nbr=1
FAT16 at 441(0/7/1), nbr=1
FAT16 at 442(0/7/2), nbr=1
FAT16 at 443(0/7/3), nbr=1
FAT16 at 444(0/7/4), nbr=1
FAT16 at 445(0/7/5), nbr=1
FAT16 at 446(0/7/6), nbr=1
FAT16 at 447(0/7/7), nbr=1
FAT16 at 448(0/7/8), nbr=1
FAT16 at 449(0/7/9), nbr=1
FAT16 at 450(0/7/10), nbr=1
FAT16 at 451(0/7/11), nbr=1
FAT16 at 452(0/7/12), nbr=1
FAT16 at 453(0/7/13), nbr=1
FAT16 at 454(0/7/14), nbr=1
FAT16 at 455(0/7/15), nbr=1
FAT16 at 456(0/7/16), nbr=1
FAT16 at 457(0/7/17), nbr=1
FAT16 at 458(0/7/18), nbr=1
FAT16 at 459(0/7/19), nbr=1
FAT16 at 460(0/7/20), nbr=1
FAT16 at 461(0/7/21), nbr=1
FAT16 at 462(0/7/22), nbr=1
FAT16 at 463(0/7/23), nbr=1
FAT16 at 464(0/7/24), nbr=1
FAT16 at 465(0/7/25), nbr=1
FAT16 at 466(0/7/26), nbr=1
FAT16 at 467(0/7/27), nbr=1
FAT16 at 468(0/7/28), nbr=1
FAT16 at 469(0/7/29), nbr=1
FAT16 at 470(0/7/30), nbr=1
FAT16 at 471(0/7/31), nbr=1
FAT16 at 472(0/7/32), nbr=1
FAT16 at 473(0/7/33), nbr=1
FAT16 at 474(0/7/34), nbr=1
FAT16 at 475(0/7/35), nbr=1
FAT16 at 476(0/7/36), nbr=1
FAT16 at 477(0/7/37), nbr=1
FAT16 at 478(0/7/38), nbr=1
FAT16 at 479(0/7/39), nbr=1
FAT16 at 480(0/7/40), nbr=1
FAT16 at 481(0/7/41), nbr=1
FAT16 at 482(0/7/42), nbr=1
FAT16 at 483(0/7/43), nbr=1
FAT16 at 484(0/7/44), nbr=1
FAT16 at 485(0/7/45), nbr=1
FAT16 at 486(0/7/46), nbr=1
FAT16 at 487(0/7/47), nbr=1
FAT16 at 488(0/7/48), nbr=1
FAT16 at 489(0/7/49), nbr=1
FAT16 at 490(0/7/50), nbr=1
FAT16 at 491(0/7/51), nbr=1
FAT16 at 492(0/7/52), nbr=1
FAT16 at 493(0/7/53), nbr=1
FAT16 at 494(0/7/54), nbr=1
FAT16 at 495(0/7/55), nbr=1
FAT16 at 496(0/7/56), nbr=1
FAT16 at 497(0/7/57), nbr=1
FAT16 at 498(0/7/58), nbr=1
FAT16 at 499(0/7/59), nbr=1
FAT16 at 500(0/7/60), nbr=1
FAT16 at 501(0/7/61), nbr=1
FAT16 at 502(0/7/62), nbr=1
FAT16 at 503(0/7/63), nbr=1
FAT16 at 504(0/8/1), nbr=1
FAT16 at 505(0/8/2), nbr=1
FAT16 at 506(0/8/3), nbr=1
FAT16 at 507(0/8/4), nbr=1
FAT16 at 508(0/8/5), nbr=1
FAT16 at 509(0/8/6), nbr=1
FAT16 at 510(0/8/7), nbr=1
FAT16 at 511(0/8/8), nbr=1
FAT16 at 512(0/8/9), nbr=1
FAT16 at 513(0/8/10), nbr=1
FAT16 at 514(0/8/11), nbr=1
FAT16 at 515(0/8/12), nbr=1
FAT16 at 516(0/8/13), nbr=1
FAT16 at 517(0/8/14), nbr=1
FAT16 at 518(0/8/15), nbr=1
FAT16 at 519(0/8/16), nbr=1
FAT16 at 520(0/8/17), nbr=1
FAT16 at 521(0/8/18), nbr=1
FAT16 at 522(0/8/19), nbr=1
FAT16 at 523(0/8/20), nbr=1
FAT16 at 524(0/8/21), nbr=1
FAT16 at 525(0/8/22), nbr=1
FAT16 at 526(0/8/23), nbr=1
FAT16 at 527(0/8/24), nbr=1
FAT16 at 528(0/8/25), nbr=1
FAT16 at 529(0/8/26), nbr=1
FAT16 at 530(0/8/27), nbr=1
FAT16 at 531(0/8/28), nbr=1
FAT16 at 532(0/8/29), nbr=1
FAT16 at 533(0/8/30), nbr=1
FAT16 at 534(0/8/31), nbr=1
FAT16 at 535(0/8/32), nbr=1
FAT16 at 536(0/8/33), nbr=1
FAT16 at 537(0/8/34), nbr=1
FAT16 at 538(0/8/35), nbr=1
FAT16 at 539(0/8/36), nbr=1
FAT16 at 540(0/8/37), nbr=1
FAT16 at 541(0/8/38), nbr=1
FAT16 at 542(0/8/39), nbr=1
FAT16 at 543(0/8/40), nbr=1
FAT16 at 544(0/8/41), nbr=1
FAT16 at 545(0/8/42), nbr=1
FAT16 at 546(0/8/43), nbr=1
FAT16 at 547(0/8/44), nbr=1
FAT16 at 548(0/8/45), nbr=1
FAT16 at 549(0/8/46), nbr=1
FAT16 at 550(0/8/47), nbr=1
FAT16 at 551(0/8/48), nbr=1
FAT16 at 552(0/8/49), nbr=1
FAT16 at 553(0/8/50), nbr=1
FAT16 at 554(0/8/51), nbr=1
FAT16 at 555(0/8/52), nbr=1
FAT16 at 556(0/8/53), nbr=1
FAT16 at 557(0/8/54), nbr=1
FAT16 at 558(0/8/55), nbr=1
FAT16 at 559(0/8/56), nbr=1
FAT16 at 560(0/8/57), nbr=1
FAT16 at 561(0/8/58), nbr=1
FAT16 at 562(0/8/59), nbr=1
FAT16 at 563(0/8/60), nbr=1
FAT16 at 564(0/8/61), nbr=1
FAT16 at 565(0/8/62), nbr=1
FAT16 at 566(0/8/63), nbr=1
FAT16 at 567(0/9/1), nbr=1
FAT16 at 568(0/9/2), nbr=1
FAT16 at 569(0/9/3), nbr=1
FAT16 at 570(0/9/4), nbr=1
FAT16 at 571(0/9/5), nbr=1
FAT16 at 572(0/9/6), nbr=1
FAT16 at 573(0/9/7), nbr=1
FAT16 at 574(0/9/8), nbr=1
FAT16 at 575(0/9/9), nbr=1
FAT16 at 576(0/9/10), nbr=1
FAT16 at 577(0/9/11), nbr=1
FAT16 at 578(0/9/12), nbr=1
FAT16 at 579(0/9/13), nbr=1
FAT16 at 580(0/9/14), nbr=1
FAT16 at 581(0/9/15), nbr=1
FAT16 at 582(0/9/16), nbr=1
FAT16 at 583(0/9/17), nbr=1
FAT16 at 584(0/9/18), nbr=1
FAT16 at 585(0/9/19), nbr=1
FAT16 at 586(0/9/20), nbr=1
FAT16 at 587(0/9/21), nbr=1
FAT16 at 588(0/9/22), nbr=1
FAT16 at 589(0/9/23), nbr=1
FAT16 at 590(0/9/24), nbr=1
FAT16 at 591(0/9/25), nbr=1
FAT16 at 592(0/9/26), nbr=1
FAT16 at 593(0/9/27), nbr=1
FAT16 at 594(0/9/28), nbr=1
FAT16 at 595(0/9/29), nbr=1
FAT16 at 596(0/9/30), nbr=1
FAT16 at 597(0/9/31), nbr=1
FAT16 at 598(0/9/32), nbr=1
FAT16 at 599(0/9/33), nbr=1
FAT16 at 600(0/9/34), nbr=1
FAT16 at 601(0/9/35), nbr=1
FAT16 at 602(0/9/36), nbr=1
FAT16 at 603(0/9/37), nbr=1
FAT16 at 604(0/9/38), nbr=1
FAT16 at 605(0/9/39), nbr=1
FAT16 at 606(0/9/40), nbr=1
FAT16 at 607(0/9/41), nbr=1
FAT16 at 608(0/9/42), nbr=1
FAT16 at 609(0/9/43), nbr=1
FAT16 at 610(0/9/44), nbr=1
FAT16 at 611(0/9/45), nbr=1
FAT16 at 612(0/9/46), nbr=1
FAT16 at 613(0/9/47), nbr=1
FAT16 at 614(0/9/48), nbr=1
FAT16 at 615(0/9/49), nbr=1
FAT16 at 616(0/9/50), nbr=1
FAT16 at 617(0/9/51), nbr=1
FAT16 at 618(0/9/52), nbr=1
FAT16 at 619(0/9/53), nbr=1
FAT16 at 620(0/9/54), nbr=1
FAT16 at 621(0/9/55), nbr=1
FAT16 at 622(0/9/56), nbr=1
FAT16 at 623(0/9/57), nbr=1
FAT16 at 624(0/9/58), nbr=1
FAT16 at 625(0/9/59), nbr=1
FAT16 at 626(0/9/60), nbr=1
FAT16 at 627(0/9/61), nbr=1
FAT16 at 628(0/9/62), nbr=1
FAT16 at 629(0/9/63), nbr=1
FAT16 at 630(0/10/1), nbr=1
FAT16 at 631(0/10/2), nbr=1
FAT16 at 632(0/10/3), nbr=1
FAT16 at 633(0/10/4), nbr=1
FAT16 at 634(0/10/5), nbr=1
FAT16 at 635(0/10/6), nbr=1
FAT16 at 636(0/10/7), nbr=1
FAT16 at 637(0/10/8), nbr=1
FAT16 at 638(0/10/9), nbr=1
FAT16 at 639(0/10/10), nbr=1
FAT16 at 640(0/10/11), nbr=1
FAT16 at 641(0/10/12), nbr=1
FAT16 at 642(0/10/13), nbr=1
FAT16 at 643(0/10/14), nbr=1
FAT16 at 644(0/10/15), nbr=1
FAT16 at 645(0/10/16), nbr=1
FAT16 at 646(0/10/17), nbr=1
FAT16 at 647(0/10/18), nbr=1
FAT16 at 648(0/10/19), nbr=1
FAT16 at 649(0/10/20), nbr=1
FAT16 at 650(0/10/21), nbr=1
FAT16 at 651(0/10/22), nbr=1
FAT16 at 652(0/10/23), nbr=1
FAT16 at 653(0/10/24), nbr=1
FAT16 at 654(0/10/25), nbr=1
FAT16 at 655(0/10/26), nbr=1
FAT16 at 656(0/10/27), nbr=1
FAT16 at 657(0/10/28), nbr=1
FAT16 at 658(0/10/29), nbr=1
FAT16 at 659(0/10/30), nbr=1
FAT16 at 660(0/10/31), nbr=1
FAT16 at 661(0/10/32), nbr=1
FAT16 at 662(0/10/33), nbr=1
FAT16 at 663(0/10/34), nbr=1
FAT16 at 664(0/10/35), nbr=1
FAT16 at 665(0/10/36), nbr=1
FAT16 at 666(0/10/37), nbr=1
FAT16 at 667(0/10/38), nbr=1
FAT16 at 668(0/10/39), nbr=1
FAT16 at 669(0/10/40), nbr=1
FAT16 at 670(0/10/41), nbr=1
FAT16 at 671(0/10/42), nbr=1
FAT16 at 672(0/10/43), nbr=1
FAT16 at 673(0/10/44), nbr=1
FAT16 at 674(0/10/45), nbr=1
FAT16 at 675(0/10/46), nbr=1
FAT16 at 676(0/10/47), nbr=1
FAT16 at 677(0/10/48), nbr=1
FAT16 at 678(0/10/49), nbr=1
FAT16 at 679(0/10/50), nbr=1
FAT16 at 680(0/10/51), nbr=1
FAT16 at 681(0/10/52), nbr=1
FAT16 at 682(0/10/53), nbr=1
FAT16 at 683(0/10/54), nbr=1
FAT16 at 684(0/10/55), nbr=1
FAT16 at 685(0/10/56), nbr=1
FAT16 at 686(0/10/57), nbr=1
FAT16 at 687(0/10/58), nbr=1
FAT16 at 688(0/10/59), nbr=1
FAT16 at 689(0/10/60), nbr=1
FAT16 at 690(0/10/61), nbr=1
FAT16 at 691(0/10/62), nbr=1
FAT16 at 692(0/10/63), nbr=1
FAT16 at 693(0/11/1), nbr=1
FAT16 at 694(0/11/2), nbr=1
FAT16 at 695(0/11/3), nbr=1
FAT16 at 696(0/11/4), nbr=1
FAT16 at 697(0/11/5), nbr=1
FAT16 at 698(0/11/6), nbr=1
FAT16 at 699(0/11/7), nbr=1
FAT16 at 700(0/11/8), nbr=1
FAT16 at 701(0/11/9), nbr=1
FAT16 at 702(0/11/10), nbr=1
FAT16 at 703(0/11/11), nbr=1
FAT16 at 704(0/11/12), nbr=1
FAT16 at 705(0/11/13), nbr=1
FAT16 at 706(0/11/14), nbr=1
FAT16 at 707(0/11/15), nbr=1
FAT16 at 708(0/11/16), nbr=1
FAT16 at 709(0/11/17), nbr=1
FAT16 at 710(0/11/18), nbr=1
FAT16 at 711(0/11/19), nbr=1
FAT16 at 712(0/11/20), nbr=1
FAT16 at 713(0/11/21), nbr=1
FAT16 at 714(0/11/22), nbr=1
FAT16 at 715(0/11/23), nbr=1
FAT16 at 716(0/11/24), nbr=1
FAT16 at 717(0/11/25), nbr=1
FAT16 at 718(0/11/26), nbr=1
FAT16 at 719(0/11/27), nbr=1
FAT16 at 720(0/11/28), nbr=1
FAT16 at 721(0/11/29), nbr=1
FAT16 at 722(0/11/30), nbr=1
FAT16 at 723(0/11/31), nbr=1
FAT16 at 724(0/11/32), nbr=1
FAT16 at 725(0/11/33), nbr=1
FAT16 at 726(0/11/34), nbr=1
FAT16 at 727(0/11/35), nbr=1
FAT16 at 728(0/11/36), nbr=1
FAT16 at 729(0/11/37), nbr=1
FAT16 at 730(0/11/38), nbr=1
FAT16 at 731(0/11/39), nbr=1
FAT16 at 732(0/11/40), nbr=1
FAT16 at 733(0/11/41), nbr=1
FAT16 at 734(0/11/42), nbr=1
FAT16 at 735(0/11/43), nbr=1
FAT16 at 736(0/11/44), nbr=1
FAT16 at 737(0/11/45), nbr=1
FAT16 at 738(0/11/46), nbr=1
FAT16 at 739(0/11/47), nbr=1
FAT16 at 740(0/11/48), nbr=1
FAT16 at 741(0/11/49), nbr=1
FAT16 at 742(0/11/50), nbr=1
FAT16 at 743(0/11/51), nbr=1
FAT16 at 744(0/11/52), nbr=1
FAT16 at 745(0/11/53), nbr=1
FAT16 at 746(0/11/54), nbr=1
FAT16 at 747(0/11/55), nbr=1
FAT16 at 748(0/11/56), nbr=1
FAT16 at 749(0/11/57), nbr=1
FAT16 at 750(0/11/58), nbr=1
FAT16 at 751(0/11/59), nbr=1
FAT16 at 752(0/11/60), nbr=1
FAT16 at 753(0/11/61), nbr=1
FAT16 at 754(0/11/62), nbr=1
FAT16 at 755(0/11/63), nbr=1
FAT16 at 756(0/12/1), nbr=1
FAT16 at 757(0/12/2), nbr=1
FAT16 at 758(0/12/3), nbr=1
FAT16 at 759(0/12/4), nbr=1
FAT16 at 760(0/12/5), nbr=1
FAT16 at 761(0/12/6), nbr=1
FAT16 at 762(0/12/7), nbr=1
FAT16 at 763(0/12/8), nbr=1
FAT16 at 764(0/12/9), nbr=1
FAT16 at 765(0/12/10), nbr=1
FAT16 at 766(0/12/11), nbr=1
FAT16 at 767(0/12/12), nbr=1
FAT16 at 768(0/12/13), nbr=1
FAT16 at 769(0/12/14), nbr=1
FAT16 at 770(0/12/15), nbr=1
FAT16 at 771(0/12/16), nbr=1
FAT16 at 772(0/12/17), nbr=1
FAT16 at 773(0/12/18), nbr=1
FAT16 at 774(0/12/19), nbr=1
FAT16 at 775(0/12/20), nbr=1
FAT16 at 776(0/12/21), nbr=1
FAT16 at 777(0/12/22), nbr=1
FAT16 at 778(0/12/23), nbr=1
FAT16 at 779(0/12/24), nbr=1
FAT16 at 780(0/12/25), nbr=1
FAT16 at 781(0/12/26), nbr=1
FAT16 at 782(0/12/27), nbr=1
FAT16 at 783(0/12/28), nbr=1
FAT16 at 784(0/12/29), nbr=1
FAT16 at 785(0/12/30), nbr=1
FAT16 at 786(0/12/31), nbr=1
FAT16 at 787(0/12/32), nbr=1
FAT16 at 788(0/12/33), nbr=1
FAT16 at 789(0/12/34), nbr=1
FAT16 at 790(0/12/35), nbr=1
FAT16 at 791(0/12/36), nbr=1
FAT16 at 792(0/12/37), nbr=1
FAT16 at 793(0/12/38), nbr=1
FAT16 at 794(0/12/39), nbr=1
FAT16 at 795(0/12/40), nbr=1
FAT16 at 796(0/12/41), nbr=1
FAT16 at 797(0/12/42), nbr=1
FAT16 at 798(0/12/43), nbr=1
FAT16 at 799(0/12/44), nbr=1
FAT16 at 800(0/12/45), nbr=1
FAT16 at 801(0/12/46), nbr=1
FAT16 at 802(0/12/47), nbr=1
FAT16 at 803(0/12/48), nbr=1
FAT16 at 804(0/12/49), nbr=1
FAT16 at 805(0/12/50), nbr=1
FAT16 at 806(0/12/51), nbr=1
FAT16 at 807(0/12/52), nbr=1
FAT16 at 808(0/12/53), nbr=1
FAT16 at 809(0/12/54), nbr=1
FAT16 at 810(0/12/55), nbr=1
FAT16 at 811(0/12/56), nbr=1
FAT16 at 812(0/12/57), nbr=1
FAT16 at 813(0/12/58), nbr=1
FAT16 at 814(0/12/59), nbr=1
FAT16 at 815(0/12/60), nbr=1
FAT16 at 816(0/12/61), nbr=1
FAT16 at 817(0/12/62), nbr=1
FAT16 at 818(0/12/63), nbr=1
FAT16 at 819(0/13/1), nbr=1
FAT16 at 820(0/13/2), nbr=1
FAT16 at 821(0/13/3), nbr=1
FAT16 at 822(0/13/4), nbr=1
FAT16 at 823(0/13/5), nbr=1
FAT16 at 824(0/13/6), nbr=1
FAT16 at 825(0/13/7), nbr=1
FAT16 at 826(0/13/8), nbr=1
FAT16 at 827(0/13/9), nbr=1
FAT16 at 828(0/13/10), nbr=1
FAT16 at 829(0/13/11), nbr=1
FAT16 at 830(0/13/12), nbr=1
FAT16 at 831(0/13/13), nbr=1
FAT16 at 832(0/13/14), nbr=1
FAT16 at 833(0/13/15), nbr=1
FAT16 at 834(0/13/16), nbr=1
FAT16 at 835(0/13/17), nbr=1
FAT16 at 836(0/13/18), nbr=1
FAT16 at 837(0/13/19), nbr=1
FAT16 at 838(0/13/20), nbr=1
FAT16 at 839(0/13/21), nbr=1
FAT16 at 840(0/13/22), nbr=1
FAT16 at 841(0/13/23), nbr=1
FAT16 at 842(0/13/24), nbr=1
FAT16 at 843(0/13/25), nbr=1
FAT16 at 844(0/13/26), nbr=1
FAT16 at 845(0/13/27), nbr=1
FAT16 at 846(0/13/28), nbr=1
FAT16 at 847(0/13/29), nbr=1
FAT16 at 848(0/13/30), nbr=1
FAT16 at 849(0/13/31), nbr=1
FAT16 at 850(0/13/32), nbr=1
FAT16 at 851(0/13/33), nbr=1
FAT16 at 852(0/13/34), nbr=1
FAT16 at 853(0/13/35), nbr=1
FAT16 at 854(0/13/36), nbr=1
FAT16 at 855(0/13/37), nbr=1
FAT16 at 856(0/13/38), nbr=1
FAT16 at 857(0/13/39), nbr=1
FAT16 at 858(0/13/40), nbr=1
FAT16 at 859(0/13/41), nbr=1
FAT16 at 860(0/13/42), nbr=1
FAT16 at 861(0/13/43), nbr=1
FAT16 at 862(0/13/44), nbr=1
FAT16 at 863(0/13/45), nbr=1
FAT16 at 864(0/13/46), nbr=1
FAT16 at 865(0/13/47), nbr=1
FAT16 at 866(0/13/48), nbr=1
FAT16 at 867(0/13/49), nbr=1
FAT16 at 868(0/13/50), nbr=1
FAT16 at 869(0/13/51), nbr=1
FAT16 at 870(0/13/52), nbr=1
FAT16 at 871(0/13/53), nbr=1
FAT16 at 872(0/13/54), nbr=1
FAT16 at 873(0/13/55), nbr=1
FAT16 at 874(0/13/56), nbr=1
FAT16 at 875(0/13/57), nbr=1
FAT16 at 876(0/13/58), nbr=1
FAT16 at 877(0/13/59), nbr=1
FAT16 at 878(0/13/60), nbr=1
FAT16 at 879(0/13/61), nbr=1
FAT16 at 880(0/13/62), nbr=1
FAT16 at 881(0/13/63), nbr=1
FAT16 at 882(0/14/1), nbr=1
FAT16 at 883(0/14/2), nbr=1
FAT16 at 884(0/14/3), nbr=1
FAT16 at 885(0/14/4), nbr=1
FAT16 at 886(0/14/5), nbr=1
FAT16 at 887(0/14/6), nbr=1
FAT16 at 888(0/14/7), nbr=1
FAT16 at 889(0/14/8), nbr=1
FAT16 at 890(0/14/9), nbr=1
FAT16 at 891(0/14/10), nbr=1
FAT16 at 892(0/14/11), nbr=1
FAT16 at 893(0/14/12), nbr=1
FAT16 at 894(0/14/13), nbr=1
FAT16 at 895(0/14/14), nbr=1
FAT16 at 896(0/14/15), nbr=1
FAT16 at 897(0/14/16), nbr=1
FAT16 at 898(0/14/17), nbr=1
FAT16 at 899(0/14/18), nbr=1
FAT16 at 900(0/14/19), nbr=1
FAT16 at 901(0/14/20), nbr=1
FAT16 at 902(0/14/21), nbr=1
FAT16 at 903(0/14/22), nbr=1
FAT16 at 904(0/14/23), nbr=1
FAT16 at 905(0/14/24), nbr=1
FAT16 at 906(0/14/25), nbr=1
FAT16 at 907(0/14/26), nbr=1
FAT16 at 908(0/14/27), nbr=1
FAT16 at 909(0/14/28), nbr=1
FAT16 at 910(0/14/29), nbr=1
FAT16 at 911(0/14/30), nbr=1
FAT16 at 912(0/14/31), nbr=1
FAT16 at 913(0/14/32), nbr=1
FAT16 at 914(0/14/33), nbr=1
FAT16 at 915(0/14/34), nbr=1
FAT16 at 916(0/14/35), nbr=1
FAT16 at 917(0/14/36), nbr=1
FAT16 at 918(0/14/37), nbr=1
FAT16 at 919(0/14/38), nbr=1
FAT16 at 920(0/14/39), nbr=1
FAT16 at 921(0/14/40), nbr=1
FAT16 at 922(0/14/41), nbr=1
FAT16 at 923(0/14/42), nbr=1
FAT16 at 924(0/14/43), nbr=1
FAT16 at 925(0/14/44), nbr=1
FAT16 at 926(0/14/45), nbr=1
FAT16 at 927(0/14/46), nbr=1
FAT16 at 928(0/14/47), nbr=1
FAT16 at 929(0/14/48), nbr=1
FAT16 at 930(0/14/49), nbr=1
FAT16 at 931(0/14/50), nbr=1
FAT16 at 932(0/14/51), nbr=1
FAT16 at 933(0/14/52), nbr=1
FAT16 at 934(0/14/53), nbr=1
FAT16 at 935(0/14/54), nbr=1
FAT16 at 936(0/14/55), nbr=1
FAT16 at 937(0/14/56), nbr=1
FAT16 at 938(0/14/57), nbr=1
FAT16 at 939(0/14/58), nbr=1
FAT16 at 940(0/14/59), nbr=1
FAT16 at 941(0/14/60), nbr=1
FAT16 at 942(0/14/61), nbr=1
FAT16 at 943(0/14/62), nbr=1
FAT16 at 944(0/14/63), nbr=1
FAT16 at 945(0/15/1), nbr=1
FAT16 at 946(0/15/2), nbr=1
FAT16 at 947(0/15/3), nbr=1
FAT16 at 948(0/15/4), nbr=1
FAT16 at 949(0/15/5), nbr=1
FAT16 at 950(0/15/6), nbr=1
FAT16 at 951(0/15/7), nbr=1
FAT16 at 952(0/15/8), nbr=1
FAT16 at 953(0/15/9), nbr=1
FAT16 at 954(0/15/10), nbr=1
FAT16 at 955(0/15/11), nbr=1
FAT16 at 956(0/15/12), nbr=1
FAT16 at 957(0/15/13), nbr=1
FAT16 at 958(0/15/14), nbr=1
FAT16 at 959(0/15/15), nbr=1
FAT16 at 960(0/15/16), nbr=1
FAT16 at 961(0/15/17), nbr=1
FAT16 at 962(0/15/18), nbr=1
FAT16 at 963(0/15/19), nbr=1
FAT16 at 964(0/15/20), nbr=1
FAT16 at 965(0/15/21), nbr=1
FAT16 at 966(0/15/22), nbr=1
FAT16 at 967(0/15/23), nbr=1
FAT16 at 968(0/15/24), nbr=1
FAT16 at 969(0/15/25), nbr=1
FAT16 at 970(0/15/26), nbr=1
FAT16 at 971(0/15/27), nbr=1
FAT16 at 972(0/15/28), nbr=1
FAT16 at 973(0/15/29), nbr=1
FAT16 at 974(0/15/30), nbr=1
FAT16 at 975(0/15/31), nbr=1
FAT16 at 976(0/15/32), nbr=1
FAT16 at 977(0/15/33), nbr=1
FAT16 at 978(0/15/34), nbr=1
FAT16 at 979(0/15/35), nbr=1
FAT16 at 980(0/15/36), nbr=1
FAT16 at 981(0/15/37), nbr=1
FAT16 at 982(0/15/38), nbr=1
FAT16 at 983(0/15/39), nbr=1
FAT16 at 984(0/15/40), nbr=1
FAT16 at 985(0/15/41), nbr=1
FAT16 at 986(0/15/42), nbr=1
FAT16 at 987(0/15/43), nbr=1
FAT16 at 988(0/15/44), nbr=1
FAT16 at 989(0/15/45), nbr=1
FAT16 at 990(0/15/46), nbr=1
FAT16 at 991(0/15/47), nbr=1
FAT16 at 992(0/15/48), nbr=1
FAT16 at 993(0/15/49), nbr=1
FAT16 at 994(0/15/50), nbr=1
FAT16 at 995(0/15/51), nbr=1
FAT16 at 996(0/15/52), nbr=1
FAT16 at 997(0/15/53), nbr=1
FAT16 at 998(0/15/54), nbr=1
FAT16 at 999(0/15/55), nbr=1
FAT16 at 1000(0/15/56), nbr=1
FAT16 at 1001(0/15/57), nbr=1
FAT16 at 1002(0/15/58), nbr=1
FAT16 at 1003(0/15/59), nbr=1
FAT16 at 1004(0/15/60), nbr=1
FAT16 at 1005(0/15/61), nbr=1
FAT16 at 1006(0/15/62), nbr=1
FAT16 at 1007(0/15/63), nbr=1
FAT16 at 1008(0/16/1), nbr=1
FAT16 at 1009(0/16/2), nbr=1
FAT16 at 1010(0/16/3), nbr=1
FAT16 at 1011(0/16/4), nbr=1
FAT16 at 1012(0/16/5), nbr=1
FAT16 at 1013(0/16/6), nbr=1
FAT16 at 1014(0/16/7), nbr=1
FAT16 at 1015(0/16/8), nbr=1
FAT16 at 1016(0/16/9), nbr=1
FAT16 at 1017(0/16/10), nbr=1
FAT16 at 1018(0/16/11), nbr=1
FAT16 at 1019(0/16/12), nbr=1
FAT16 at 1020(0/16/13), nbr=1
FAT16 at 1021(0/16/14), nbr=1
FAT16 at 1022(0/16/15), nbr=1
FAT16 at 1023(0/16/16), nbr=1
FAT16 at 1024(0/16/17), nbr=1
FAT16 at 1025(0/16/18), nbr=1
FAT16 at 1026(0/16/19), nbr=1
FAT16 at 1027(0/16/20), nbr=1
FAT16 at 1028(0/16/21), nbr=1
FAT16 at 1029(0/16/22), nbr=1
FAT16 at 1030(0/16/23), nbr=1
FAT16 at 1031(0/16/24), nbr=1
FAT16 at 1032(0/16/25), nbr=1
FAT16 at 1033(0/16/26), nbr=1
FAT16 at 1034(0/16/27), nbr=1
FAT16 at 1035(0/16/28), nbr=1
FAT16 at 1036(0/16/29), nbr=1
FAT16 at 1037(0/16/30), nbr=1
FAT16 at 1038(0/16/31), nbr=1
FAT16 at 1039(0/16/32), nbr=1
FAT16 at 1040(0/16/33), nbr=1
FAT16 at 1041(0/16/34), nbr=1
FAT16 at 1042(0/16/35), nbr=1
FAT16 at 1043(0/16/36), nbr=1
FAT16 at 1044(0/16/37), nbr=1
FAT16 at 1045(0/16/38), nbr=1
FAT16 at 1046(0/16/39), nbr=1
FAT16 at 1047(0/16/40), nbr=1
FAT16 at 1048(0/16/41), nbr=1
FAT16 at 1049(0/16/42), nbr=1
FAT16 at 1050(0/16/43), nbr=1
FAT16 at 1051(0/16/44), nbr=1
FAT16 at 1052(0/16/45), nbr=1
FAT16 at 1053(0/16/46), nbr=1
FAT16 at 1054(0/16/47), nbr=1
FAT16 at 18631(1/40/47), nbr=1
first_fat 32, second_fat 33
FAT : 16, reserved=32, fat_length=1

fat32_boot_sector
   P FAT32                    0   0  1   249 253  4    4016128
Boot sector
Bad

Backup boot sector
Bad

First sectors (Boot code and partition information) are not identical.

A valid FAT Boot sector must be present in order to access
any data; even if the partition is not bootable.


Change partition type:
   P NTFS                     0   0  1   249 253  4    4016128

ntfs_boot_sector
   P NTFS                     0   0  1   249 253  4    4016128
filesystem size           320881733296173847 0
sectors_per_cluster       124 255
mft_lcn                   128910856 4294967295
mftmirr_lcn               2431677416 4294967295
clusters_per_mft_record   -112 -1
clusters_per_index_record -112 -1
Boot sector
Status: Bad

Backup boot sector
Status: Bad

Sectors are not identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
rebuild_NTFS_BS
Search mft stopped:      65536/4016128
Failed to rebuild NTFS boot sector.

ntfs_boot_sector
   P NTFS                     0   0  1   249 253  4    4016128
filesystem size           320881733296173847 0
sectors_per_cluster       124 255
mft_lcn                   128910856 4294967295
mftmirr_lcn               2431677416 4294967295
clusters_per_mft_record   -112 -1
clusters_per_index_record -112 -1
Boot sector
Status: Bad

Backup boot sector
Status: Bad

Sectors are not identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
rebuild_NTFS_BS
file_pread(6,1,buffer,4016128(249/253/5)) ReadFile The drive cannot find the sector requested.

Failed to rebuild NTFS boot sector.

ntfs_boot_sector
   P NTFS                     0   0  1   249 253  4    4016128
filesystem size           320881733296173847 0
sectors_per_cluster       124 255
mft_lcn                   128910856 4294967295
mftmirr_lcn               2431677416 4294967295
clusters_per_mft_record   -112 -1
clusters_per_index_record -112 -1
Boot sector
Status: Bad

Backup boot sector
Status: Bad

Sectors are not identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
rebuild_NTFS_BS
file_pread(6,1,buffer,4016128(249/253/5)) ReadFile The drive cannot find the sector requested.

Failed to rebuild NTFS boot sector.

ntfs_boot_sector
   P NTFS                     0   0  1   249 253  4    4016128
filesystem size           320881733296173847 0
sectors_per_cluster       124 255
mft_lcn                   128910856 4294967295
mftmirr_lcn               2431677416 4294967295
clusters_per_mft_record   -112 -1
clusters_per_index_record -112 -1
Boot sector
Status: Bad

Backup boot sector
Status: Bad

Sectors are not identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.

TestDisk exited normally.

[vxxed]

Does anyone else have any advice?

[jagdish1221]

You should use Disk not Drive and always the 32bit version of TestDisk.
Repeat your diagnose!

If it doesn't find anything;
Try partition table type None!
Then use the menu Advanced instead of Analyse.
If your partition appears as Unknown, use Type to set your previous file system (FAT32/NTFS? howsoever?).
Use the menu Boot and Rebuild BS to have a try to rebuild your boot sector.
If it was successful, you should see the menu List.
Have a try to list your data.
If you've seen your data, you can use the menu write to write your extrapolated boot sector.
If your data are listed, you can copy/backup your data also.
At the bootom of the screen, you'll find all the copy commands.

Fiona

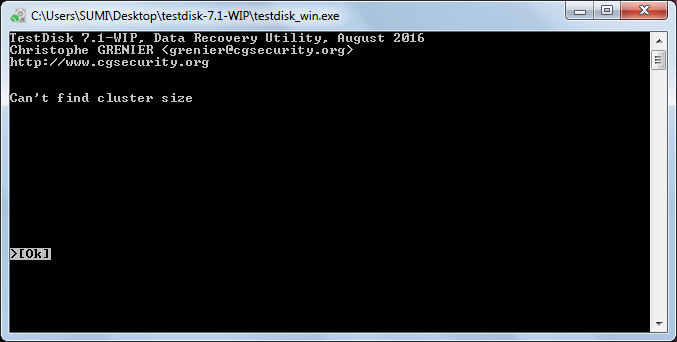

After Rebuild BS it shows - Can't find cluster size then i click ok
then it shows image .
what to do now . is my sdcard operates or not? i don't wants to recover any thing.

[cgrenier]

I don't know why TestDisk didn't find your partition...
Run PhotoRec to recover your data. Note that it will not recover the original filenames but it's better than nothing.
