Lost NTFS Paritition after creating NTFS and EXT4 partitions

#1 Post by Dhabud » 02 Dec 2013, 22:20

Hello Experts

I had following paritions on my 320GB HDD.
100 MB I guess boot
20 GB System reserved
300GB Windows 7

I wanted to install windows 7 and Ubuntu Side by side. So I created following paritions using Gparted(See ImageA)

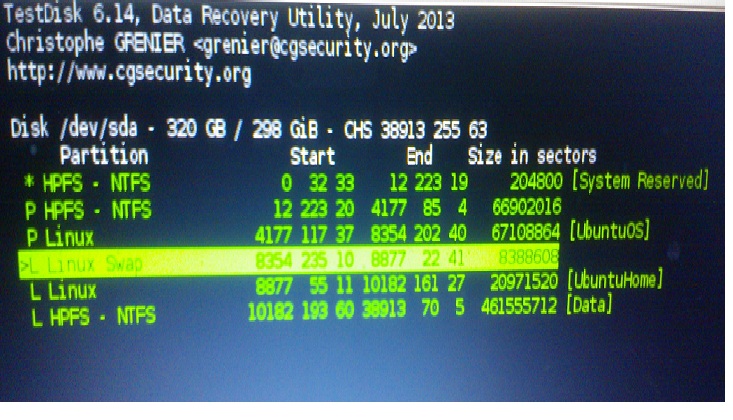

ImageA
New Paritions
32GB NTFS (for Win7OS)
32GB EXT4 (For UbuntuOS)
4GB Linux SWAP
10GB Ext4 (For UbuntuHOME)
242GB NTFS (For Data)

I did not format them before or after creating them. I than installed Win7 on the above partition(32GB). When I went to restore the Documents and things, I found my backup did not have any files(long story). I lost almost 200GB of personal docs, music, pictures videos. I logged in Win7OS about 3-4 times (some updates went thro'). I have not installed Ubuntu yet and data partion is not used yet.
So I figure there is data there. I tried recovering using testdisk and photorec ddrescue as follows
ddrescue to create the image of whole 320GB HDD to an external HDD.
From image(.dd file) I recovered files using photrec. But the files have no path and names. Hard to find/sort the files I am looking for from the pile.
So next step I used testdisk to recover partition.
testdisk /dev/sda, Quick Search found all the partions in my list above

I did deeper search and I think it found the Orignal Win7 Partion(looking at the size)
But I dont get option to list the file and I got following message. See ImageB
ImageB
I read the forums and Fiona suggested to someone about overlapping partions and mark it as delete.
I am in process of doing it on the actual HDD not the image.
Am I in the right direction. Any suggestions on how to recover the full partition.


Thank you in advance.
Dhabud

Sponsored links

Dhabud
Posts: 2
Joined: 02 Dec 2013, 18:01

Re: Lost NTFS Paritition after creating NTFS and EXT4 partit

#2 Post by Dhabud » 04 Dec 2013, 19:15

I tried deleting all but one partition shown in Image B and Ran deeper search and still see the same message. It found the partition but does not allow me option to list files.

Log
Analyse Disk /dev/sda - 320 GB / 298 GiB - CHS 38914 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/32/33
NTFS at 12/223/20
NTFS at 10182/193/60
Current partition structure:
1 * HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
2 P HPFS - NTFS 12 223 20 4177 85 4 66902016
3 E extended 4177 85 5 38913 70 5 558032896
5 L Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
X extended 8354 202 41 8877 22 41 8390656
6 L Linux Swap 8354 235 10 8877 22 41 8388608
X extended 8877 22 42 10182 161 27 20973568
7 L Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
X extended 10182 161 28 38913 70 5 461557760
8 L HPFS - NTFS 10182 193 60 38913 70 5 461555712 [Data]

search_part()
Disk /dev/sda - 320 GB / 298 GiB - CHS 38914 255 63
NTFS at 0/32/33
filesystem size 204800
sectors_per_cluster 8
mft_lcn 8533
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
NTFS, blocksize=4096, 104 MB / 100 MiB
NTFS at 12/223/20
filesystem size 66902016
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 12 223 20 4177 85 4 66902016
NTFS, blocksize=4096, 34 GB / 31 GiB

recover_EXT2: s_block_group_nr=0/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock, 34 GB / 32 GiB
Linux Swap 8354 235 10 8877 22 25 8388592
SWAP2 version 1, pagesize=4096, 4294 MB / 4095 MiB

recover_EXT2: s_block_group_nr=0/80, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2621440
recover_EXT2: part_size 20971520
Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock, 10 GB / 10 GiB
NTFS at 10182/193/60
filesystem size 461555712
sectors_per_cluster 8
mft_lcn 4
mftmirr_lcn 28847231
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 10182 193 60 38913 70 5 461555712 [Data]
NTFS, blocksize=4096, 236 GB / 220 GiB

Results
* HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
NTFS, blocksize=4096, 104 MB / 100 MiB
P HPFS - NTFS 12 223 20 4177 85 4 66902016
NTFS, blocksize=4096, 34 GB / 31 GiB
P Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock, 34 GB / 32 GiB
L Linux Swap 8354 235 10 8877 22 41 8388608
SWAP2 version 1, pagesize=4096, 4294 MB / 4096 MiB
L Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock, 10 GB / 10 GiB
L HPFS - NTFS 10182 193 60 38913 70 5 461555712 [Data]
NTFS, blocksize=4096, 236 GB / 220 GiB

interface_write()
1 * HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]

search_part()
Disk /dev/sda - 320 GB / 298 GiB - CHS 38914 255 63
NTFS at 0/32/33
filesystem size 204800
sectors_per_cluster 8
mft_lcn 8533
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
NTFS, blocksize=4096, 104 MB / 100 MiB
NTFS at 12/223/19
filesystem size 204800
sectors_per_cluster 8
mft_lcn 8533
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 12 223 19 204800 [System Reserved]
NTFS found using backup sector, blocksize=4096, 104 MB / 100 MiB
NTFS at 12/223/20
filesystem size 66902016
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 12 223 20 4177 85 4 66902016
NTFS, blocksize=4096, 34 GB / 31 GiB
NTFS at 4177/85/4
filesystem size 66902016
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 12 223 20 4177 85 4 66902016
NTFS found using backup sector, blocksize=4096, 34 GB / 31 GiB

recover_EXT2: s_block_group_nr=0/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock, 34 GB / 32 GiB

block_group_nr 1

recover_EXT2: "e2fsck -b 32768 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=1/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB

block_group_nr 3

recover_EXT2: "e2fsck -b 98304 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=3/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB

block_group_nr 5

recover_EXT2: "e2fsck -b 163840 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=5/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB

block_group_nr 7

recover_EXT2: "e2fsck -b 229376 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=7/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB

block_group_nr 9

recover_EXT2: "e2fsck -b 294912 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=9/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB

block_group_nr 25

recover_EXT2: "e2fsck -b 819200 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=25/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB

block_group_nr 27

recover_EXT2: "e2fsck -b 884736 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=27/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB

block_group_nr 49

recover_EXT2: "e2fsck -b 1605632 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=49/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB

block_group_nr 81

recover_EXT2: "e2fsck -b 2654208 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=81/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB

block_group_nr 125

recover_EXT2: "e2fsck -b 4096000 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=125/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB

block_group_nr 243

recover_EXT2: "e2fsck -b 7962624 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=243/256, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 8388608
recover_EXT2: part_size 67108864
Linux 4177 117 37 8354 202 40 67108864 [UbuntuOS]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 34 GB / 32 GiB
Linux Swap 8354 235 10 8877 22 25 8388592
SWAP2 version 1, pagesize=4096, 4294 MB / 4095 MiB

recover_EXT2: s_block_group_nr=0/80, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2621440
recover_EXT2: part_size 20971520
Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock, 10 GB / 10 GiB

block_group_nr 1

recover_EXT2: "e2fsck -b 32768 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=1/80, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2621440
recover_EXT2: part_size 20971520
Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 10 GB / 10 GiB

block_group_nr 3

recover_EXT2: "e2fsck -b 98304 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=3/80, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2621440
recover_EXT2: part_size 20971520
Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 10 GB / 10 GiB

block_group_nr 5

recover_EXT2: "e2fsck -b 163840 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=5/80, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2621440
recover_EXT2: part_size 20971520
Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 10 GB / 10 GiB

block_group_nr 7

recover_EXT2: "e2fsck -b 229376 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=7/80, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2621440
recover_EXT2: part_size 20971520
Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 10 GB / 10 GiB

block_group_nr 9

recover_EXT2: "e2fsck -b 294912 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=9/80, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2621440
recover_EXT2: part_size 20971520
Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 10 GB / 10 GiB

block_group_nr 25

recover_EXT2: "e2fsck -b 819200 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=25/80, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2621440
recover_EXT2: part_size 20971520
Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 10 GB / 10 GiB

block_group_nr 27

recover_EXT2: "e2fsck -b 884736 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=27/80, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2621440
recover_EXT2: part_size 20971520
Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 10 GB / 10 GiB

block_group_nr 49

recover_EXT2: "e2fsck -b 1605632 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=49/80, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8192
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 2621440
recover_EXT2: part_size 20971520
Linux 8877 55 11 10182 161 27 20971520 [UbuntuHome]
ext4 blocksize=4096 Large file Sparse superblock Backup superblock, 10 GB / 10 GiB
NTFS at 10182/193/60
filesystem size 461555712
sectors_per_cluster 8
mft_lcn 4
mftmirr_lcn 28847231
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 10182 193 60 38913 70 5 461555712 [Data]
NTFS, blocksize=4096, 236 GB / 220 GiB
NTFS at 20880/237/30
filesystem size 603966128
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 20880 237 30 58476 21 25 603966128
NTFS, blocksize=4096, 309 GB / 287 GiB
This partition ends after the disk limits. (start=335452160, size=603966128, end=939418287, disk end=625153410)
BAD_RS LBA=2299115458 7674398
check_FAT: can't read FAT boot sector
check_part_i386 failed for partition type 0C
FAT32 LBA 143113 81 11 190034 166 38 753791248
This partition ends after the disk limits. (start=2299115458, size=753791248, end=3052906705, disk end=625153410)
NTFS at 38913/70/5
filesystem size 461555712
sectors_per_cluster 8
mft_lcn 4
mftmirr_lcn 28847231
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 10182 193 60 38913 70 5 461555712 [Data]
NTFS found using backup sector, blocksize=4096, 236 GB / 220 GiB
Disk /dev/sda - 320 GB / 298 GiB - CHS 38914 255 63
Check the harddisk size: HD jumpers settings, BIOS detection...
The harddisk (320 GB / 298 GiB) seems too small! (< 1563 GB / 1455 GiB)
The following partitions can't be recovered:
HPFS - NTFS 20880 237 30 58476 21 25 603966128
NTFS, blocksize=4096, 309 GB / 287 GiB
FAT32 LBA 143113 81 11 190034 166 38 753791248
Dhabud

Post Reply

Who is online

Users browsing this forum: No registered users and 0 guests
