HDD - NTFS partition overwritten - disk seems too small!

#1 Post by Citan » 19 Jan 2014, 00:12

Hi everyone !

As many others, I discovered Testdisk and this forum as a way to resolve a partition problem. While Testdisk gives me a clear light of hope, I'd be grateful for some explanations and advices on the steps to follow.

FACTS
I own an external, 2,5 inches 2TB hdd (1,8 Tio). I had it formatted as a unique NTFS partition covering nearly all space (except for a few Gio that I kept at end of disk, in case I wanted someday to install a live system).

Last week, I wanted to install the latest Ubuntu on my computer, by first putting it on a small external drive (a key of 1,8 Gio). You'll guess what happened... I chose the wrong device in the live-system creation tool and erased my 2TB.

Hopefully Testdisk is here. Following the recommandations (unmounted disk and such), I runned it. It first see the new FAT32 partition, only with Deeper Search does it see other partition. Finally, testdisk lists...
- the all new FAT32 partition;
- a HFS - NTFS partition which I suppose is my "good" partition;
- a FAT16 partition, coming from whoknowhere;
- a FAT12 partition, idem...

So news seems good, he sees a NTFS partition. Still, 2 problems.
- Testdisk displays "The Harddisk (2000 GB / 1863 GiB) seems too small! (<2422 GB / 2256 GiB)." Not sure what it means but doesn't seem very good.
- It says "NTFS found using backup sector, blocksize=4096, 1979 GB / 1843. But when I "enter it" with P to list files, its says "Can't open filesystem. Filesystem seems damaged".

So, with this, I'm not sure what is the right next step. If any can help troubleshoot this it will be much appreciated.
The full testdisk log (2 scans with different options) and some screenshot are accessible through this link (I can attach them directly if preffered).
https://drive.google.com/folderview?id= ... sp=sharing


Thanks in advance (French version below in case of)!

-------------------------

Bonjour à tous !!

Comme beaucoup d'autres, j'ai découvert Testdisk et ce forum à l'occasion d'un souci (bon, ici grosse boulette de ma pomme). L'occasion faisant le larron, je viens demander quelques éclaircissements sur les indications de testdisk et la marche à suivre.

Les faits
Je possède un disque externe 2,5 pouces de 2 To (1,8 Tio). Il disposait d'une unique partition NTFS qui couvrait quasiment l'intégralité du disque (j'avais dû laisser quelques Go de secours "au cas où" pour installer un système live).

La semaine dernière, je voulais réinstaller un système Ubuntu live sur une clé externe d'1,8 Gio pour ensuite réinstaller mon système principal. J'avais donc branché mon disque externe pour sauvegarder toutes les données.

J'ai ensuite lancé l'utilitaire de création Ubuntu, et là, par manque d'attention car habituellement je débranche tout disque externe avant manip externe, j'ai sélectionné le disque de 1,8 Tio au lieu du disque 1,8 Gio.
Anéfé c'est très con. ^^^^

Je n'ai rien d'extrêmement précieux sur ce disque, mais j'aimerais tout de même le récupérer.
Testdisk ne voit que la nouvelle partition FAT32 par défaut. Après Deepsearch, il me trouve plusieurs partitions :
- la FAT32 créée par l'outil d'Ubuntu ;
- une HPFS - NTFS qui semble être la bonne ;
- une partition FAT12 (????) ;
- une partition FAT16 (?????).

Deux soucis :
- Il m'indique The Harddisk (2000 GB / 1863 GiB) seems too small! (<2422 GB / 2256 GiB).
- Il m'indique avoir trouvé la partition NTFS grâce au secteur de backup. En revanche lorsque je rentre avec 'P' pour lister les données, il me dit que le système de fichiers est endommagé.

Que faire ? Merci d'avance pour vos conseils.
Le fichier de log ainsi que quelques captures sont accessibles ici :
https://drive.google.com/folderview?id= ... sp=sharing

@+

EDIT : Inclusion of log and screens in opening post. The log and screens relate to the two deepsearch that I made consecutively: first with default options, second with change in cylinder boundary option.

Captures

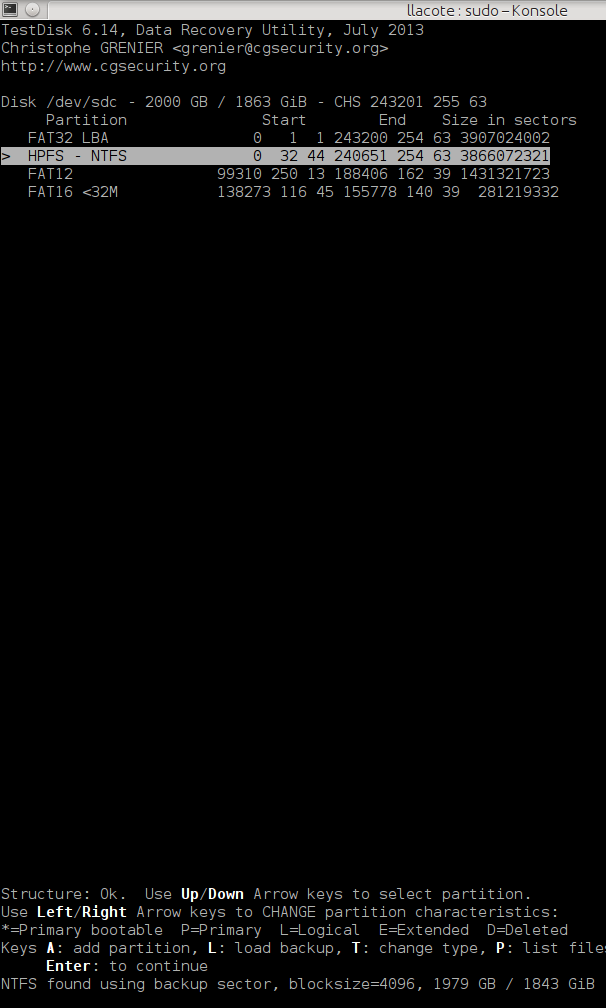

First Deepsearch
Second Deepsearch

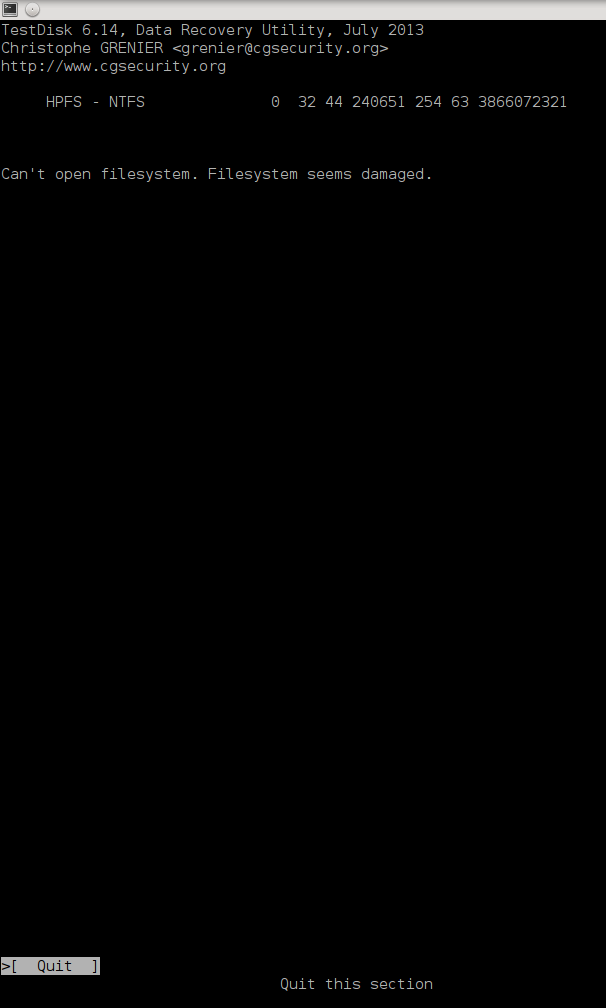

The ntfs partition detail was identical to the one in first deepsearch.

Testdisk.log

Tue Jan 14 19:46:48 2014
Command line: TestDisk

TestDisk 6.14, Data Recovery Utility, July 2013
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Linux, kernel 3.11.0-15-generic (#23-Ubuntu SMP Mon Dec 9 18:17:04 UTC 2013) x86_64
Compiler: GCC 4.8
Compilation date: 2013-08-23T17:34:40
ext2fs lib: 1.42.8, ntfs lib: libntfs-3g, reiserfs lib: none, ewf lib: none
/dev/sda: LBA, HPA, LBA48, DCO support
/dev/sda: size 250069680 sectors
/dev/sda: user_max 250069680 sectors
/dev/sda: native_max 250069680 sectors
/dev/sda: dco 250069680 sectors
Warning: can't get size for Disk /dev/mapper/control - 0 B - 1 sectors, sector size=512
/dev/sr0 is not an ATA disk
Hard disk list
Disk /dev/sda - 128 GB / 119 GiB - CHS 15566 255 63, sector size=512 - M4-CT128M4SSD2, S/N:0000000011330318194C, FW:0002
Disk /dev/sdb - 480 GB / 447 GiB - CHS 58369 255 63, sector size=512 - ASMT 2105
Disk /dev/sdc - 2000 GB / 1863 GiB - CHS 243201 255 63, sector size=512 - TOSHIBA External USB 3.0, FW:5438
Disk /dev/sr0 - 8151 MB / 7773 MiB - 3980000 sectors (RO), sector size=2048 - HL-DT-ST BDDVDRW CH10LS20, S/N:K9HB2QG4747, FW:1.00

Partition table type (auto): Intel
Disk /dev/sdc - 2000 GB / 1863 GiB - TOSHIBA External USB 3.0
Partition table type: Intel

Interface Advanced
Geometry from i386 MBR: head=255 sector=63
FAT32 at 0/1/1
Info: size boot_sector 3907024002, partition 3907024002
FAT1 : 32-953439
FAT2 : 953440-1906847
start_rootdir : 1906848 root cluster : 2
Data : 1906848-3907023999
sectors : 3907024002
cluster_size : 32
no_of_cluster : 122034911 (2 - 122034912)
fat_length 953408 calculated 953398
set_FAT_info: name from BS used
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
1 * FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB

Analyse Disk /dev/sdc - 2000 GB / 1863 GiB - CHS 243201 255 63
Geometry from i386 MBR: head=255 sector=63
FAT32 at 0/1/1
Info: size boot_sector 3907024002, partition 3907024002
FAT1 : 32-953439
FAT2 : 953440-1906847
start_rootdir : 1906848 root cluster : 2
Data : 1906848-3907023999
sectors : 3907024002
cluster_size : 32
no_of_cluster : 122034911 (2 - 122034912)
fat_length 953408 calculated 953398
set_FAT_info: name from BS used
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
Current partition structure:
1 * FAT32 LBA 0 1 1 243200 254 63 3907024002

search_part()
Disk /dev/sdc - 2000 GB / 1863 GiB - CHS 243201 255 63
FAT32 at 0/1/1
FAT1 : 32-953439
FAT2 : 953440-1906847
start_rootdir : 1906848 root cluster : 2
Data : 1906848-3907023999
sectors : 3907024002
cluster_size : 32
no_of_cluster : 122034911 (2 - 122034912)
fat_length 953408 calculated 953398
set_FAT_info: name from BS used

FAT32 at 0/1/1
FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2

Results
* FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB

interface_write()
1 * FAT32 LBA 0 1 1 243200 254 63 3907024002
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie

search_part()
Disk /dev/sdc - 2000 GB / 1863 GiB - CHS 243201 255 63
FAT32 at 0/1/1
FAT1 : 32-953439
FAT2 : 953440-1906847
start_rootdir : 1906848 root cluster : 2
Data : 1906848-3907023999
sectors : 3907024002
cluster_size : 32
no_of_cluster : 122034911 (2 - 122034912)
fat_length 953408 calculated 953398
set_FAT_info: name from BS used

FAT32 at 0/1/1
FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB
FAT32 at 0/1/7
FAT1 : 32-953439
FAT2 : 953440-1906847
start_rootdir : 1906848 root cluster : 2
Data : 1906848-3907023999
sectors : 3907024002
cluster_size : 32
no_of_cluster : 122034911 (2 - 122034912)
fat_length 953408 calculated 953398
set_FAT_info: name from BS used

FAT32 at 0/1/7
FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB
BAD_RS LBA=4583963460 10206756
check_FAT: can't read FAT boot sector
check_part_i386 failed for partition type 01
FAT12 285338 134 49 294578 92 14 148437920
This partition ends after the disk limits. (start=4583963460, size=148437920, end=4732401379, disk end=3907029164)
BAD_RS LBA=2221363097 18446744073709551615
check_part_i386 failed for partition type 04
FAT16 <32M 138273 116 45 155778 140 39 281219332
BAD_RS LBA=1595430912 4126079
check_part_i386 failed for partition type 01
FAT12 99310 250 13 188406 162 39 1431321723
NTFS at 240651/254/63
filesystem size 3866072321
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 16
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 44 240651 254 63 3866072321
NTFS found using backup sector, blocksize=4096, 1979 GB / 1843 GiB
Disk /dev/sdc - 2000 GB / 1863 GiB - CHS 243201 255 63
Check the harddisk size: HD jumpers settings, BIOS detection...
The harddisk (2000 GB / 1863 GiB) seems too small! (< 2422 GB / 2256 GiB)
The following partition can't be recovered:
FAT12 285338 134 49 294578 92 14 148437920
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2

Results
FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB
HPFS - NTFS 0 32 44 240651 254 63 3866072321
NTFS found using backup sector, blocksize=4096, 1979 GB / 1843 GiB
FAT12 99310 250 13 188406 176 58 1431322624
FAT16 <32M 138273 116 45 155778 140 39 281219332
ntfs_device_testdisk_io_ioctl() unimplemented
ntfs_device_testdisk_io_ioctl() unimplemented
Not an exFAT boot sector.
ntfs_device_testdisk_io_ioctl() unimplemented
ntfs_device_testdisk_io_ioctl() unimplemented

HPFS - NTFS 0 32 44 240651 254 63 3866072321
NTFS found using backup sector, blocksize=4096, 1979 GB / 1843 GiB
Can't open filesystem. Filesystem seems damaged.


dir_partition inode=0
FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB
FAT: cluster=2(0x2), pos=1906911
Directory /
ntfs_device_testdisk_io_ioctl() unimplemented
ntfs_device_testdisk_io_ioctl() unimplemented
Not an exFAT boot sector.
ntfs_device_testdisk_io_ioctl() unimplemented
ntfs_device_testdisk_io_ioctl() unimplemented

HPFS - NTFS 0 32 44 240651 254 63 3866072321
NTFS found using backup sector, blocksize=4096, 1979 GB / 1843 GiB
Can't open filesystem. Filesystem seems damaged.

interface_write()

No partition found or selected for recovery
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition
New options :
Dump : No
Align partition: No
Expert mode : No

Interface Advanced
Geometry from i386 MBR: head=255 sector=63
FAT32 at 0/1/1
Info: size boot_sector 3907024002, partition 3907024002
FAT1 : 32-953439
FAT2 : 953440-1906847
start_rootdir : 1906848 root cluster : 2
Data : 1906848-3907023999
sectors : 3907024002
cluster_size : 32
no_of_cluster : 122034911 (2 - 122034912)
fat_length 953408 calculated 953398
set_FAT_info: name from BS used
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
1 * FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB

Analyse Disk /dev/sdc - 2000 GB / 1863 GiB - CHS 243201 255 63
Geometry from i386 MBR: head=255 sector=63
FAT32 at 0/1/1
Info: size boot_sector 3907024002, partition 3907024002
FAT1 : 32-953439
FAT2 : 953440-1906847
start_rootdir : 1906848 root cluster : 2
Data : 1906848-3907023999
sectors : 3907024002
cluster_size : 32
no_of_cluster : 122034911 (2 - 122034912)
fat_length 953408 calculated 953398
set_FAT_info: name from BS used
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
Current partition structure:
1 * FAT32 LBA 0 1 1 243200 254 63 3907024002

search_part()
Disk /dev/sdc - 2000 GB / 1863 GiB - CHS 243201 255 63
FAT32 at 0/1/1
FAT1 : 32-953439
FAT2 : 953440-1906847
start_rootdir : 1906848 root cluster : 2
Data : 1906848-3907023999
sectors : 3907024002
cluster_size : 32
no_of_cluster : 122034911 (2 - 122034912)
fat_length 953408 calculated 953398
set_FAT_info: name from BS used

FAT32 at 0/1/1
FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2

Results
* FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB

interface_write()
1 * FAT32 LBA 0 1 1 243200 254 63 3907024002
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie
ntfs_mst_post_read_fixup_warn: magic: 0x471484c2 size: 1024 usa_ofs: 3420 usa_count: 462: Argument invalide
Record 0 has no FILE magic (0x471484c2)
Failed to load $MFT: Erreur d'entrée/sortie

search_part()
Disk /dev/sdc - 2000 GB / 1863 GiB - CHS 243201 255 63
FAT32 at 0/1/1
FAT1 : 32-953439
FAT2 : 953440-1906847
start_rootdir : 1906848 root cluster : 2
Data : 1906848-3907023999
sectors : 3907024002
cluster_size : 32
no_of_cluster : 122034911 (2 - 122034912)
fat_length 953408 calculated 953398
set_FAT_info: name from BS used

FAT32 at 0/1/1
FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB
FAT32 at 0/1/7
FAT1 : 32-953439
FAT2 : 953440-1906847
start_rootdir : 1906848 root cluster : 2
Data : 1906848-3907023999
sectors : 3907024002
cluster_size : 32
no_of_cluster : 122034911 (2 - 122034912)
fat_length 953408 calculated 953398
set_FAT_info: name from BS used

FAT32 at 0/1/7
FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB
BAD_RS LBA=4583963460 10206756
check_FAT: can't read FAT boot sector
check_part_i386 failed for partition type 01
FAT12 285338 134 49 294578 92 14 148437920
This partition ends after the disk limits. (start=4583963460, size=148437920, end=4732401379, disk end=3907029164)
BAD_RS LBA=2221363097 18446744073709551615
check_part_i386 failed for partition type 04
FAT16 <32M 138273 116 45 155778 140 39 281219332
BAD_RS LBA=1595430912 4126079
check_part_i386 failed for partition type 01
FAT12 99310 250 13 188406 162 39 1431321723
NTFS at 240651/254/63
filesystem size 3866072321
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 16
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 44 240651 254 63 3866072321
NTFS found using backup sector, blocksize=4096, 1979 GB / 1843 GiB
Disk /dev/sdc - 2000 GB / 1863 GiB - CHS 243201 255 63
Check the harddisk size: HD jumpers settings, BIOS detection...
The harddisk (2000 GB / 1863 GiB) seems too small! (< 2422 GB / 2256 GiB)
The following partition can't be recovered:
FAT12 285338 134 49 294578 92 14 148437920
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2

Results
FAT32 LBA 0 1 1 243200 254 63 3907024002
FAT32, blocksize=16384, 2000 GB / 1863 GiB
HPFS - NTFS 0 32 44 240651 254 63 3866072321
NTFS found using backup sector, blocksize=4096, 1979 GB / 1843 GiB
FAT12 99310 250 13 188406 162 39 1431321723
FAT16 <32M 138273 116 45 155778 140 39 281219332
ntfs_device_testdisk_io_ioctl() unimplemented
ntfs_device_testdisk_io_ioctl() unimplemented
Not an exFAT boot sector.
ntfs_device_testdisk_io_ioctl() unimplemented
ntfs_device_testdisk_io_ioctl() unimplemented

HPFS - NTFS 0 32 44 240651 254 63 3866072321
NTFS found using backup sector, blocksize=4096, 1979 GB / 1843 GiB
Can't open filesystem. Filesystem seems damaged.
ntfs_device_testdisk_io_ioctl() unimplemented
ntfs_device_testdisk_io_ioctl() unimplemented
Not an exFAT boot sector.
ntfs_device_testdisk_io_ioctl() unimplemented
ntfs_device_testdisk_io_ioctl() unimplemented

HPFS - NTFS 0 32 44 240651 254 63 3866072321
NTFS found using backup sector, blocksize=4096, 1979 GB / 1843 GiB
Can't open filesystem. Filesystem seems damaged.
Can't open backup.log file: Aucun fichier ou dossier de ce type
interface_load
Can't open backup.log file: Aucun fichier ou dossier de ce type
interface_load

interface_write()

No partition found or selected for recovery
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition
New options :
Dump : No
Align partition: No
Expert mode : No

TestDisk exited normally.

Sponsored links

Citan
Posts: 2
Joined: 18 Jan 2014, 19:16

Re: HDD - NTFS partition overwritten - disk seems too small!

#2 Post by Citan » 23 Jan 2014, 12:58

Hi again, thanks for accepting the thread.

I saw in other threads that in fact you always insert logs and screenshots since easier (in spite of added thread length). So I updated the opening post. Thanks in advance for your help!

------------------
Rebonjour à tous. Merci à l'équipe d'avoir validé le sujet. J'ai constaté dans les autres fils que la meilleure pratique reste d'inclure les logs et captures au sein du post initial, même si cela les rallonge significativement. J'ai donc mis à jour en conséquence.
Merci d'avance à tous pour votre aide !

Post Reply

Who is online

Users browsing this forum: No registered users and 2 guests
