Please help w/internal storage HDD & new issues (partition?)

#1 Post by ostrichsak » 18 Apr 2014, 01:55

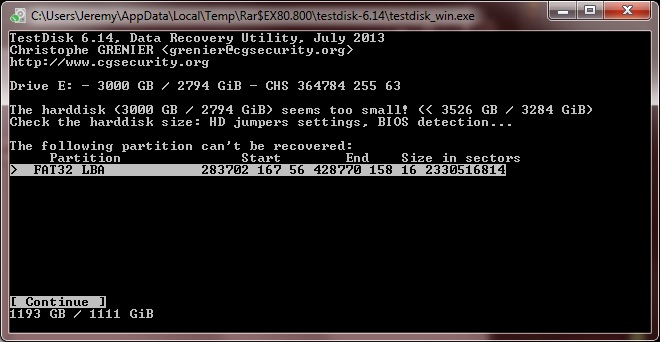

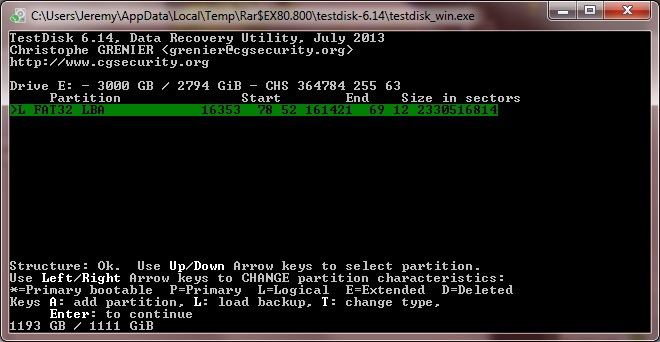

I'm running Win7 64-bit & use WMC to serve up live TV as well as DVR programs & downloaded videos & movies. This setup has been running fine for years with a couple of upgrades (larger) to my secondary drive that houses all this data. Within the last couple of months I installed a WD Red 3TB after scanning it and have been going on with my usual activities w/o any issue. Last night I rebooted after a MS pop-up asked me to in order to complete recent updates. After rebooting I noticed that my secondary storage drive (E:) was no longer listed on my capacity widget on the desktop. I opened My Computer and was surprised to see it listed as a new volume with the drive letter E: still but it won't let me do anything other than format at this time. I downloaded and ran TestDisk for the first time and have a few screen grabs & was hoping someone here who knows more about this sort of thing can help me out. It seems as though the partition might have become corrupt and therefore all my data isn't seen by the OS. Can someone look at these screen captures (sorry I accidentally deleted the first one but it said something to the effect of "partition doesn't have the endmark 0xaa55" and a few other errors. I'm not sure how important those were but if they're critical to solving this I can start running this again to get the exact words needed. Otherwise here's a screen grab upon completion of each step posted below and the last one is where it sits now. Hopefully someone can tell me which step to take next in an attempt to recover/repair the corrupt partition if that's possible at this point.

Thanks!
Attachments

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 3553
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Please help w/internal storage HDD & new issues (partiti

#2 Post by cgrenier » 19 Apr 2014, 07:43

Sorry but I need a screenshot of the Analyse results or a copy of the content of testdisk.log file.

ostrichsak
Posts: 25
Joined: 18 Apr 2014, 01:46

Re: Please help w/internal storage HDD & new issues (partiti

#3 Post by ostrichsak » 19 Apr 2014, 15:54

cgrenier wrote:Sorry but I need a screenshot of the Analyse results or a copy of the content of testdisk.log file.
Is that the very first results I got before these three that I accidentally deleted the screenshot of? What should I do next as I'm literally still sitting at the screen in the bottom picture I posted.

ostrichsak
Posts: 25
Joined: 18 Apr 2014, 01:46

Re: Please help w/internal storage HDD & new issues (partiti

#4 Post by ostrichsak » 20 Apr 2014, 20:43

I've got my backup 2TB drive installed now and while it has the bulk of the data there is still some more recent data on the 3TB that I don't yet have backed up. I have ordered a 2nd 3TB HDD that I plan to install in order to keep a nightly backup just in case one of them fails but if I can rebuild or recover the partition in order to access all of my existing data in order to get a current backup on the new HDD that would be super swell. I'm going to start the scan again as I'm pretty sure that first screen grab is the one you want. As soon as it's done I'll post it up so hopefully someone can offer me some more guidance since I'm venturing into uncharted territory for myself. Thanks!

ostrichsak
Posts: 25
Joined: 18 Apr 2014, 01:46

Re: Please help w/internal storage HDD & new issues (partiti

#5 Post by ostrichsak » 21 Apr 2014, 19:03

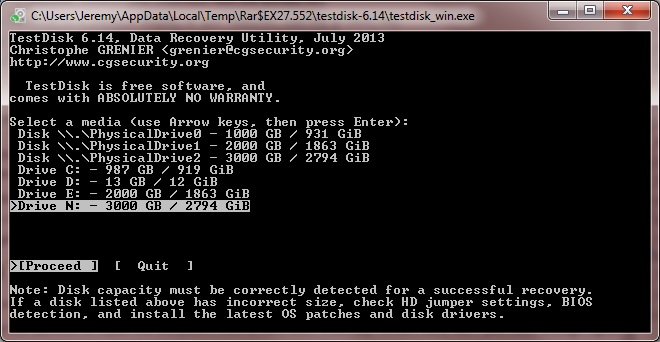

Okay, starting from the beginning... here is the first screen I get. Which option should I choose? The 3TB drive in the list is the one in question so should I do the third option for physicaldrive2 or should I do the 6th option for Drive N?
Attachments

ostrichsak
Posts: 25
Joined: 18 Apr 2014, 01:46

Re: Please help w/internal storage HDD & new issues (partiti

#6 Post by ostrichsak » 22 Apr 2014, 16:44

Anyone? Bueller? Bueller?

User avatar
cgrenier
Site Admin
Posts: 3553
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Please help w/internal storage HDD & new issues (partiti

#7 Post by cgrenier » 23 Apr 2014, 07:49

Select PhysicalDrive2

ostrichsak
Posts: 25
Joined: 18 Apr 2014, 01:46

Re: Please help w/internal storage HDD & new issues (partiti

#8 Post by ostrichsak » 23 Apr 2014, 15:22

cgrenier wrote:Select PhysicalDrive2

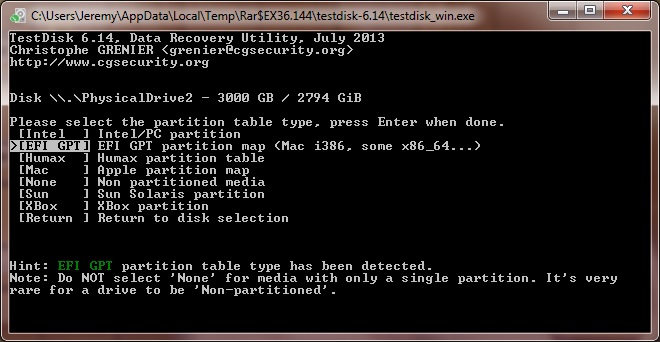

And which one now? I assume the 1st one since this is a Win7 environment. I just want to make sure I do it 100% right this time each step of the way. I've got my new 2nd 3TB HDD sitting here too so I can recover the data to it if need be and then rebuild this first drive but if there's a way to recover or rebuild the partition of this drive and keep all my data it would make life a lot easier.
Attachments

User avatar
cgrenier
Site Admin
Posts: 3553
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Please help w/internal storage HDD & new issues (partiti

#9 Post by cgrenier » 23 Apr 2014, 16:58

EFI GPT is the correct choice. After that, choose Analyse, Quick Search and Deeper Search if your partition isn't listed.
Please post a screenshot of each step.

ostrichsak
Posts: 25
Joined: 18 Apr 2014, 01:46

Re: Please help w/internal storage HDD & new issues (partiti

#10 Post by ostrichsak » 23 Apr 2014, 17:42

cgrenier wrote:EFI GPT is the correct choice. After that, choose Analyse, Quick Search and Deeper Search if your partition isn't listed.
Please post a screenshot of each step.
Okay, analyzing now. I'll post a screen shot of the results as soon as it's done.
