Seagate Backup Plus 4TB - NEED HELP PLS!!

How to use TestDisk to recover lost partition
Message
Author
jmw637
Posts: 10
Joined: 19 Jul 2014, 23:07

Seagate Backup Plus 4TB - NEED HELP PLS!!

#1 Post by jmw637 » 21 Jul 2014, 06:24

this external hard drive was almost filled up (100 GB or so free) so the other day i deleted a bunch of files to free up more space (now 170 or so free). i did so on a different computer than the one the drive is usually attached to, and when i reconnected the drive to that computer it still showed about 100 GB free (as if i hadn't done anything). i reconnected the drive to the first computer to make sure there weren't files waiting to be deleted, etc...but i couldn't resolve this descrepancy.

so i ran chkdsk on the drive which showed there were errors in need of fixing. but when i ran chkdsk /f i received an error to the effect that there wasn't enough room on the drive [for something...i can't recall exactly what!]. and the net effect of this was that it turned my disk RAW. it appears in computer management, but i have no access to any files (fyi, it should be NTFS with a single partition).

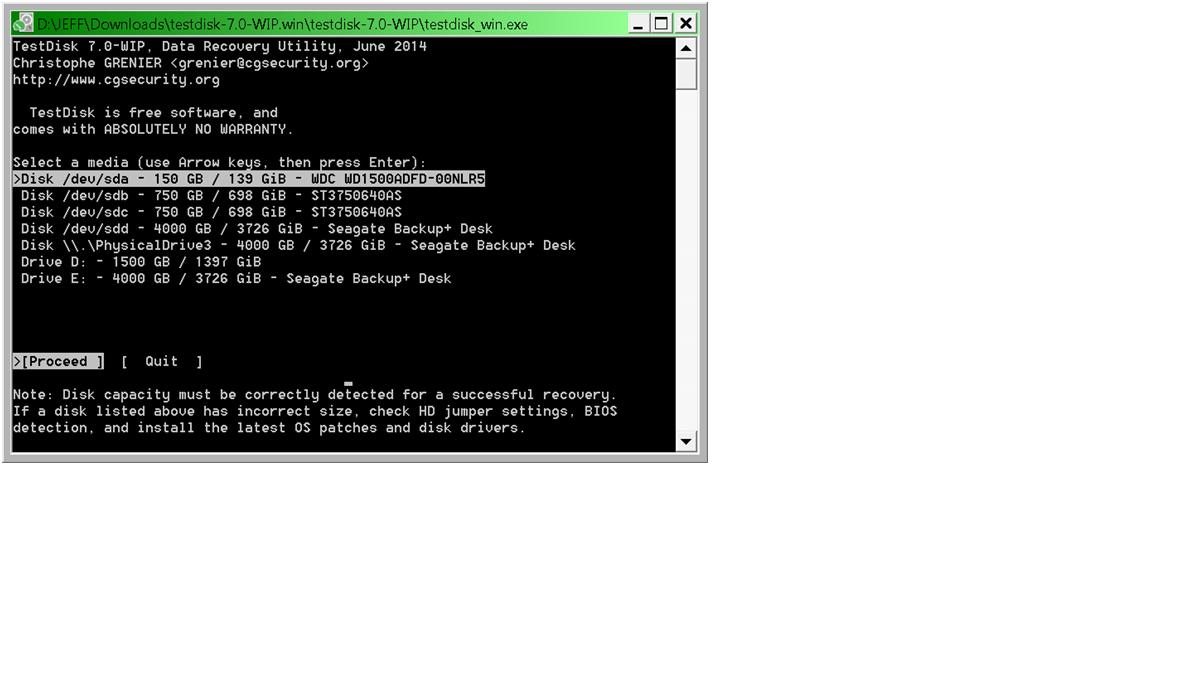

i ran testdisk, which found the following options (see attached testdisk screenshots - 1).

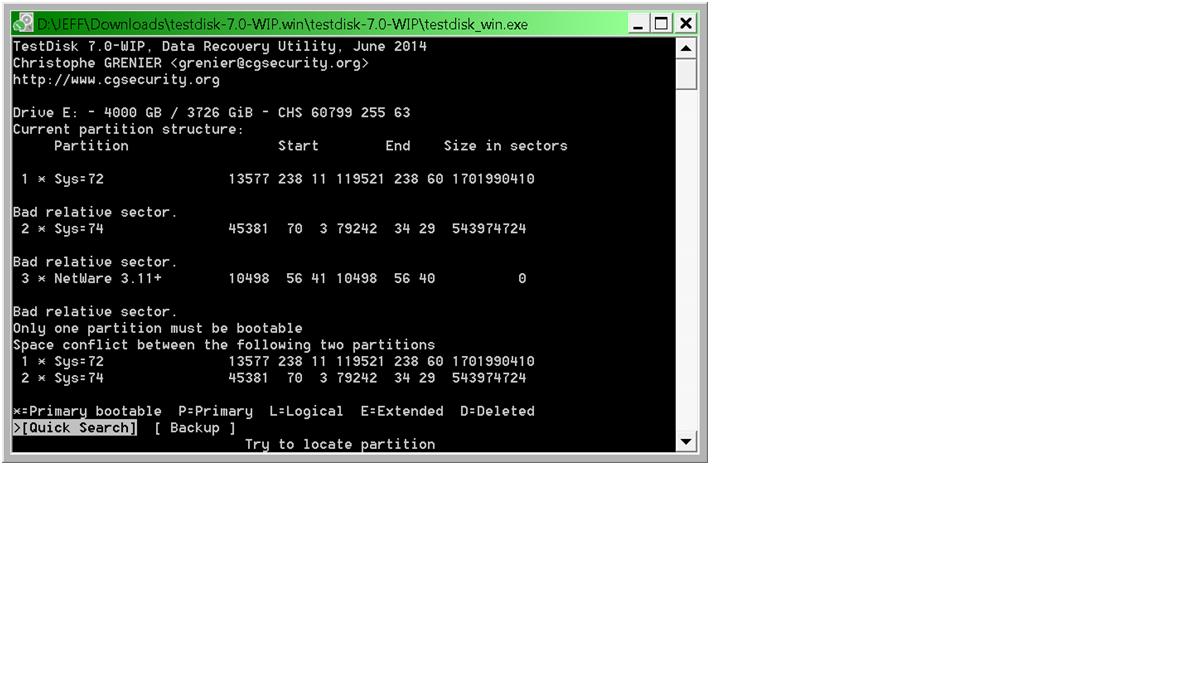

regardless of which 4000 GB option i select (and i've tried them all), i end up with this after partition is analyzed (see attached testdisk screenshots - 3):

after running both quick search and deeper search all i get is a message that "the hard disk seems too small!" (i didn't make screenshots of the specific results...which i can do, but it will take time as running the searches takes hours with a drive this large).

my question is, do you see anything from what is presented here that would help explain why i'm having trouble seeing my data (so i can write a new partition)?

your help would be greatly appreciated. thanks in advance...jeff
Attachments
testdisk screenshots - 3.7z
(35.23 KiB) Downloaded 57 times
testdisk screenshots - 1.7z
(37.52 KiB) Downloaded 61 times

Sponsored links

jmw637
Posts: 10
Joined: 19 Jul 2014, 23:07

Re: Seagate Backup Plus 4TB - NEED HELP PLS!!

#2 Post by jmw637 » 21 Jul 2014, 07:54

two other pieces of information (which may or may not be helpful):

1. if i select "drive e" (the same as in the attached screenshot above), but select "none" as the partition table type, i see what i'd expect...a single primary ntfs partition (labeled MEDIA). and both the qick and deep searches return a result of the same (highlighted in green) along with the message "Structure: Ok."

however, when i try to list the files, all i get is an error message ("Can't open filesystem. Filesystem seems damaged.") ugh....


2. when i run a chkdsk on the drive now, i receive the following error: Detected error in the Master File Table (MFT) mirror. Insufficient disk space to repair master file table (MFT) mirror."

i feel like success is at my fingertips...if i only knew what the hell i was doing!! so if anyone can point me in the right direction, i'd really appreciate it.

jeff

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Seagate Backup Plus 4TB - NEED HELP PLS!!

#3 Post by Fiona » 21 Jul 2014, 08:40

I can't open your attachements.
I've got a read error and a message the the document is defect?
I'm using 7zip too.

Fiona

jmw637
Posts: 10
Joined: 19 Jul 2014, 23:07

Re: Seagate Backup Plus 4TB - NEED HELP PLS!!

#4 Post by jmw637 » 21 Jul 2014, 09:02

sorry. they worked here. odd...

try these...
Attachments
testdisk screenshots - 1.rar
(37.52 KiB) Downloaded 62 times
testdisk screenshots - 3.rar
(35.23 KiB) Downloaded 61 times

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Seagate Backup Plus 4TB - NEED HELP PLS!!

#5 Post by Fiona » 21 Jul 2014, 09:23

Compression is not the problem.
Unfortunately I can't open the document using open office.

Fiona

jmw637
Posts: 10
Joined: 19 Jul 2014, 23:07

Re: Seagate Backup Plus 4TB - NEED HELP PLS!!

#6 Post by jmw637 » 21 Jul 2014, 15:22

these should work.

jeff
Attachments
testdisk screenshots - 1.jpg
testdisk screenshots - 1.jpg (69.3 KiB) Viewed 2237 times
testdisk screenshots - 3.jpg
testdisk screenshots - 3.jpg (65.43 KiB) Viewed 2237 times

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Seagate Backup Plus 4TB - NEED HELP PLS!!

#7 Post by Fiona » 21 Jul 2014, 17:47

Would it be possible to select your disk instead of a drive?
A drive has no partition table.

Fiona

jmw637
Posts: 10
Joined: 19 Jul 2014, 23:07

Re: Seagate Backup Plus 4TB - NEED HELP PLS!!

#8 Post by jmw637 » 21 Jul 2014, 19:09

i've tried selecting both 4000 GB disks (/dev/sdd & \\.\PhysicalDrive3). ultimately, i still end up with that same error message ("Can't open filesystem. Filesystem seems damaged.") when i try to look at the files.

jmw637
Posts: 10
Joined: 19 Jul 2014, 23:07

Re: Seagate Backup Plus 4TB - NEED HELP PLS!!

#9 Post by jmw637 » 22 Jul 2014, 15:35

is the problem here that you don't have enough information to help me, or that i'm beyond help?

what do the results of screenshot 3 mean? is there something i ca do to make this work?

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Seagate Backup Plus 4TB - NEED HELP PLS!!

#10 Post by Fiona » 22 Jul 2014, 17:51

To select your disk (Disk / dev / sdd - 4000 GB) is appreciated, because I'd get information about your current partition table.
It has nothing to do if your file system is damaged.
At least I'd be able to check your partition table and your partition also.
If there would be any change or modification it could lead exactly to the same symptoms.

Fiona
