Drobo FS damaged and wont mount on OS X

Using TestDisk to repair the filesystem
Message
Author
kumadon
Posts: 11
Joined: 02 Mar 2012, 04:39

Drobo FS damaged and wont mount on OS X

#1 Postby kumadon » 02 Mar 2012, 05:16

Screen shot 2012-03-01 at 11.03.15 PM.png

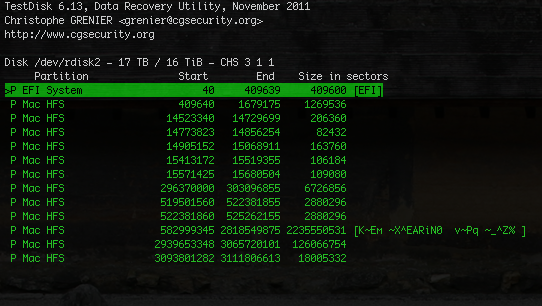

Running "Analyze" follow by EFI GUI FS
Screen shot 2012-03-01 at 11.03.15 PM.png (69.8 KiB) Viewed 3227 times
Firstly, I'd like to thank all of you who made this great tool and also participating this forum to help each other.

I have a an external 4 bay Drobo which is connected and servered as backup/file server for my OS X mac mini. I ended up finding this site after I have tried to recover using various tools out there and failed to do so. Drobo dashboard is reporting that the drobo is healthy but it's also reporting that the FS is not formatted although it has been. One day it stopped mounting and I have tried the tools below so far.

Just to give you little more background on Drobo, it's got 4 disks in it and I format it initially as 17TB and 1.6TB is/was being used out of usable space of 2.47TB



Disk Util: won't mount and can't fix
Disk Worriror: after weeks of deep scan it found many files in it but the whole size of the retrieved files is only about 600GB when I'm expecting to see 1.6TB.
Data Rescue 3: It found more files than the disk worrior did but there is no original file names.
Disk Drill: also found more files than Disk Worrior did but there is no original file names.

I then found this link http://superuser.com/questions/152625/drobo-not-mounting-disk-repair-doesnt-work-either/367831#367831 and followed this user's tip by choosing INTEL (still don't understand why he chose intel when his system was Mac OS X) and chose "write MBR record". after rebooting still no luck.

Currently I am scanning after chose Analyze followed by "EFI". So far testdisk found 7 or so HFS partition and 1 EFI but there was only one paritition before. I guess Testdisk found actual physical partition instead of 1 logical partition as seeing by Drobo??? Perhaps I should've chosen Apple OS instead of EFI? When I started testdisk it was defaulted to EFI which is why I chose it and running analyze. Can please someone walk me through which FS and run which option? I'd be much appreciated if someone can help me here.

thank you so much in advance

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 3077
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Drobo FS damaged and wont mount on OS X

#2 Postby cgrenier » 03 Mar 2012, 10:16

EFI GPT is the correct partition table type. Using TestDisk 6.14-WIP, can you post screenshots of Analyse and Quick Search ?

kumadon
Posts: 11
Joined: 02 Mar 2012, 04:39

Re: Drobo FS damaged and wont mount on OS X

#3 Postby kumadon » 03 Mar 2012, 22:46

Hi

Thank you so much for your reply :mrgreen: . As you asked me to run 6.14 I killed the previous session as you can see.

kumadon
Posts: 11
Joined: 02 Mar 2012, 04:39

Re: Drobo FS damaged and wont mount on OS X

#4 Postby kumadon » 03 Mar 2012, 22:49

cgrenier wrote:EFI GPT is the correct partition table type. Using TestDisk 6.14-WIP, can you post screenshots of Analyse and Quick Search ?


here is the output. I just started the scan so I suppose this will take a few days to complete the scan??
Attachments

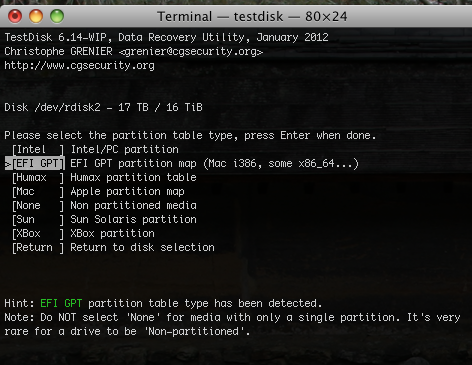

Screen Shot 2012-03-03 at 4.48.36 PM.png
6.14 WIP
Screen Shot 2012-03-03 at 4.48.36 PM.png (172.68 KiB) Viewed 3213 times

kumadon
Posts: 11
Joined: 02 Mar 2012, 04:39

Re: Drobo FS damaged and wont mount on OS X

#5 Postby kumadon » 03 Mar 2012, 22:57

kumadon wrote:Hi

Thank you so much for your reply :mrgreen: . As you asked me to run 6.14 I killed the previous session as you can see.


Here is the screenshot of completed scan before I killed the session to run 6.14 . if you look carefully it's reporting that there is nothing wrong with the structure.
Attachments

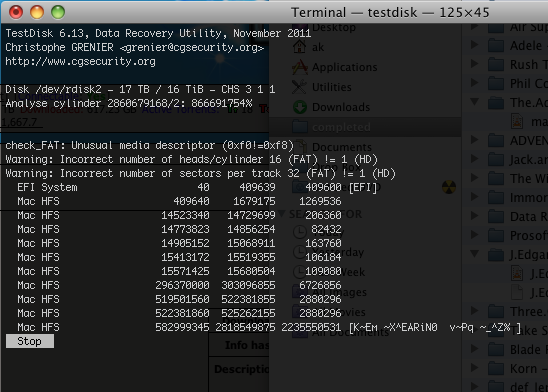

Screen Shot 2012-03-03 at 4.56.59 PM.png
Screen Shot 2012-03-03 at 4.56.59 PM.png (76.15 KiB) Viewed 3212 times
completed scan with 6.13

User avatar
cgrenier
Site Admin
Posts: 3077
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Drobo FS damaged and wont mount on OS X

#6 Postby cgrenier » 05 Mar 2012, 23:48

Can you post a screenshot of the ANalyse screen (before Quick Search) ?

kumadon
Posts: 11
Joined: 02 Mar 2012, 04:39

Re: Drobo FS damaged and wont mount on OS X

#7 Postby kumadon » 06 Mar 2012, 04:24

do you want me to kill the current session? :cry: been running for like the last 3 -4 days :(

just to make you understand my drobo better here is the screenshot of the drobo config first
Attachments

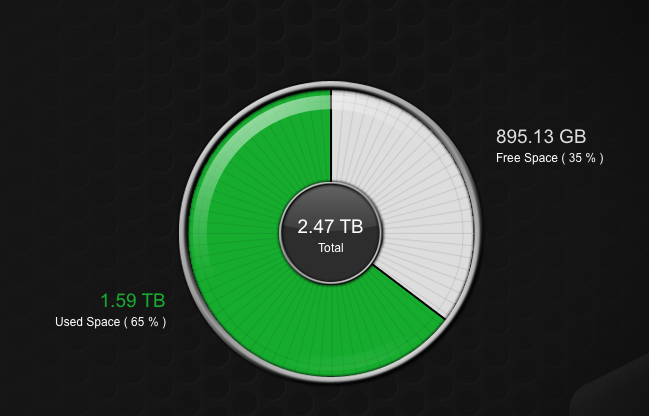

this is usable size
Screen shot 2012-03-05 at 10.20.13 PM.png

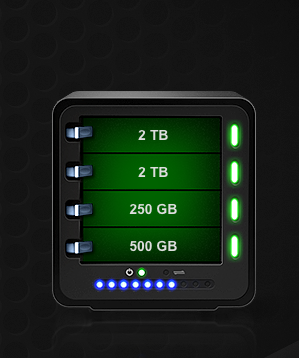

4 drives in drobo
Screen shot 2012-03-05 at 10.20.13 PM.png (104 KiB) Viewed 3192 times

kumadon
Posts: 11
Joined: 02 Mar 2012, 04:39

Re: Drobo FS damaged and wont mount on OS X

#8 Postby kumadon » 06 Mar 2012, 04:34

cgrenier wrote:Can you post a screenshot of the ANalyse screen (before Quick Search) ?


Here is the screenshot of the Analyse right before Quick Search
Attachments

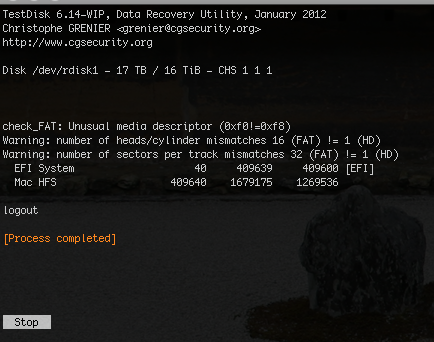

killed session.png
killed session, pls note that there are two "Deleted" partition.
killed session.png (176.45 KiB) Viewed 3192 times

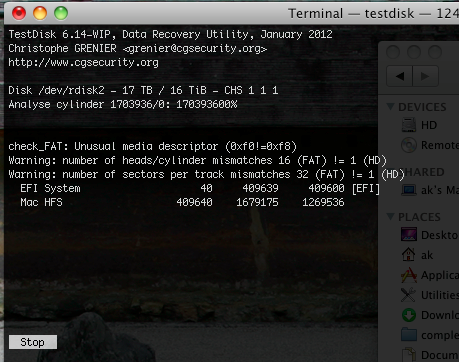

Screen shot 2012-03-05 at 10.28.04 PM.png
Screen shot 2012-03-05 at 10.28.04 PM.png (172.9 KiB) Viewed 3192 times

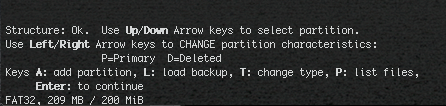

Screen shot 2012-03-05 at 10.28.20 PM.png
