Problem with external drive

#1 Post by danyo » 10 Jun 2015, 18:21

Hi
I have a problem with my Buffalo model CE500us drive. It is showing up as raw, cannot access it with Windows.

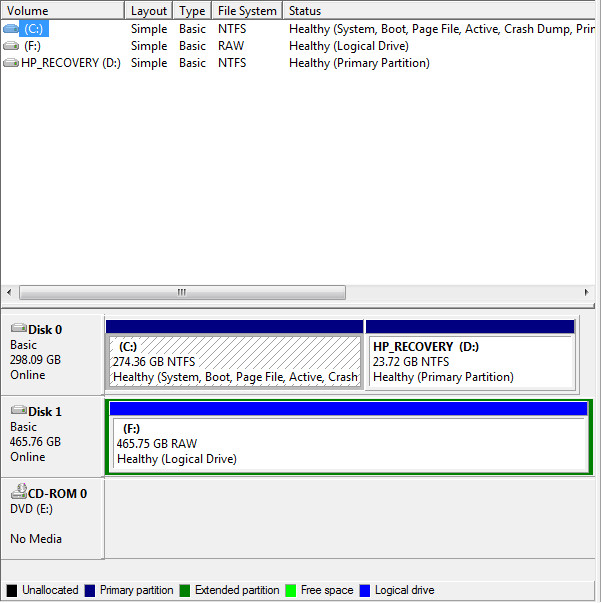

drive shows being healthy in disk management
disk managment shows drive healthy

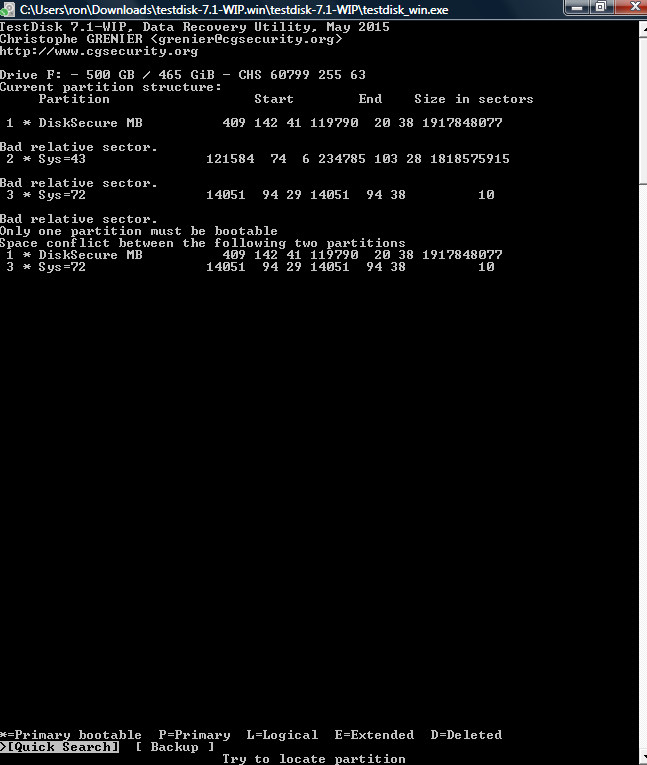

I ran testdisk Intel, analize and this is what it showed.
analize
It shows 3 partitions all bad? I don't know what to do next. Could someone please advise.

Thx

Sponsored links

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Problem with external drive

#2 Post by Fiona » 11 Jun 2015, 19:39

Can you repeat your diagnose and select your disk instead of a drive?
Run Analyse, Quick Search and if nothing would be found, Deeper Search also.
If partitions are found, please mark them and press p to have a try to list your files.
Can you copy and paste the content of your testdisk.log into your next post?
You'll find it within your testdisk folder.

Fiona

danyo
Posts: 7
Joined: 09 Jun 2015, 19:17

Re: Problem with external drive

#3 Post by danyo » 11 Jun 2015, 20:20

Hi fiona
Thank you for the reply, I don't see where I would select the "disk" instead of the drive.
When I open testdisk it.just shows the drives listed.

Sorry missed the disk selection at the top.

danyo
Posts: 7
Joined: 09 Jun 2015, 19:17

Re: Problem with external drive

#4 Post by danyo » 11 Jun 2015, 22:24

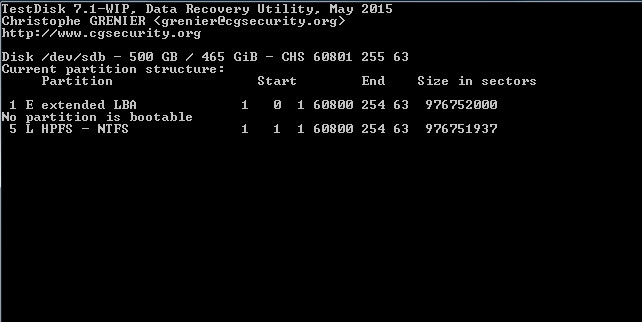

This is what shows after doing the analize. Which partition do you want me to select.
Attachments

danyo
Posts: 7
Joined: 09 Jun 2015, 19:17

Re: Problem with external drive

#5 Post by danyo » 12 Jun 2015, 01:13

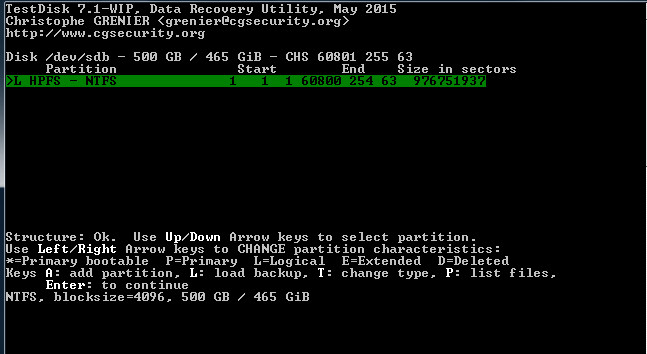

Got this window partition
Attachments

danyo
Posts: 7
Joined: 09 Jun 2015, 19:17

Re: Problem with external drive

#6 Post by danyo » 12 Jun 2015, 01:15

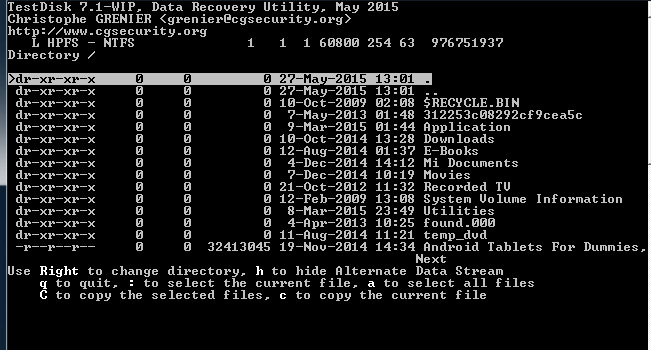

Listed all the files
Attachments

danyo
Posts: 7
Joined: 09 Jun 2015, 19:17

Re: Problem with external drive

#7 Post by danyo » 12 Jun 2015, 01:20

Here is what I got in the testdisk log.



Thu Jun 11 19:53:28 2015
Command line: TestDisk

TestDisk 7.1-WIP, Data Recovery Utility, May 2015
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows Vista (6002) SP2
Compiler: GCC 4.8, Cygwin 1007.34
Compilation date: 2015-05-23T20:38:26
ext2fs lib: 1.42.8, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504, curses lib: ncurses 5.9
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=320072933376
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=320072933376
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=294596596224
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=25473692160
filewin32_getfilesize(\\.\E:) GetFileSize err Incorrect function.

filewin32_setfilepointer(\\.\E:) SetFilePointer err Incorrect function.

Warning: can't get size for \\.\E:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F:)=500096991744
Hard disk list
Disk /dev/sda - 320 GB / 298 GiB - CHS 38913 255 63, sector size=512
Disk /dev/sdb - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512
Drive C: - 294 GB / 274 GiB - CHS 35815 255 63, sector size=512
Drive D: - 25 GB / 23 GiB - CHS 3097 255 63, sector size=512
Drive F: - 500 GB / 465 GiB - CHS 60799 255 63, sector size=512

Partition table type (auto): Intel
Disk /dev/sdb - 500 GB / 465 GiB
Partition table type: Intel

Analyse Disk /dev/sdb - 500 GB / 465 GiB - CHS 60801 255 63
Geometry from i386 MBR: head=255 sector=63
NTFS at 1/1/1
get_geometry_from_list_part_aux head=255 nbr=4
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=255 nbr=4
Current partition structure:
1 E extended LBA 1 0 1 60800 254 63 976752000
No partition is bootable
5 L HPFS - NTFS 1 1 1 60800 254 63 976751937
Failed to open inode: Input/output error.

search_part()
Disk /dev/sdb - 500 GB / 465 GiB - CHS 60801 255 63
NTFS at 1/1/1
filesystem size 976751937
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 61046996
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 1 1 1 60800 254 63 976751937
NTFS, blocksize=4096, 500 GB / 465 GiB
file_pread(5,3,buffer,976773183(60801/81/16)) lseek err Invalid argument
file_pread(5,1,buffer,976773183(60801/81/16)) lseek err Invalid argument
file_pread(5,8,buffer,976773199(60801/81/32)) lseek err Invalid argument
file_pread(5,11,buffer,976773246(60801/82/16)) lseek err Invalid argument
file_pread(5,2,buffer,976775168(60801/112/48)) lseek err Invalid argument
file_pread(5,8,buffer,976773376(60801/84/20)) lseek err Invalid argument
file_pread(5,8,buffer,976773504(60801/86/22)) lseek err Invalid argument
file_pread(5,8,buffer,976773632(60801/88/24)) lseek err Invalid argument
file_pread(5,8,buffer,976773760(60801/90/26)) lseek err Invalid argument
file_pread(5,8,buffer,976773888(60801/92/28)) lseek err Invalid argument
file_pread(5,8,buffer,976774016(60801/94/30)) lseek err Invalid argument
file_pread(5,8,buffer,976774144(60801/96/32)) lseek err Invalid argument
file_pread(5,8,buffer,976774272(60801/98/34)) lseek err Invalid argument
file_pread(5,8,buffer,976774400(60801/100/36)) lseek err Invalid argument
file_pread(5,8,buffer,976774528(60801/102/38)) lseek err Invalid argument
file_pread(5,8,buffer,976774656(60801/104/40)) lseek err Invalid argument
file_pread(5,8,buffer,976774784(60801/106/42)) lseek err Invalid argument
file_pread(5,8,buffer,976774912(60801/108/44)) lseek err Invalid argument
file_pread(5,8,buffer,976775040(60801/110/46)) lseek err Invalid argument
file_pread(5,1,buffer,976775167(60801/112/47)) lseek err Invalid argument
file_pread(5,13,buffer,976775170(60801/112/50)) lseek err Invalid argument
file_pread(5,3,buffer,976775183(60801/112/63)) lseek err Invalid argument
file_pread(5,3,buffer,976775230(60801/113/47)) lseek err Invalid argument
file_pread(5,8,buffer,976775246(60801/113/63)) lseek err Invalid argument
file_pread(5,11,buffer,976775293(60801/114/47)) lseek err Invalid argument
file_pread(5,2,buffer,976777215(60801/145/16)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2

Results
L HPFS - NTFS 1 1 1 60800 254 63 976751937
NTFS, blocksize=4096, 500 GB / 465 GiB
NTFS filesystem need to be repaired.


dir_partition inode=5
L HPFS - NTFS 1 1 1 60800 254 63 976751937
NTFS, blocksize=4096, 500 GB / 465 GiB
Directory /
5 dr-xr-xr-x 0 0 0 27-May-2015 13:01 .
5 dr-xr-xr-x 0 0 0 27-May-2015 13:01 ..
35 dr-xr-xr-x 0 0 0 10-Oct-2009 02:08 $RECYCLE.BIN
4016 dr-xr-xr-x 0 0 0 7-May-2013 01:48 312253c08292cf9cea5c
1525 dr-xr-xr-x 0 0 0 9-Mar-2015 01:44 Application
47 dr-xr-xr-x 0 0 0 10-Oct-2014 13:28 Downloads
40 dr-xr-xr-x 0 0 0 12-Aug-2014 01:37 E-Books
5594 dr-xr-xr-x 0 0 0 4-Dec-2014 14:12 Mi Documents
5342 dr-xr-xr-x 0 0 0 7-Dec-2014 10:19 Movies
48321 dr-xr-xr-x 0 0 0 21-Oct-2012 11:32 Recorded TV
4729 dr-xr-xr-x 0 0 0 12-Feb-2009 13:08 System Volume Information
38 dr-xr-xr-x 0 0 0 8-Mar-2015 23:49 Utilities
17 dr-xr-xr-x 0 0 0 4-Apr-2013 10:25 found.000
82 dr-xr-xr-x 0 0 0 11-Aug-2014 11:21 temp_dvd
61647 -r--r--r-- 0 0 32413045 19-Nov-2014 14:34 Android Tablets For Dummies, 2nd Edition.pdf
SIGHUP detected! TestDisk has been killed.

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Problem with external drive

#8 Post by Fiona » 12 Jun 2015, 06:05

Looks like your file system is slightly damaged!
Results
L HPFS - NTFS 1 1 1 60800 254 63 976751937
NTFS, blocksize=4096, 500 GB / 465 GiB
NTFS filesystem need to be repaired.
I'd suggest to copy/backup important files first running testdisk.
If you list your files, at the bottom of the testdisk display, you'll find all the commands.
Standard path is the testdisk folder.
If you'd like to select another disk or partition, you can check that 2 dots in the upper area of the testdisk display and press enter.
Each time you'll get one directory up until you get to your disk selection.
If you'd like to copy your data to another folder, you can create a folder in advance and in testdisk easily mark it and use the right arrow key on your keyboard to enter it as your target.

If you'd like to repair your file system, you should open a command prompt with administrator privileges and running:
chkdsk driveletter: /r
As far as I've seen, the driveletter of your affected partition is F: !
http://forum.cgsecurity.org/phpBB3/down ... hp?id=3125

danyo
Posts: 7
Joined: 09 Jun 2015, 19:17

Re: Problem with external drive

#9 Post by danyo » 12 Jun 2015, 15:33

Hi Fiona chkdsk doesn't work for me get message "unable to determine volume version and state".
As for copying to another disk, I can't see at the top the 2 dots you are referring to.

Please advise.

Thanks
