the following partitions can't be recovered

#1 Post by lucker » 21 Oct 2015, 08:32

Hello there,
My 3TB Toshiba HDD on MS Windows 7 computer all of a sudden became RAW.
Testdisk found only FAT16 partition (which is incorrect - there is NTFS). I follow an advice from the forum topic and perform RebuildBS from advanced menu. After that I could see my NTFS partition, but there are no files listed in there.

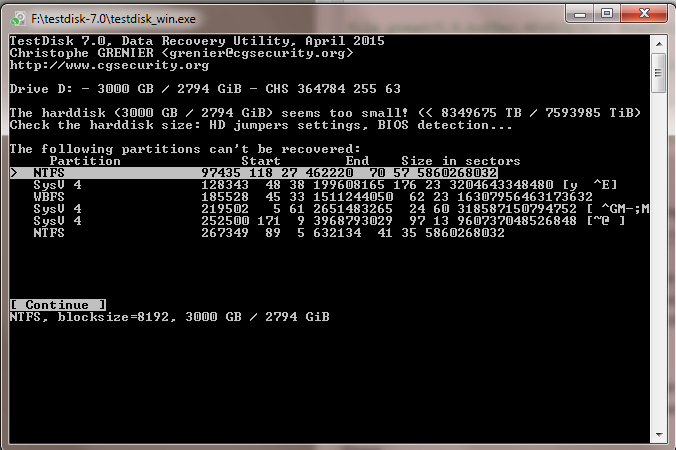

I used testdisk to run deeper search (it took about 3 days), and got a list of 7 (or so) partitions with 2 NTFS and warning "the following partitions can't be recovered" before the list. The only option was "continue". After I continued, I got a list (longer than before) of partitions, all marked as P. I put cursor on what I thought is the best match for my data and press Enter (maybe this was a mistake). Eventually I found myself in the main menu with no deeper search result (frustrating!!).
So, I'm quite puzzled. Is it impossible to recover the data from the disk? If it possible, what should I do and what was my mistake? Should I run deepersearch again? Could you please advise my steps?

Thank you!

The log from testdisk is below the cristaldisk report.

CristalDiskInfo shows no errors
----------------------------------------------------------------------------
CrystalDiskInfo 6.5.2 (C) 2008-2015 hiyohiyo
Crystal Dew World : http://crystalmark.info/
----------------------------------------------------------------------------

OS : Windows 7 Ultimate SP1 [6.1 Build 7601] (x64)
Date : 2015/10/21 10:24:59

-- Controller Map ----------------------------------------------------------
+ Intel(R) ICH10R SATA AHCI Controller [ATA]
- OCZ-VERTEX3
- ST3500320AS
- ST3500630NS
- TOSHIBA DT01ACA300
- TOSHIBA DT01ACA300
+ Marvell 61xx RAID Controller [SCSI]
- Marvell Virtual Device

-- Disk List ---------------------------------------------------------------
(1) OCZ-VERTEX3 : 120.0 GB [0/0/0, pd1] - sf
(2) ST3500320AS : 500.1 GB [1/0/1, pd1] - st
(3) ST3500630NS : 500.1 GB [2/0/2, pd1] - st
(4) TOSHIBA DT01ACA300 : 3000.5 GB [3/0/3, pd1]
(5) TOSHIBA DT01ACA300 : 3000.5 GB [4/0/4, pd1]


----------------------------------------------------------------------------
(4) TOSHIBA DT01ACA300
----------------------------------------------------------------------------
Model : TOSHIBA DT01ACA300
Firmware : MX6OABB0
Serial Number : 44MYJEEGS
Disk Size : 3000.5 GB (8.4/137.4/3000.5/801.5)
Buffer Size : Unknown
Queue Depth : 32
# of Sectors : 5860533168
Rotation Rate : 7200 RPM
Interface : Serial ATA
Major Version : ATA8-ACS
Minor Version : ATA8-ACS version 4
Transfer Mode : SATA/150 | SATA/600
Power On Hours : 5661 hours
Power On Count : 477 count
Temperature : 37 C (98 F)
Health Status : Good
Features : S.M.A.R.T., APM, 48bit LBA, NCQ
APM Level : 0000h [OFF]
AAM Level : ----

-- S.M.A.R.T. --------------------------------------------------------------
ID Cur Wor Thr RawValues(6) Attribute Name
01 100 100 _16 000000000000 Read Error Rate
02 139 139 _54 000000000046 Throughput Performance
03 134 134 _24 000801AD01AB Spin-Up Time
04 100 100 __0 0000000001DE Start/Stop Count
05 100 100 __5 000000000000 Reallocated Sectors Count
07 100 100 _67 000000000000 Seek Error Rate
08 124 124 _20 000000000021 Seek Time Performance
09 100 100 __0 00000000161D Power-On Hours
0A 100 100 _60 000000000000 Spin Retry Count
0C 100 100 __0 0000000001DD Power Cycle Count
C0 100 100 __0 00000000022D Power-off Retract Count
C1 100 100 __0 00000000022D Load/Unload Cycle Count
C2 162 162 __0 002F00130025 Temperature
C4 100 100 __0 000000000000 Reallocation Event Count
C5 100 100 __0 000000000000 Current Pending Sector Count
C6 100 100 __0 000000000000 Uncorrectable Sector Count
C7 200 200 __0 00000000019D UltraDMA CRC Error Count



Sun Oct 18 18:31:10 2015
Command line: TestDisk

TestDisk 7.0, Data Recovery Utility, April 2015
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows 7 (7601) SP1
Compiler: GCC 4.8, Cygwin 1007.34
Compilation date: 2015-04-18T13:01:55
ext2fs lib: 1.42.8, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504, curses lib: ncurses 5.9
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=120034123776
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=500103634432
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdc)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdd)=801569726464
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sde)=801569726464
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=120034123776
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=500103634432
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive2)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive3)=801569726464
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive4)=801569726464
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=120031478784
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=3000457232384
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E:)=500105217024
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F:)=500080539136
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G:)=3000458729472
filewin32_getfilesize(\\.\J:) GetFileSize err Incorrect function.

filewin32_setfilepointer(\\.\J:) SetFilePointer err Incorrect function.

Warning: can't get size for \\.\J:
Hard disk list
Disk /dev/sda - 120 GB / 111 GiB - CHS 14593 255 63, sector size=512
Disk /dev/sdb - 500 GB / 465 GiB - CHS 60800 255 63, sector size=512
Disk /dev/sdc - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512
Disk /dev/sdd - 801 GB / 746 GiB - CHS 97451 255 63, sector size=512
Disk /dev/sde - 801 GB / 746 GiB - CHS 97451 255 63, sector size=512
Drive C: - 120 GB / 111 GiB - CHS 14592 255 63, sector size=512
Drive D: - 3000 GB / 2794 GiB - CHS 364784 255 63, sector size=512
Drive E: - 500 GB / 465 GiB - CHS 60800 255 63, sector size=512
Drive F: - 500 GB / 465 GiB - CHS 60797 255 63, sector size=512
Drive G: - 3000 GB / 2794 GiB - CHS 364784 255 63, sector size=512

Partition table type (auto): None
Drive D: - 3000 GB / 2794 GiB
Partition table type: None

Analyse Drive D: - 3000 GB / 2794 GiB - CHS 364784 255 63
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS at 0/0/1
Current partition structure:
P NTFS 0 0 1 364784 207 31 5860268032

search_part()
Drive D: - 3000 GB / 2794 GiB - CHS 364784 255 63
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB

Results
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB

interface_write()
P NTFS 0 0 1 364784 207 31 5860268032

Write isn't available because the partition table type "None" has been selected.
Failed to open inode: Input/output error.

Interface Advanced
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS at 0/0/1
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
NTFS filesystem need to be repaired.


dir_partition inode=5
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
ntfs_readdir failed for cluster 5: Input/output error
Directory /
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 .
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 ..

ntfs_boot_sector
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
NTFS at 0/0/1
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
Failed to open inode: Input/output error.
NTFS filesystem need to be repaired.

ntfs_readdir failed for cluster 5: Input/output error
Directory /
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 .
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 ..

ntfs_boot_sector
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
NTFS at 0/0/1
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.

Analyse Drive D: - 3000 GB / 2794 GiB - CHS 364784 255 63
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS at 0/0/1
Current partition structure:
P NTFS 0 0 1 364784 207 31 5860268032

search_part()
Drive D: - 3000 GB / 2794 GiB - CHS 364784 255 63
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB

Results
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB

interface_write()
P NTFS 0 0 1 364784 207 31 5860268032

Write isn't available because the partition table type "None" has been selected.

search_part()
Drive D: - 3000 GB / 2794 GiB - CHS 364784 255 63
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
FAT12 at 529/142/30
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 529/142/30
FAT12 529 142 30 529 188 11 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 1961/187/19
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 1961/187/19
FAT12 1961 187 19 1961 232 63 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
NTFS at 1962/90/33
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 1961 247 34 1962 90 33 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
NTFS at 1962/90/33
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 1962 90 33 1962 188 32 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
FAT12 at 2339/115/49
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 2339/115/49
FAT12 2339 115 49 2339 161 30 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 2339/161/31
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 2339/161/31
FAT12 2339 161 31 2339 207 12 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 2341/31/11
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 2341/31/11
FAT12 2341 31 11 2341 76 55 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
NTFS at 2341/189/37
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 2341 91 38 2341 189 37 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
NTFS at 2341/189/37
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 2341 189 37 2342 32 36 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
FAT12 at 2731/107/29
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 2731/107/29
FAT12 2731 107 29 2731 153 10 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 2731/153/11
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 2731/153/11
FAT12 2731 153 11 2731 198 55 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 2733/33/5
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 2733/33/5
FAT12 2733 33 5 2733 78 49 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
NTFS at 2733/191/19
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 2733 93 20 2733 191 19 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
NTFS at 2733/191/19
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 2733 191 19 2734 34 18 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
FAT12 at 3110/216/35
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 3110/216/35
FAT12 3110 216 35 3111 7 16 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 3111/7/17
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 3111/7/17
FAT12 3111 7 17 3111 52 61 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
NTFS at 3112/225/6
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 3112 127 7 3112 225 6 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
NTFS at 3112/225/6
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 3112 225 6 3113 68 5 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
FAT12 at 3502/142/61
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 3502/142/61
FAT12 3502 142 61 3502 188 42 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 3502/188/43
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 3502/188/43
FAT12 3502 188 43 3502 234 24 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB

LVM magic value at 7228/45/10

HFS magic value at 29371/31/32
part_size 887535
HFS 29371 31 32 29426 94 22 887535 [CDISECTOR]
HFS blocksize=8192, 454 MB / 433 MiB

HFS magic value at 29371/31/34
part_size 887535
HFS 29315 223 45 29371 31 35 887535 [CDISECTOR]
HFS found using backup sector!, 454 MB / 433 MiB

HFS magic value at 29426/94/19
part_size 887535
HFS 29426 94 19 29481 157 9 887535 [CDISECTOR]
HFS blocksize=8192, 454 MB / 433 MiB

HFS magic value at 29426/94/21
part_size 887535
HFS 29371 31 32 29426 94 22 887535 [CDISECTOR]
HFS found using backup sector!, 454 MB / 433 MiB
check_FAT: Bad jump in FAT partition

LVM magic value at 72300/165/41
NTFS at 97435/118/27
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS part_offset=801433976320, part_size=3000457232384, sector_size=512
NTFS partition cannot be added (part_offset<part_size).
NTFS at 97435/118/27
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS 97435 118 27 462220 70 57 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
This partition ends after the disk limits. (start=1565300735, size=5860268032, end=7425568766, disk end=5860268032)

cramfs Marker at 99397/123/61

recover_cramfs
CramFS 99397 123 61 99808 219 12 6608714 [‚HтЅ•ьЂЇБЅёЗ]
cramfs, 3383 MB / 3226 MiB

cramfs Marker at 99397/123/62

recover_cramfs
CramFS 99397 123 62 99808 219 13 6608714 [‚HтЅ•ьЂЇБЅёЗ]
cramfs, 3383 MB / 3226 MiB

SYSV4 Marker at 128343/48/38

recover_sysv4
SysV 4 128343 48 38 199608165 176 23 3204643348480 [yВ ДF]
SysV4, 1640 TB / 1492 TiB
This partition ends after the disk limits. (start=2061833356, size=3204643348480, end=3206705181835, disk end=5860268032)

LVM magic value at 135120/71/42

LVM magic value at 137432/42/42

cramfs Marker at 152007/26/52

recover_cramfs
CramFS 152007 26 52 152059 168 11 844285 [I;Н@U8'-’«§6cp]
cramfs, 432 MB / 412 MiB

cramfs Marker at 152007/26/53

recover_cramfs
CramFS 152007 26 53 152059 168 12 844285 [I;Н@U8'-’«§6cp]
cramfs, 432 MB / 412 MiB

WBFS 173813 142 24 173957 35 46 2306641
WBFS, 1181 MB / 1126 MiB

LVM magic value at 178182/25/35

WBFS 185528 45 33 1511244050 62 23 16307956463173632
WBFS, 8349673 TB / 7593984 TiB
This partition ends after the disk limits. (start=2980510187, size=16307956463173632, end=16307959443683818, disk end=5860268032)

SYSV4 Marker at 219502/5/61

recover_sysv4
SysV 4 219502 5 61 2651483265 24 60 318587150794752 [кn»за]
SysV4, 163116 TB / 148353 TiB
This partition ends after the disk limits. (start=3526300005, size=318587150794752, end=318590677094756, disk end=5860268032)

HFS magic value at 243918/120/44
part_size 134217730
HFS 243918 120 44 252273 35 53 134217730
HFS blocksize=8388608, 68 GB / 64 GiB

HFS magic value at 243918/120/46
part_size 134217730
HFS 235563 205 38 243918 120 47 134217730
HFS found using backup sector!, 68 GB / 64 GiB
check_FAT: Bad number of sectors per cluster

SYSV4 Marker at 252500/171/9

recover_sysv4
SysV 4 252500 171 9 3968793029 97 13 960737048526848 [Ђ ]
SysV4, 491897 TB / 447378 TiB
This partition ends after the disk limits. (start=4056423281, size=960737048526848, end=960741104950128, disk end=5860268032)

HFS magic value at 258570/151/13
part_size 1352663042
HFS 258570 151 13 342769 248 8 1352663042
HFS blocksize=268435456, 692 GB / 645 GiB

HFS magic value at 258570/151/15
part_size 1352663042
HFS 174371 54 21 258570 151 16 1352663042
HFS found using backup sector!, 692 GB / 645 GiB
NTFS at 267349/89/5
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS part_offset=2199023255552, part_size=3000457232384, sector_size=512
NTFS partition cannot be added (part_offset<part_size).
NTFS at 267349/89/5
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS 267349 89 5 632134 41 35 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
This partition ends after the disk limits. (start=4294967296, size=5860268032, end=10155235327, disk end=5860268032)
FAT12 at 267878/231/34
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 267878/231/34
FAT12 267878 231 34 267879 22 15 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 269311/21/23
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 269311/21/23
FAT12 269311 21 23 269311 67 4 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
NTFS at 269311/179/37
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 269311 81 38 269311 179 37 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
NTFS at 269311/179/37
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 269311 179 37 269312 22 36 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
FAT12 at 269688/204/53
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 269688/204/53
FAT12 269688 204 53 269688 250 34 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 269688/250/35
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 269688/250/35
FAT12 269688 250 35 269689 41 16 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 269690/120/15
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 269690/120/15
FAT12 269690 120 15 269690 165 59 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
NTFS at 269691/23/41
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 269690 180 42 269691 23 41 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
NTFS at 269691/23/41
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 269691 23 41 269691 121 40 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
FAT12 at 270080/196/33
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 270080/196/33
FAT12 270080 196 33 270080 242 14 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 270080/242/15
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 270080/242/15
FAT12 270080 242 15 270081 32 59 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 270082/122/9
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 270082/122/9
FAT12 270082 122 9 270082 167 53 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
NTFS at 270083/25/23
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 270082 182 24 270083 25 23 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
NTFS at 270083/25/23
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 270083 25 23 270083 123 22 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
FAT12 at 270460/50/39
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 270460/50/39
FAT12 270460 50 39 270460 96 20 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 270460/96/21
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 270460/96/21
FAT12 270460 96 21 270460 142 2 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
NTFS at 270462/59/10
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 270461 216 11 270462 59 10 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
NTFS at 270462/59/10
heads/cylinder 16 (NTFS) != 255 (HD)
sect/track 2 (NTFS) != 63 (HD)
filesystem size 6174
sectors_per_cluster 1
mft_lcn 2058
mftmirr_lcn 5162
clusters_per_mft_record 2
clusters_per_index_record 8
NTFS 270462 59 10 270462 157 9 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
FAT12 at 270851/232/2
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 270851/232/2
FAT12 270851 232 2 270852 22 46 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
FAT12 at 270852/22/47
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 270852/22/47
FAT12 270852 22 47 270852 68 28 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB

LVM magic value at 274577/134/14

HFS magic value at 296720/120/36
part_size 887535
HFS 296720 120 36 296775 183 26 887535 [CDISECTOR]
HFS blocksize=8192, 454 MB / 433 MiB

HFS magic value at 296720/120/38
part_size 887535
HFS 296665 57 49 296720 120 39 887535 [CDISECTOR]
HFS found using backup sector!, 454 MB / 433 MiB

HFS magic value at 296775/183/23
part_size 887535
HFS 296775 183 23 296830 246 13 887535 [CDISECTOR]
HFS blocksize=8192, 454 MB / 433 MiB

HFS magic value at 296775/183/25
part_size 887535
HFS 296720 120 36 296775 183 26 887535 [CDISECTOR]
HFS found using backup sector!, 454 MB / 433 MiB
check_FAT: Bad jump in FAT partition

LVM magic value at 339649/254/45
file_win32_pread(448,11,buffer,1565300726(364784/207/22)) read err: read after end of file
file_win32_pread(448,4,buffer,1565300734(364784/207/30)) read err: read after end of file
file_win32_pread(448,11,buffer,1565300728(364784/207/24)) read err: read after end of file
file_win32_pread(448,6,buffer,1565300734(364784/207/30)) read err: read after end of file
file_win32_pread(448,11,buffer,1565300731(364784/207/27)) read err: read after end of file
file_win32_pread(448,8,buffer,1565300733(364784/207/29)) read err: read after end of file
file_win32_pread(448,14,buffer,1565300724(364784/207/20)) read err: read after end of file
file_win32_pread(448,14,buffer,1565300725(364784/207/21)) read err: read after end of file
file_win32_pread(448,14,buffer,1565300726(364784/207/22)) read err: read after end of file
file_win32_pread(448,14,buffer,1565300727(364784/207/23)) read err: read after end of file
file_win32_pread(448,14,buffer,1565300728(364784/207/24)) read err: read after end of file
file_win32_pread(448,14,buffer,1565300730(364784/207/26)) read err: read after end of file
file_win32_pread(448,14,buffer,1565300732(364784/207/28)) read err: read after end of file
file_win32_pread(448,14,buffer,1565300734(364784/207/30)) read err: read after end of file
NTFS at 364784/207/31
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS 0 0 1 364784 207 31 5860268032
NTFS found using backup sector, blocksize=8192, 3000 GB / 2794 GiB
Drive D: - 3000 GB / 2794 GiB - CHS 364784 255 63
Check the harddisk size: HD jumpers settings, BIOS detection...
The harddisk (3000 GB / 2794 GiB) seems too small! (< 8349675 TB / 7593985 TiB)
The following partitions can't be recovered:
NTFS 97435 118 27 462220 70 57 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
SysV 4 128343 48 38 199608165 176 23 3204643348480 [yВ ДF]
SysV4, 1640 TB / 1492 TiB
WBFS 185528 45 33 1511244050 62 23 16307956463173632
WBFS, 8349673 TB / 7593984 TiB
SysV 4 219502 5 61 2651483265 24 60 318587150794752 [кn»за]
SysV4, 163116 TB / 148353 TiB
SysV 4 252500 171 9 3968793029 97 13 960737048526848 [Ђ ]
SysV4, 491897 TB / 447378 TiB
NTFS 267349 89 5 632134 41 35 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB

Results
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
P FAT12 529 142 30 529 188 11 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 1961 187 19 1961 232 63 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P NTFS 1961 247 34 1962 90 33 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
P NTFS 1962 90 33 1962 188 32 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
P FAT12 2339 115 49 2339 161 30 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 2339 161 31 2339 207 12 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 2341 31 11 2341 76 55 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P NTFS 2341 91 38 2341 189 37 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
P NTFS 2341 189 37 2342 32 36 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
P FAT12 2731 107 29 2731 153 10 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 2731 153 11 2731 198 55 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 2733 33 5 2733 78 49 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P NTFS 2733 93 20 2733 191 19 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
P NTFS 2733 191 19 2734 34 18 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
P FAT12 3110 216 35 3111 7 16 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 3111 7 17 3111 52 61 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P NTFS 3112 127 7 3112 225 6 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
P NTFS 3112 225 6 3113 68 5 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
P FAT12 3502 142 61 3502 188 42 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 3502 188 43 3502 234 24 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P HFS 29315 223 45 29371 31 35 887535 [CDISECTOR]
HFS found using backup sector!, 454 MB / 433 MiB
P HFS 29371 31 32 29426 94 22 887535 [CDISECTOR]
HFS blocksize=8192, 454 MB / 433 MiB
P HFS 29426 94 19 29481 157 9 887535 [CDISECTOR]
HFS blocksize=8192, 454 MB / 433 MiB
P CramFS 99397 123 61 99808 219 12 6608715 [‚HтЅ•ьЂЇБЅёЗ]
cramfs, 3383 MB / 3226 MiB
P CramFS 99397 123 62 99808 219 13 6608715 [‚HтЅ•ьЂЇБЅёЗ]
cramfs, 3383 MB / 3226 MiB
P CramFS 152007 26 52 152059 168 11 844286 [I;Н@U8'-’«§6cp]
cramfs, 432 MB / 412 MiB
P CramFS 152007 26 53 152059 168 12 844286 [I;Н@U8'-’«§6cp]
cramfs, 432 MB / 412 MiB
P WBFS 173813 142 24 173957 35 46 2306642
WBFS, 1181 MB / 1126 MiB
P HFS 174371 54 21 258570 151 16 1352663042
HFS found using backup sector!, 692 GB / 645 GiB
P HFS 235563 205 38 243918 120 47 134217730
HFS found using backup sector!, 68 GB / 64 GiB
P HFS 243918 120 44 252273 35 53 134217730
HFS blocksize=8388608, 68 GB / 64 GiB
P HFS 258570 151 13 342769 248 8 1352663042
HFS blocksize=268435456, 692 GB / 645 GiB
P FAT12 267878 231 34 267879 22 15 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 269311 21 23 269311 67 4 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P NTFS 269311 81 38 269311 179 37 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
P NTFS 269311 179 37 269312 22 36 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
P FAT12 269688 204 53 269688 250 34 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 269688 250 35 269689 41 16 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 269690 120 15 269690 165 59 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P NTFS 269690 180 42 269691 23 41 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
P NTFS 269691 23 41 269691 121 40 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
P FAT12 270080 196 33 270080 242 14 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 270080 242 15 270081 32 59 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 270082 122 9 270082 167 53 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P NTFS 270082 182 24 270083 25 23 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
P NTFS 270083 25 23 270083 123 22 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
P FAT12 270460 50 39 270460 96 20 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 270460 96 21 270460 142 2 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P NTFS 270461 216 11 270462 59 10 6174
NTFS found using backup sector, blocksize=512, 3161 KB / 3087 KiB
P NTFS 270462 59 10 270462 157 9 6174 [Boot]
NTFS, blocksize=512, 3161 KB / 3087 KiB
P FAT12 270851 232 2 270852 22 46 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P FAT12 270852 22 47 270852 68 28 2880 [EFISECTOR]
FAT12, blocksize=512, 1474 KB / 1440 KiB
P HFS 296665 57 49 296720 120 39 887535 [CDISECTOR]
HFS found using backup sector!, 454 MB / 433 MiB
P HFS 296720 120 36 296775 183 26 887535 [CDISECTOR]
HFS blocksize=8192, 454 MB / 433 MiB
P HFS 296775 183 23 296830 246 13 887535 [CDISECTOR]
HFS blocksize=8192, 454 MB / 433 MiB

interface_write()
P NTFS 0 0 1 364784 207 31 5860268032
P FAT12 529 142 30 529 188 11 2880 [EFISECTOR]
P FAT12 1961 187 19 1961 232 63 2880 [EFISECTOR]
P NTFS 1961 247 34 1962 90 33 6174
P NTFS 1962 90 33 1962 188 32 6174 [Boot]
P FAT12 2339 115 49 2339 161 30 2880 [EFISECTOR]
P FAT12 2339 161 31 2339 207 12 2880 [EFISECTOR]
P FAT12 2341 31 11 2341 76 55 2880 [EFISECTOR]
P NTFS 2341 91 38 2341 189 37 6174
P NTFS 2341 189 37 2342 32 36 6174 [Boot]
P FAT12 2731 107 29 2731 153 10 2880 [EFISECTOR]
P FAT12 2731 153 11 2731 198 55 2880 [EFISECTOR]
P FAT12 2733 33 5 2733 78 49 2880 [EFISECTOR]
P NTFS 2733 93 20 2733 191 19 6174
P NTFS 2733 191 19 2734 34 18 6174 [Boot]
P FAT12 3110 216 35 3111 7 16 2880 [EFISECTOR]
P FAT12 3111 7 17 3111 52 61 2880 [EFISECTOR]
P NTFS 3112 127 7 3112 225 6 6174
P NTFS 3112 225 6 3113 68 5 6174 [Boot]
P FAT12 3502 142 61 3502 188 42 2880 [EFISECTOR]
P FAT12 3502 188 43 3502 234 24 2880 [EFISECTOR]
P HFS 29315 223 45 29371 31 35 887535 [CDISECTOR]
P HFS 29371 31 32 29426 94 22 887535 [CDISECTOR]
P HFS 29426 94 19 29481 157 9 887535 [CDISECTOR]
P CramFS 99397 123 61 99808 219 12 6608715 [‚HтЅ•ьЂЇБЅёЗ]
P CramFS 99397 123 62 99808 219 13 6608715 [‚HтЅ•ьЂЇБЅёЗ]
P CramFS 152007 26 52 152059 168 11 844286 [I;Н@U8'-’«§6cp]
P CramFS 152007 26 53 152059 168 12 844286 [I;Н@U8'-’«§6cp]
P WBFS 173813 142 24 173957 35 46 2306642
P HFS 174371 54 21 258570 151 16 1352663042
P HFS 235563 205 38 243918 120 47 134217730
P HFS 243918 120 44 252273 35 53 134217730
P HFS 258570 151 13 342769 248 8 1352663042
P FAT12 267878 231 34 267879 22 15 2880 [EFISECTOR]
P FAT12 269311 21 23 269311 67 4 2880 [EFISECTOR]
P NTFS 269311 81 38 269311 179 37 6174
P NTFS 269311 179 37 269312 22 36 6174 [Boot]
P FAT12 269688 204 53 269688 250 34 2880 [EFISECTOR]
P FAT12 269688 250 35 269689 41 16 2880 [EFISECTOR]
P FAT12 269690 120 15 269690 165 59 2880 [EFISECTOR]
P NTFS 269690 180 42 269691 23 41 6174
P NTFS 269691 23 41 269691 121 40 6174 [Boot]
P FAT12 270080 196 33 270080 242 14 2880 [EFISECTOR]
P FAT12 270080 242 15 270081 32 59 2880 [EFISECTOR]
P FAT12 270082 122 9 270082 167 53 2880 [EFISECTOR]
P NTFS 270082 182 24 270083 25 23 6174
P NTFS 270083 25 23 270083 123 22 6174 [Boot]
P FAT12 270460 50 39 270460 96 20 2880 [EFISECTOR]
P FAT12 270460 96 21 270460 142 2 2880 [EFISECTOR]
P NTFS 270461 216 11 270462 59 10 6174
P NTFS 270462 59 10 270462 157 9 6174 [Boot]
P FAT12 270851 232 2 270852 22 46 2880 [EFISECTOR]
P FAT12 270852 22 47 270852 68 28 2880 [EFISECTOR]
P HFS 296665 57 49 296720 120 39 887535 [CDISECTOR]
P HFS 296720 120 36 296775 183 26 887535 [CDISECTOR]
P HFS 296775 183 23 296830 246 13 887535 [CDISECTOR]

Write isn't available because the partition table type "None" has been selected.

Analyse Drive D: - 3000 GB / 2794 GiB - CHS 364784 255 63
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS at 0/0/1
Current partition structure:
P NTFS 0 0 1 364784 207 31 5860268032
Failed to open inode: Input/output error.

search_part()
Drive D: - 3000 GB / 2794 GiB - CHS 364784 255 63
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB

Results
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
NTFS filesystem need to be repaired.


dir_partition inode=5
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
ntfs_readdir failed for cluster 5: Input/output error
Directory /
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 .
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 ..

interface_write()
P NTFS 0 0 1 364784 207 31 5860268032

Write isn't available because the partition table type "None" has been selected.
Failed to open inode: Input/output error.

search_part()
Drive D: - 3000 GB / 2794 GiB - CHS 364784 255 63
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
Search for partition aborted

Results
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
NTFS filesystem need to be repaired.


dir_partition inode=5
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
ntfs_readdir failed for cluster 5: Input/output error
Directory /
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 .
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 ..
ntfs_readdir failed for cluster 5: Input/output error
Directory /
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 .
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 ..
ntfs_readdir failed for cluster 5: Input/output error
Directory /
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 .
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 ..

interface_write()
P NTFS 0 0 1 364784 207 31 5860268032

Write isn't available because the partition table type "None" has been selected.
Failed to open inode: Input/output error.
New options :
Dump : No
Align partition: Yes
Expert mode : No

Interface Advanced
NTFS at 0/0/1
filesystem size 5860268032
sectors_per_cluster 16
mft_lcn 393216
mftmirr_lcn 1
clusters_per_mft_record -10
clusters_per_index_record -12
NTFS at 0/0/1
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
NTFS filesystem need to be repaired.


dir_partition inode=5
P NTFS 0 0 1 364784 207 31 5860268032
NTFS, blocksize=8192, 3000 GB / 2794 GiB
ntfs_readdir failed for cluster 5: Input/output error
Directory /
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 .
5 dr-xr-xr-x 0 0 0 16-Oct-2015 13:23 ..

TestDisk exited normally.

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 3403
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: the following partitions can't be recovered

#2 Post by cgrenier » 22 Oct 2015, 08:30

Try TestDisk, Advanced, Boot, RebuildBS, List. If you can see your files, choose Write and confirm.
You can also try "cmd" (right click run as administrator) and "chkdsk /f d:"

lucker
Posts: 4
Joined: 21 Oct 2015, 08:12

Re: the following partitions can't be recovered

#3 Post by lucker » 22 Oct 2015, 10:19

Thank you for suggestions, cgrenier.
Alas, suggested RebuildBS, List commands showed only two lines of filesystem which I believe are the top folder and navigation item. No files listed.
chkdsk was the very first thing I tried, unsuccessfully... It doesn't see the disk at all and suggest format it. That how I came to the TestDisk solution.
As I mentioned in the previous message, I RebuildBSed boot sector, and after that testdisk could see the NTFS partition (actually, the disk has no partitions, as I recall, just the plain disk) .
Here is the screenshot I took after the deepersearch has conducted.
Screenshot 2015-10-21 10.00.42.png
Screenshot after DepperSearch has been conducted.
Screenshot 2015-10-21 10.00.42.png (35.29 KiB) Viewed 734 times
I have no idea what are the listed partitions came from (except NTFS). Which of the NTFS partition I should "restore"? Which seems more likely as "right" one from the numbers on the screenshot? I'm not good with disks and filesystems at all, just followed "Step-by-step"guide and the forum posts.
In the meantime I start the deepersearch again (should be finished in 2 days) since I have no other solutions. I expect this will bring me to the state as on the screenshot. Could you please suggest what should I do to recover the files (or the disk as whole, if it possible) after deeper search?

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: the following partitions can't be recovered

#4 Post by Fiona » 24 Oct 2015, 09:18

Under TestDisk / disk selection, you should select Disk instead of a drive and have another try.
Only disk contains a partition table, which would be available under the menu Advanced.

Fiona

lucker
Posts: 4
Joined: 21 Oct 2015, 08:12

Re: the following partitions can't be recovered

#5 Post by lucker » 24 Oct 2015, 18:47

Fiona, thank you for the advice. I think, I finally figured out what I shoud do.
Alas, my BIOS is not capable to determine 3TB disk (shows 801GB instead and no BIOS update for my Asus p5q-e...).
So, the list of files (in Advanced->List) shows nothing, but for another 3TB disk (healthy) it reflects actual file list. Maybe BIOS is not a problem.
I started another Quick Search (chose disk instead of drive, as you suggested), it will take about 12-15 hours and probably helps to get filelist to recover.

lucker
Posts: 4
Joined: 21 Oct 2015, 08:12

Re: the following partitions can't be recovered

#6 Post by lucker » 27 Oct 2015, 12:54

Seems like I reached the impasse.

My BIOS has no update (last was in 2009) and don't allow to properly analyse the disk (not drive) since shows only 801GB instead of 3TB.

Performing DeeperSearch on drive (not disk) results two partitions: NTFS (matching size) and FAT32(smaller size, never existed on the disk) And even DeeperSearch detects NTFS table (appears in results), when continue it shows only FAT32 partition ( with voulme lower than 3TB). Marking FAT table to delete results no partitions.

Advanced menu shows some bogus partitions with filesystems I don't even know exist and strange volumes.

My idea to remove the disk and run TestDisk on the laptop will not works: as I understand, TestDisk only allow to copy files, not to restore the files on the disk. Since my laptop has 256GB disk (free about 20Gb), no place to copy.

So, I started "chkdsk /f d:" as cgrenier suggested, and if it doesn't helps, than ... Just format it with all data lost.

Post Reply

Who is online

Users browsing this forum: No registered users and 0 guests
