Micro SD lost Partition

#1 Post by wrede » 14 Jan 2016, 17:56

Hi,

i need some help. today i had my samsung micro sd card (64GB) which usually is used by my mobile phone, plugged in my notebook (win8.1) in order to delete and copy some files. after doing so i disconnected the device and put it back to my mobile. unfortunately the micro sd did not show up, so i tried it with my notebook again: "Insert Disk". OMG!

I managed to restore thousands of files with photorec, but without any directory or file name, moreover most of them where deleted files i do not want to recover.

however testdisk fails to find any partition, as well with "quick search" as with "deep search".

please look at the screenshots - can you give any advice how to restore the old partition?

thank a lot!
Attachments

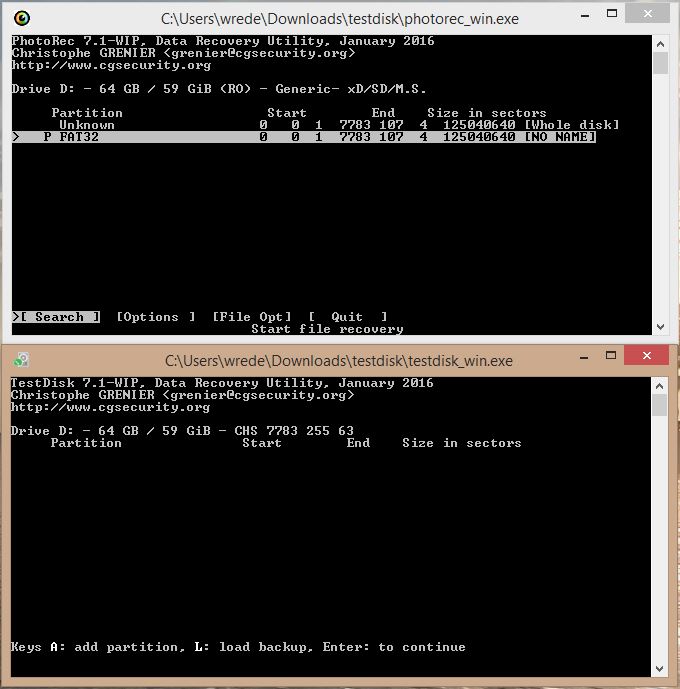

screenshot of testdisk and photorec

Sponsored links

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Micro SD lost Partition

#2 Post by Fiona » 15 Jan 2016, 06:48

Can you repeat your diagnose and can you select your card as disk instead of a drive?
It looks like Disk /dev/sd* (*=a, b, c, etc..).
Only disk displays your partition table at Analyse and your current partition structure.

Fiona

wrede
Posts: 6
Joined: 14 Jan 2016, 17:42

Re: Micro SD lost Partition

#3 Post by wrede » 15 Jan 2016, 08:41

Hi Fiona,

thank you very much for your reply, unfortunatly i don`t see this option.
I attached a screenshot of my 4 steps and a log - what shall i do different?

thanks a lot & greets!

Code: Select all


Fri Jan 15 08:43:24 2016
Command line: TestDisk

TestDisk 7.1-WIP, Data Recovery Utility, January 2016
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows 8 (9200)
Compiler: GCC 4.9, Cygwin32 2002.0
Compilation date: 2016-01-07T18:42:01
ext2fs lib: 1.42.8, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504, curses lib: ncurses 5.9
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=64020807680
Hard disk list
Drive D: - 64 GB / 59 GiB - CHS 7783 255 63, sector size=512 - Generic- xD/SD/M.S., FW:1.00

Partition table type (auto): None
Drive D: - 64 GB / 59 GiB - Generic- xD/SD/M.S.
Partition table type: Intel

Analyse Drive D: - 64 GB / 59 GiB - CHS 7783 255 63
Current partition structure:
No partition is bootable

search_part()
Drive D: - 64 GB / 59 GiB - CHS 7783 255 63
file_win32_pread(444,2,buffer,125040639(7783/107/4)) read err: read after end of file

Results

interface_write()

No partition found or selected for recovery
Attachments

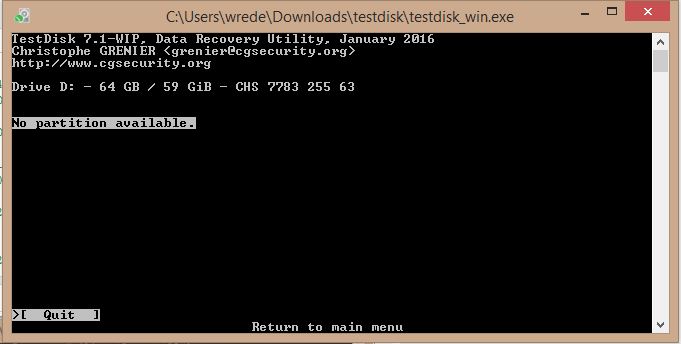

advanced dialog
regular analyse

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Micro SD lost Partition

#4 Post by Fiona » 15 Jan 2016, 09:00

Did you use TestDisk 64bit?
TestDisk 7.1WIP 32bit is recommended.
Actually all disks should be listed and not your SD Card as a Drive only?
I'll download the latest release and test it too.
It's unusual?

Fiona

Edit:

Already tested and it works.

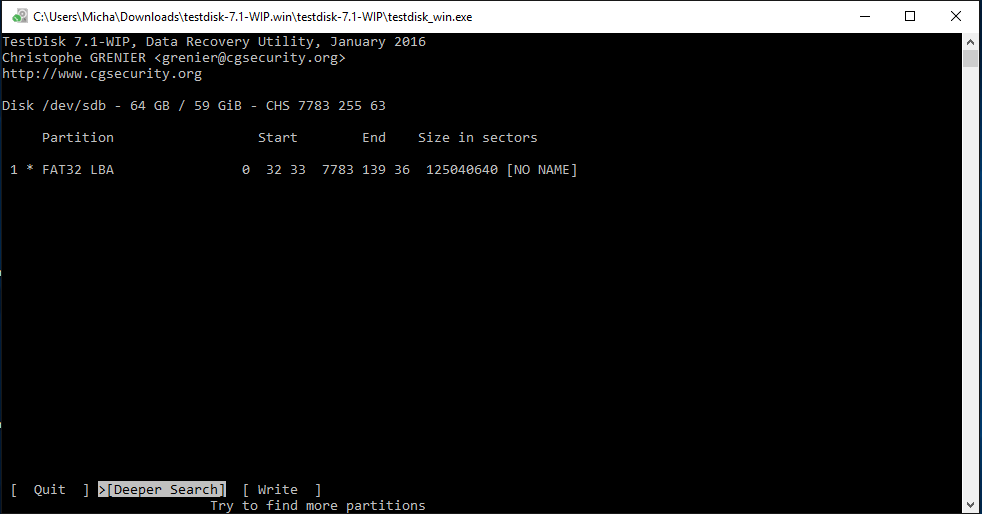

See attachment
I've selected an 64 GB USB flash drive.

Fiona

wrede
Posts: 6
Joined: 14 Jan 2016, 17:42

Re: Micro SD lost Partition

#5 Post by wrede » 15 Jan 2016, 09:14

i tried both Versions, but at the moment i don`t have admin privileges as i am at work, will try it at home tonight again and come back. thanks again for spending your time!! greets!


//ich habe keine Ahnung, warum ich gestern im englischen Forum gepostet habe, Gewohnheit wahrscheinlich. sehe gerade erst, dass du aus dem ländle kommst, kannst mich somit auch ggfs. ins deutsche Forum schieben und wir sprechen auf deutsch weiter - as you like it, i don`t care! danke nochmal, melde mich heute abend!
gruss aus dem Rheinland ;)

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Micro SD lost Partition

#6 Post by Fiona » 15 Jan 2016, 09:19

Mache ich doch glatt mit Verschieben.
Zuerst habe ich immer ein Auge auf deutsche Themen.

Fiona

wrede
Posts: 6
Joined: 14 Jan 2016, 17:42

Re: Micro SD lost Partition

#7 Post by wrede » 15 Jan 2016, 18:15

Hey Fiona,

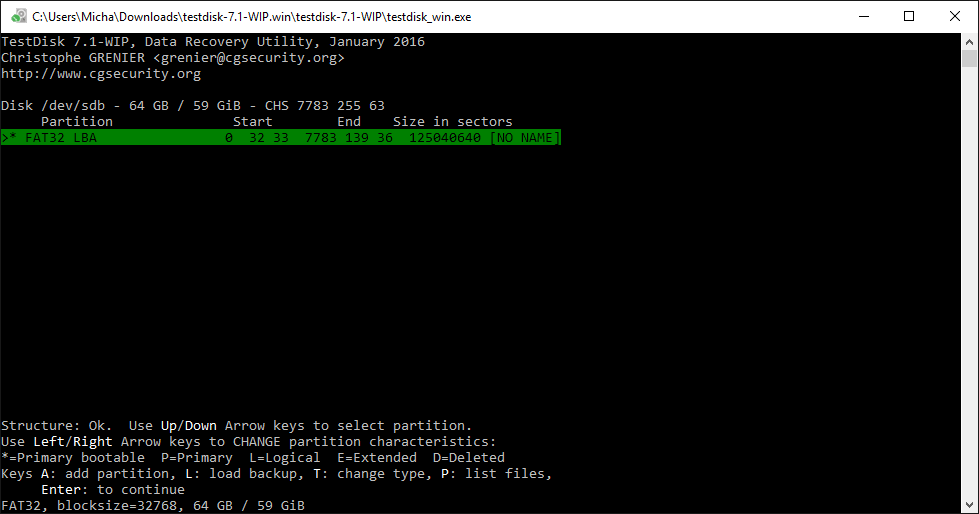

das sieht m.E. schon besser aus. Soll ich einfch mal auf "write" klicken oder lieber nicht? :D

DANKE DIR!!
Attachments

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Micro SD lost Partition

#8 Post by Fiona » 16 Jan 2016, 10:42

Hattest du deine Daten anschauen können?
Wenn die Partition markiert ist, geht es mit p drücken.

Fiona

wrede
Posts: 6
Joined: 14 Jan 2016, 17:42

Re: Micro SD lost Partition

#9 Post by wrede » 16 Jan 2016, 11:36

yep, das klappt problemlos.

User avatar
Fiona
Posts: 2836
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: Micro SD lost Partition

#10 Post by Fiona » 16 Jan 2016, 11:56

An deiner Stellle würde ich ertsmal alle Daten und Ordner kopieren.
Beim Listen der Daten werden unten am Screen alle Befehle angezeigt.
Hinterher sollte versucht werden die Karte zu Formatieren um sie wieder einsatzfähig zu bekommen.
Auch sollte der Status der Karte mit CrystalDiskInfo in der portable version überprüft werden.

Fiona
