WD 2TB external drive unrecoverable

How to use TestDisk to recover lost partition
Message
Author
vektrex
Posts: 5
Joined: 26 May 2012, 12:50

WD 2TB external drive unrecoverable

#1 Postby vektrex » 26 May 2012, 14:31

Hi all, I have a problem with external 2TB Western Digital drive.
I was coping one file when it stopped and doesn't mount either in windows and in mac os.
I analyzed unsuccessfully 2 times, this is the message.
I changed the geometry of heads and sectors.
What you suggest?
Thank you.
Christian.
Attachments

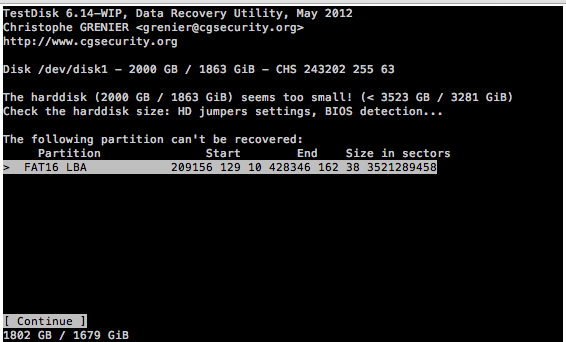

Screen Shot 2012-05-26 at 11.07.49 AM.png
message after 10 hours on deep search
Screen Shot 2012-05-26 at 11.07.49 AM.png (31.15 KiB) Viewed 1774 times

Sponsored links

User avatar
remy
Posts: 457
Joined: 25 Mar 2012, 10:21
Location: Strasbourg, France.
Contact:

Re: WD 2TB external drive unrecoverable

#2 Postby remy » 28 May 2012, 08:33

Did you select intel or EFI ?
What's on the next screen (after continue ?)
J'ai pour habitude d'aller au bout de l'aide que j'apporte. Si vous pensez que je vous ai abandonné, et que je ne l'ai pas fait explicitement, c'est que votre message est enfoui avec d'autres. Relancez-moi (modérément) par mail.

vektrex
Posts: 5
Joined: 26 May 2012, 12:50

Re: WD 2TB external drive unrecoverable

#3 Postby vektrex » 08 Jun 2012, 14:42

Yes I selected intel, cause it's formatted ntfs.
When I continue it says it's too damaged.
Do you think it's possible to recover files using photorec?
I tried but stopped due to the very long process.
Thank you.

User avatar
Fiona
Posts: 2839
Joined: 18 Feb 2012, 17:19
Location: Ludwigsburg/Stuttgart - Germany

Re: WD 2TB external drive unrecoverable

#4 Postby Fiona » 08 Jun 2012, 19:22

Yes of course, if a file system is seriously damaged, you can use PhotoRec to recover files.
But your message or screen only displays an unrecoverable FAT16 partition.
It looks wrong and has no significance.
Probably you should run Deeper Search?
What geometry did you have before you changed it?

Fiona

vektrex
Posts: 5
Joined: 26 May 2012, 12:50

Re: WD 2TB external drive unrecoverable

#5 Postby vektrex » 11 Jun 2012, 17:55

Hi Fiona, it seems strange to me too.
I changed geometry from 1 to 255 and from 16 to 63.

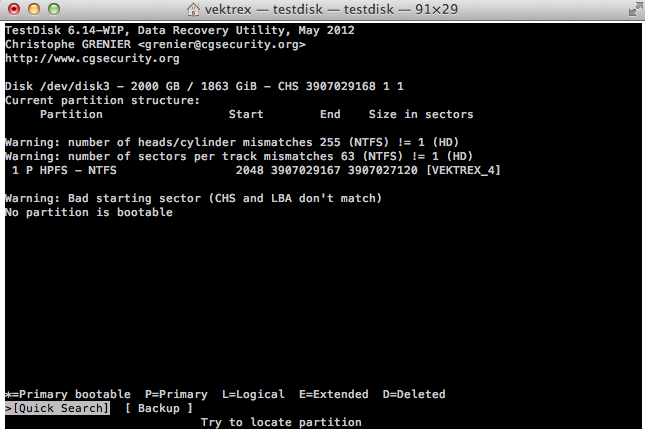

This was the status before I changed.
I launched 2 times deeper search with the same result.
I thought I could try with photorec, but I need another drive to copy such big files.
What do you suggest ti do before?
Thank you.
Attachments
Screen Shot 2012-06-11 at 5.45.08 PM.png
Screen Shot 2012-06-11 at 5.45.08 PM.png (47.42 KiB) Viewed 1688 times

User avatar
remy
Posts: 457
Joined: 25 Mar 2012, 10:21
Location: Strasbourg, France.
Contact:

Re: WD 2TB external drive unrecoverable

#6 Postby remy » 11 Jun 2012, 19:02

Would it be possible to try with testdisk windows or linux to compare results on that geometry detection ?
J'ai pour habitude d'aller au bout de l'aide que j'apporte. Si vous pensez que je vous ai abandonné, et que je ne l'ai pas fait explicitement, c'est que votre message est enfoui avec d'autres. Relancez-moi (modérément) par mail.

vektrex
Posts: 5
Joined: 26 May 2012, 12:50

Re: WD 2TB external drive unrecoverable

#7 Postby vektrex » 11 Jun 2012, 23:06

Already tried in windows with same results.
Do you think I have to change again the geometry?

User avatar
remy
Posts: 457
Joined: 25 Mar 2012, 10:21
Location: Strasbourg, France.
Contact:

Re: WD 2TB external drive unrecoverable

#8 Postby remy » 12 Jun 2012, 08:06

I'm not sure i understand well your problem : did you tried to list the files of this partition with testdisk (P key) ? Weren't you able to access files ?
J'ai pour habitude d'aller au bout de l'aide que j'apporte. Si vous pensez que je vous ai abandonné, et que je ne l'ai pas fait explicitement, c'est que votre message est enfoui avec d'autres. Relancez-moi (modérément) par mail.

vektrex
Posts: 5
Joined: 26 May 2012, 12:50

Re: WD 2TB external drive unrecoverable

#9 Postby vektrex » 12 Jun 2012, 13:29

yes I tried to list files but without result.
I launched partitionrecovery in windows environment and it found 10 partitions with all files and folders tree but it was impossible to recover them.
What can I do to at least see and copy the files?
