How to recover NTFS partition when formatting has been cancelled ?

#1 Post by mars61 » 20 Apr 2016, 16:12

Hello community!

The 2000GB NTFS drive (was used as external USB drive with only one partition, there were only data, no operating system) was started and aborted formatting by mistake instead of the stick. It is likely that was selected other file system for that (may be FAT32). and it could happen twice, the second time immediately after the first. The system now sees the drive as RAW. Testdisk finds the two partitions, as shown in the picture.

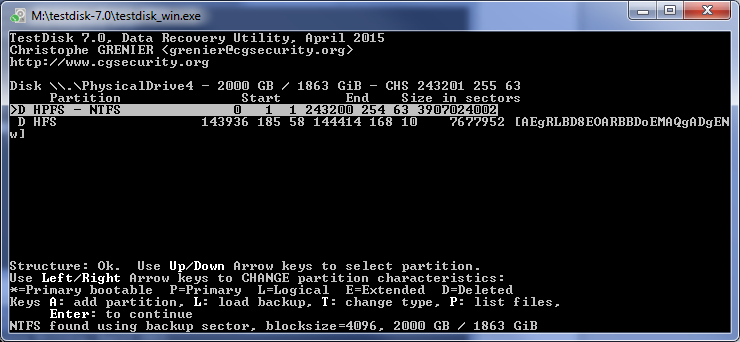

Then after “Quick Search”…
Then “Continue” and ...
When press ” P” there was a message "Can't open filesystem. Filesystem seems damaged".

Also I cloned the damaged RAW disk to the new disk using acronis disk director 11 and have tried unsuccessfully to restore it with testdisk-7.1. Here Is the log.

Code: Select all

Mon Apr 18 17:11:18 2016
Command line: TestDisk

TestDisk 7.1-WIP, Data Recovery Utility, February 2016
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows 7 (7601) SP1
Compiler: GCC 4.9, Cygwin32 2004.1
Compilation date: 2016-03-16T08:10:04
ext2fs lib: 1.42.8, ntfs lib: 10:0:0, reiserfs lib: 0.3.1-rc8, ewf lib: 20120504, curses lib: ncurses 5.9
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=2000398934016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdb)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdc)=320072933376
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdd)=3000592977920
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sde)=2000398934016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sdf)=4007624704
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=2000398934016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=500107862016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive2)=320072933376
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive3)=3000592977920
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive4)=2000398934016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive5)=4007624704
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=108342018048
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D:)=54717841408
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E:)=268627345408
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F:)=68311580672
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G:)=320070288384
filewin32_getfilesize(\\.\I:) GetFileSize err Неверная функция.

filewin32_setfilepointer(\\.\I:) SetFilePointer err Неверная функция.

Warning: can't get size for \\.\I:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\J:)=2000396289024
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\K:)=1474560
filewin32_getfilesize(\\.\L:) GetFileSize err Неверная функция.

filewin32_setfilepointer(\\.\L:) SetFilePointer err Неверная функция.

Warning: can't get size for \\.\L:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\M:)=3000582144000
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\N:)=4006937088
Hard disk list
Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63, sector size=512 - WDC WD20EZRX-00D8PB0, S/N:WD-WCC4MHXD0RZ4, FW:80.0
Disk /dev/sdb - 500 GB / 465 GiB - CHS 60801 255 63, sector size=512 - WDC WD5003AZEX-00MK2, S/N:WD-WCC3F3SJ0SCU, FW:01.0
Disk /dev/sdc - 320 GB / 298 GiB - CHS 38913 255 63, sector size=512 - Maxtor OneTouch, S/N:2HAS0HGX, FW:0125
Disk /dev/sdd - 3000 GB / 2794 GiB - CHS 45600 255 63, sector size=4096 - Samsung D3 Station, S/N:2C207DD30F00CBC3, FW:0202
Disk /dev/sde - 2000 GB / 1863 GiB - CHS 243201 255 63, sector size=512 - ST2000DL 003-9VT166, S/N:790S0DY6, FW:CC32
Disk /dev/sdf - 4007 MB / 3821 MiB - CHS 487 255 63, sector size=512 - Kingston DataTraveler G2, FW:1.00
Disk \\.\PhysicalDrive3 - 3000 GB / 2794 GiB - CHS 45600 255 63, sector size=4096 - Samsung D3 Station, S/N:2C207DD30F00CBC3, FW:0202
Drive K: - 1474 KB / 1440 KiB - CHS 80 2 18, sector size=512
Drive M: - 3000 GB / 2794 GiB - CHS 45600 255 63, sector size=4096 - Samsung D3 Station, S/N:2C207DD30F00CBC3, FW:0202

Partition table type (auto): Intel
Disk /dev/sda - 2000 GB / 1863 GiB - WDC WD20EZRX-00D8PB0
Partition table type: None
Partition table type (auto): Intel
Disk /dev/sda - 2000 GB / 1863 GiB - WDC WD20EZRX-00D8PB0
Partition table type: Intel

Analyse Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63
Geometry from i386 MBR: head=110 sector=44
check_part_i386 failed for partition type 07
Current partition structure:
Invalid NTFS or EXFAT boot
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
No partition is bootable
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.

search_part()
Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63
NTFS at 0/1/1
filesystem size           3907024002
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               244189000
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
file_pread(4,2,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,1,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,2,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(4,8,buffer,3907029183(243201/81/16)) lseek err Invalid argument
file_pread(4,8,buffer,3907029311(243201/83/18)) lseek err Invalid argument
file_pread(4,8,buffer,3907029439(243201/85/20)) lseek err Invalid argument
file_pread(4,8,buffer,3907029567(243201/87/22)) lseek err Invalid argument
file_pread(4,8,buffer,3907029695(243201/89/24)) lseek err Invalid argument
file_pread(4,8,buffer,3907029823(243201/91/26)) lseek err Invalid argument
file_pread(4,8,buffer,3907029951(243201/93/28)) lseek err Invalid argument
file_pread(4,8,buffer,3907030079(243201/95/30)) lseek err Invalid argument
file_pread(4,8,buffer,3907030207(243201/97/32)) lseek err Invalid argument
file_pread(4,8,buffer,3907030335(243201/99/34)) lseek err Invalid argument
file_pread(4,8,buffer,3907030463(243201/101/36)) lseek err Invalid argument
file_pread(4,8,buffer,3907030591(243201/103/38)) lseek err Invalid argument
file_pread(4,8,buffer,3907030719(243201/105/40)) lseek err Invalid argument
file_pread(4,8,buffer,3907030847(243201/107/42)) lseek err Invalid argument
file_pread(4,8,buffer,3907030975(243201/109/44)) lseek err Invalid argument
file_pread(4,14,buffer,3907031042(243201/110/48)) lseek err Invalid argument
file_pread(4,3,buffer,3907031056(243201/110/62)) lseek err Invalid argument
file_pread(4,3,buffer,3907031103(243201/111/46)) lseek err Invalid argument
file_pread(4,8,buffer,3907031119(243201/111/62)) lseek err Invalid argument
file_pread(4,11,buffer,3907031166(243201/112/46)) lseek err Invalid argument
file_pread(4,2,buffer,3907033088(243201/143/15)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2

Results
   * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
Not an exFAT boot sector.

   * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
Can't open filesystem. Filesystem seems damaged.

interface_write()
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.

search_part()
Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63
NTFS at 0/1/1
filesystem size           3907024002
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               244189000
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB

ReiserFS Marker at 74915/126/28

recover_rfs
block_count=1447840
block_size=4096
     Linux                74915 126 28 75636 124  8   11582720
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5655 MiB

ReiserFS Marker at 74916/196/33

recover_rfs
block_count=1447840
block_size=4096
     Linux                74916 196 33 75637 194 13   11582720
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5655 MiB

ReiserFS Marker at 74916/229/2

recover_rfs
block_count=1447840
block_size=4096
     Linux                74916 229  2 75637 226 45   11582720
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5655 MiB

ReiserFS Marker at 74917/234/6

recover_rfs
block_count=1447840
block_size=4096
     Linux                74917 234  6 75638 231 49   11582720
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5655 MiB

ReiserFS Marker at 74919/16/42

recover_rfs
block_count=1447840
block_size=4096
     Linux                74919  16 42 75640  14 22   11582720
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5655 MiB

ReiserFS Marker at 90871/202/20

recover_rfs
block_count=1447840
block_size=4096
     Linux                90871 202 20 91592 199 63   11582720
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5655 MiB
BAD_RS LBA=533070129 14104050
file_pread(4,3,buffer,533070129(300531/109/44)) lseek err Invalid argument
file_pread(4,1,buffer,533070129(300531/109/44)) lseek err Invalid argument
check_FAT: can't read FAT boot sector
check_part_i386 failed for partition type 0B
     FAT32                300531 109 44 350124 196 33  796717016
This partition ends after the disk limits. (start=4828037425, size=796717016, end=5624754440, disk end=3907029168)
BAD_RS LBA=3847714989 10784480
check_part_i386 failed for partition type 0E
     FAT16 LBA            239509  46  7 327083  66 19 1406877583
This partition ends after the disk limits. (start=3847714989, size=1406877583, end=5254592571, disk end=3907029168)
FAT12 at 178476/88/45
FAT1 : 1-9
FAT2 : 10-18
start_rootdir : 19
Data : 33-2879
sectors : 2880
cluster_size : 1
no_of_cluster : 2847 (2 - 2848)
fat_length 9 calculated 9
heads/cylinder 2 (FAT) != 255 (HD)
sect/track 18 (FAT) != 63 (HD)

FAT12 at 178476/88/45
     FAT12                178476  88 45 178476 134 26       2880 [EFI System Partition] [EFISECTOR]
     FAT12, blocksize=512, 1474 KB / 1440 KiB

block_group_nr 3

recover_EXT2: "e2fsck -b 24577 -B 1024 device" may be needed
recover_EXT2: s_block_group_nr=3/62, s_mnt_count=0/4294967295, s_blocks_per_group=8192, s_inodes_per_group=2032
recover_EXT2: s_blocksize=1024
recover_EXT2: s_blocks_count 512000
recover_EXT2: part_size 1024000
     Linux                219470   0 49 219533 189 46    1024000
     ext4 blocksize=1024 Sparse_SB Backup_SB, 524 MB / 500 MiB

block_group_nr 25

recover_EXT2: "e2fsck -b 819200 -B 4096 device" may be needed
recover_EXT2: s_block_group_nr=25/44, s_mnt_count=0/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8160
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 1468416
recover_EXT2: part_size 11747328
     Linux                219065 160 40 219796 221  9   11747328
     ext4 blocksize=4096 Large_file Sparse_SB Backup_SB, 6014 MB / 5736 MiB

recover_EXT2: s_block_group_nr=0/44, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8160
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 1468416
recover_EXT2: part_size 11747328
     Linux                219664 235 28 220396  40 60   11747328
     ext4 blocksize=4096 Large_file Sparse_SB Recover, 6014 MB / 5736 MiB

recover_EXT2: s_block_group_nr=0/44, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8160
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 1468416
recover_EXT2: part_size 11747328
     Linux                219682  99  2 220413 159 34   11747328
     ext4 blocksize=4096 Large_file Sparse_SB Recover, 6014 MB / 5736 MiB

recover_EXT2: s_block_group_nr=0/44, s_mnt_count=2/4294967295, s_blocks_per_group=32768, s_inodes_per_group=8160
recover_EXT2: s_blocksize=4096
recover_EXT2: s_blocks_count 1468416
recover_EXT2: part_size 11747328
     Linux                219697 239 63 220429  45 32   11747328
     ext4 blocksize=4096 Large_file Sparse_SB Recover, 6014 MB / 5736 MiB
file_pread(4,2,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,1,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,2,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(4,8,buffer,3907029183(243201/81/16)) lseek err Invalid argument
file_pread(4,8,buffer,3907029311(243201/83/18)) lseek err Invalid argument
file_pread(4,8,buffer,3907029439(243201/85/20)) lseek err Invalid argument
file_pread(4,8,buffer,3907029567(243201/87/22)) lseek err Invalid argument
file_pread(4,8,buffer,3907029695(243201/89/24)) lseek err Invalid argument
file_pread(4,8,buffer,3907029823(243201/91/26)) lseek err Invalid argument
file_pread(4,8,buffer,3907029951(243201/93/28)) lseek err Invalid argument
file_pread(4,8,buffer,3907030079(243201/95/30)) lseek err Invalid argument
file_pread(4,8,buffer,3907030207(243201/97/32)) lseek err Invalid argument
file_pread(4,8,buffer,3907030335(243201/99/34)) lseek err Invalid argument
file_pread(4,8,buffer,3907030463(243201/101/36)) lseek err Invalid argument
file_pread(4,8,buffer,3907030591(243201/103/38)) lseek err Invalid argument
file_pread(4,8,buffer,3907030719(243201/105/40)) lseek err Invalid argument
file_pread(4,8,buffer,3907030847(243201/107/42)) lseek err Invalid argument
file_pread(4,8,buffer,3907030975(243201/109/44)) lseek err Invalid argument
file_pread(4,1,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,1,buffer,3907031040(243201/110/46)) lseek err Invalid argument
Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63
Check the harddisk size: HD jumper settings, BIOS detection...
The harddisk (2000 GB / 1863 GiB) seems too small! (< 2879 GB / 2682 GiB)
The following partitions can't be recovered:
     FAT16 LBA            239509  46  7 327083  66 19 1406877583
     FAT32                300531 109 44 350124 196 33  796717016
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2

Results
     HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
     Linux                74915 126 28 75636 136 20   11583488
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5656 MiB
     Linux                74916 196 33 75637 206 25   11583488
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5656 MiB
     Linux                74916 229  2 75637 238 57   11583488
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5656 MiB
     Linux                74917 234  6 75638 243 61   11583488
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5656 MiB
     Linux                74919  16 42 75640  26 34   11583488
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5656 MiB
     Linux                90871 202 20 91592 212 12   11583488
     ReiserFS 3.6 with standard journal blocksize=4096, need recovery, 5930 MB / 5656 MiB
     FAT12                178476  88 45 178476 153 45       4096 [EFI System Partition] [EFISECTOR]
     FAT12, blocksize=512, 2097 KB / 2048 KiB
     Linux                219065 160 40 219796 221  9   11747328
     ext4 blocksize=4096 Large_file Sparse_SB Backup_SB, 6014 MB / 5736 MiB
     Linux                219470   0 49 219533 189 46    1024000
     ext4 blocksize=1024 Sparse_SB Backup_SB, 524 MB / 500 MiB
     Linux                219664 235 28 220396  40 60   11747328
     ext4 blocksize=4096 Large_file Sparse_SB Recover, 6014 MB / 5736 MiB
     Linux                219682  99  2 220413 159 34   11747328
     ext4 blocksize=4096 Large_file Sparse_SB Recover, 6014 MB / 5736 MiB
     Linux                219697 239 63 220429  45 32   11747328
     ext4 blocksize=4096 Large_file Sparse_SB Recover, 6014 MB / 5736 MiB
Not an exFAT boot sector.

   * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
Can't open filesystem. Filesystem seems damaged.
Not an exFAT boot sector.

   * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
Can't open filesystem. Filesystem seems damaged.
Not an exFAT boot sector.

   P HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
Can't open filesystem. Filesystem seems damaged.

interface_write()
 1 P HPFS - NTFS              0   1  1 243200 254 63 3907024002
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition

Interface Advanced
Geometry from i386 MBR: head=110 sector=44
check_part_i386 failed for partition type 07
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896

ntfs_boot_sector
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
filesystem size           1
sectors_per_cluster       0
mft_lcn                   0
mftmirr_lcn               0
clusters_per_mft_record   0
clusters_per_index_record 0
Boot sector
Status: Bad

Backup boot sector
Status: Bad

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
Failed to startup volume: Invalid argument.
Not an exFAT boot sector.

 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
Can't open filesystem. Filesystem seems damaged.

Analyse Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63
Geometry from i386 MBR: head=110 sector=44
check_part_i386 failed for partition type 07
Current partition structure:
Invalid NTFS or EXFAT boot
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
No partition is bootable

search_part()
Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63
NTFS at 0/1/1
filesystem size           3907024002
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               244189000
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
file_pread(4,2,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,1,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,2,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(4,8,buffer,3907029183(243201/81/16)) lseek err Invalid argument
file_pread(4,8,buffer,3907029311(243201/83/18)) lseek err Invalid argument
file_pread(4,8,buffer,3907029439(243201/85/20)) lseek err Invalid argument
file_pread(4,8,buffer,3907029567(243201/87/22)) lseek err Invalid argument
file_pread(4,8,buffer,3907029695(243201/89/24)) lseek err Invalid argument
file_pread(4,8,buffer,3907029823(243201/91/26)) lseek err Invalid argument
file_pread(4,8,buffer,3907029951(243201/93/28)) lseek err Invalid argument
file_pread(4,8,buffer,3907030079(243201/95/30)) lseek err Invalid argument
file_pread(4,8,buffer,3907030207(243201/97/32)) lseek err Invalid argument
file_pread(4,8,buffer,3907030335(243201/99/34)) lseek err Invalid argument
file_pread(4,8,buffer,3907030463(243201/101/36)) lseek err Invalid argument
file_pread(4,8,buffer,3907030591(243201/103/38)) lseek err Invalid argument
file_pread(4,8,buffer,3907030719(243201/105/40)) lseek err Invalid argument
file_pread(4,8,buffer,3907030847(243201/107/42)) lseek err Invalid argument
file_pread(4,8,buffer,3907030975(243201/109/44)) lseek err Invalid argument
file_pread(4,14,buffer,3907031042(243201/110/48)) lseek err Invalid argument
file_pread(4,3,buffer,3907031056(243201/110/62)) lseek err Invalid argument
file_pread(4,3,buffer,3907031103(243201/111/46)) lseek err Invalid argument
file_pread(4,8,buffer,3907031119(243201/111/62)) lseek err Invalid argument
file_pread(4,11,buffer,3907031166(243201/112/46)) lseek err Invalid argument
file_pread(4,2,buffer,3907033088(243201/143/15)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2

Results
   * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB

interface_write()
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
Failed to startup volume: Invalid argument.
simulate write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition

Interface Advanced
Geometry from i386 MBR: head=110 sector=44
check_part_i386 failed for partition type 07
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
Not an exFAT boot sector.

 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
Can't open filesystem. Filesystem seems damaged.

Analyse Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63
Geometry from i386 MBR: head=110 sector=44
check_part_i386 failed for partition type 07
Current partition structure:
Invalid NTFS or EXFAT boot
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
No partition is bootable

search_part()
Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63
NTFS at 0/1/1
filesystem size           3907024002
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               244189000
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
file_pread(4,2,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,1,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,2,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(4,8,buffer,3907029183(243201/81/16)) lseek err Invalid argument
file_pread(4,8,buffer,3907029311(243201/83/18)) lseek err Invalid argument
file_pread(4,8,buffer,3907029439(243201/85/20)) lseek err Invalid argument
file_pread(4,8,buffer,3907029567(243201/87/22)) lseek err Invalid argument
file_pread(4,8,buffer,3907029695(243201/89/24)) lseek err Invalid argument
file_pread(4,8,buffer,3907029823(243201/91/26)) lseek err Invalid argument
file_pread(4,8,buffer,3907029951(243201/93/28)) lseek err Invalid argument
file_pread(4,8,buffer,3907030079(243201/95/30)) lseek err Invalid argument
file_pread(4,8,buffer,3907030207(243201/97/32)) lseek err Invalid argument
file_pread(4,8,buffer,3907030335(243201/99/34)) lseek err Invalid argument
file_pread(4,8,buffer,3907030463(243201/101/36)) lseek err Invalid argument
file_pread(4,8,buffer,3907030591(243201/103/38)) lseek err Invalid argument
file_pread(4,8,buffer,3907030719(243201/105/40)) lseek err Invalid argument
file_pread(4,8,buffer,3907030847(243201/107/42)) lseek err Invalid argument
file_pread(4,8,buffer,3907030975(243201/109/44)) lseek err Invalid argument
file_pread(4,14,buffer,3907031042(243201/110/48)) lseek err Invalid argument
file_pread(4,3,buffer,3907031056(243201/110/62)) lseek err Invalid argument
file_pread(4,3,buffer,3907031103(243201/111/46)) lseek err Invalid argument
file_pread(4,8,buffer,3907031119(243201/111/62)) lseek err Invalid argument
file_pread(4,11,buffer,3907031166(243201/112/46)) lseek err Invalid argument
file_pread(4,2,buffer,3907033088(243201/143/15)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2

Results
   * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB

interface_write()
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
Don't write, no confirmation

Analyse Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63
Geometry from i386 MBR: head=110 sector=44
check_part_i386 failed for partition type 07
Current partition structure:
Invalid NTFS or EXFAT boot
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
 1 P HPFS - NTFS              0  32 33 243201  45 44 3907024896
No partition is bootable

search_part()
Disk /dev/sda - 2000 GB / 1863 GiB - CHS 243201 255 63
NTFS at 0/1/1
filesystem size           3907024002
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               244189000
clusters_per_mft_record   -10
clusters_per_index_record 1
     HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
file_pread(4,2,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,1,buffer,3907031039(243201/110/45)) lseek err Invalid argument
file_pread(4,2,buffer,3907031040(243201/110/46)) lseek err Invalid argument
file_pread(4,8,buffer,3907029183(243201/81/16)) lseek err Invalid argument
file_pread(4,8,buffer,3907029311(243201/83/18)) lseek err Invalid argument
file_pread(4,8,buffer,3907029439(243201/85/20)) lseek err Invalid argument
file_pread(4,8,buffer,3907029567(243201/87/22)) lseek err Invalid argument
file_pread(4,8,buffer,3907029695(243201/89/24)) lseek err Invalid argument
file_pread(4,8,buffer,3907029823(243201/91/26)) lseek err Invalid argument
file_pread(4,8,buffer,3907029951(243201/93/28)) lseek err Invalid argument
file_pread(4,8,buffer,3907030079(243201/95/30)) lseek err Invalid argument
file_pread(4,8,buffer,3907030207(243201/97/32)) lseek err Invalid argument
file_pread(4,8,buffer,3907030335(243201/99/34)) lseek err Invalid argument
file_pread(4,8,buffer,3907030463(243201/101/36)) lseek err Invalid argument
file_pread(4,8,buffer,3907030591(243201/103/38)) lseek err Invalid argument
file_pread(4,8,buffer,3907030719(243201/105/40)) lseek err Invalid argument
file_pread(4,8,buffer,3907030847(243201/107/42)) lseek err Invalid argument
file_pread(4,8,buffer,3907030975(243201/109/44)) lseek err Invalid argument
file_pread(4,14,buffer,3907031042(243201/110/48)) lseek err Invalid argument
file_pread(4,3,buffer,3907031056(243201/110/62)) lseek err Invalid argument
file_pread(4,3,buffer,3907031103(243201/111/46)) lseek err Invalid argument
file_pread(4,8,buffer,3907031119(243201/111/62)) lseek err Invalid argument
file_pread(4,11,buffer,3907031166(243201/112/46)) lseek err Invalid argument
file_pread(4,2,buffer,3907033088(243201/143/15)) lseek err Invalid argument
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2

Results
   * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB

interface_write()
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
write!

write_mbr_i386: starting...
write_all_log_i386: starting...
No extended partition
You will have to reboot for the change to take effect.

Interface Advanced
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/1/1
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB

Interface Advanced
Geometry from i386 MBR: head=255 sector=63
NTFS at 0/1/1
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
Not an exFAT boot sector.

 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
Can't open filesystem. Filesystem seems damaged.

ntfs_boot_sector
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
NTFS at 0/1/1
filesystem size           3907024002 8831412832272918908
sectors_per_cluster       8 150
mft_lcn                   786432 3583261435
mftmirr_lcn               244189000 1562065707
clusters_per_mft_record   -10 119
clusters_per_index_record 1 118
Boot sector
Status: OK

Backup boot sector
Status: Bad

Sectors are not identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Not an exFAT boot sector.

 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
Can't open filesystem. Filesystem seems damaged.

ntfs_boot_sector
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
NTFS at 0/1/1
filesystem size           3907024002 8831412832272918908
sectors_per_cluster       8 150
mft_lcn                   786432 3583261435
mftmirr_lcn               244189000 1562065707
clusters_per_mft_record   -10 119
clusters_per_index_record 1 118
Boot sector
Status: OK

Backup boot sector
Status: Bad

Sectors are not identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
Boot sector                        Backup boot sector
0000 eb52904e 54465320   .R.NTFS   89474fc7 a569467c   .GO..iF|
0008 20202000 02080000      .....  938cbb3f d496af17   ...?....
0010 00000000 00f80000   ........  73e684b9 782e652a   s...x.e*
0018 3f00ff00 3f000000   ?...?...  4a37dd2b e9823fc2   J7.+..?.
0020 00000000 80008000   ........  babd13c6 b730b793   .....0..
0028 8174e0e8 00000000   .t......  7b29741c 2e7b8f7a   {)t..{.z
0030 00000c00 00000000   ........  fb3a94d5 489c1197   .:..H...
0038 48078e0e 00000000   H.......  2b3b1b5d 6ec2fd7f   +;.]n...
0040 f6000000 01000000   ........  7737cc46 7693f853   w7.Fv..S
0048 b6e85ecc 1d5fcc64   ..^.._.d  6e2293b1 dd82062b   n".....+
0050 00000000 fa33c08e   .....3..  c871717a 9d89a68c   .qqz....
0058 d0bc007c fbb8c007   ...|....  e314abb8 3c5c6723   ....<\g#
0060 8ed8e816 00b8000d   ........  d4fafeb4 ab1a020b   ........
0068 8ec033db c6060e00   ..3.....  10bb474f 5a69376f   ..GOZi7o
0070 10e85300 68000d68   ..S.h..h  3347b5ca 57faf5a5   3G..W...
0078 6a02cb8a 162400b4   j....$..  923448db 9b1822b8   .4H...".
0080 08cd1373 05b9ffff   ...s....  0d4b58b8 bb90b195   .KX.....
0088 8af1660f b6c64066   ..f...@f  b1e99aed c3517bc8   .....Q{.
0090 0fb6d180 e23ff7e2   .....?..  e6ad3e88 c7791d94   ..>..y..
0098 86cdc0ed 0641660f   .....Af.  6589c715 00030493   e.......
00A0 b7c966f7 e166a320   ..f..f.   5e8a5639 05195e41   ^.V9..^A
00A8 00c3b441 bbaa558a   ...A..U.  ce06290e 5aa805da   ..).Z...
00B0 162400cd 13720f81   .$...r..  76838ebc 51b3be28   v...Q..(
00B8 fb55aa75 09f6c101   .U.u....  0023bd20 5e680171   .#. ^h.q
00C0 7404fe06 1400c366   t......f  ed9a0a12 70075a00   ....p.Z.
00C8 601e0666 a1100066   `..f...f  dbf0f122 ea745030   ...".tP0
00D0 03061c00 663b0620   ....f;.   63c9fc08 ff001aee   c.......
00D8 000f823a 001e666a   ...:..fj  74749244 12329047   tt.D.2.G
00E0 00665006 53666810   .fP.Sfh.  7ae6ad6d d9a44de7   z..m..M.
00E8 00010080 3e140000   ....>...  55752a5b 1919aab8   Uu*[....
00F0 0f850c00 e8b3ff80   ........  2c086236 f00715c0   ,.b6....
00F8 3e140000 0f846100   >.....a.  d6a6e95b 52545ca8   ...[RT\.
0100 b4428a16 2400161f   .B..$...  8f72e48e b8a9b600   .r......
0108 8bf4cd13 66585b07   ....fX[.  0a91c67a 7ad2ddd8   ...zz...
0110 66586658 1feb2d66   fXfX..-f  9e87baaa 12a46570   ......ep
0118 33d2660f b70e1800   3.f.....  2a558c04 c9c6ef63   *U.....c
0120 66f7f1fe c28aca66   f......f  5aa4ba93 d09460a8   Z.....`.
0128 8bd066c1 ea10f736   ..f....6  6240c538 a061918c   b@.8.a..
0130 1a0086d6 8a162400   ......$.  0ea7d69d 96c3882c   .......,
0138 8ae8c0e4 060accb8   ........  676e3a7e 34a88339   gn:~4..9
0140 0102cd13 0f821900   ........  279efcd2 761a44a1   '...v.D.
0148 8cc00520 008ec066   ... ...f  70083f81 a40141dc   p.?...A.
0150 ff061000 ff0e0e00   ........  39c8c547 2a6b5434   9..G*kT4
0158 0f856fff 071f6661   ..o...fa  3c617008 c7a52e46   <ap....F
0160 c3a0f801 e80900a0   ........  37119fc2 a7910ddc   7.......
0168 fb01e803 00fbebfe   ........  5000ce54 633dd69b   P..Tc=..
0170 b4018bf0 ac3c0074   .....<.t  b5064055 ebfdda97   ..@U....
0178 09b40ebb 0700cd10   ........  4e3bd8a5 b8e11c67   N;.....g
0180 ebf2c30d 0a412064   .....A d  930c673d 4ed148f0   ..g=N.H.
0188 69736b20 72656164   isk read  42460c29 cfa28a97   BF.)....
0190 20657272 6f72206f    error o  8783d2c1 ccc89ad2   ........
0198 63637572 72656400   ccurred.  02491027 3e82964d   .I.'>..M
01A0 0d0a4e54 4c445220   ..NTLDR   2e08f0d3 0821cf51   .....!.Q
01A8 6973206d 69737369   is missi  24aa87f2 3d2b1faa   $...=+..
01B0 6e67000d 0a4e544c   ng...NTL  c65b15cd dce4b5df   .[......
01B8 44522069 7320636f   DR is co  85fe0bd7 247b8bfd   ....${..
01C0 6d707265 73736564   mpressed  21e0b891 7fe3e2d6   !.......
01C8 000d0a50 72657373   ...Press  6db9f7ee 0d796f8e   m....yo.
01D0 20437472 6c2b416c    Ctrl+Al  fe117867 c29e179b   ..xg....
01D8 742b4465 6c20746f   t+Del to  5c875fbb 56de2382   \._.V.#.
01E0 20726573 74617274    restart  de555266 908e141e   .URf....
01E8 0d0a0000 00000000   ........  3a7527d0 1ee457a3   :u'...W.
01F0 00000000 00000000   ........  4e728b50 309c16e7   Nr.P0...
01F8 83a0b3c9 000055aa   ......U.  8a0bbb8b 673e548c   ....g>T.

ntfs_boot_sector
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
NTFS at 0/1/1
filesystem size           3907024002 8831412832272918908
sectors_per_cluster       8 150
mft_lcn                   786432 3583261435
mftmirr_lcn               244189000 1562065707
clusters_per_mft_record   -10 119
clusters_per_index_record 1 118
Boot sector
Status: OK

Backup boot sector
Status: Bad

Sectors are not identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
copy original boot sector over backup boot

ntfs_boot_sector
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size           3907024002
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               244189000
clusters_per_mft_record   -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Not an exFAT boot sector.

 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
Can't open filesystem. Filesystem seems damaged.

ntfs_boot_sector
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size           3907024002
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               244189000
clusters_per_mft_record   -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Not an exFAT boot sector.

 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
Can't open filesystem. Filesystem seems damaged.

ntfs_boot_sector
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size           3907024002
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               244189000
clusters_per_mft_record   -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
Boot sector                        Backup boot sector
0000 eb52904e 54465320   .R.NTFS   eb52904e 54465320   .R.NTFS
0008 20202000 02080000      .....  20202000 02080000      .....
0010 00000000 00f80000   ........  00000000 00f80000   ........
0018 3f00ff00 3f000000   ?...?...  3f00ff00 3f000000   ?...?...
0020 00000000 80008000   ........  00000000 80008000   ........
0028 8174e0e8 00000000   .t......  8174e0e8 00000000   .t......
0030 00000c00 00000000   ........  00000c00 00000000   ........
0038 48078e0e 00000000   H.......  48078e0e 00000000   H.......
0040 f6000000 01000000   ........  f6000000 01000000   ........
0048 b6e85ecc 1d5fcc64   ..^.._.d  b6e85ecc 1d5fcc64   ..^.._.d
0050 00000000 fa33c08e   .....3..  00000000 fa33c08e   .....3..
0058 d0bc007c fbb8c007   ...|....  d0bc007c fbb8c007   ...|....
0060 8ed8e816 00b8000d   ........  8ed8e816 00b8000d   ........
0068 8ec033db c6060e00   ..3.....  8ec033db c6060e00   ..3.....
0070 10e85300 68000d68   ..S.h..h  10e85300 68000d68   ..S.h..h
0078 6a02cb8a 162400b4   j....$..  6a02cb8a 162400b4   j....$..
0080 08cd1373 05b9ffff   ...s....  08cd1373 05b9ffff   ...s....
0088 8af1660f b6c64066   ..f...@f  8af1660f b6c64066   ..f...@f
0090 0fb6d180 e23ff7e2   .....?..  0fb6d180 e23ff7e2   .....?..
0098 86cdc0ed 0641660f   .....Af.  86cdc0ed 0641660f   .....Af.
00A0 b7c966f7 e166a320   ..f..f.   b7c966f7 e166a320   ..f..f.
00A8 00c3b441 bbaa558a   ...A..U.  00c3b441 bbaa558a   ...A..U.
00B0 162400cd 13720f81   .$...r..  162400cd 13720f81   .$...r..
00B8 fb55aa75 09f6c101   .U.u....  fb55aa75 09f6c101   .U.u....
00C0 7404fe06 1400c366   t......f  7404fe06 1400c366   t......f
00C8 601e0666 a1100066   `..f...f  601e0666 a1100066   `..f...f
00D0 03061c00 663b0620   ....f;.   03061c00 663b0620   ....f;.
00D8 000f823a 001e666a   ...:..fj  000f823a 001e666a   ...:..fj
00E0 00665006 53666810   .fP.Sfh.  00665006 53666810   .fP.Sfh.
00E8 00010080 3e140000   ....>...  00010080 3e140000   ....>...
00F0 0f850c00 e8b3ff80   ........  0f850c00 e8b3ff80   ........
00F8 3e140000 0f846100   >.....a.  3e140000 0f846100   >.....a.
0100 b4428a16 2400161f   .B..$...  b4428a16 2400161f   .B..$...
0108 8bf4cd13 66585b07   ....fX[.  8bf4cd13 66585b07   ....fX[.
0110 66586658 1feb2d66   fXfX..-f  66586658 1feb2d66   fXfX..-f
0118 33d2660f b70e1800   3.f.....  33d2660f b70e1800   3.f.....
0120 66f7f1fe c28aca66   f......f  66f7f1fe c28aca66   f......f
0128 8bd066c1 ea10f736   ..f....6  8bd066c1 ea10f736   ..f....6
0130 1a0086d6 8a162400   ......$.  1a0086d6 8a162400   ......$.
0138 8ae8c0e4 060accb8   ........  8ae8c0e4 060accb8   ........
0140 0102cd13 0f821900   ........  0102cd13 0f821900   ........
0148 8cc00520 008ec066   ... ...f  8cc00520 008ec066   ... ...f
0150 ff061000 ff0e0e00   ........  ff061000 ff0e0e00   ........
0158 0f856fff 071f6661   ..o...fa  0f856fff 071f6661   ..o...fa
0160 c3a0f801 e80900a0   ........  c3a0f801 e80900a0   ........
0168 fb01e803 00fbebfe   ........  fb01e803 00fbebfe   ........
0170 b4018bf0 ac3c0074   .....<.t  b4018bf0 ac3c0074   .....<.t
0178 09b40ebb 0700cd10   ........  09b40ebb 0700cd10   ........
0180 ebf2c30d 0a412064   .....A d  ebf2c30d 0a412064   .....A d
0188 69736b20 72656164   isk read  69736b20 72656164   isk read
0190 20657272 6f72206f    error o  20657272 6f72206f    error o
0198 63637572 72656400   ccurred.  63637572 72656400   ccurred.
01A0 0d0a4e54 4c445220   ..NTLDR   0d0a4e54 4c445220   ..NTLDR
01A8 6973206d 69737369   is missi  6973206d 69737369   is missi
01B0 6e67000d 0a4e544c   ng...NTL  6e67000d 0a4e544c   ng...NTL
01B8 44522069 7320636f   DR is co  44522069 7320636f   DR is co
01C0 6d707265 73736564   mpressed  6d707265 73736564   mpressed
01C8 000d0a50 72657373   ...Press  000d0a50 72657373   ...Press
01D0 20437472 6c2b416c    Ctrl+Al  20437472 6c2b416c    Ctrl+Al
01D8 742b4465 6c20746f   t+Del to  742b4465 6c20746f   t+Del to
01E0 20726573 74617274    restart  20726573 74617274    restart
01E8 0d0a0000 00000000   ........  0d0a0000 00000000   ........
01F0 00000000 00000000   ........  00000000 00000000   ........
01F8 83a0b3c9 000055aa   ......U.  83a0b3c9 000055aa   ......U.

ntfs_boot_sector
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size           3907024002
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               244189000
clusters_per_mft_record   -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
Failed to startup volume: Input/output error.
$MFT has invalid magic.
ntfs_mft_load(): Failed.
Failed to load $MFT: Input/output error.
repair_MFT
NTFS at 0/1/1
MFT and MFT mirror are bad. Failed to repair them.
MFT and MFT mirror are bad. Failed to repair them.

ntfs_boot_sector
 1 * HPFS - NTFS              0   1  1 243200 254 63 3907024002
     NTFS, blocksize=4096, 2000 GB / 1863 GiB
NTFS at 0/1/1
NTFS at 0/1/1
filesystem size           3907024002
sectors_per_cluster       8
mft_lcn                   786432
mftmirr_lcn               244189000
clusters_per_mft_record   -10
clusters_per_index_record 1
Boot sector
Status: OK

Backup boot sector
Status: OK

Sectors are identical.

A valid NTFS Boot sector must be present in order to access
any data; even if the partition is not bootable.
      7 [main] testdisk_win 6884 cygwin_exception::open_stackdumpfile: Dumping stack trace to testdisk_win.exe.stackdump
Is it possible to recover the folder structure with original file names?
Thanks a lot in advance!

P.S. Sorry for my poor English.

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 3764
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: How to recover NTFS partition when formatting has been cancelled ?

#2 Post by cgrenier » 20 Apr 2016, 17:03

You can use PhotoRec to recover your data but it will not recover the original filenames. Try various commercial software if you really need them.

mars61
Posts: 2
Joined: 19 Apr 2016, 08:30

Re: How to recover NTFS partition when formatting has been cancelled ?

#3 Post by mars61 » 21 Apr 2016, 15:23

Thank you very much for your reply. Your advice is very important to me.

Post Reply

Who is online

Users browsing this forum: No registered users and 2 guests
