Raid 0 lost after MB Bios Update -Need help as made mistakes

#1 Post by aaronjamescrawford » 18 Oct 2016, 23:06

Hello!

I would like some assistance on how to recover my files on a raid 0 setup, this raid was created using the intel raid agent through the built-in feature on my motherboard.

Context:
I have 3x 4TB HDD's, two are setup in raid 0 using the intel raid agent, the other is stand alone single partition.
When I updated the bios on my motherboard it likes to revert the storage options from RAID to AHCI and when this happens the raid 0 displays as one drive working, the other not working and the raid is in a failed state. This has happened to me before and I have succesfully used testdisk to restore the raid.
Here is how:
1. Change the MB Bios back to raid
2. Enter the Intel raid agent (ctrl+i) and delete the failed raid, then create a new raid using the exact same name and settings as the failed raid selecting the two HDD's that where in the raid.
3. Load up the OS and run testdisk, select the 8TB physical drive (raid 0), run a quick search and find the partition, confirm by checking the files are correct and restoring.
4. Restart machine, load OS, go into disk management and create simple volume using the same letter and name as failed raid and magic, its back up with all the files.

Now the issue:
I followed the above steps but made a mistake, when re-creating the raid in the Intel raid agent I selected a wrong HDD, I immediately knew I made a mistake when I went to step 4. and created a simple volume only to find it completely empty. I then deleted the simple volume and rectified my mistake by making the raid again with the correct HDD's.
I had to use testdisk to restore the single HDD partition as I had screwed it up by making it apart of the Raid 0 by mistake, I was able to restore it no problem and its back up and running.

But the Raid 0 partition I cannot restore, I am not seeing the same results when I scan to recover all my files.

Can someone help me out here?

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 3691
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Raid 0 lost after MB Bios Update -Need help as made mistakes

#2 Post by cgrenier » 19 Oct 2016, 06:42

Using latest TestDisk 7.1-WIP, try Deeper Search, press Stop after a few seconds. It may be able to find the NTFS partition using the backup boot sector.
Does it work ?

aaronjamescrawford
Posts: 6
Joined: 18 Oct 2016, 22:54

Re: Raid 0 lost after MB Bios Update -Need help as made mistakes

#3 Post by aaronjamescrawford » 19 Oct 2016, 07:00

Hello and thanks for the response,

I have uploaded a serious of pictures of each step I have taken on imgur:

http://imgur.com/a/shSs0

aaronjamescrawford
Posts: 6
Joined: 18 Oct 2016, 22:54

Re: Raid 0 lost after MB Bios Update -Need help as made mistakes

#4 Post by aaronjamescrawford » 19 Oct 2016, 10:03

Can anyone provide some insight? I ran the PhotoRec software and it would take 23 hours but it can see all the files I lost, I just don't know what I have to do in testdisk to restore. :(

aaronjamescrawford
Posts: 6
Joined: 18 Oct 2016, 22:54

Re: Raid 0 lost after MB Bios Update -Need help as made mistakes

#5 Post by aaronjamescrawford » 19 Oct 2016, 22:26

So far log has the following:



Thu Oct 20 00:52:26 2016
Command line: TestDisk

TestDisk 7.1-WIP, Data Recovery Utility, September 2015
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows 8 (9200)
Compiler: GCC 4.9, MinGW 3.11
ext2fs lib: none, ntfs lib: 10:0:0, reiserfs lib: none, ewf lib: 20120504, curses lib: pdcurses build 3401
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=512110190592
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=4000787030016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive2)=8001569161216
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive3)=2000365289472
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=510612471808
filewin32_getfilesize(\\.\D:) GetFileSize err Incorrect function.


filewin32_setfilepointer(\\.\D:) SetFilePointer err Incorrect function.


Warning: can't get size for \\.\D:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\T:)=4000650887168
Hard disk list
Disk \\.\PhysicalDrive0 - 512 GB / 476 GiB - CHS 62260 255 63, sector size=512 - SAMSUNG MZHPU512HCGL-00004, S/N:S1NDNYAF901109, FW:UXM6501Q
Disk \\.\PhysicalDrive1 - 4000 GB / 3726 GiB - CHS 486401 255 63, sector size=512 - WDC WD4003FZEX-00Z4SA0, S/N:WD-WMC130D646U2, FW:01.01A01
Disk \\.\PhysicalDrive2 - 8001 GB / 7452 GiB - CHS 972802 255 63, sector size=512 - Intel Raid 0 Volume, S/N:Valhalla, FW:1.0.
Disk \\.\PhysicalDrive3 - 2000 GB / 1862 GiB - CHS 243197 255 63, sector size=512 - WD Elements 10B8, S/N:WX21E94EAJUK, FW:1012

Partition table type default to EFI GPT
Disk \\.\PhysicalDrive2 - 8001 GB / 7452 GiB - Intel Raid 0 Volume
Partition table type: Intel

Analyse Disk \\.\PhysicalDrive2 - 8001 GB / 7452 GiB - CHS 972802 255 63
Current partition structure:
No partition is bootable
Failed to startup volume: Invalid argument.
Failed to startup volume: Invalid argument.

search_part()
Disk \\.\PhysicalDrive2 - 8001 GB / 7452 GiB - CHS 972802 255 63
NTFS at 0/32/33
filesystem size 15628060672
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 972801 232 39 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB

Results
* HPFS - NTFS 0 32 33 972801 232 39 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB
Not an exFAT boot sector.

* HPFS - NTFS 0 32 33 972801 232 39 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB
Can't open filesystem. Filesystem seems damaged.

interface_write()
1 * HPFS - NTFS 0 32 33 972801 232 39 15628060672

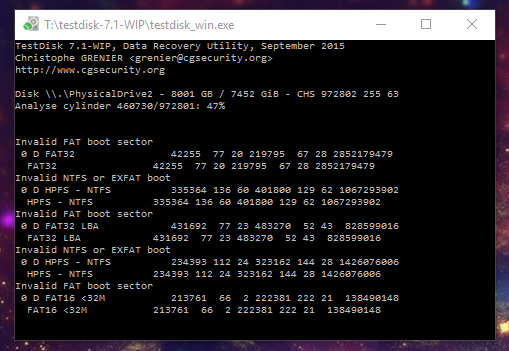

Also I ran deeper scan and its currently at 47% after all night running

aaronjamescrawford
Posts: 6
Joined: 18 Oct 2016, 22:54

Re: Raid 0 lost after MB Bios Update -Need help as made mistakes

#6 Post by aaronjamescrawford » 20 Oct 2016, 04:31

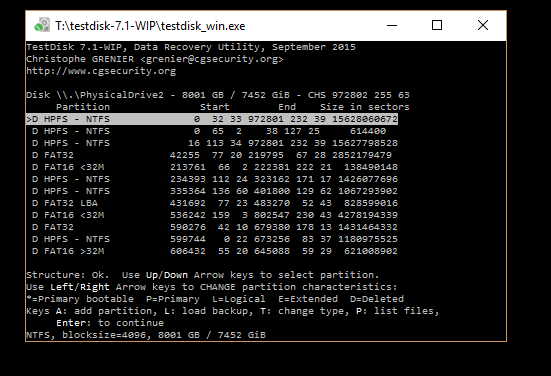

Here is the log after the full deep scan completed, this took about 10 hours to complete:



Thu Oct 20 00:52:26 2016
Command line: TestDisk

TestDisk 7.1-WIP, Data Recovery Utility, September 2015
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org
OS: Windows 8 (9200)
Compiler: GCC 4.9, MinGW 3.11
ext2fs lib: none, ntfs lib: 10:0:0, reiserfs lib: none, ewf lib: 20120504, curses lib: pdcurses build 3401
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=512110190592
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive1)=4000787030016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive2)=8001569161216
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive3)=2000365289472
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C:)=510612471808
filewin32_getfilesize(\\.\D:) GetFileSize err Incorrect function.


filewin32_setfilepointer(\\.\D:) SetFilePointer err Incorrect function.


Warning: can't get size for \\.\D:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\T:)=4000650887168
Hard disk list
Disk \\.\PhysicalDrive0 - 512 GB / 476 GiB - CHS 62260 255 63, sector size=512 - SAMSUNG MZHPU512HCGL-00004, S/N:S1NDNYAF901109, FW:UXM6501Q
Disk \\.\PhysicalDrive1 - 4000 GB / 3726 GiB - CHS 486401 255 63, sector size=512 - WDC WD4003FZEX-00Z4SA0, S/N:WD-WMC130D646U2, FW:01.01A01
Disk \\.\PhysicalDrive2 - 8001 GB / 7452 GiB - CHS 972802 255 63, sector size=512 - Intel Raid 0 Volume, S/N:Valhalla, FW:1.0.
Disk \\.\PhysicalDrive3 - 2000 GB / 1862 GiB - CHS 243197 255 63, sector size=512 - WD Elements 10B8, S/N:WX21E94EAJUK, FW:1012

Partition table type default to EFI GPT
Disk \\.\PhysicalDrive2 - 8001 GB / 7452 GiB - Intel Raid 0 Volume
Partition table type: Intel

Analyse Disk \\.\PhysicalDrive2 - 8001 GB / 7452 GiB - CHS 972802 255 63
Current partition structure:
No partition is bootable
Failed to startup volume: Invalid argument.
Failed to startup volume: Invalid argument.

search_part()
Disk \\.\PhysicalDrive2 - 8001 GB / 7452 GiB - CHS 972802 255 63
NTFS at 0/32/33
filesystem size 15628060672
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 972801 232 39 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB

Results
* HPFS - NTFS 0 32 33 972801 232 39 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB
Not an exFAT boot sector.

* HPFS - NTFS 0 32 33 972801 232 39 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB
Can't open filesystem. Filesystem seems damaged.

interface_write()
1 * HPFS - NTFS 0 32 33 972801 232 39 15628060672

search_part()
Disk \\.\PhysicalDrive2 - 8001 GB / 7452 GiB - CHS 972802 255 63
NTFS at 0/32/33
filesystem size 15628060672
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 972801 232 39 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB
NTFS at 0/65/2
filesystem size 614400
sectors_per_cluster 8
mft_lcn 25600
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 65 2 38 127 25 614400
NTFS, blocksize=4096, 314 MB / 300 MiB
NTFS at 16/113/34
filesystem size 15627798528
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 16 113 34 972801 232 39 15627798528
NTFS, blocksize=4096, 8001 GB / 7451 GiB
BAD_RS LBA=678831445 4251870
check_part_i386 failed for partition type 0B
FAT32 42255 77 20 219795 67 28 2852179479
BAD_RS LBA=1092663991 1028185
check_part_i386 failed for partition type 07
HPFS - NTFS 335364 136 60 401800 129 62 1067293902
BAD_RS LBA=2640169557 2743124
check_part_i386 failed for partition type 0C
FAT32 LBA 431692 77 23 483270 52 43 828599016
BAD_RS LBA=3765530624 12852034
check_part_i386 failed for partition type 07
HPFS - NTFS 234393 112 24 323162 144 28 1426076006
BAD_RS LBA=3434074624 6854420
check_part_i386 failed for partition type 04
FAT16 <32M 213761 66 2 222381 222 21 138490148
BAD_RS LBA=1044952789 10874696
check_part_i386 failed for partition type 07
HPFS - NTFS 599744 0 22 673256 83 37 1180975525
BAD_RS LBA=892852003 653309
check_part_i386 failed for partition type 0B
FAT32 590276 42 10 679380 178 13 1431464332
BAD_RS LBA=1152398972 1060951
check_part_i386 failed for partition type 06
FAT16 >32M 606432 55 20 645088 59 29 621008902

LVM magic value at 482920/1/1
BAD_RS LBA=24803157 13269729
check_part_i386 failed for partition type 04
FAT16 <32M 536242 159 3 802547 230 43 4278194339
NTFS at 972801/232/39
filesystem size 15628060672
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
HPFS - NTFS 0 32 33 972801 232 39 15628060672
NTFS found using backup sector, blocksize=4096, 8001 GB / 7452 GiB
NTFS at 972801/232/39
filesystem size 15628060672
sectors_per_cluster 8
mft_lcn 786432
mftmirr_lcn 2
clusters_per_mft_record -10
clusters_per_index_record 1
NTFS: Can't read MFT
HPFS - NTFS 972801 232 39 1945603 177 45 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB
This partition ends after the disk limits. (start=15628062719, size=15628060672, end=31256123390, disk end=15628064768)
file_win32_pread(272,2,buffer,2743162879(972802/10/8)) read err: read after end of file
Disk \\.\PhysicalDrive2 - 8001 GB / 7452 GiB - CHS 972802 255 63
Check the harddisk size: HD jumpers settings, BIOS detection...
The harddisk (8001 GB / 7452 GiB) seems too small! (< 16 TB / 14 TiB)
The following partition can't be recovered:
HPFS - NTFS 972801 232 39 1945603 177 45 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB

Results
HPFS - NTFS 0 32 33 972801 232 39 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB
HPFS - NTFS 0 65 2 38 127 25 614400
NTFS, blocksize=4096, 314 MB / 300 MiB
HPFS - NTFS 16 113 34 972801 232 39 15627798528
NTFS, blocksize=4096, 8001 GB / 7451 GiB
FAT32 42255 77 20 219795 67 28 2852179479
FAT16 <32M 213761 66 2 222381 222 21 138490148
HPFS - NTFS 234393 112 24 323162 171 17 1426077696
HPFS - NTFS Failed to startup volume: Invalid argument.
Failed to startup volume: Invalid argument.
Failed to startup volume: Invalid argument.
Failed to startup volume: Invalid argument.
Failed to startup volume: Invalid argument.
Failed to startup volume: Invalid argument.
335364 136 60 401800 129 62 1067293902
FAT32 LBA 431692 77 23 483270 52 43 828599016
FAT16 <32M 536242 159 3 802547 230 43 4278194339
FAT32 590276 42 10 679380 178 13 1431464332
HPFS - NTFS 599744 0 22 673256 83 37 1180975525
FAT16 >32M 606432 55 20 645088 59 29 621008902
Not an exFAT boot sector.

HPFS - NTFS 0 32 33 972801 232 39 15628060672
NTFS, blocksize=4096, 8001 GB / 7452 GiB
Can't open filesystem. Filesystem seems damaged.
Not an exFAT boot sector.

HPFS - NTFS 0 65 2 38 127 25 614400
NTFS, blocksize=4096, 314 MB / 300 MiB
Can't open filesystem. Filesystem seems damaged.
Not an exFAT boot sector.

HPFS - NTFS 16 113 34 972801 232 39 15627798528
NTFS, blocksize=4096, 8001 GB / 7451 GiB
Can't open filesystem. Filesystem seems damaged.


dir_partition inode=0
FAT32 42255 77 20 219795 67 28 2852179479
Directory /
177251901 -rwxr-xr-x 0 0 421267302 ‰@£²‹.ÓF§
111280369 -r-xr-xr-x 0 0 177966552 26-Jan-2032 08:23 T$«qb‚R.

264452715 drwxr-xr-x 0 0 941527742 8-Mar-2008 20:34 õ%"0ö‡.‘õ
268370614 -rwxr-xr-x 0 0 1457206406 27-May-1971 00:35 ä Ââìþ´`.~
21498394 dr-xr-xr-x 0 0 4070750330 8-Jan-1998 19:27 ­ÀÂ>J.¬\R
249466385 -rwxr-xr-x 0 0 3307868563 »"Xl„¨*
.tÑå
117728401 drwxr-xr-x 0 0 1414411884 -ApS¦pŠ.°Û
35502681 -rwxr-xr-x 0 0 3350813330 b?Ðg.“Ž(
20846002 -r-xr-xr-x 0 0 2587665886 13-Dec-2030 06:24 ¸¸¢%R]J.Fäm
14615088 -r-xr-xr-x 0 0 668136972 14-Apr-2036 06:02 J;µ¾Õ.‚tö
88759095 dr-xr-xr-x 0 0 2982445212 ¢x~Hàý8„.bØZ
63572174 drwxr-xr-x 0 0 1000136824 É‚<£â.Câ*
256281106 -r-xr-xr-x 0 0 3324894585 20-Jan-2016 07:35 ­…(
t¨/
.Æt®
X240204008 drwxr-xr-x 0 0 1518998331 19-Feb-1992 20:31 _~.tv%m.ü
125619298 dr-xr-xr-x 0 0 1237473622 7-Apr-2025 20:01 l‘OçïÊ.Ç
T
222838310 dr-xr-xr-x 0 0 3247860756 gA3ÿÿÿß}.÷ß}
222708145 drwxr-xr-x 0 0 1367729672 &ŠÄo§˜–¾.ô<
211745703 -rwxr-xr-x 0 0 1457430792 hqtböŒì.Ä|j
60622989 drwxr-xr-x 0 0 2755353476 s#,È¿zÓ.Mô¶
84961220 drwxr-xr-x 0 0 558168902 ç°øYk-.”x”
6811196 drwxr-xr-x 0 0 2443206693 S'œL6Ö.ÎÆO
147923523 drwxr-xr-x 0 0 591816218 5-Feb-2001 06:11 8xÈZÚÚ„ý.§S±
163320582 dr-xr-xr-x 0 0 1858872054 ì%݃>¢.lAŒ
7617056 dr-xr-xr-x 0 0 463813141 u}&:1³Ml.P
®
86976354 dr-xr-xr-x 0 0 1436633852 10-Aug-1998 18:23 î´†_{I.aÞ
254229537 dr-xr-xr-x 0 0 3598439188 Ú–UÑ
î·8.ÃSˆ
131931043 drwxr-xr-x 0 0 4058273012 12-Feb-2031 02:08 ’Ó)(¡Ã?.«à³
118495329 drwxr-xr-x 0 0 2123646672 Û7;7ëV.à
232424071 -r-xr-xr-x 0 0 1959890846 7-Apr-1982 17:54 ác.Éî'
252149087 -r-xr-xr-x 0 0 1385198762 ƒšKÔÎY¦p.Z1¼
170934852 -r-xr-xr-x 0 0 472130754 Í%\i;®ž.Ù¢Ð
242370164 drwxr-xr-x 0 0 322920848 25-Apr-2018 00:17 dÜ#é6 í.„}‰
43099798 -r-xr-xr-x 0 0 3160101029 1-May-1992 00:35 ]%<}=¦™.4
153713994 -rwxr-xr-x 0 0 3175778143 …‹]jf‚œ
198604425 drwxr-xr-x 0 0 1930105309 ·õ´ˆúß.
5
183761684 dr-xr-xr-x 0 0 274365315 14-Apr-2009 10:20 í‚©.”s.¬4Þ
151270968 -rwxr-xr-x 0 0 3348469422 11-Feb-2029 03:30 °g\î1¬Ú.šV£
196618972 dr-xr-xr-x 0 0 3457653835 ^ZpeÇVä.ºÓa
263914151 drwxr-xr-x 0 0 2332955549 4-Jan-2009 23:49 ÇR—øETy.hŽ
154295414 -rwxr-xr-x 0 0 4008650585 1-Jul-1994 14:28 ú u—öþh.òxz
89872319 dr-xr-xr-x 0 0 2313175029 ÿ|§)÷áÿ.ûÅü
61476261 -rwxr-xr-x 0 0 2619839698 é02ûJ•x.#ø<
181199791 drwxr-xr-x 0 0 1571221001 tñð§÷œÄ.õ(Á
45175750 dr-xr-xr-x 0 0 324422702 8-Jan-2003 06:35 ²?Mǧ.DTX
213209889 -rwxr-xr-x 0 0 1391442536 9eÁÞØ£¼.ln|
136535577 drwxr-xr-x 0 0 2474539445 20-Oct-2019 06:03 Ðð¿„ï…_
. ‚œ
44949709 drwxr-xr-x 0 0 2976285391  'Ñ/g.m6®
87967731 -rwxr-xr-x 0 0 2390490193 25-Jun-2008 05:06 +~-—¶._ß
263943178 dr-xr-xr-x 0 0 2640492620 …ÖŒXXŽT.i
148040459 -rwxr-xr-x 0 0 3804956789 |Á¸¡’€ŸJ.yÔ
162350046 -rwxr-xr-x 0 0 728552959 9-Mar-2010 13:35 ¦ÃÕI
38630864 dr-xr-xr-x 0 0 3302764103 W”Þ–ð†ê.¾Ž×
73165209 dr-xr-xr-x 0 0 2957167378 rò^fh‡@R.LÂÖ
180520583 dr-xr-xr-x 0 0 3326712588 26-Apr-2007 04:59 +ŸÁC°\”.j|ó
9192617 drwxr-xr-x 0 0 694184025 12-Jan-1985 00:48 Ó9†‘°b—.B
63960981 dr-xr-xr-x 0 0 2854102898 30-Oct-1983 19:54 ÔÎÎläÔ ‡.`í
24014796 -rwxr-xr-x 0 0 1259124370 >Vý@Å+P.¸5
182194415 -rwxr-xr-x 0 0 4067711720 y¡@Sï9̺.†6²
28198497 drwxr-xr-x 0 0 2967187760 {Iõf2ðö´.‚¤ï
155482016 dr-xr-xr-x 0 0 474082831 2-Oct-2006 05:03 •M@W­].8±P
237720484 -rwxr-xr-x 0 0 3066989363 14-Jul-2023 15:50 e¶à+Ø?.aØÒ
134446346 drwxr-xr-x 0 0 3980800451 8-Jan-1995 17:04 ¡
l¢ð§Ì.º+é
12347647 drwxr-xr-x 0 0 1394661726 30-Sep-2035 20:01 }@hG>¤DÍ.Îw:
5362732 drwxr-xr-x 0 0 2753184194 28-Feb-2012 05:01 ¦Î Û.Ɲ
161228450 -r-xr-xr-x 0 0 2761065794 êè!,t S.RýQ
91978532 -r-xr-xr-x 0 0 2879985114 3-Sep-1982 04:00 -;/¿^u.®óê
268431355 -r-xr-xr-x 0 0 2697222653 ·Æ0±‚#òš.ÓÝ
203928442 -r-xr-xr-x 0 0 2469178003 ·&öóW.íd
25275687 -r-xr-xr-x 0 0 848677946 27-Sep-1986 00:32 o[Û»þ'cÍ.^;¶
76300564 dr-xr-xr-x 0 0 2804871125 ß)ÿ;Õ§ò.5Äç
70335833 drwxr-xr-x 0 0 1182015804 ’v¡4Ÿ3x“.»‘{
211822737 drwxr-xr-x 0 0 1310965109 27-Apr-2009 06:17 AéÚ1´†ë.[½
114817878 -r-xr-xr-x 0 0 2977337872 8-Feb-2009 06:28 ·š†®
VL.›x;
32759254 -rwxr-xr-x 0 0 126328538 ÂQñ–éI8.Ôû¤
91219080 dr-xr-xr-x 0 0 1366183718 BP`+Oõ%.ÎhŒ
99397905 -r-xr-xr-x 0 0 3282527305 þ­„{òå^l.½\.
11025379 drwxr-xr-x 0 0 2055024234 涂·û7.¯Væ
234903514 dr-xr-xr-x 0 0 4049587869 30-Sep-2035 23:49 [ª:7Š.ì÷.Šàâ
229992119 -r-xr-xr-x 0 0 1838102581 _ð<¼ï3û7.‹Ë¼
113839470 -r-xr-xr-x 0 0 3106609099 »Ì‘Lˆ%š£.DT(
182377025 -r-xr-xr-x 0 0 499752093 22-May-2022 00:01 Ðë7+hÑ–.©
89911637 dr-xr-xr-x 0 0 2320692704 é£úE]÷¤.Oþ
66887961 -r-xr-xr-x 0 0 3457087718 <ú¢ñ)Qx”.#øF
216573498 -rwxr-xr-x 0 0 726772247 wã´„‰šä¶.K/?
49265703 dr-xr-xr-x 0 0 643036475 K°–óqFEV.X®\
124254108 -r-xr-xr-x 0 0 2134918973 30-Jun-2030 06:43 Ù›GI÷¯™ª.
99460368 dr-xr-xr-x 0 0 3987050269 ª ýMŠÁST.p¹
75167268 dr-xr-xr-x 0 0 2027343112 30-Aug-2024 02:15 A„nø»De@.nÓ£
16712975 dr-xr-xr-x 0 0 2173406271 6-Aug-2031 20:12 hóxÄL²c˜.Ðî
21107574 drwxr-xr-x 0 0 2053495484 8-Jan-2018 13:12 °"è·˜ÐÑž.f''
228686939 dr-xr-xr-x 0 0 3763126228 À.ô|

30830309 -rwxr-xr-x 0 0 1684035853 11-Jan-2034 12:53 ¦ed"O¦×.Ui¾
153347669 drwxr-xr-x 0 0 3464380692 26-Jun-2010 00:49 #F<¬Ã½ûÿ.t¹P
246794554 -rwxr-xr-x 0 0 446352550 1-Sep-2018 15:40 ¶:‹^ÑuÛ~.¦·h
234837476 drwxr-xr-x 0 0 724731046 20-Feb-1983 11:29
D!œÕ.™^›
8909017 dr-xr-xr-x 0 0 1732143955 17-Apr-1970 23:43 ª¿+Ñæ~.ÿDo
152353148 dr-xr-xr-x 0 0 513524118 Rù7ÿÿ;(÷.UßQ
112847849 -rwxr-xr-x 0 0 3130273637 ÞU
224888746 -r-xr-xr-x 0 0 938825085 çç˜ÞQ£Û.
265001769 drwxr-xr-x 0 0 637876856 17-Aug-1971 21:05 Äɣρï(·.ñVŽ
263434298 dr-xr-xr-x 0 0 968908237 29-Jan-1981 22:55 uWÇŠD„åÔ.»¿
156574698 -r-xr-xr-x 0 0 2189136881 2-Jan-2017 04:58 tw³“øÎ.+„}
50274867 -r-xr-xr-x 0 0 2445361934 ’£££££££.£££
171588154 drwxr-xr-x 0 0 2722052666 26-Jan-2009 07:17 ®9RÊu¡•.ìŒ
267686236 -r-xr-xr-x 0 0 2538374276 2-Sep-2029 15:03 „ôÈP
ò&.ïO
19688457 -r-xr-xr-x 0 0 815826121 c*~TÇ%a.
169856813 -r-xr-xr-x 0 0 473170957 `$[P†4H.o££
266968140 dr-xr-xr-x 0 0 3785906225 17-Apr-2004 09:01 ££äŒW¥“.i
15851009 -r-xr-xr-x 0 0 209324539 9-Mar-2023 16:48 !€°¡€Ïÿ.ý-ÿ
83124017 drwxr-xr-x 0 0 1545861543 4ttttt.ttt
235060017 -rwxr-xr-x 0 0 471992437 ”Ó¦GG§G.§§*
226635688 dr-xr-xr-x 0 0 2393276181 5-May-2026 20:08 ŽŽŽŽ „°.µø
220280984 -r-xr-xr-x 0 0 203111316 i8ZxØ:.||
215942243 -r-xr-xr-x 0 0 3035254768 1-Dec-2036 17:00 ˜:€ðq‚f.('
236949898 -rwxr-xr-x 0 0 898252979 12-Aug-2013 04:24 8ððF .ƒÚ
157791745 drwxr-xr-x 0 0 177094248 1-Jan-1980 00:00 00dc
193938171 drwxr-xr-x 0 0 1476781316 ̈ž¶u`…Ë.nQê
55788214 dr-xr-xr-x 0 0 781463572 20-Dec-2000 06:52 BE–Þªe.`ò€
239372688 -r-xr-xr-x 0 0 2275428930 ®Põ^ðþxz._e€
138715221 -r-xr-xr-x 0 0 227603589 16-Sep-1990 19:03 õ@âÿ•±.Kü¦
149770656 -rwxr-xr-x 0 0 540695275 ²{°Z.ØŠm
236371021 drwxr-xr-x 0 0 1771401969 7<©®µ) ±.!"P
37552047 -r-xr-xr-x 0 0 2111830013 4-Jan-2028 05:25 î¹@ÎN¶x.
w¿
57653868 -rwxr-xr-x 0 0 1755666950 ¢÷™ØÎÆy–.›hê
124413882 -rwxr-xr-x 0 0 3420709221 öÇ(†-<ÒD.Y6
27681950 -r-xr-xr-x 0 0 252578865 21-Sep-2005 07:31 ¡‰°XÄÄŒL.ç™Ø
53637992 -r-xr-xr-x 0 0 1897062660 19-Jul-2014 18:01 »Ä!Ž™y˜C.™
100370536 drwxr-xr-x 0 0 3736297505 7-Feb-1990 04:14 Äe`RŒ3ÿ.ëÝ_
165951730 -r-xr-xr-x 0 0 1659782330 31-Mar-2023 04:31 ¶ÂÖàÌgÞ.¯
80520244 dr-xr-xr-x 0 0 713174860 13-Apr-1982 20:46 ÷ª.~’C
34181656 dr-xr-xr-x 0 0 1279974541 25-Apr-2002 02:54 Dlµ¶$o.œg
85348546 -r-xr-xr-x 0 0 1523623010 20-May-2021 03:34  ¨-x0<äM.Þ¢
227271541 -rwxr-xr-x 0 0 2669002531 M28&§©º.–ˆD
118465748 -r-xr-xr-x 0 0 4227090388 5-Feb-2031 06:02 {Æ#±©ñ‹.4œe
266229907 drwxr-xr-x 0 0 662781225 ûïûP¿¨½ê.ûïW
202617513 -rwxr-xr-x 0 0 1645717760 3-Apr-2015 18:26 غ€VÕ>.´ï
123619812 drwxr-xr-x 0 0 826393060 ë4”T|Dô.hþ
222336636 drwxr-xr-x 0 0 2384737328 5-Jun-1985 19:01 :Ù#t>Ó.V¹U
151437210 -rwxr-xr-x 0 0 453897250 z”þ6MG84.b”ã
103955658 -rwxr-xr-x 0 0 3278996475 31-Jan-2034 07:34 )ŒÛy:N.°e
105951713 drwxr-xr-x 0 0 2492625296 11-Jun-2028 20:00 ™ßJÓiwÐ.2—”
197220561 dr-xr-xr-x 0 0 1227867740 ;)Ÿ¹.½d¤
186710029 -rwxr-xr-x 0 0 1280443700 6-Nov-2008 01:01 GÙ‚öÖœ`.t+
193030445 -r-xr-xr-x 0 0 354899886 26-Jun-2022 15:54 ˆ74îŒõ".4H/
132730725 dr-xr-xr-x 0 0 3197310798 Âzåå‹¢p.ÁZ~
268118556 dr-xr-xr-x 0 0 3690610275 1-Aug-2025 06:30 R¿E«ó›.êín
77129580 -r-xr-xr-x 0 0 2006157278 18-Jan-1981 11:27 ÉÒQ˜©è§.{Ò’
138458531 -r-xr-xr-x 0 0 1096439360 9-Jan-2016 02:57 PòóGKÂWß.WN›
112425478 dr-xr-xr-x Failed to startup volume: Invalid argument.
Failed to startup volume: Invalid argument.
Failed to startup volume: Invalid argument.
0 0 3468919433 16-May-2003 01:21 ÜD7!}&!.¡ë
28708312 drwxr-xr-x 0 0 3652639159 UL,MK´.S Þ
191431554 dr-xr-xr-x 0 0 3275852944 15-Apr-2026 05:58 Û²ñ7^.¶#
76677658 -rwxr-xr-x 0 0 3544246032 23-Sep-2009 04:30 KÒøëGò·.Ö“2
86468526 dr-xr-xr-x 0 0 3400268479 1-Mar-2022 02:11 0¾äè‹;>.üàé
64869407 dr-xr-xr-x 0 0 2768289744 ë|P;ÑûeØ.Üg
117313309 -rwxr-xr-x 0 0 2113743531 29-Jul-1970 17:30 êŠ@â
±ñ.îê½
58503362 dr-xr-xr-x 0 0 3566514938 sÖÁË.ôøÏ. 

162036702 dr-xr-xr-x 0 0 2120472521 v%Å”2›.êf—
266129428 drwxr-xr-x 0 0 3259136595 10-Jul-2015 05:27 ¿ Mì‰Ç.'m
94569842 drwxr-xr-x 0 0 253649282 ‘-¥-³eô.gÁê
156693644 drwxr-xr-x 0 0 2637438724 gGã¤Ñ7"T.ÍìM
86083229 drwxr-xr-x 0 0 1116217027 15-Apr-2032 16:46 ±Çý•S-}f.ru
226434714 -rwxr-xr-x 0 0 296722612 oÒóVlpÜõ.þÞ
37007789 drwxr-xr-x 0 0 2662858012 è€Ìí¸²†ó.´òé
208588593 dr-xr-xr-x 0 0 2392203694 ˆì@bV„1j.ÌbÆ


dir_partition inode=0
FAT16 <32M 213761 66 2 222381 222 21 138490148
Directory /
106578112 drwxr-xr-x 0 0 3237744629 ‘ýÀÉbhZU.UTS
140116096 -rwxr-xr-x 0 0 1 ¿üÏ
kRý.óòó
Not an exFAT boot sector.

HPFS - NTFS 234393 112 24 323162 171 17 1426077696
Can't open filesystem. Filesystem seems damaged.
Not an exFAT boot sector.

HPFS - NTFS 335364 136 60 401800 129 62 1067293902
Can't open filesystem. Filesystem seems damaged.


dir_partition inode=0
FAT32 LBA 431692 77 23 483270 52 43 828599016
Directory /


dir_partition inode=0
FAT16 <32M 536242 159 3 802547 230 43 4278194339
FAT: Can't list files, bad cluster size.
Directory /


dir_partition inode=0
FAT32 590276 42 10 679380 178 13 1431464332
FAT: Can't list files, bad cluster size.
Directory /
Not an exFAT boot sector.

HPFS - NTFS 599744 0 22 673256 83 37 1180975525
Can't open filesystem. Filesystem seems damaged.


dir_partition inode=0
FAT32 42255 77 20 219795 67 28 2852179479
Directory /
177251901 -rwxr-xr-x 0 0 421267302 ‰@£²‹.ÓF§
111280369 -r-xr-xr-x 0 0 177966552 26-Jan-2032 08:23 T$«qb‚R.

264452715 drwxr-xr-x 0 0 941527742 8-Mar-2008 20:34 õ%"0ö‡.‘õ
268370614 -rwxr-xr-x 0 0 1457206406 27-May-1971 00:35 ä Ââìþ´`.~
21498394 dr-xr-xr-x 0 0 4070750330 8-Jan-1998 19:27 ­ÀÂ>J.¬\R
249466385 -rwxr-xr-x 0 0 3307868563 »"Xl„¨*
.tÑå
117728401 drwxr-xr-x 0 0 1414411884 -ApS¦pŠ.°Û
35502681 -rwxr-xr-x 0 0 3350813330 b?Ðg.“Ž(
20846002 -r-xr-xr-x 0 0 2587665886 13-Dec-2030 06:24 ¸¸¢%R]J.Fäm
14615088 -r-xr-xr-x 0 0 668136972 14-Apr-2036 06:02 J;µ¾Õ.‚tö
88759095 dr-xr-xr-x 0 0 2982445212 ¢x~Hàý8„.bØZ
63572174 drwxr-xr-x 0 0 1000136824 É‚<£â.Câ*
256281106 -r-xr-xr-x 0 0 3324894585 20-Jan-2016 07:35 ­…(
t¨/
.Æt®
X240204008 drwxr-xr-x 0 0 1518998331 19-Feb-1992 20:31 _~.tv%m.ü
125619298 dr-xr-xr-x 0 0 1237473622 7-Apr-2025 20:01 l‘OçïÊ.Ç
T
222838310 dr-xr-xr-x 0 0 3247860756 gA3ÿÿÿß}.÷ß}
222708145 drwxr-xr-x 0 0 1367729672 &ŠÄo§˜–¾.ô<
211745703 -rwxr-xr-x 0 0 1457430792 hqtböŒì.Ä|j
60622989 drwxr-xr-x 0 0 2755353476 s#,È¿zÓ.Mô¶
84961220 drwxr-xr-x 0 0 558168902 ç°øYk-.”x”
6811196 drwxr-xr-x 0 0 2443206693 S'œL6Ö.ÎÆO
147923523 drwxr-xr-x 0 0 591816218 5-Feb-2001 06:11 8xÈZÚÚ„ý.§S±
163320582 dr-xr-xr-x 0 0 1858872054 ì%݃>¢.lAŒ
7617056 dr-xr-xr-x 0 0 463813141 u}&:1³Ml.P
®
86976354 dr-xr-xr-x 0 0 1436633852 10-Aug-1998 18:23 î´†_{I.aÞ
254229537 dr-xr-xr-x 0 0 3598439188 Ú–UÑ
î·8.ÃSˆ
131931043 drwxr-xr-x 0 0 4058273012 12-Feb-2031 02:08 ’Ó)(¡Ã?.«à³
118495329 drwxr-xr-x 0 0 2123646672 Û7;7ëV.à
232424071 -r-xr-xr-x 0 0 1959890846 7-Apr-1982 17:54 ác.Éî'
252149087 -r-xr-xr-x 0 0 1385198762 ƒšKÔÎY¦p.Z1¼
170934852 -r-xr-xr-x 0 0 472130754 Í%\i;®ž.Ù¢Ð
242370164 drwxr-xr-x 0 0 322920848 25-Apr-2018 00:17 dÜ#é6 í.„}‰
43099798 -r-xr-xr-x 0 0 3160101029 1-May-1992 00:35 ]%<}=¦™.4
153713994 -rwxr-xr-x 0 0 3175778143 …‹]jf‚œ
198604425 drwxr-xr-x 0 0 1930105309 ·õ´ˆúß.
5
183761684 dr-xr-xr-x 0 0 274365315 14-Apr-2009 10:20 í‚©.”s.¬4Þ
151270968 -rwxr-xr-x 0 0 3348469422 11-Feb-2029 03:30 °g\î1¬Ú.šV£
196618972 dr-xr-xr-x 0 0 3457653835 ^ZpeÇVä.ºÓa
263914151 drwxr-xr-x 0 0 2332955549 4-Jan-2009 23:49 ÇR—øETy.hŽ
154295414 -rwxr-xr-x 0 0 4008650585 1-Jul-1994 14:28 ú u—öþh.òxz
89872319 dr-xr-xr-x 0 0 2313175029 ÿ|§)÷áÿ.ûÅü
61476261 -rwxr-xr-x 0 0 2619839698 é02ûJ•x.#ø<
181199791 drwxr-xr-x 0 0 1571221001 tñð§÷œÄ.õ(Á
45175750 dr-xr-xr-x 0 0 324422702 8-Jan-2003 06:35 ²?Mǧ.DTX
213209889 -rwxr-xr-x 0 0 1391442536 9eÁÞØ£¼.ln|
136535577 drwxr-xr-x 0 0 2474539445 20-Oct-2019 06:03 Ðð¿„ï…_
. ‚œ
44949709 drwxr-xr-x 0 0 2976285391  'Ñ/g.m6®
87967731 -rwxr-xr-x 0 0 2390490193 25-Jun-2008 05:06 +~-—¶._ß
263943178 dr-xr-xr-x 0 0 2640492620 …ÖŒXXŽT.i
148040459 -rwxr-xr-x 0 0 3804956789 |Á¸¡’€ŸJ.yÔ
162350046 -rwxr-xr-x 0 0 728552959 9-Mar-2010 13:35 ¦ÃÕI
38630864 dr-xr-xr-x 0 0 3302764103 W”Þ–ð†ê.¾Ž×
73165209 dr-xr-xr-x 0 0 2957167378 rò^fh‡@R.LÂÖ
180520583 dr-xr-xr-x 0 0 3326712588 26-Apr-2007 04:59 +ŸÁC°\”.j|ó
9192617 drwxr-xr-x 0 0 694184025 12-Jan-1985 00:48 Ó9†‘°b—.B
63960981 dr-xr-xr-x 0 0 2854102898 30-Oct-1983 19:54 ÔÎÎläÔ ‡.`í
24014796 -rwxr-xr-x 0 0 1259124370 >Vý@Å+P.¸5
182194415 -rwxr-xr-x 0 0 4067711720 y¡@Sï9̺.†6²
28198497 drwxr-xr-x 0 0 2967187760 {Iõf2ðö´.‚¤ï
155482016 dr-xr-xr-x 0 0 474082831 2-Oct-2006 05:03 •M@W­].8±P
237720484 -rwxr-xr-x 0 0 3066989363 14-Jul-2023 15:50 e¶à+Ø?.aØÒ
134446346 drwxr-xr-x 0 0 3980800451 8-Jan-1995 17:04 ¡
l¢ð§Ì.º+é
12347647 drwxr-xr-x 0 0 1394661726 30-Sep-2035 20:01 }@hG>¤DÍ.Îw:
5362732 drwxr-xr-x 0 0 2753184194 28-Feb-2012 05:01 ¦Î Û.Ɲ
161228450 -r-xr-xr-x 0 0 2761065794 êè!,t S.RýQ
91978532 -r-xr-xr-x 0 0 2879985114 3-Sep-1982 04:00 -;/¿^u.®óê
268431355 -r-xr-xr-x 0 0 2697222653 ·Æ0±‚#òš.ÓÝ
203928442 -r-xr-xr-x 0 0 2469178003 ·&öóW.íd
25275687 -r-xr-xr-x 0 0 848677946 27-Sep-1986 00:32 o[Û»þ'cÍ.^;¶
76300564 dr-xr-xr-x 0 0 2804871125 ß)ÿ;Õ§ò.5Äç
70335833 drwxr-xr-x 0 0 1182015804 ’v¡4Ÿ3x“.»‘{
211822737 drwxr-xr-x 0 0 1310965109 27-Apr-2009 06:17 AéÚ1´†ë.[½
114817878 -r-xr-xr-x 0 0 2977337872 8-Feb-2009 06:28 ·š†®
VL.›x;
32759254 -rwxr-xr-x 0 0 126328538 ÂQñ–éI8.Ôû¤
91219080 dr-xr-xr-x 0 0 1366183718 BP`+Oõ%.ÎhŒ
99397905 -r-xr-xr-x 0 0 3282527305 þ­„{òå^l.½\.
11025379 drwxr-xr-x 0 0 2055024234 涂·û7.¯Væ
234903514 dr-xr-xr-x 0 0 4049587869 30-Sep-2035 23:49 [ª:7Š.ì÷.Šàâ
229992119 -r-xr-xr-x 0 0 1838102581 _ð<¼ï3û7.‹Ë¼
113839470 -r-xr-xr-x 0 0 3106609099 »Ì‘Lˆ%š£.DT(
182377025 -r-xr-xr-x 0 0 499752093 22-May-2022 00:01 Ðë7+hÑ–.©
89911637 dr-xr-xr-x 0 0 2320692704 é£úE]÷¤.Oþ
66887961 -r-xr-xr-x 0 0 3457087718 <ú¢ñ)Qx”.#øF
216573498 -rwxr-xr-x 0 0 726772247 wã´„‰šä¶.K/?
49265703 dr-xr-xr-x 0 0 643036475 K°–óqFEV.X®\
124254108 -r-xr-xr-x 0 0 2134918973 30-Jun-2030 06:43 Ù›GI÷¯™ª.
99460368 dr-xr-xr-x 0 0 3987050269 ª ýMŠÁST.p¹
75167268 dr-xr-xr-x 0 0 2027343112 30-Aug-2024 02:15 A„nø»De@.nÓ£
16712975 dr-xr-xr-x 0 0 2173406271 6-Aug-2031 20:12 hóxÄL²c˜.Ðî
21107574 drwxr-xr-x 0 0 2053495484 8-Jan-2018 13:12 °"è·˜ÐÑž.f''
228686939 dr-xr-xr-x 0 0 3763126228 À.ô|

30830309 -rwxr-xr-x 0 0 1684035853 11-Jan-2034 12:53 ¦ed"O¦×.Ui¾
153347669 drwxr-xr-x 0 0 3464380692 26-Jun-2010 00:49 #F<¬Ã½ûÿ.t¹P
246794554 -rwxr-xr-x 0 0 446352550 1-Sep-2018 15:40 ¶:‹^ÑuÛ~.¦·h
234837476 drwxr-xr-x 0 0 724731046 20-Feb-1983 11:29
D!œÕ.™^›
8909017 dr-xr-xr-x 0 0 1732143955 17-Apr-1970 23:43 ª¿+Ñæ~.ÿDo
152353148 dr-xr-xr-x 0 0 513524118 Rù7ÿÿ;(÷.UßQ
112847849 -rwxr-xr-x 0 0 3130273637 ÞU
224888746 -r-xr-xr-x 0 0 938825085 çç˜ÞQ£Û.
265001769 drwxr-xr-x 0 0 637876856 17-Aug-1971 21:05 Äɣρï(·.ñVŽ
263434298 dr-xr-xr-x 0 0 968908237 29-Jan-1981 22:55 uWÇŠD„åÔ.»¿
156574698 -r-xr-xr-x 0 0 2189136881 2-Jan-2017 04:58 tw³“øÎ.+„}
50274867 -r-xr-xr-x 0 0 2445361934 ’£££££££.£££
171588154 drwxr-xr-x 0 0 2722052666 26-Jan-2009 07:17 ®9RÊu¡•.ìŒ
267686236 -r-xr-xr-x 0 0 2538374276 2-Sep-2029 15:03 „ôÈP
ò&.ïO
19688457 -r-xr-xr-x 0 0 815826121 c*~TÇ%a.
169856813 -r-xr-xr-x 0 0 473170957 `$[P†4H.o££
266968140 dr-xr-xr-x 0 0 3785906225 17-Apr-2004 09:01 ££äŒW¥“.i
15851009 -r-xr-xr-x 0 0 209324539 9-Mar-2023 16:48 !€°¡€Ïÿ.ý-ÿ
83124017 drwxr-xr-x 0 0 1545861543 4ttttt.ttt
235060017 -rwxr-xr-x 0 0 471992437 ”Ó¦GG§G.§§*
226635688 dr-xr-xr-x 0 0 2393276181 5-May-2026 20:08 ŽŽŽŽ „°.µø
220280984 -r-xr-xr-x 0 0 203111316 i8ZxØ:.||
215942243 -r-xr-xr-x 0 0 3035254768 1-Dec-2036 17:00 ˜:€ðq‚f.('
236949898 -rwxr-xr-x 0 0 898252979 12-Aug-2013 04:24 8ððF .ƒÚ
157791745 drwxr-xr-x 0 0 177094248 1-Jan-1980 00:00 00dc
193938171 drwxr-xr-x 0 0 1476781316 ̈ž¶u`…Ë.nQê
55788214 dr-xr-xr-x 0 0 781463572 20-Dec-2000 06:52 BE–Þªe.`ò€
239372688 -r-xr-xr-x 0 0 2275428930 ®Põ^ðþxz._e€
138715221 -r-xr-xr-x 0 0 227603589 16-Sep-1990 19:03 õ@âÿ•±.Kü¦
149770656 -rwxr-xr-x 0 0 540695275 ²{°Z.ØŠm
236371021 drwxr-xr-x 0 0 1771401969 7<©®µ) ±.!"P
37552047 -r-xr-xr-x 0 0 2111830013 4-Jan-2028 05:25 î¹@ÎN¶x.
w¿
57653868 -rwxr-xr-x 0 0 1755666950 ¢÷™ØÎÆy–.›hê
124413882 -rwxr-xr-x 0 0 3420709221 öÇ(†-<ÒD.Y6
27681950 -r-xr-xr-x 0 0 252578865 21-Sep-2005 07:31 ¡‰°XÄÄŒL.ç™Ø
53637992 -r-xr-xr-x 0 0 1897062660 19-Jul-2014 18:01 »Ä!Ž™y˜C.™
100370536 drwxr-xr-x 0 0 3736297505 7-Feb-1990 04:14 Äe`RŒ3ÿ.ëÝ_
165951730 -r-xr-xr-x 0 0 1659782330 31-Mar-2023 04:31 ¶ÂÖàÌgÞ.¯
80520244 dr-xr-xr-x 0 0 713174860 13-Apr-1982 20:46 ÷ª.~’C
34181656 dr-xr-xr-x 0 0 1279974541 25-Apr-2002 02:54 Dlµ¶$o

aaronjamescrawford
Posts: 6
Joined: 18 Oct 2016, 22:54

Re: Raid 0 lost after MB Bios Update -Need help as made mistakes

#7 Post by aaronjamescrawford » 20 Oct 2016, 04:42

Please note the above is all using Intel as the option, should I of chosen GPT as the option? The raid 0 is two 4tb drives using intel raid array (hardware) on my motherboard, and in windows it was a single partition Z: drive with lots of files.

Here is the screenshot for the above log of what I can see after deep scan:

User avatar
cgrenier
Site Admin
Posts: 3691
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Raid 0 lost after MB Bios Update -Need help as made mistakes

#8 Post by cgrenier » 22 Oct 2016, 10:39

The correct partition table type is EFI GPT.
There is a single NTFS partition using the whole Raid,there is no need to search for partitons.
The NTFS filesystem is corrupted. Try TestDisk, Advanced, Boot, RepairMFT.
If it doesn't work, you can use PhotoRec but sorting 8TB of files with generic names will be very long, https://www.cgsecurity.org/testdisk.pdf lists some methods.

Post Reply

Who is online

Users browsing this forum: No registered users and 3 guests
