External USB drive not showing in TestDisk

#1 Post by Marlonso »

Hi guys,

my external USB drive went RAW the other day and I tried running TestDisk to see what can be salvaged. TestDisk, however, does not detect the drive, whereas it shows up as RAW in Windows disk management. (See Screenshots below)

I'd greatly appreciate any help you could offer in recovering the drive or any data on it. If there's any further information you need, please let me know! Also apologies if this question has been answered before. I tried navigating through the forum but couldn't find anything that specifically relates to my case.

Here are some further notes:
  • The drive was disconnected from my Windows PC (Win7 64Bit) while it was in hibernation, and thereby not safely unplugged. (I know... :roll: )
  • All other drives are listed correctly (see screenshots) even my other external USB drive "Guerillero" (disk E).
  • I've tried running TestDisk from my work laptop (Win 8.1) as well, but the drive was also not detected.
  • Windows offers me the possibility to safely unplug the device.
  • I've read about connecting the drive directly to the mainboard by SATA, but I'm anxious to pry open the casing as there are no screws to remove it safely.

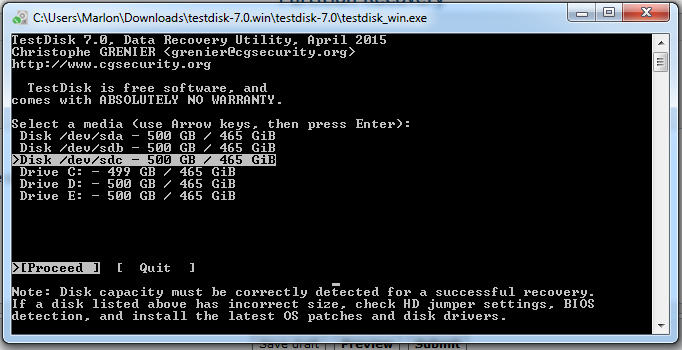

TestDisk drive listing
TestDisk drive listing
Disk Management drive listing
Disk Management drive listing

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 5307
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: External USB drive not showing in TestDisk

#2 Post by cgrenier »

Windows Device Manager lists a disk but is unable to list its capacity.
It's probably a hardware/electronic problem. You should contact a data recovery company.
