3Tb MFT repair and data lost after rebuild boot sector

[minanapil13]

i have data in this HDD but partition cannot open in win 7 64x when i merge the two partition by miniTool partition wizard
1- is 2tb
2- is 794 gb

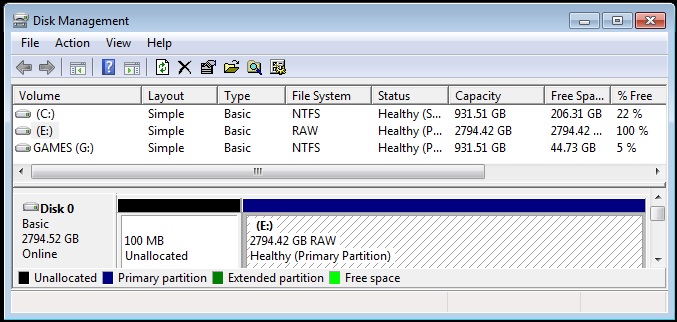

when its finished the data was merge perfectly in the HDD but its till me Windows prompts "You need to format the disk in drive E: before you can use it. Do you want to format it .
then The volume does not contain a recognized file system. Please make sure that all required file system drivers are loaded and that the volume is not corrupted.

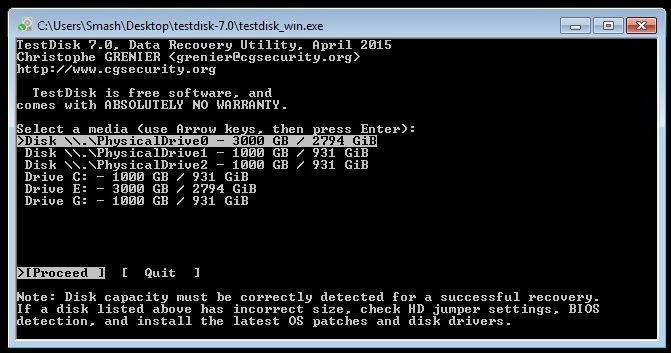

so i opened test disk to recover MFT by this steps
and i made rebuild BS
then the 2nd partiton data lost
plz help i`m freaking out years of working it will disappear
i appreciate your support
and plz step by step guide to recover data and make my partition work again

[cgrenier]

What is the result if you run "cmd" (right click "run as administrator") and "chkdsk /f e:" ?
If it doesn't work, it's always possible to use PhotoRec but it will not recover the original filenames of your lost files.

[minanapil13]

i can recover some of it ( the first one partition data ) but i need the other one in there folder is that possible ?

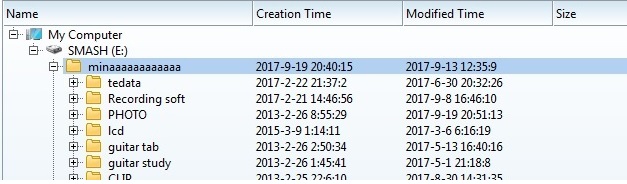

or how to fix this partition with the data that it showed me in minitool ( minaaaaaaa) folder and i can forget about the other one data

MFT and its mirror are perfectly matched win i finished the rebuilding boot sector

[minanapil13]

continue attachment result for first Message

[minanapil13]

continue attachment result for first Message

[minanapil13]

continue attachment result for first Message

[cgrenier]

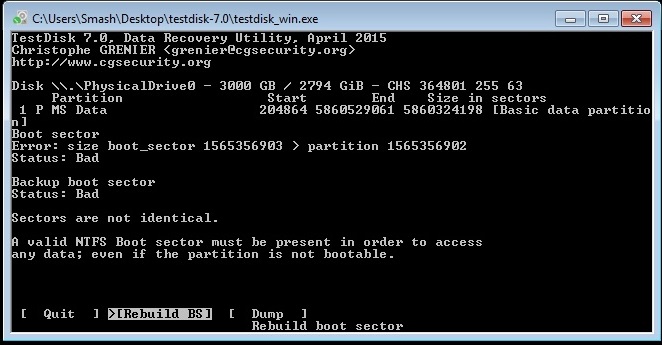

The boot sector is damaged. Can you try TestDisk, Advanced, Boot, List ?
If it works, choose BackupBS and confirm.
If it doesn't, try RebuildBS, List, choos Write and confirm if you can see your files.

[minanapil13]

RebuildBS when i did it before it erased the data in the second partiton i don't want take any risk
for my other data

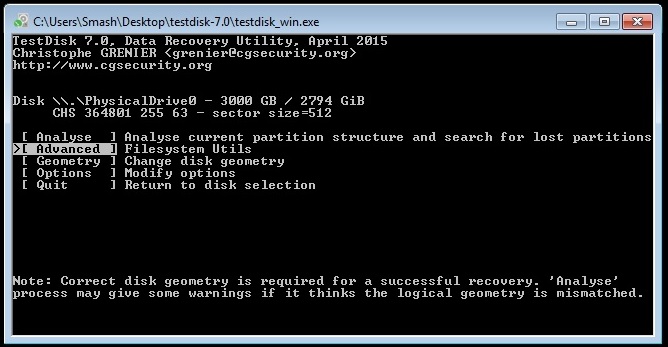

1-TestDisk, Advanced
2-boot is bad
3- List i have my files already in my drive minaaaaaa folder
4- BackupBS not shown to me before i did RebuildBS

[minanapil13]

if i did RebuildBS my data will be erased or deleted ?
because it did it before
