Seagate Drive failed in Synology NAS - ext4 Filesystem corrupt?

Using TestDisk to repair the filesystem
Post Reply
Message
Author
craptec
Posts: 1
Joined: 27 Jan 2018, 11:57

Seagate Drive failed in Synology NAS - ext4 Filesystem corrupt?

#1 Post by craptec » 27 Jan 2018, 12:35

Hello everybody!
I have a drive (Seagate Barracuda ES.2, 750GB, ST3750330NS) which does not mount in my mother's NAS (Synology DS212j with DSM6.x) anymore. I think it might have failed because of power loss while writing data.
From what I know it should be ext4 file system (because I chose what Synology was recommending). The drive still spins up and is recognised in windows when connected directly via SATA or SATA-USB-adaptor. It seems to be kinda okay because its not completely raw or something. I attached a screenshot of windows' Disc Management.

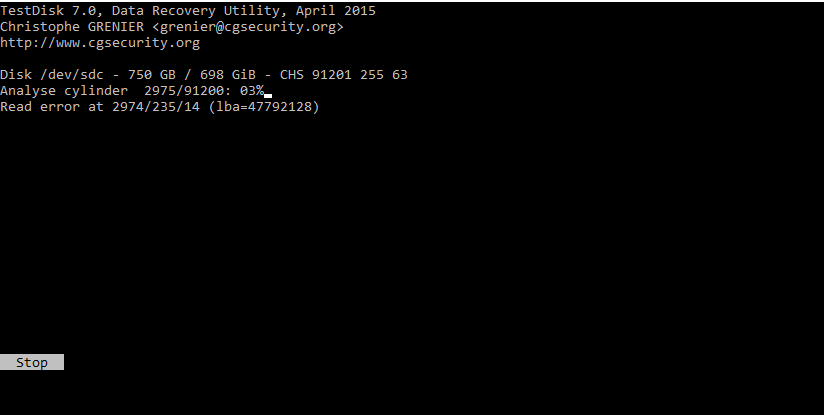

Unfortunately TestDisk does not recognise any partitions on this drive, although it recognises the correct capacity (/dev/sdc - 750 GB / 698 GiB - CHS 91201 255 63, sector size=512). When promted I choose "intel" for partition style and choose analyse afterwards. But except from read errors (see below) for every block nothing happens.

Code: Select all

Partition table type default to Intel
Disk /dev/sdc - 750 GB / 698 GiB
Partition table type: Intel

Analyse Disk /dev/sdc - 750 GB / 698 GiB - CHS 91201 255 63
Current partition structure:

Partition: Read error
Does anybody have an Idea what I can try or where I do something wrong?

Cheers
Max

Sponsored links

User avatar
cgrenier
Site Admin
Posts: 4003
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Seagate Drive failed in Synology NAS - ext4 Filesystem corrupt?

#2 Post by cgrenier » 28 Jan 2018, 11:23

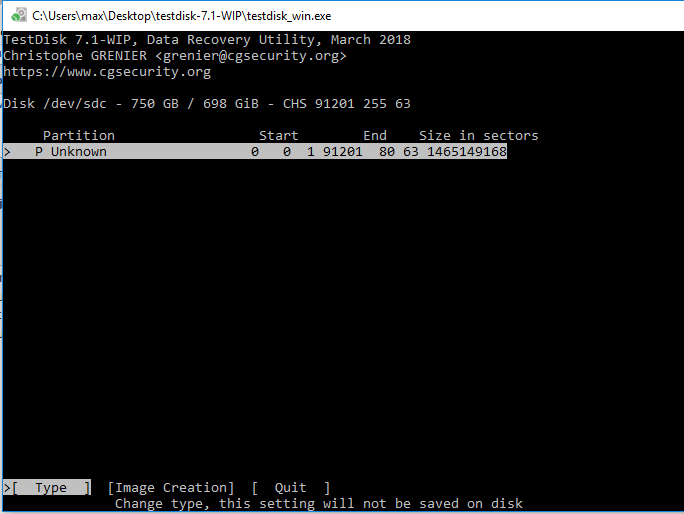

Windows has been able to list the partitions, so testdisk should be able to.
Have you started testdisk from an administrator account ?
