Help restore partition / home ext4

How to use TestDisk to recover lost partition
Forum rules
When asking for technical support:
- Search for posts on the same topic before posting a new question.
- Give clear, specific information in the title of your post.
- Include as many details as you can, MOST POSTS WILL GET ONLY ONE OR TWO ANSWERS.
- Post a follow up with a "Thank you" or "This worked!"
- When you learn something, use that knowledge to HELP ANOTHER USER LATER.
Before posting, please read https://www.cgsecurity.org/testdisk.pdf
Locked
Message
Author
ssquma
Posts: 2
Joined: 28 Jun 2013, 00:27

recover partition /home ext4

#1 Post by ssquma »

That such.
My problem is this, try to do a clean install of Fedora 18 on my laptop, previously had Fedora 14, to reach the section where the hard drive is partitioned did as follows.

/ Home 372.79 GB
/ Boot 200 MB
/ 23 GB
swap 3.99 GB

but when starting the installation an error happened, and the installation was interrupted. When I tried to restart the installation the / home partition has no file system (previously had EXT4 file), what I did was re-install fedora 14 to use testdisk, but the program throws me the following message:

TestDisk 6.12, Data Recovery Utility, May 2011
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org

Disk / dev / sda - 500 GB / 465 GiB - CHS 60802 255 63

The harddisk (500 GB / 465 GiB) Seems too small! (<667 GB / 621 GiB)
Check the harddisk size: HD jumpers settings, BIOS detection ...

The Following partition can not be recovered:
Partition Start End Size in the industries
> Linux 33613 182 42 8113 8 6 20 763478016




[Continue]
EXT4 Large file Sparse superblock Recover, 390 GB / 364 GiB

When I click continue it takes me to the next screen.

TestDisk 6.12, Data Recovery Utility, May 2011
Christophe GRENIER <grenier@cgsecurity.org>
http://www.cgsecurity.org

Disk / dev / sda - 500 GB / 465 GiB - CHS 60802 255 63
Partition Start End Size in the industries
> * HPFS - NTFS 0 32 33 2088 202 34 3355 4432 [PQSERVICE]
P HPFS - NTFS 2088 202 35 2101 138 21 2048 00 [SYSTEM RESERVED]
P HPFS - NTFS 2101 138 22 9808 254 63 1238 20305 [Acer]
L Linux 9809 93 13 9833 247 14 3952 64
Linux L 57359 108 30 6029 1 130 63 4710 4000
L Linux Swap 60291 163 33 6080 1 79 62 8187888


Structure: Ok. Use Up / Down Arrow keys to select partition.
Use Left / Right Arrow keys to CHANGE partition characteristics:
* = Primary bootable P = Primary L = Logical E = Extended D = Deleted
Keys A: add partition, L: load backup, T: change type, P: list files,
Enter: to continue
NTFS, 17 GB / 16 GiB



What do you recommend I do, I need to retrieve the / home partition of 372.79 GB?
Attachments

Sponsored links

ssquma
Posts: 2
Joined: 28 Jun 2013, 00:27

Help restore partition / home ext4

#2 Post by ssquma »

How about, I hope all are well,.
I have a problem when I was installing my new OS fedora 18 at the time of partition, set as follows / home 372.79 GB, / boot 200MB / 23 GB swap 3.99 GB, was replacing fedora 14. The / home partition to mount it normally.
but when starting the installation process was a bug and was canceled.

when I went to start installing the / home partition was not formatted (it previously had ext4).

Reinstall fedora 14 and used testdisk tool, then the analysis values ​​throws me attached pictures.

Someone could help me to recover my files on the / home partition.

Thank you.
Attachments

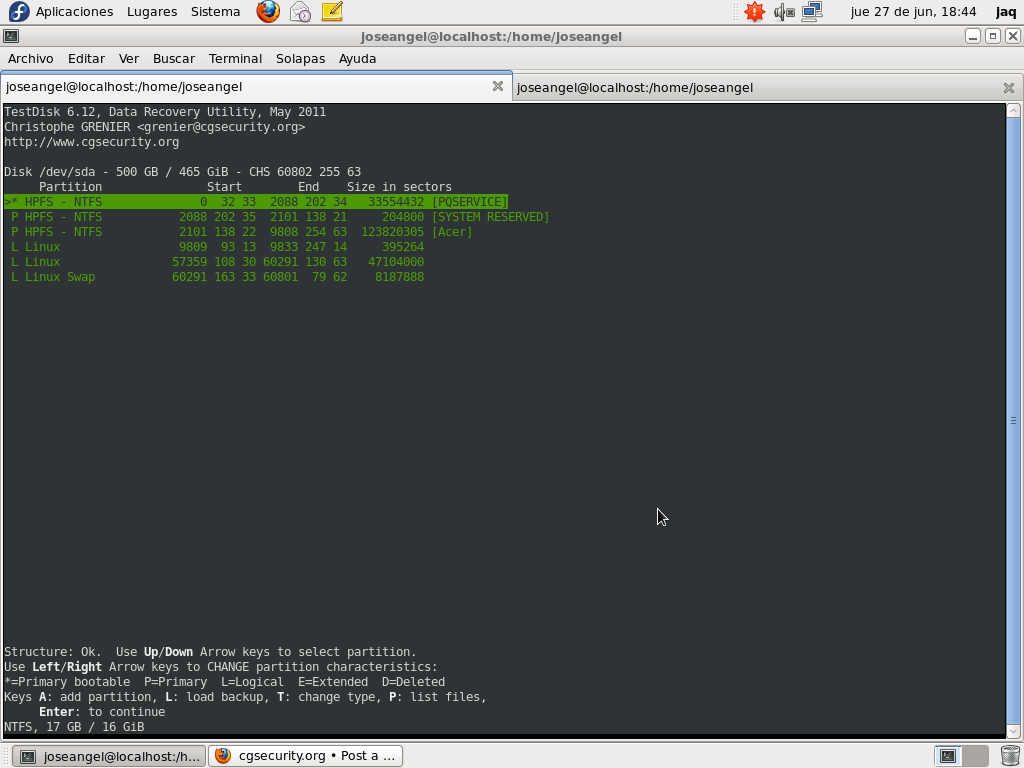

Image where it shows the disk state after the analysis
Image where it shows the disk state after the analysis

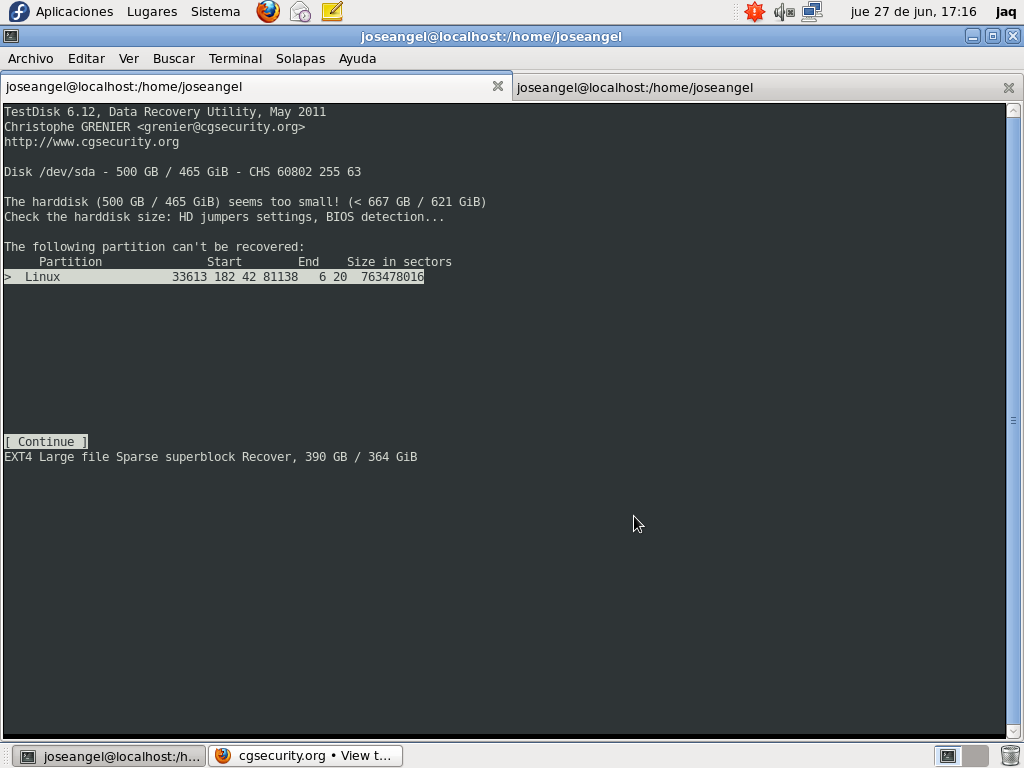

Image showing that you can not recover the partition
Image showing that you can not recover the partition

User avatar
cgrenier
Site Admin
Posts: 5312
Joined: 18 Feb 2012, 15:08
Location: Le Perreux Sur Marne, France
Contact:

Re: Help restore partition / home ext4

#3 Post by cgrenier »

Select the first Linux partition and use 'P' to list its files. Try the same using the second one.
If you see the files from your /home, set this partition as P(rimary) if it isn't already the case and choose to Write the new partition table.
